Grey aluminium two-bay M.2 NVMe enclosure with USB-C cable

MAIWO

MAIWO Dual M.2 NVMe SSD Enclosure 2 Bay RAID Grey

SKU CH-0A7R-W4MNX

Two-bay M.2 NVMe enclosure with USB 3.2 Gen2x2 20Gbps and RAID 0, 1, PM, Large modes

  • ColorGrey
  • MaterialAluminum / Steel
  • External InterfaceM.2 NVME 10GBPS
  • HDD Count SupportedM.2 NVMe SSD
  • Number of Bay2 Bay

Model NVME RAID

  • Two M.2 NVMe SSDs fit inside for up to 8TB total capacity
  • Four RAID modes including RAID 0 and RAID 1 for speed or redundancy

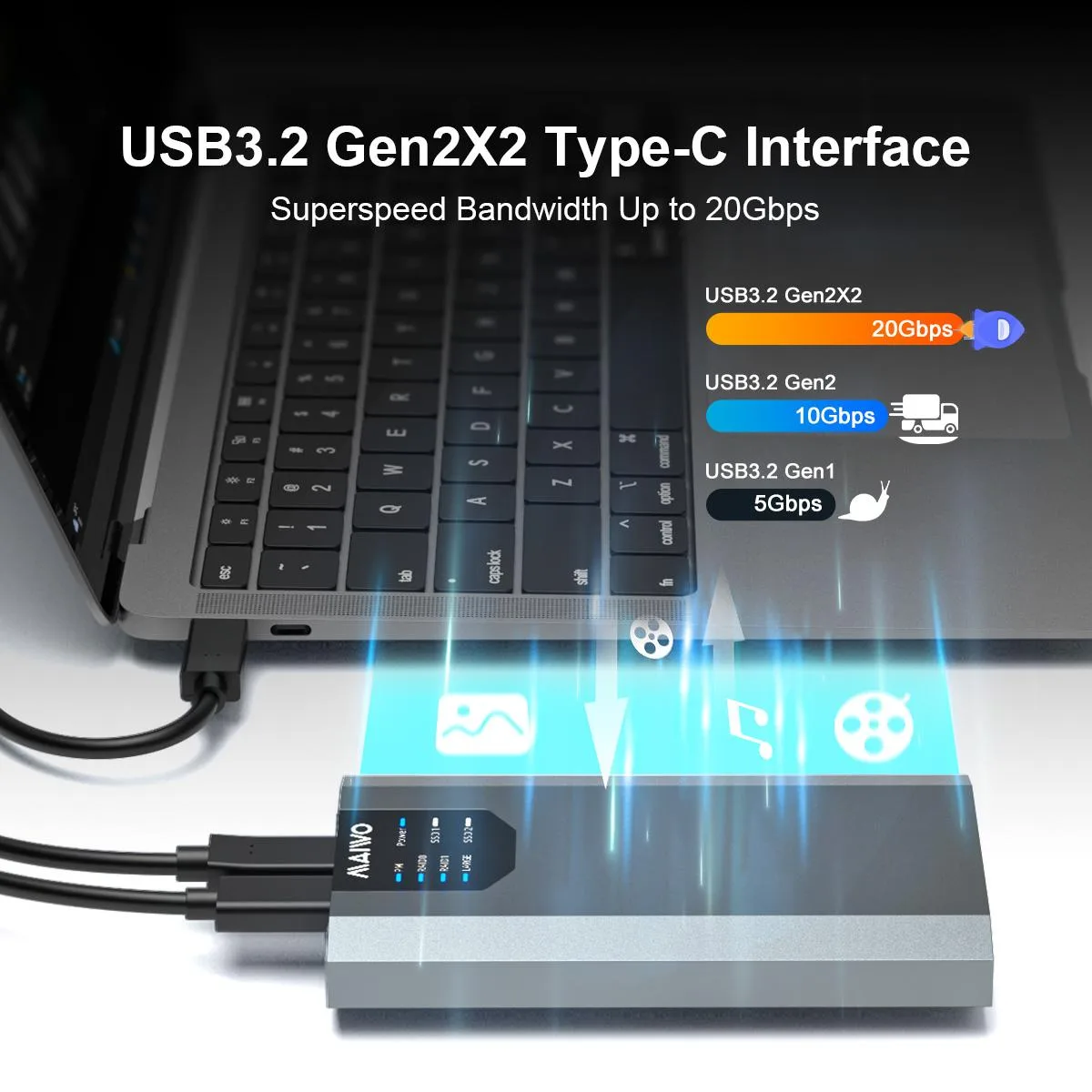

  • USB 3.2 Gen 2x2 Type-C delivers up to 20Gbps bandwidth
  • Tool-free installation with thermal pads keeps drives cool without extra tools
  • Works with Windows 7 through 11, Linux 2.4+ and macOS 10.1+

Dual M.2 NVMe RAID enclosure

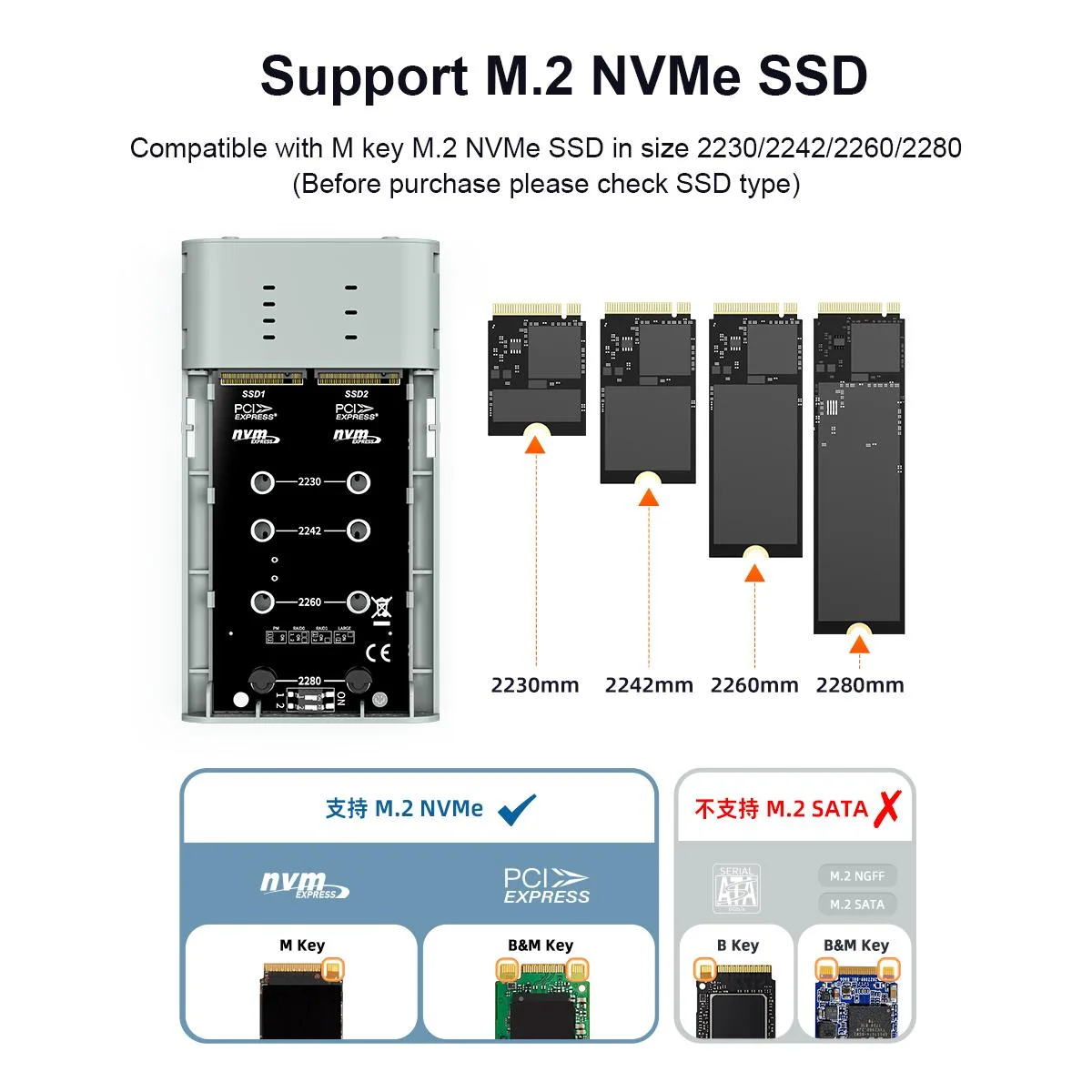

This two-bay enclosure lets you connect a pair of M.2 NVMe SSDs through a single USB 3.2 Gen 2x2 Type-C port. It supports drive lengths of 2230, 2242, 2260 and 2280 and can hold up to 8TB of combined storage. The aluminium and steel body doubles as a heatsink and ships with both silicone and aluminium thermal pads.

RAID 0, 1, PM and Large modes

Four hardware RAID options let you choose between striped speed, mirrored safety, port-multiplier access or a single large volume spanning both drives. The USB 3.2 Gen 2x2 link provides a theoretical 20Gbps bandwidth while each SSD can reach 10Gbps, so the upgrade is worthwhile when your workflow saturates a single-drive 10Gbps connection.

Tool-free installation with external power

Drives slide into the bays without screws and the unit draws power from the included 5V 3A adapter, so no host-port negotiation is required. The most common issues are forgetting to initialise the RAID array in the OS disk utility and using a host port that cannot deliver the full 20Gbps signal. Sleep mode activates automatically after inactivity.

Ciri-ciri utama

  • Two M.2 NVMe SSDs fit inside for up to 8TB total capacity
  • Four RAID modes including RAID 0 and RAID 1 for speed or redundancy
  • USB 3.2 Gen 2x2 Type-C delivers up to 20Gbps bandwidth
  • Tool-free installation with thermal pads keeps drives cool without extra tools
  • Works with Windows 7 through 11, Linux 2.4+ and macOS 10.1+

Spesifikasi

ColorGrey
MaterialAluminum / Steel
External InterfaceM.2 NVME 10GBPS
HDD Count SupportedM.2 NVMe SSD
Number of Bay2 Bay

Versi lain model ini

2 lagi dalam julat yang sama

Keluarga yang sama, memori, penyejuk atau kelajuan jam yang berbeza — bandingkan sebelum membuat keputusan.

Soalan tentang produk ini

What M.2 NVMe SSD lengths does the 2-bay enclosure accept?

The enclosure accepts M.2 NVMe SSDs in 2230, 2242, 2260 and 2280 form factors.

How do I set the RAID mode and what is the common mistake?

Use the hardware switch to select RAID 0, 1, PM or Large before powering on; the common mistake is changing the mode after drives already contain data, which destroys the array.

Which parts will need replacement over time?

The included silicone and aluminium thermal pads may degrade and should be replaced if SSD temperatures rise; the 5V 3A power supply can also be swapped if it fails.
