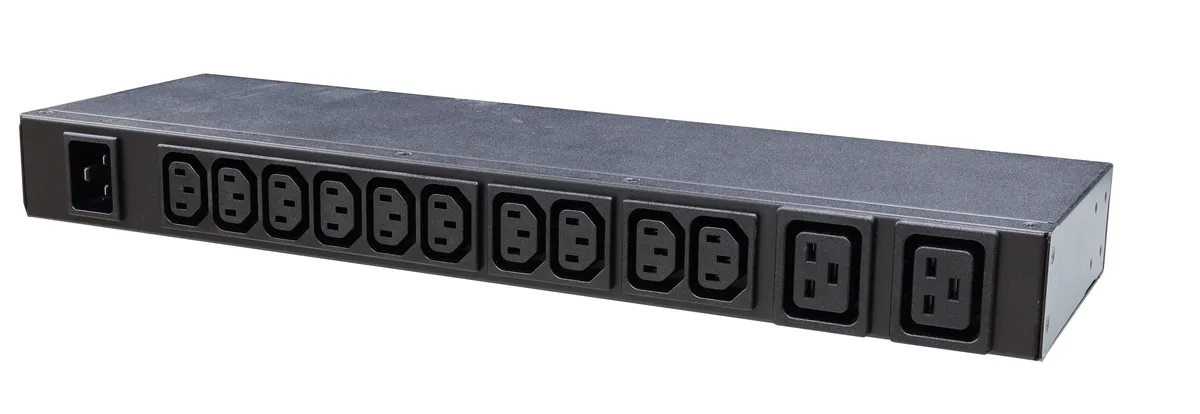

Black metal 1U horizontal PDU with ten C13 and two C19 outlets, NEMA L6-20P plug, six-foot cord

MINUTEMAN

MINUTEMAN OEPD2024IECHVI PDU 20A 208/240V 10C13 2C19 6ft

SKU CH-J8Y4-J273K MPN OEPD2024IECHVI

A 1U rack-mount PDU with a 6 ft cord and NEMA L6-20P input distributes 20 A at 208/240 V across ten C13 and two C19 IEC320 outlets for horizontal or vertical installation

  • Rack Size1U
  • StyleHorizontal Installation, 0U Vertical Installation
  • CertificationsUL 60950-1, cUL, CE
  • Maximum Input Current20A
  • Input Connector(s)NEMA L6-20P
  • Cord Length6 ft

Model OEPD2024IECHVI

Lihat 8 konfigurasi lagi

Versi yang dicoret wujud, tetapi tidak tersedia di sini.

  • Delivers 20 A at 208/240 V for high-voltage equipment
  • Twelve IEC 320 outlets: ten C13 and two C19
  • Mounts horizontally in 1U or vertically in 0U with included bracket
  • Six-foot NEMA L6-20P cord reaches distant power sources
  • Certified to UL 60950-1, cUL and CE standards

20A 208/240V PDU for high-voltage racks

The MINUTEMAN OEPD2024IECHVI is a 1U power distribution unit rated for 20 amps at 208/240 volts. It targets data-centre and server-room operators who need to feed high-voltage equipment from a single NEMA L6-20P inlet. The unit supplies twelve IEC320 outlets in a compact horizontal or vertical form factor.

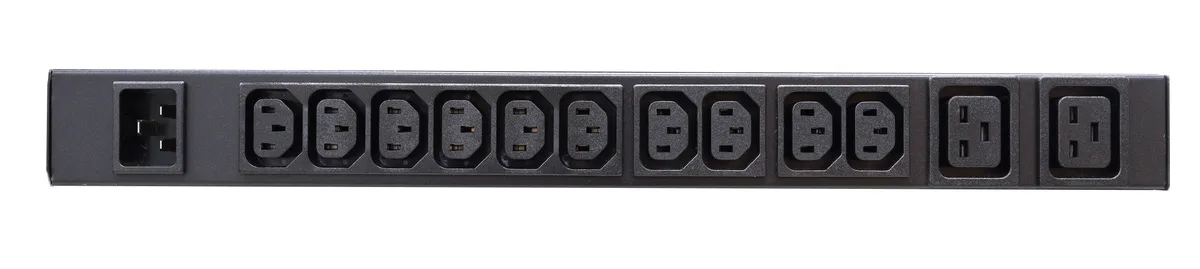

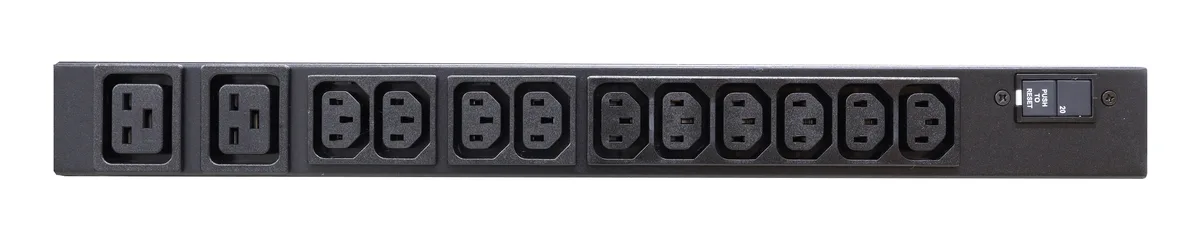

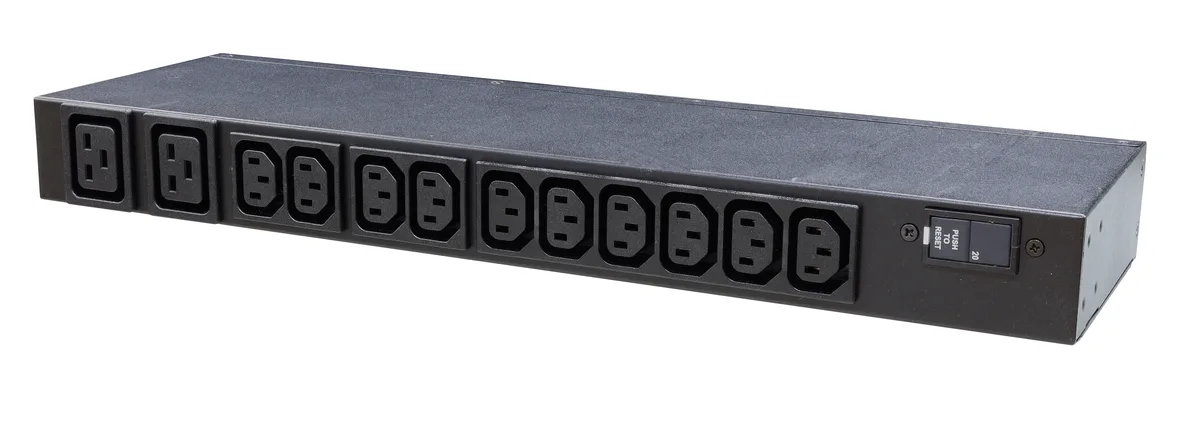

Ten C13 and two C19 outlets with six-foot cord

The output array provides ten C13 and two C19 receptacles, matching common server and network gear power cords without adapters. A six-foot input cable reaches nearby branch circuits, while the broader OE series offers cords up to 15 feet for deeper rack rows. UL 60950-1, cUL and CE markings confirm compliance for commercial deployments.

Horizontal or vertical mounting with included

The PDU installs in a standard 1U horizontal slot or rotates to 0U vertical orientation using the supplied stand-off bracket, which fits most rack and enclosure posts. No extra hardware is required for either orientation. Installers must verify that the NEMA L6-20P plug matches the facility receptacle and that total connected load stays within the 20A rating.

Ciri-ciri utama

  • Delivers 20 A at 208/240 V for high-voltage equipment
  • Twelve IEC 320 outlets: ten C13 and two C19
  • Mounts horizontally in 1U or vertically in 0U with included bracket
  • Six-foot NEMA L6-20P cord reaches distant power sources
  • Certified to UL 60950-1, cUL and CE standards

Spesifikasi

BrandMINUTEMAN
SeriesOE Series
ModelOEPD2024IECHVI
Rack Size1U
StyleHorizontal Installation, 0U Vertical Installation
CertificationsUL 60950-1, cUL, CE
Maximum Input Current20A
Input Connector(s)NEMA L6-20P
Cord Length6 ft
Output Connector(s)(10) C13 / (2) C19, (10) C13 / (2) C19
FeaturesLonger power cords
Most Minuteman PDU units have up to 15-ft power cords, to allow for seamless installations
More standard outlets
Minuteman PDU units have 6, 8, 10, 14, 18, or 24 outlets. Most of the Minuteman PDUs have additional front outlets for improved access
Configuration versatility
Minuteman PDU units have a multi-form factor with 1U and 0U configurations allowing for either horizontal or vertical placement. 1U products ship with a stand-off mounting bracket, at no additional cost, that allows for vertical installation on most racks and enclosures
Locking (L) and Hardwire (
Berat penghantaran1.89 kg
Dimensi bungkusan432 × 89 × 43 mm

Versi lain model ini

5 lagi dalam julat yang sama

Keluarga yang sama, memori, penyejuk atau kelajuan jam yang berbeza — bandingkan sebelum membuat keputusan.

Soalan tentang produk ini

Will the IEC 320 C13 and C19 receptacles need periodic replacement under normal use?

The IEC 320 receptacles are rated for the unit's full 20 A capacity and do not have a scheduled replacement interval; inspect them during routine rack maintenance for signs of heat damage or loose contacts.

What is the first limit reached when the PDU runs continuously at full 20 A load?

The 20 A maximum input current is the primary limit; the NEMA L6-20P plug and internal bus are both rated at 20 A, so sustained loads above that will trip the upstream breaker.

How much heat does the unit add to a rack when it distributes 208/240 V power all day?

As a passive distribution unit it adds negligible heat; only the minimal resistive loss in the 6 ft cord and internal busbars appears, well within the UL 60950-1 thermal limits for 1U or 0U mounting.
