Silver and black 4U rackmount server chassis with fifteen 3.5-inch drive bays and front panel lock

Rosewill

Rosewill RSV-L4500U 4U server chassis 15×3.5″ bays

SKU CH-1JDR-1CEXN MPN RSV-L4500U

A 4U rackmount chassis holding 15 internal 3.5″ drives with 8 pre-installed fans, E-ATX support and a front-panel lock

  • Chassis TypeRackmount
  • Form Factor4U
  • ColorBlack
  • Case MaterialSGCC
  • Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
  • LED IndicatorsPower status, HDD activity, 2 x LAN activity

Chassis Type 4U · 15 Bays · 8 Fans

  • 4U · 9 Bays · 3 Fans
  • 4U · 14 Bays · 4 Fans
  • 4U · 8 Bays · 4 Fans
  • 4U · 8 Bays · 7 Fans
  • 4U · 12 Bays · 4 Fans
  • 4U · 12 Hot Swap Bays · 2 Fans
  • 4U · 15 Bays · 8 Fans
  • 4U · 8 Bays · 4 Fans (2x Sudokoo Fans)
  • 4U · 8 Bays · 7 Fans (5x Sudokoo Fans)
  • 4U · 15 Bays · 8 Fans (6x Sudokoo Fans)
  • 4U · 12 Bays · 3 Fans

Versi yang dicoret wujud, tetapi tidak tersedia di sini.

  • Massive storage capacity with 15 internal 3.5" drive bays

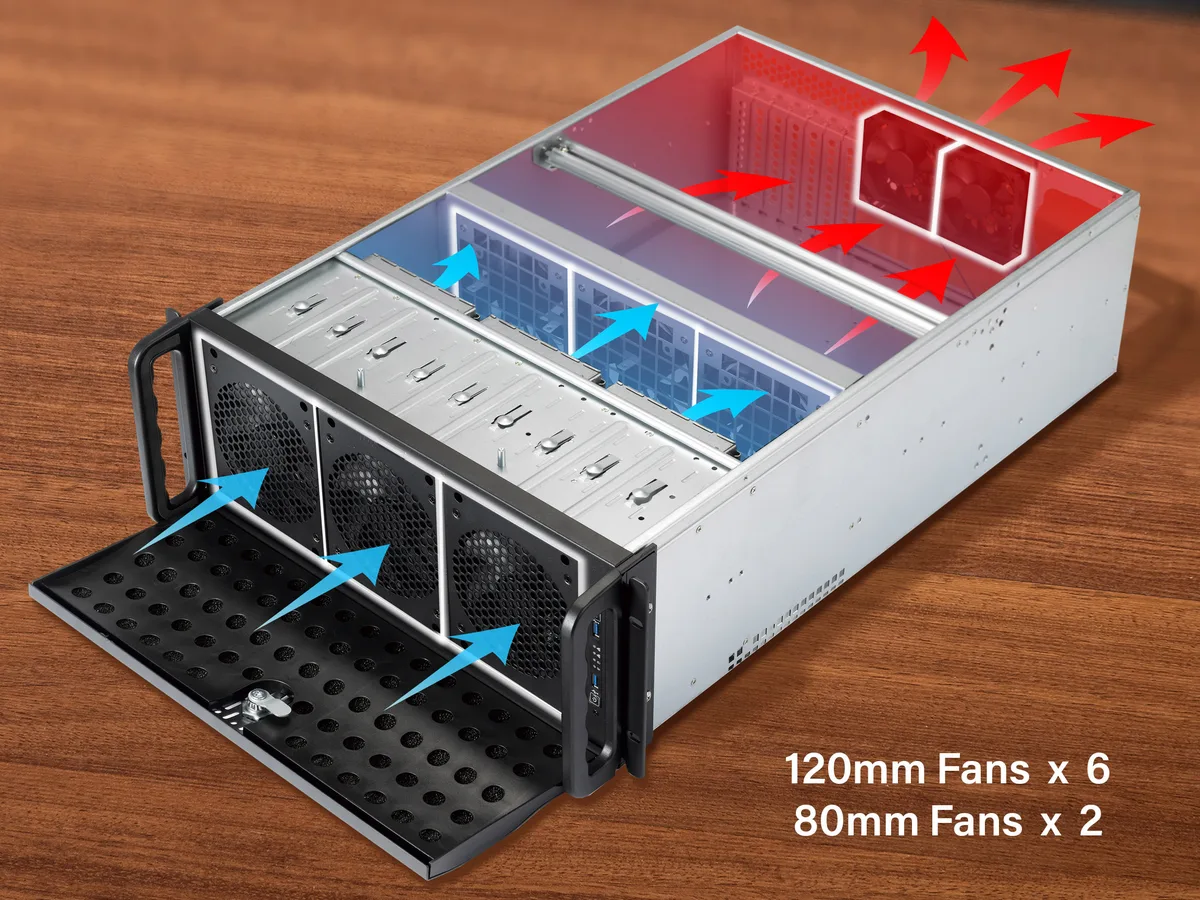

  • Eight pre-installed fans deliver strong airflow across all drives
  • E-ATX motherboard support enables high-end server builds
  • Seven expansion slots provide room for add-in cards

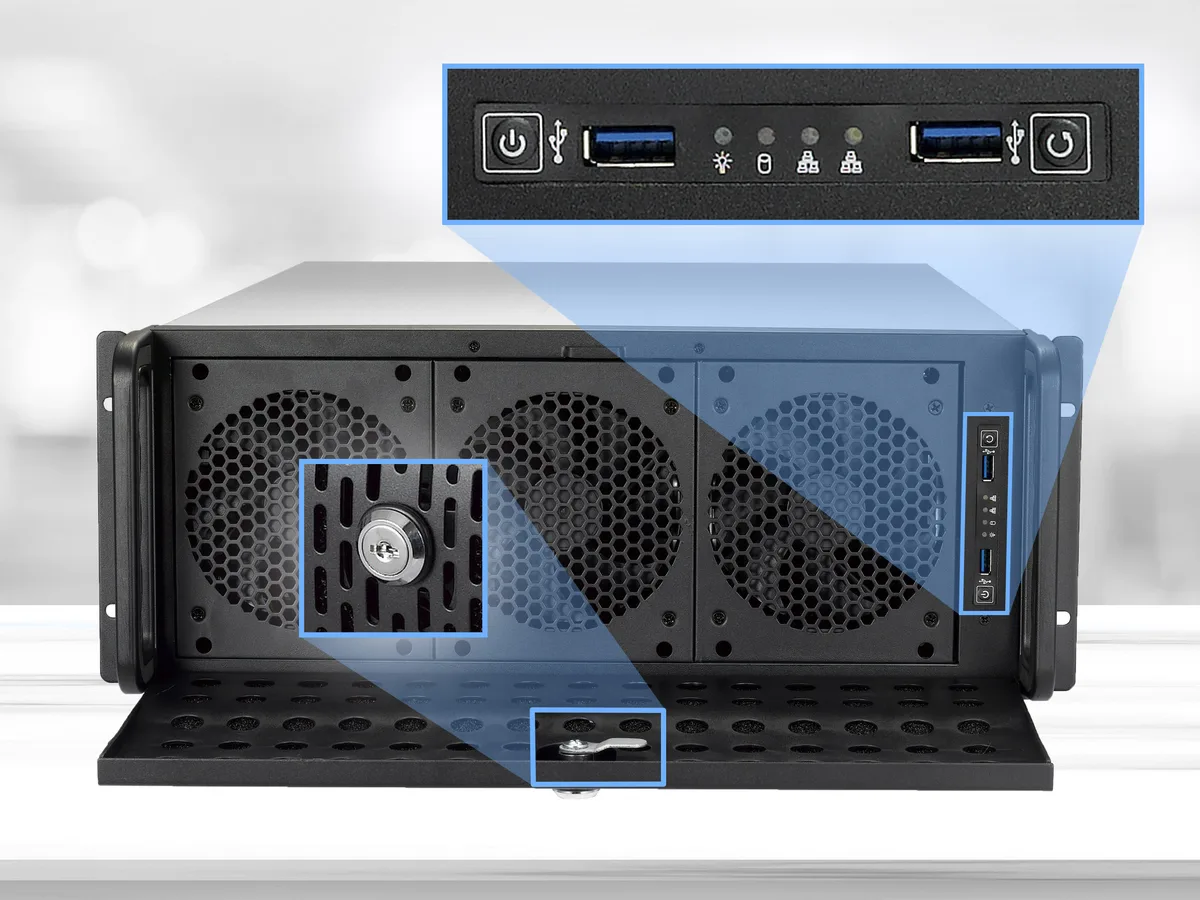

  • Front-panel lock plus LED indicators secure and monitor the chassis

Capacity & Form Factor

The Rosewill RSV-L4500U is a 4U rackmount server chassis built for environments that demand high-density 3.5-inch storage. It fits ATX, E-ATX, Micro ATX and Mini ITX motherboards and provides fifteen internal drive bays. System builders configuring a home server, a backup target or a small business file host will find the bay count and rack footprint a direct match.

Upgrade Path

The chassis replaces smaller 2U or tower cases that limit drive counts to eight or fewer bays and restrict airflow across stacked drives. The jump is worth it when your storage array has outgrown the current enclosure and you need room for fifteen drives plus seven full-height expansion cards. Builders staying with fewer than ten drives or without rack infrastructure will not use the extra capacity.

Compatibility Check

Verify that your rack depth can accommodate 635 millimetres and that the 178 millimetre height fits the allocated 4U space. Confirm the power supply length does not exceed 220 millimetres and that the chosen CPU cooler stays within 117 millimetres with the GPU holder installed or 152 millimetres without it. Graphics card length must remain under 320 millimetres with the middle fan tray in place or 400 millimetres if that tray is removed.

Ciri-ciri utama

  • Massive storage capacity with 15 internal 3.5" drive bays
  • Eight pre-installed fans deliver strong airflow across all drives
  • E-ATX motherboard support enables high-end server builds
  • Seven expansion slots provide room for add-in cards
  • Front-panel lock plus LED indicators secure and monitor the chassis

Spesifikasi

BrandRosewill
ModelRSV-L4500U
Chassis TypeRackmount
Form Factor4U
ColorBlack
Case MaterialSGCC
Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
LED IndicatorsPower status, HDD activity, 2 x LAN activity
Internal 3.5" Drive Bays15
Expansion Slots7
Max CPU Cooler HeightWith GPU holder: 117 mm / Without GPU holder: 152 mm
Max GPU LengthWith Middle Fan 320 mm/ Without Middle Fan: 400 mm
Max PSU Length220 mm PS2 (ATX) , Mini-Redundant
Front Ports2 x USB 3.0
Fan OptionsFront - 3 x 120mm fans (2 x 120mm fan included)
Middle - 3 x 120mm fans (3 x 120mm fan included)
Rear - 2 x 80 mm fans (2 x 80 mm fan included)
FeaturesThe Rosewill RSV-L4500U 4U rackmount server case features 15 internal 3.5" HDD devices to boost your home server or server room. 8 pre-installed cooling fans help prevent your server chassis from overheating. 7 PCI expansion slots allow you to customize your case as you wish. The front panel of the rackmount case includes two USB 3.0 ports. Built in lock adds layer of security to your case and server room.
Dimensions427mm x 178 mm x 635mm (16.81" x 7.01" x 25.00")
Weight14.10kg (31.09 lbs)
Package ContentsRSV-L4500 Server Case
Keys
Screws
Other Accessories
Berat penghantaran17.50 kg
Dimensi bungkusan787 × 584 × 279 mm

Versi lain model ini

1 lagi dalam julat yang sama

Keluarga yang sama, memori, penyejuk atau kelajuan jam yang berbeza — bandingkan sebelum membuat keputusan.

Soalan tentang produk ini

What rack depth does the 4U chassis require?

The unit is 635 mm deep, so the rack must provide at least that much usable depth plus cable clearance.

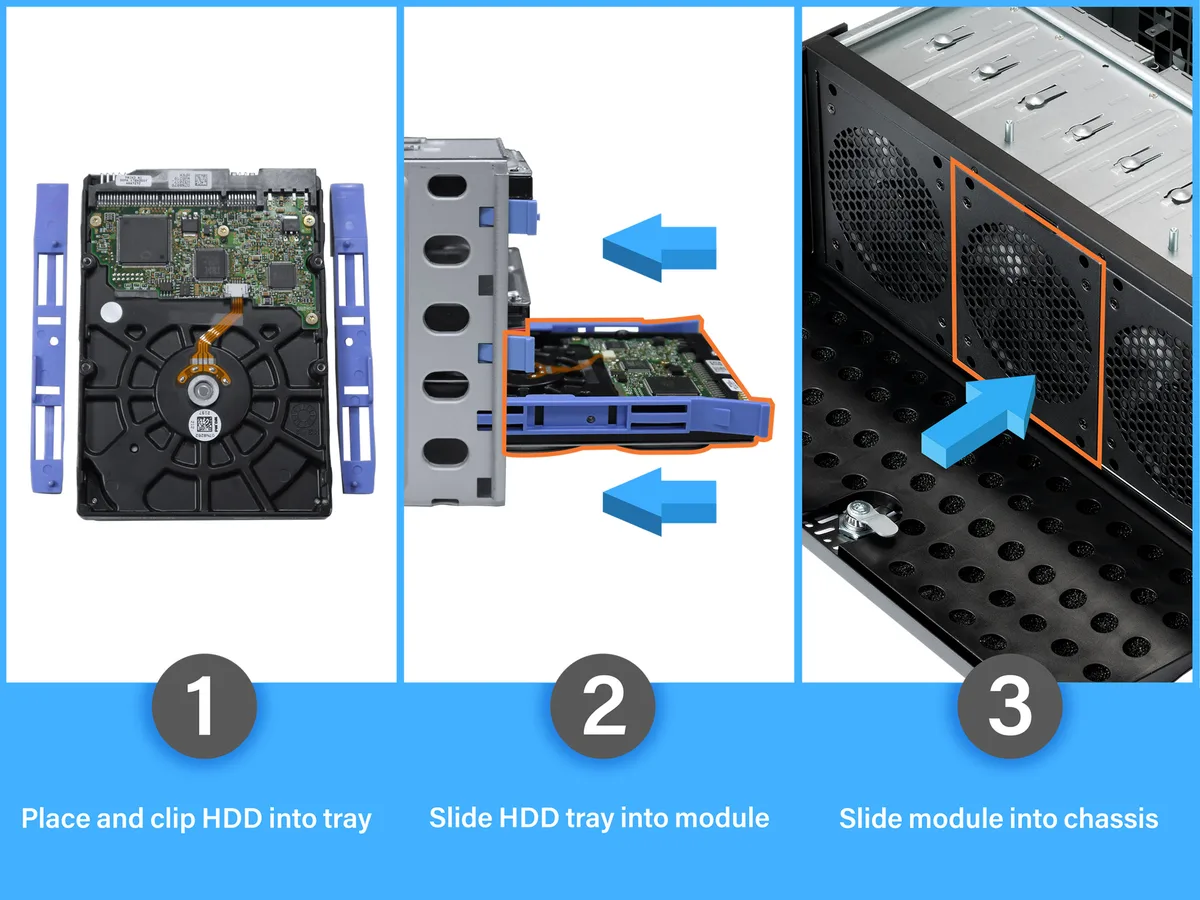

How are the 3.5″ drive bays secured during installation?

Drives slide into the 15 internal bays and are fastened with the supplied screws; the middle fan bracket must be removed first if longer GPUs are planned.

Which fans will need replacement first in continuous operation?

The two rear 80 mm fans typically wear sooner than the six 120 mm units; all eight are standard sizes for easy swap.
