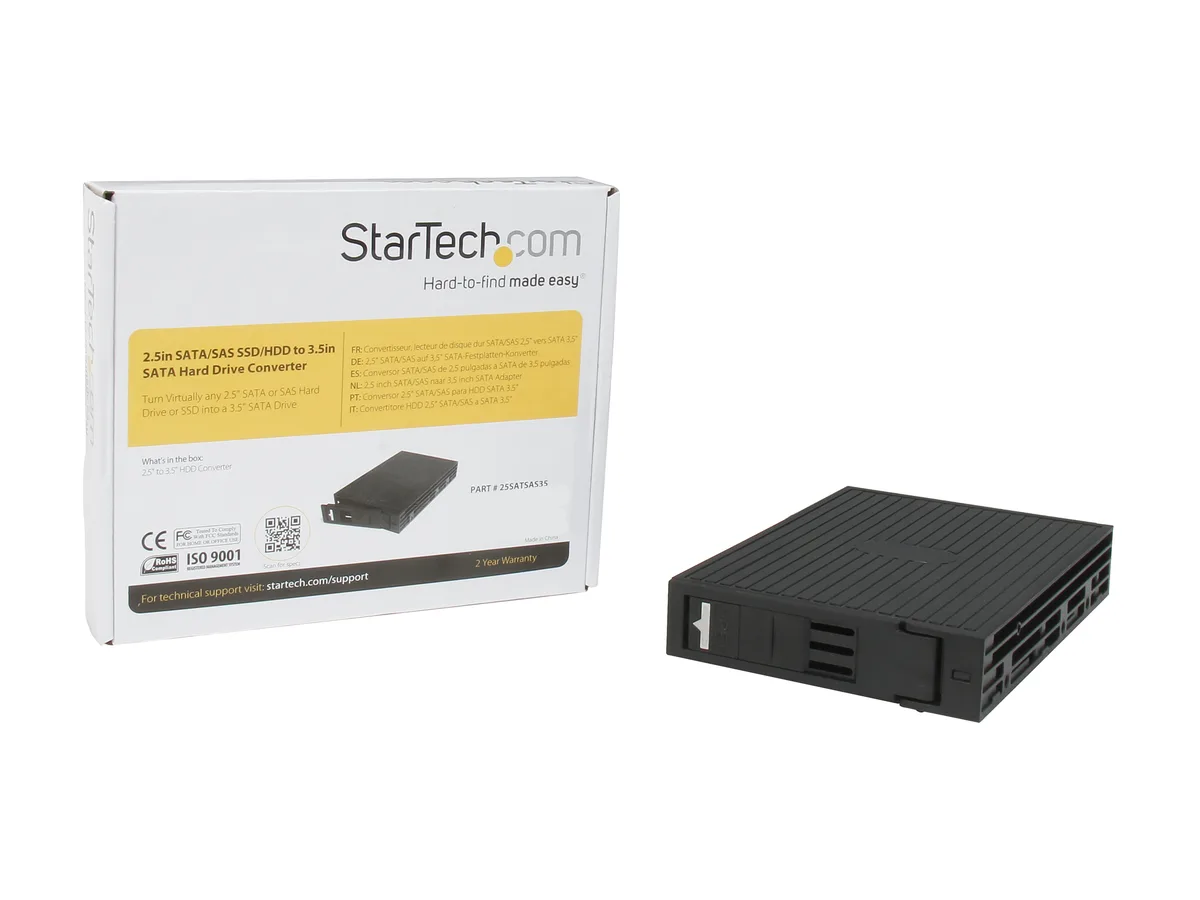

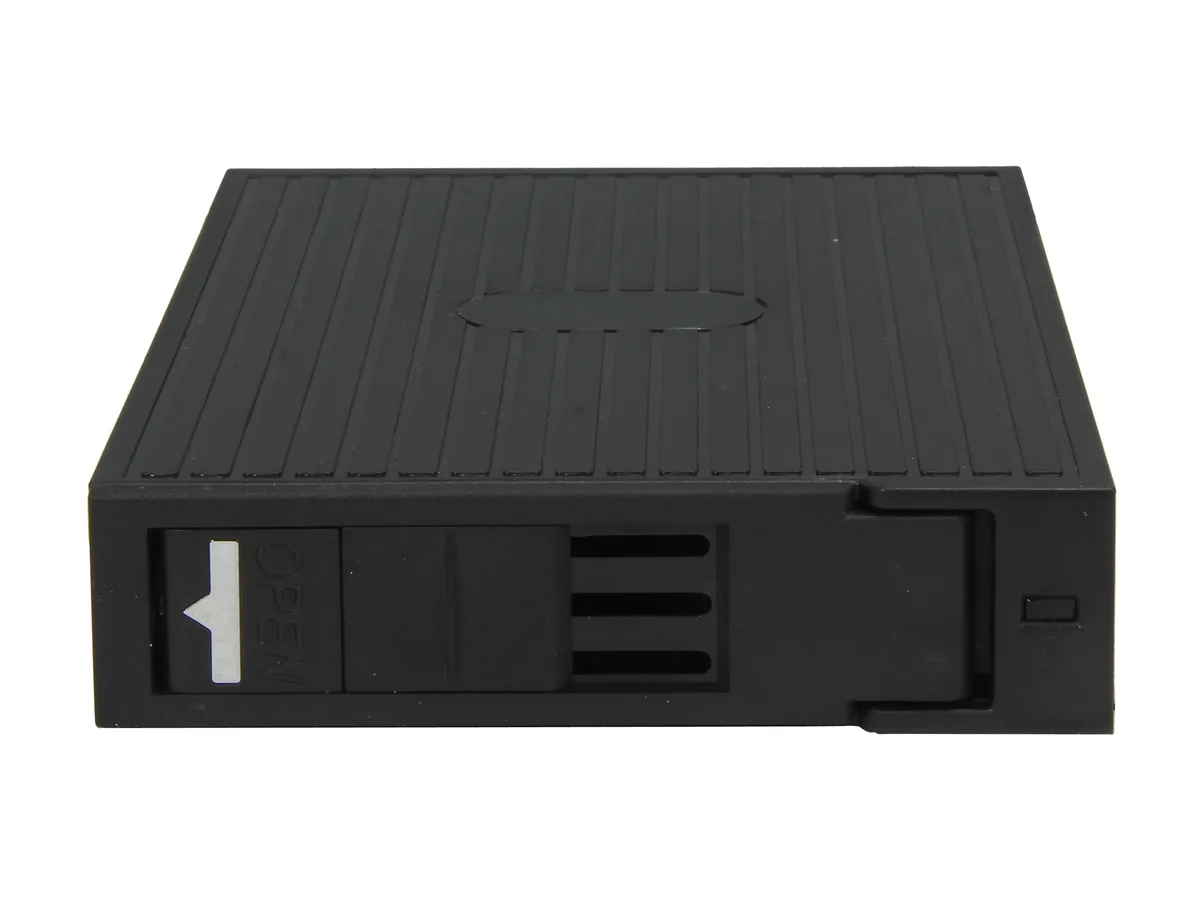

Black plastic 2.5in SATA SAS drive to 3.5in bay converter

STARTECH

STARTECH 25SATSAS35 2.5in SATA/SAS to 3.5in SATA hdd accessory

SKU CH-235P-Z598S MPN 25SATSAS35

Converts a 2.5in SATA or SAS drive into a 3.5in SATA form factor using a trayless plastic bracket with a 29-pin SFF-8482 receptacle

  • ColorBlack
  • Conversion Tray1 x 2.5" Drive to 3.5" Bay
  • SpecificationsColor: Black Drive Connectors: 1 - SFF-8482 (29 pin; Data &
  • FeaturesTrayless design: hard drives are not mounted into separate t

Option 3.5in SATA Enclosure - 2.5 in SATA/SAS Drive

  • Fits 2.5in SATA or SAS drives into 3.5in bays using SFF-8482 connector
  • Supports drives up to 15mm height without extra trays
  • Direct SATA and SAS signal pass-through with no protocol conversion
  • Standard 3.5in mounting holes align with desktop chassis
  • Black plastic enclosure protects drive during installation

2.5 to 3.5 SATA SAS converter

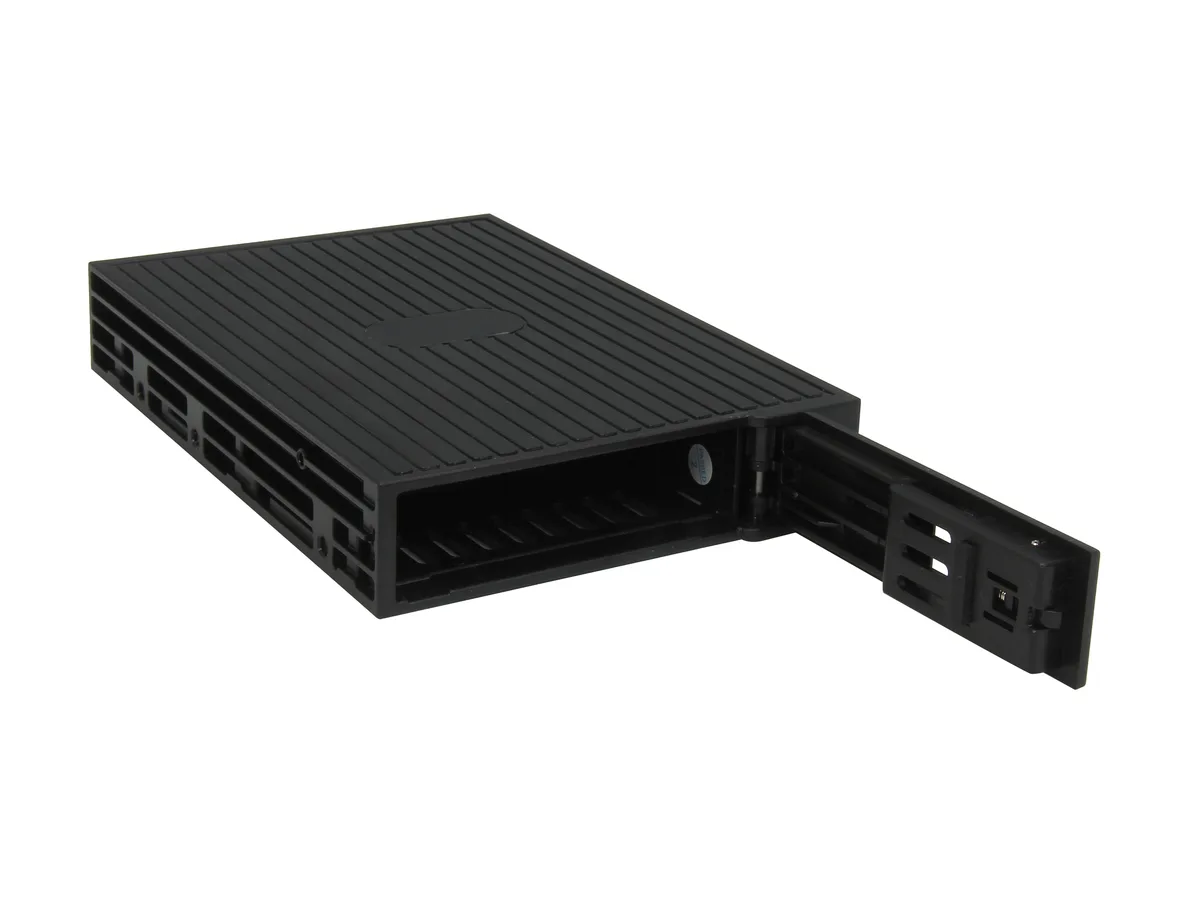

This adapter converts a 2.5in SATA or SAS drive into a 3.5in SATA form factor. It suits builders fitting laptop or enterprise drives into desktop bays. The tray-less design allows direct insertion without extra mounting hardware. Drives up to 15mm in height are supported.

Passive operation no fan

The unit has no fan and draws no auxiliary power. It relies on the host bay airflow for cooling. The plastic enclosure adds minimal thermal resistance. Operation is silent under normal use.

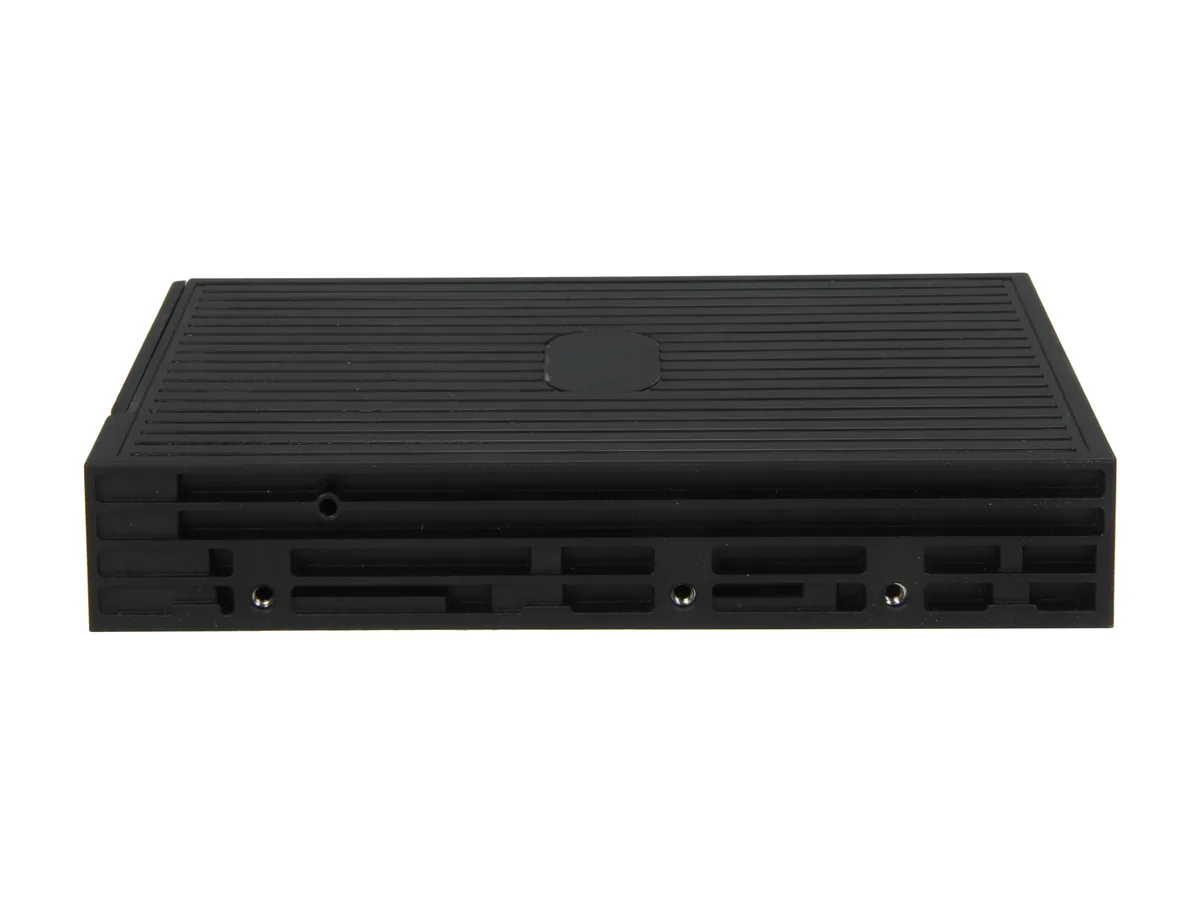

Standard 3.5in mounting points

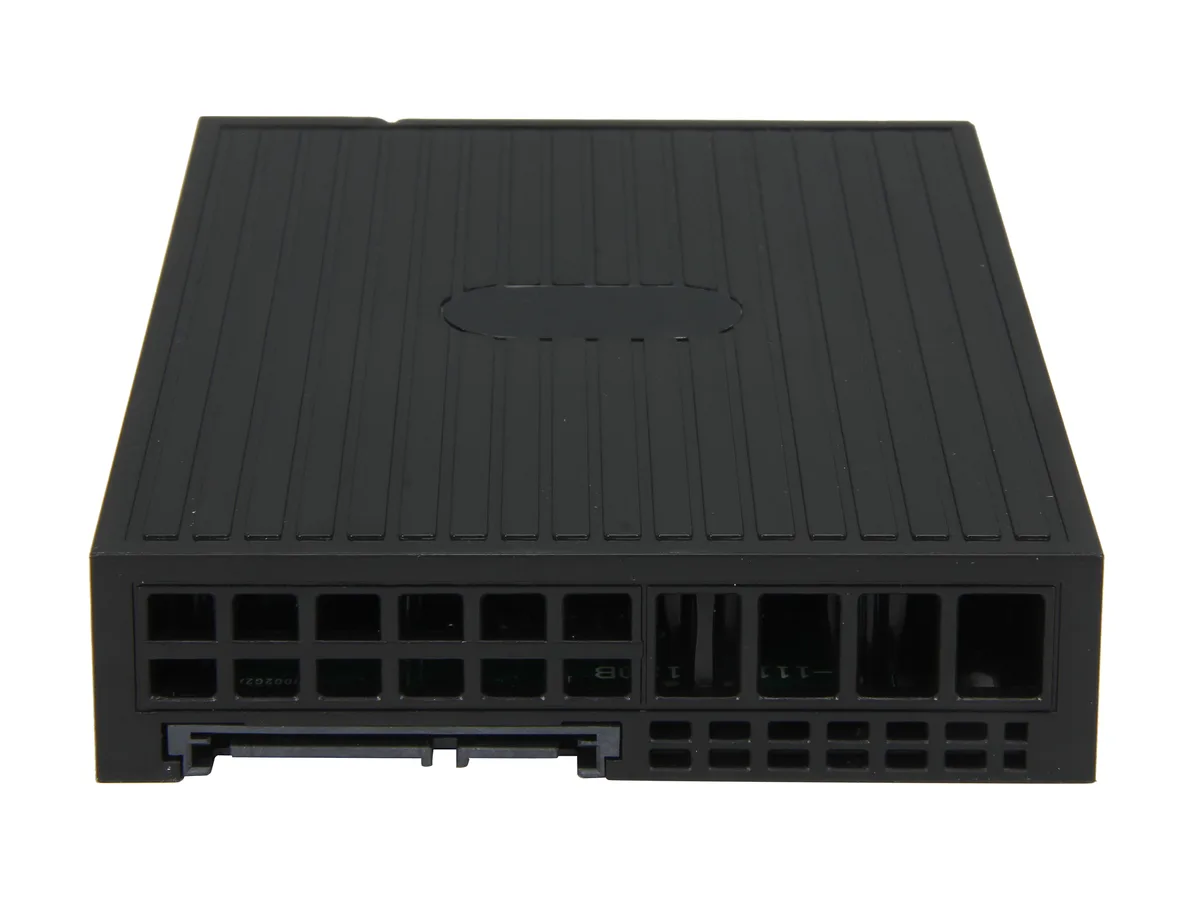

The converter uses the host 3.5in bay screw holes for secure installation. It connects via a 29 pin SFF-8482 receptacle for data and power. No extra cables or controllers are required. The drive remains removable for quick swaps.

Ciri-ciri utama

  • Fits 2.5in SATA or SAS drives into 3.5in bays using SFF-8482 connector
  • Supports drives up to 15mm height without extra trays
  • Direct SATA and SAS signal pass-through with no protocol conversion
  • Standard 3.5in mounting holes align with desktop chassis
  • Black plastic enclosure protects drive during installation

Spesifikasi

BrandStarTech.com
Model25SATSAS35
ColorBlack
Conversion Tray1 x 2.5" Drive to 3.5" Bay
SpecificationsColor: Black
Drive Connectors: 1 - SFF-8482 (29 pin; Data & Power; Internal SAS) Receptacle
Drive Installation: Removable
Drive Size: 2.5in
Drive Type: SAS & SATA
Enclosure Type: Plastic
Fan(s): No
Host Connectors: 1 - SATA Data & Power Combo (7+15 pin) Plug
Key Lock: No
Max Drive Height: 0.59 in [15 mm]
Number of 2.5 inch bays: 1
Number of Drives: 1
FeaturesTrayless design: hard drives are not mounted into separate trays/enclosures
Supports 2.5" form factor hard drives (HDD) and solid state drives (SSD) up to 15mm in height
Standard 3.5" hard drive mounting points along sides and bottom
Power indicator LED
Lightweight plastic construction with air vents
Plug and Play and hot swap compatible.
Turn Virtually any 2.5in SATA or SAS Hard Drive into a 3.5in SATA Drive
2.5 to 3.5 sata converter
2.5 to 3.5 SATA Aapter
2.5 to 3.5 SATA Bracket
2.5 to 3.5 Hard Drive Adapter
2.5 to 3.5 HDD Adapter
Berat penghantaran0.45 kg
Dimensi bungkusan254 × 203 × 178 mm

Versi lain model ini

1 lagi dalam julat yang sama

Keluarga yang sama, memori, penyejuk atau kelajuan jam yang berbeza — bandingkan sebelum membuat keputusan.

Soalan tentang produk ini

How do I install a 2.5in SATA or SAS drive into the 25SATSAS35 converter?

Slide the 2.5in drive into the open side until the 29-pin SFF-8482 receptacle engages, then mount the assembly using the standard 3.5in screw holes on the bottom and sides of the black plastic frame.

What maintenance or replacement will the 25SATSAS35 need over time?

The converter has no moving parts or fan; only the drive itself may need replacement, and the plastic frame can be reused indefinitely.

What limit appears first when the 25SATSAS35 runs continuously?

The 15mm height restriction for the 2.5in drive is the physical limit; thermal throttling depends on the host bay airflow since the tray has no fan.
