Cylindrical CPU water block with mirror top and 12 LEDs

Thermaltake

Thermaltake CL-W299-PL00SW-A Pacific MX1 Plus CPU Water Block diy cooling

SKU CH-EF97-9XSNV MPN CL-W299-PL00SW-A

CPU water block with copper base, built-in temperature sensor and 12 addressable RGB LEDs for Intel and AMD sockets

  • TypeCPU Block
  • Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 / 1156 /
  • Block Dim.93.4 L x 93.4 W x 52.2 H mm
  • Block MaterialCopper + PPS
  • SpecificationRated Voltage: 5 V Power Input: 2.4 W Connector : 4-Pin Mole
  • Features[UNIQUE VISUAL DEISIGN] - Top cover made of vacuum metalizin

Series MX1+

  • Mirror-finish top cover lets 12 addressable LEDs create depth-effect lighting

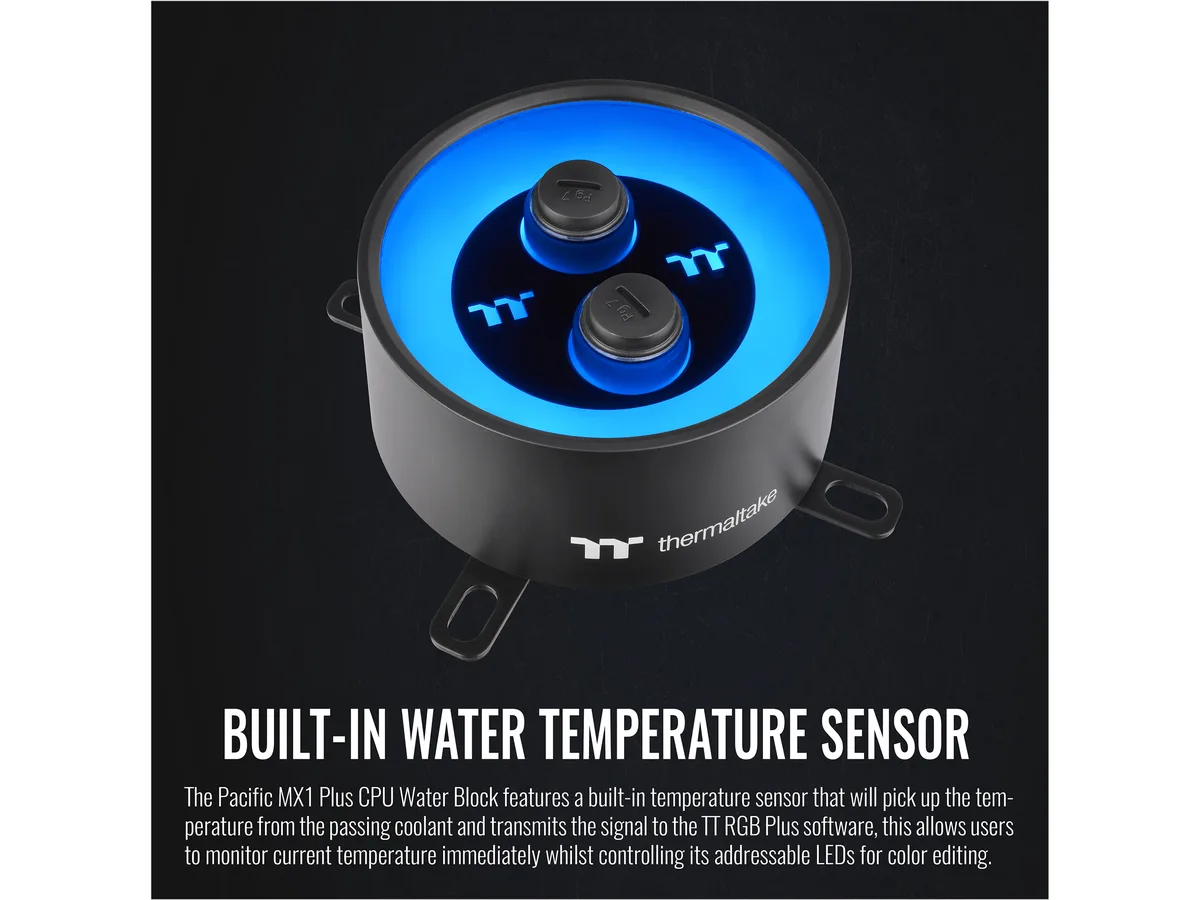

  • Built-in coolant temperature sensor feeds real-time data to TT RGB Plus software

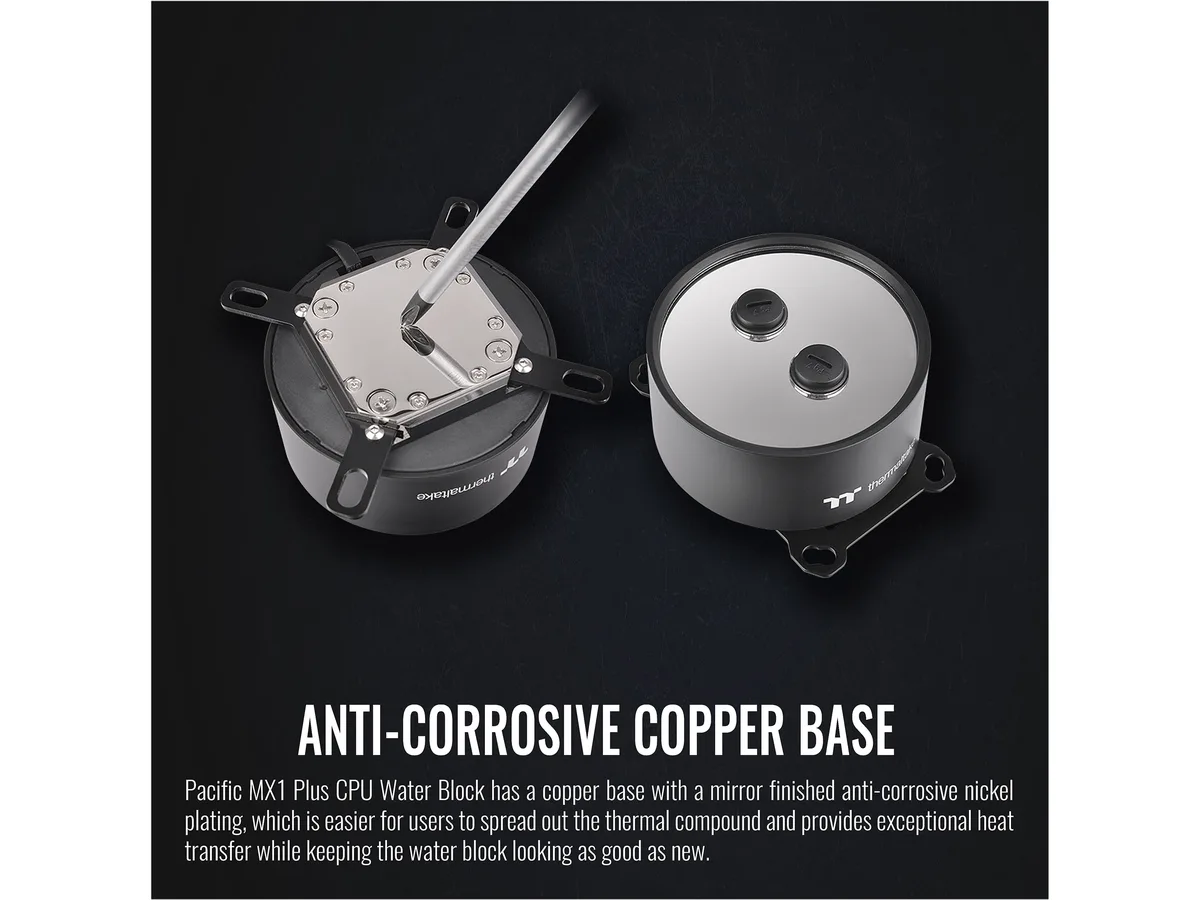

  • Nickel-plated copper base with dense micro-fins maximises heat transfer and resists corrosion
  • Digital RGB controller syncs lighting with TT RGB Plus, Razer Chroma and Alexa

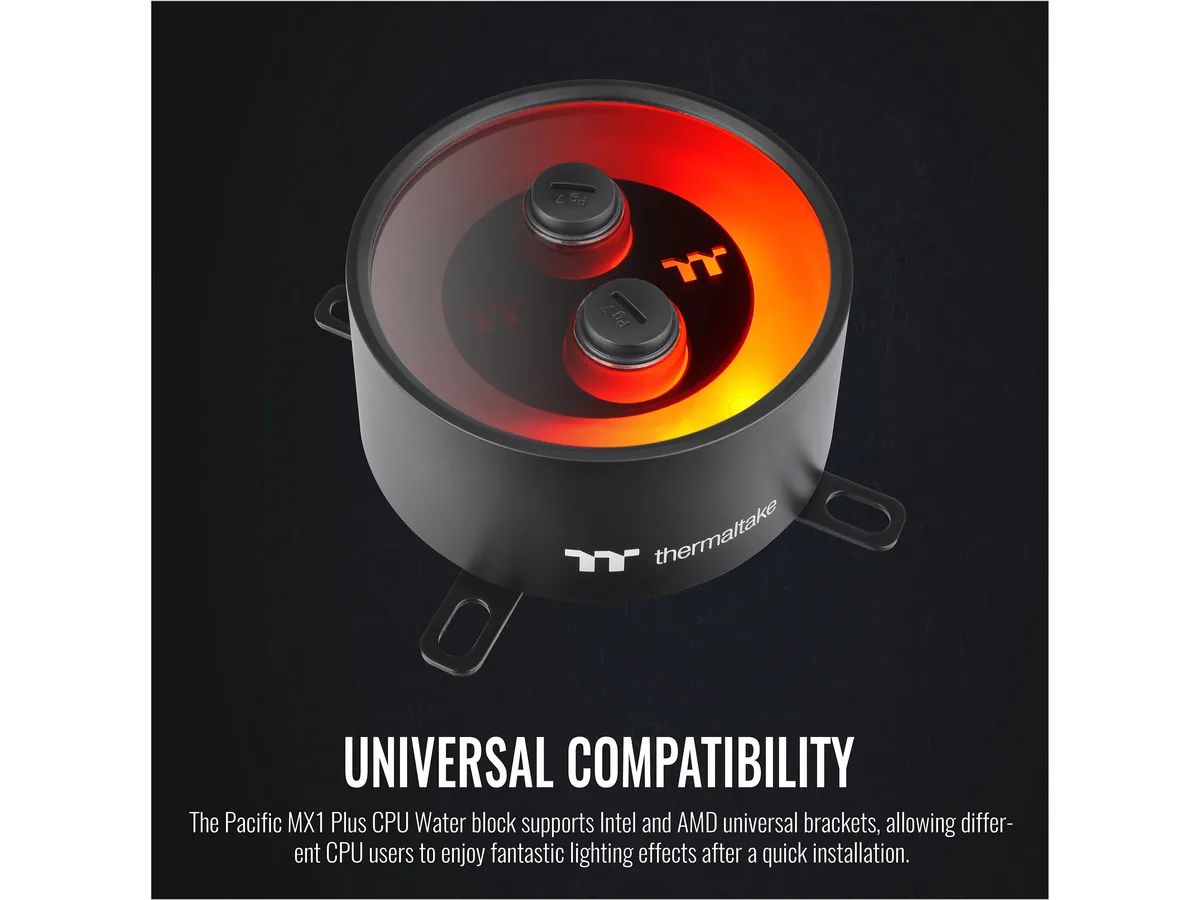

  • Supports Intel LGA 1700, 1200, 2066 and AMD AM5, AM4 sockets

Pacific MX1 Plus water block

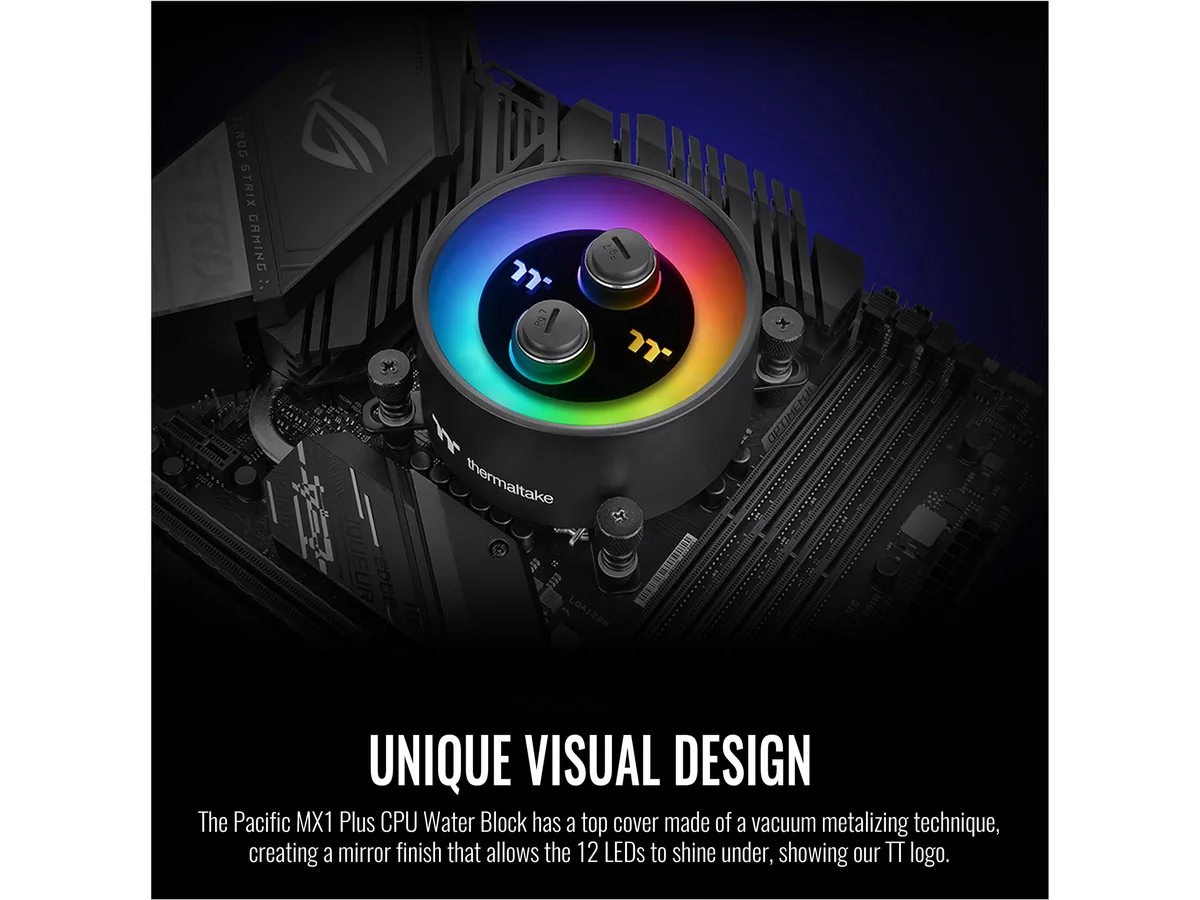

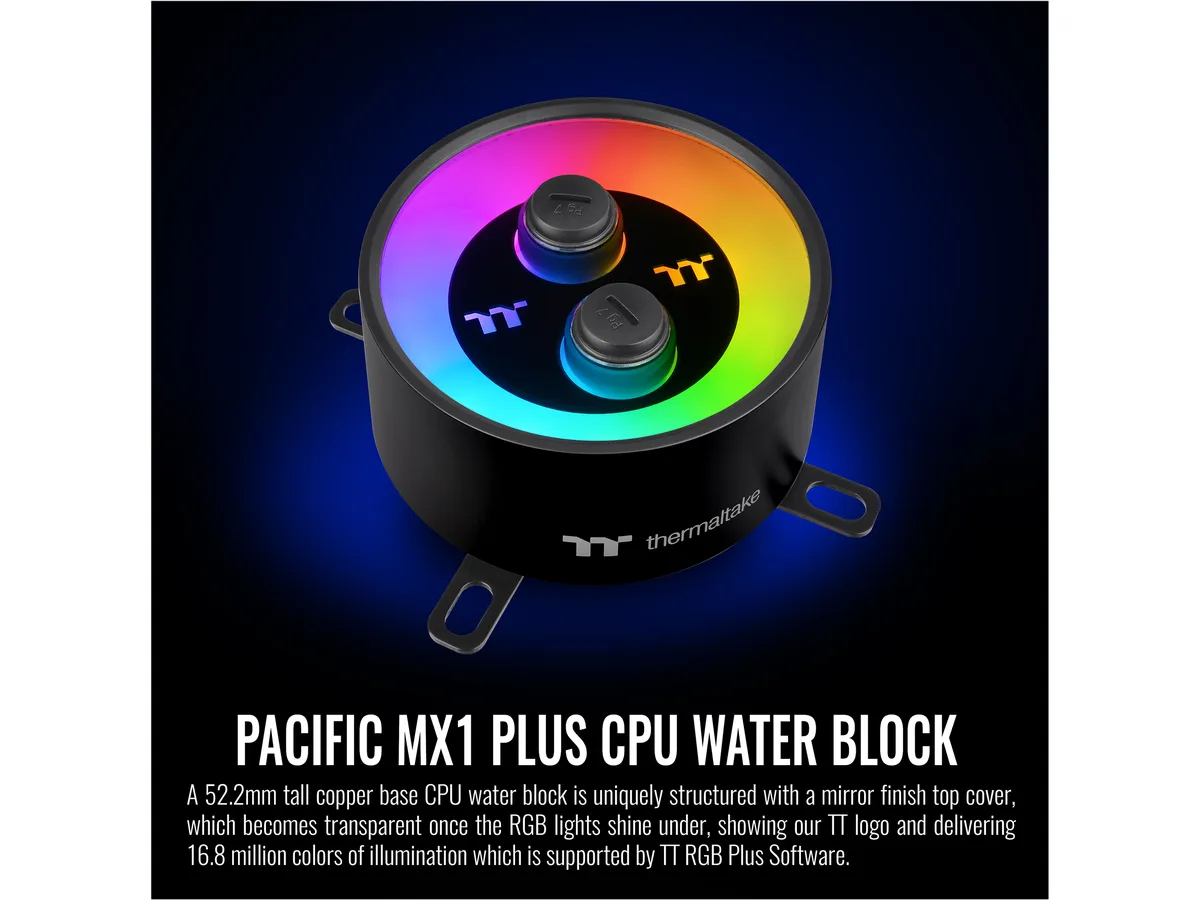

The Thermaltake Pacific MX1 Plus is a CPU water block designed for custom liquid-cooling loops. It fits Intel sockets from LGA 775 through LGA 1700 and AMD sockets from AM2 through AM5. The block uses a nickel-plated copper base with dense micro fins to transfer heat from the processor into the coolant. Twelve addressable LEDs shine through a vacuum-metalised mirror top cover.

Upgrade from stock air coolers

Builders moving from factory air coolers or basic all-in-one units gain a component built for open-loop thermal capacity. The jump is worth it when the loop already includes a pump, reservoir and radiators sized for the target heat load. The integrated temperature sensor feeds real-time coolant data to TT RGB Plus software for lighting reactions tied to thermal conditions.

Fits standard G 1/4 loop fittings

The block accepts G 1/4 threads and draws 2.4 W at 5 V through a 4-pin Molex connector. A 9-pin USB 2.0 header links the onboard controller to the motherboard for software control. The 93.4 mm square footprint and 52.2 mm height require clearance around the socket keep-out zone. LGA 1700 mounting brackets are not included and must be sourced separately.

Ciri-ciri utama

  • Mirror-finish top cover lets 12 addressable LEDs create depth-effect lighting
  • Built-in coolant temperature sensor feeds real-time data to TT RGB Plus software
  • Nickel-plated copper base with dense micro-fins maximises heat transfer and resists corrosion
  • Digital RGB controller syncs lighting with TT RGB Plus, Razer Chroma and Alexa
  • Supports Intel LGA 1700, 1200, 2066 and AMD AM5, AM4 sockets

Spesifikasi

BrandThermaltake
SeriesPacific MX1 Plus CPU Water Block
ModelCL-W299-PL00SW-A
TypeCPU Block
Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 / 1156 / 1155 / 1151 / 1150 / 775
AMD AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1
Block Dim.93.4 L x 93.4 W x 52.2 H mm
Block MaterialCopper + PPS
SpecificationRated Voltage: 5 V
Power Input: 2.4 W
Connector : 4-Pin Molex
Threads: G 1/4"
Interface: USB 2.0 connectors (9 Pin)
System compatibility: Windows 7 / 8 / 8.1 / 10
Weight: 670 g
Features[UNIQUE VISUAL DEISIGN] - Top cover made of vacuum metalizing technique creates a mirror-like finish allowing the 12 LEDs to shine under. The 52.2mm high cylinder creates a depth perception RGB lighting to display its unique effects unlike other water blocks.
[BUILT-IN TEMPERATURE SENSOR] - Monitor real time water temperature and customize LED lighting all within TT RGB Plus Software.
[PREMIUM COPPER BASE] - Specially machined and nickel plated for exceptional heat transfer and anti-corrosion protection.
[RGB PLUS ECOSYSTEM] - With digital controller connected, RGB lighting effect ca
Berat penghantaran0.95 kg
Dimensi bungkusan262 × 201 × 70 mm

Versi lain model ini

1 lagi dalam julat yang sama

Keluarga yang sama, memori, penyejuk atau kelajuan jam yang berbeza — bandingkan sebelum membuat keputusan.

Soalan tentang produk ini

Does the 93.4 mm square footprint and G 1/4" thread spacing fit my loop?

The block measures 93.4 mm by 93.4 mm and uses standard G 1/4" threads, so it fits most custom loops with matching fittings and clearance.

How do I connect the 4‑pin Molex power and 9‑pin USB 2.0 header without missing a step?

Plug the Molex connector into a PSU rail for the 5 V / 2.4 W supply, then attach the 9‑pin USB cable to a motherboard header so the temperature sensor and 12 LEDs appear in TT RGB Plus software.

Will the nickel‑plated copper base or the 12 addressable LEDs need replacement down the road?

The copper base is nickel plated for corrosion resistance and the 12 LEDs are sealed under the mirror top; neither is user‑serviceable, so no routine replacement is expected.
