Black 92mm square case fan with transparent blades and 4-pin connector

Thermaltake

Thermaltake DuraMax 9 AF0059 92mm case fan 2850 RPM 48.7 CFM 2 Ball 37.6 dBA 4 Pin

SKU CH-F5SR-VGY7H MPN AF0059

A 92 mm case fan with dual ball bearings delivering 48.7 CFM at 2850 RPM and 37.6 dBA via PWM control

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • Fan Size92mm
  • Fan Thickness25mm
  • Bearing Type2 Ball
  • 92 mm footprint fits tight chassis layouts
  • 2850 RPM delivers 48.7 CFM airflow
  • Dual ball bearing extends operating life
  • 6 dBA maximum keeps noise controlled
  • 4-pin PWM connector enables precise speed control

92mm case fan with 2850 RPM

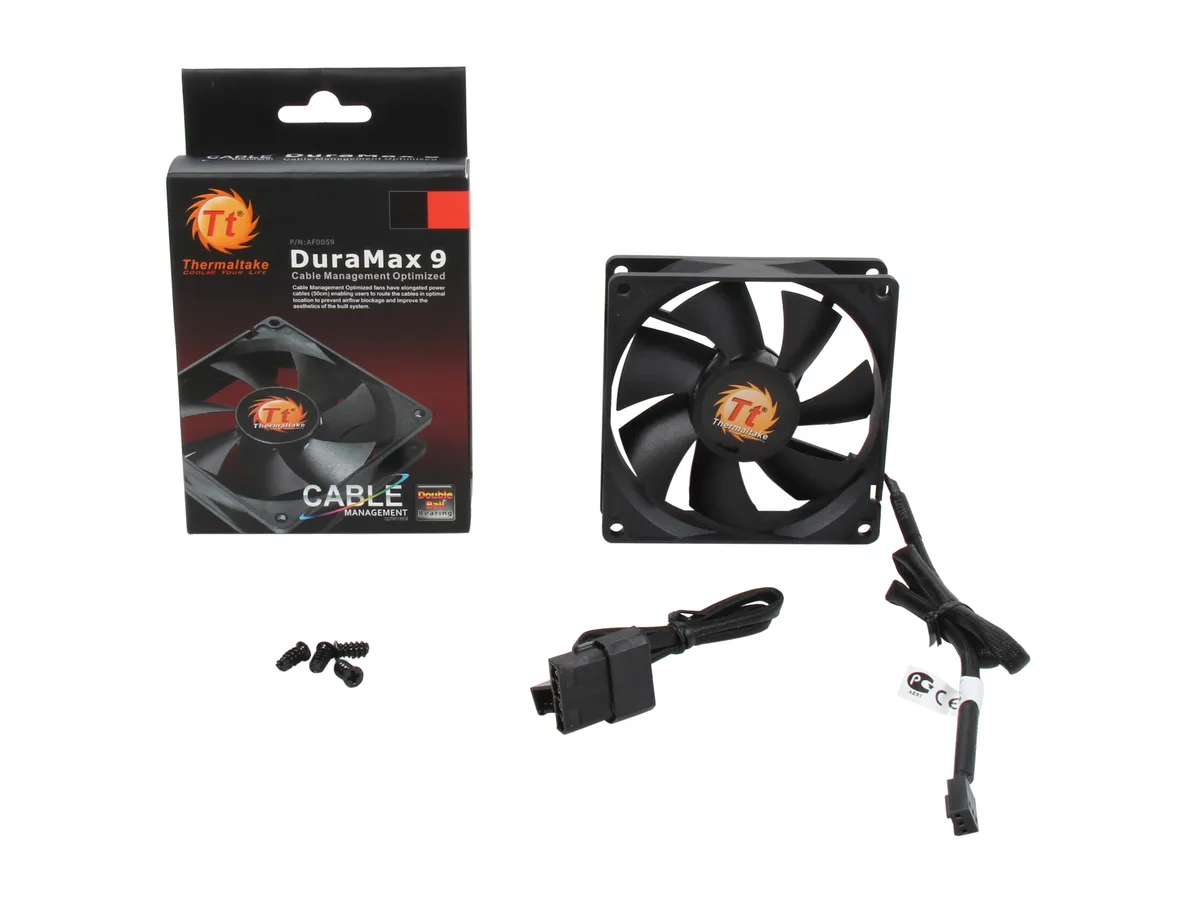

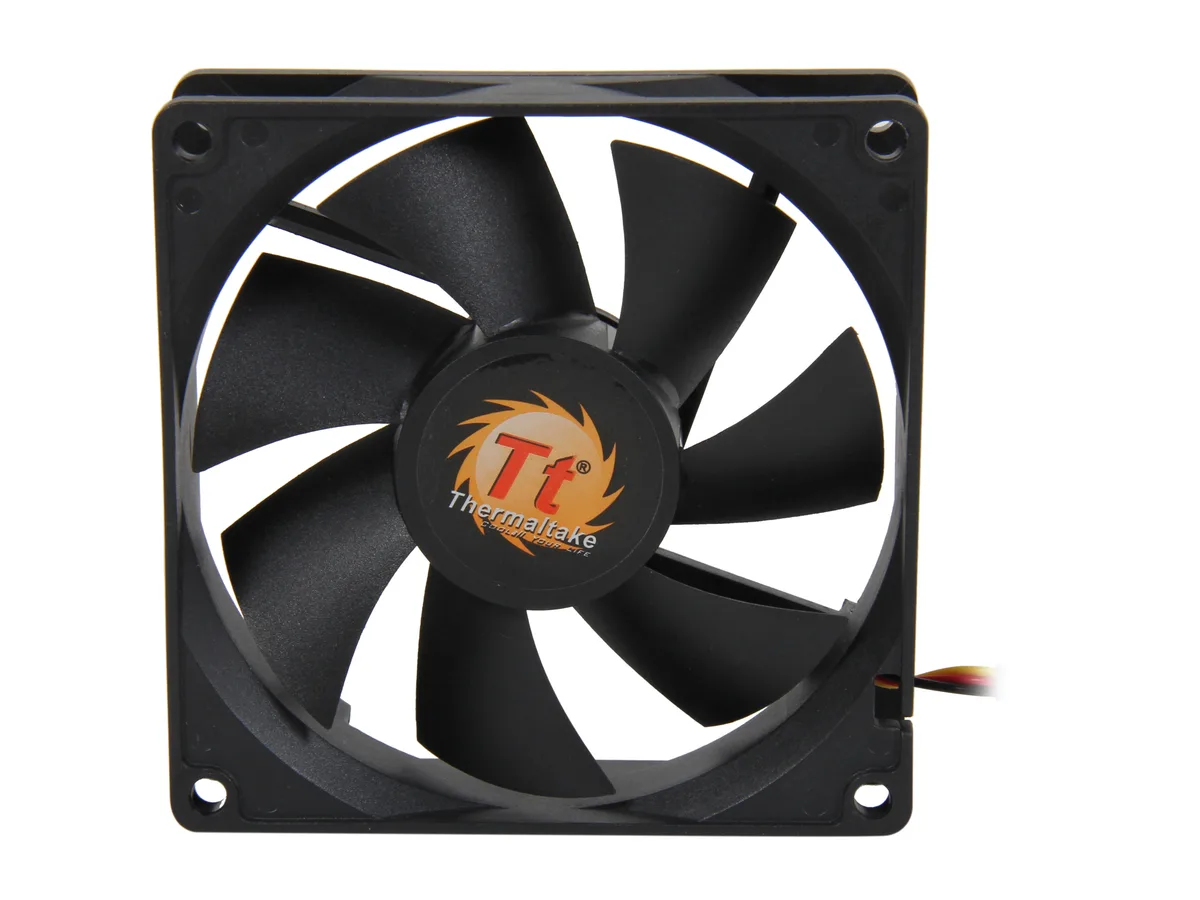

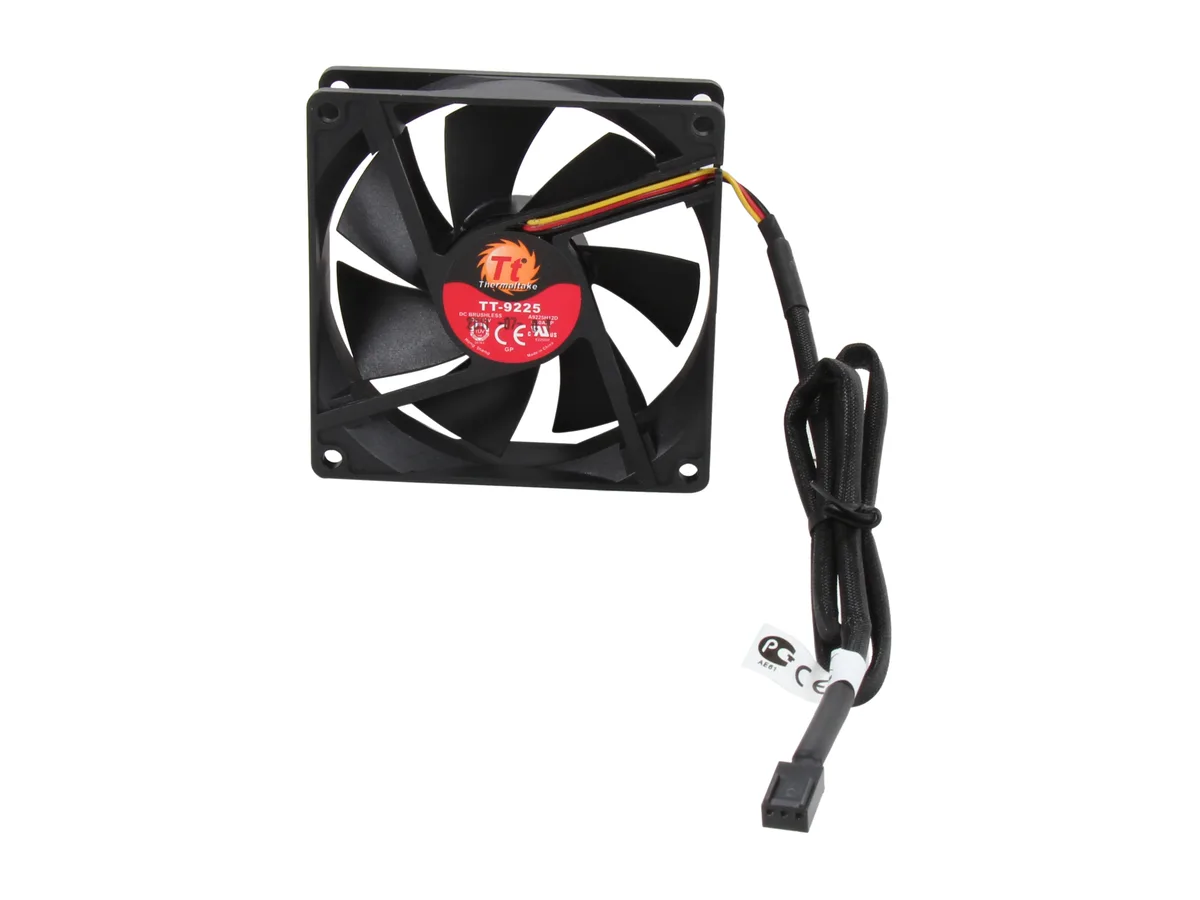

The Thermaltake DuraMax 9 AF0059 is a single 92mm case fan designed to move air through compact chassis. It spins at 2850 RPM with a tolerance of ±10% and delivers 48.7 CFM of airflow. A 4-pin PWM connector allows motherboard speed control. The black frame measures 92 x 92 x 25 mm.

Suits builds needing a 92mm replacement or upgrade

This unit fits systems that accept a 92mm mounting pattern and a 4-pin header. The dual-ball bearing supports continuous operation at the rated speed. Buyers who require a larger frame size, higher static pressure, or a bundled controller should look at other options. No fan controller is included in the package.

Verify 92mm mounting holes and a 4-pin header

Confirm your case has 92mm screw holes and enough clearance for the 25mm thickness. Check that the motherboard or fan hub provides a 4-pin PWM header for speed regulation. The maximum noise level is 37.6 dBA at full speed. The model was first listed by the manufacturer in February 2019.

Ciri-ciri utama

  • 92 mm footprint fits tight chassis layouts
  • 2850 RPM delivers 48.7 CFM airflow
  • Dual ball bearing extends operating life
  • 6 dBA maximum keeps noise controlled
  • 4-pin PWM connector enables precise speed control

Spesifikasi

BrandThermaltake
SeriesDuraMax 9
ModelAF0059
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
Fan Size92mm
Fan Thickness25mm
Bearing Type2 Ball
RPM2850 ± 10% RPM
Air Flow48.7 CFM
Noise Level37.6 dBA (Max)
Power Connector4 Pin
ColorBlack
Dimensions92 x 92 x 25 mm
Berat penghantaran0.14 kg
Dimensi bungkusan152 × 91 × 32 mm

Soalan tentang produk ini

Does my motherboard need a 4-pin PWM header to run the Thermaltake DuraMax 9 AF0059?

Yes, the fan uses a 4-pin connector so the motherboard must provide a matching PWM header for speed control and monitoring.

Will the 92mm by 25mm frame fit the same mounting holes as my older 92mm case fans?

The fan measures 92 x 92 x 25 mm, matching the standard 92mm screw spacing used on older chassis and radiators.

How can I confirm the fan is spinning at the rated 2850 RPM after installation?

Check the fan speed in BIOS or monitoring software; it should read around 2850 RPM with a tolerance of ±10% under full PWM duty.
