Vantec
Vantec UGT-M2PC200 dual M.2 expansion card
Adds one NVMe and one SATA M.2 drive to a PCIe x4 slot, supporting 2242, 2260 and 2280 lengths with a low-profile bracket included
- TypePCIe to M.2
- Internal Ports2 x M.2 (NGFF) PCIe v3.0 or PCIe v2.0 x4 (4 lanes)
- Operating Systems SupportedWindows 7/8/8.1/10, or Linux
- SpecificationsPrimary M.2 Type: NVMe or AHCI SSD using M Key only Secondar
- Dimensions5.80" x 4.70" x 0.70"
- Weight0.19 lbs.
- Adds two M.2 drives in one slot — primary NVMe and secondary SATA
- Fits 22×42 mm, 22×60 mm or 22×80 mm cards — three length options covered
- Works in PCIe ×4, ×8 or ×16 slots — broad motherboard compatibility
- Runs on PCIe 3.3 V bus power — no extra cables needed
- Includes low-profile bracket — suits slim or standard cases
Dual M.2 expansion for NVMe and SATA

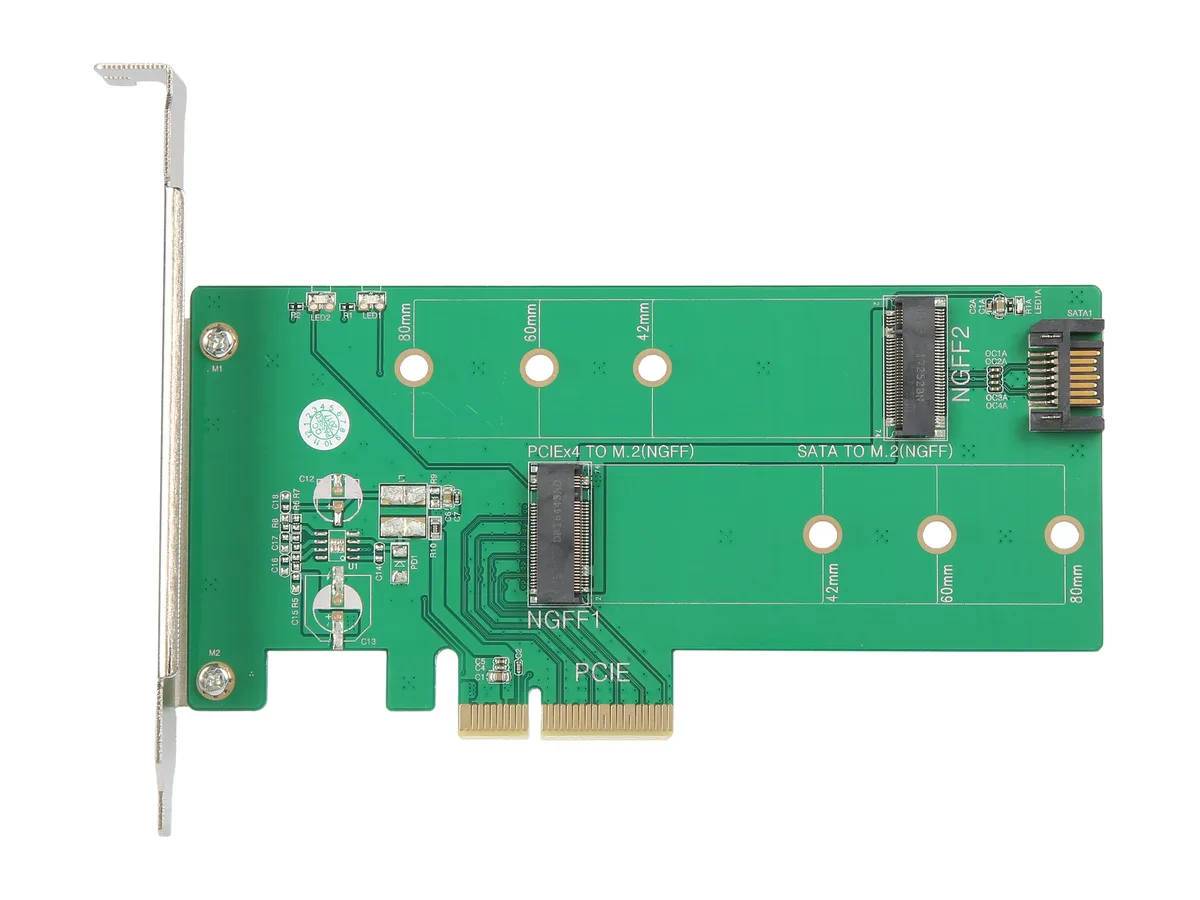

The Vantec UGT-M2PC200 adds two M.2 slots to a desktop through a single PCIe x4 slot. One slot accepts an NVMe or AHCI drive with an M key, the other takes a SATA drive with a B key. It suits builders who want fast primary storage plus a secondary SATA drive without using extra motherboard connectors.
Primary slot runs at PCIe 3.0 x4
The first M.2 socket connects directly to the PCIe 3.0 or 2.0 x4 bus, giving NVMe drives full four-lane bandwidth. The second socket routes SATA signals to a motherboard SATA port, so that drive runs at standard SATA speeds. Both sockets accept 2242, 2260 or 2280 form factors.
Fits low-profile builds with included bracket
The card draws 3.3 V power from the PCIe slot and needs no extra cables for the NVMe drive. A SATA data cable to the motherboard is required for the second drive. Mounting screws and a low-profile bracket are supplied for small-form-factor cases.
Ciri-ciri utama
- Adds two M.2 drives in one slot — primary NVMe and secondary SATA
- Fits 22×42 mm, 22×60 mm or 22×80 mm cards — three length options covered
- Works in PCIe ×4, ×8 or ×16 slots — broad motherboard compatibility
- Runs on PCIe 3.3 V bus power — no extra cables needed
- Includes low-profile bracket — suits slim or standard cases
Spesifikasi
| Brand | VANTEC |
|---|---|
| Model | UGT-M2PC200 |
| Type | PCIe to M.2 |
| Internal Ports | 2 x M.2 (NGFF) PCIe v3.0 or PCIe v2.0 x4 (4 lanes) |
| Operating Systems Supported | Windows 7/8/8.1/10, or Linux |
| Specifications | Primary M.2 Type: NVMe or AHCI SSD using M Key only Secondary M.2 Type: SATA SSD using B Key M.2 size: Length support 22x42mm, 22x60mm or 22x80mm Internal Interface: 2 x M.2 (NGFF) PCIe Interface: PCIe v3.0 or PCIe v2.0 x4 (4 lanes) Power: PCIe Bus powered (3.3V) |
| Dimensions | 5.80" x 4.70" x 0.70" |
| Weight | 0.19 lbs. |

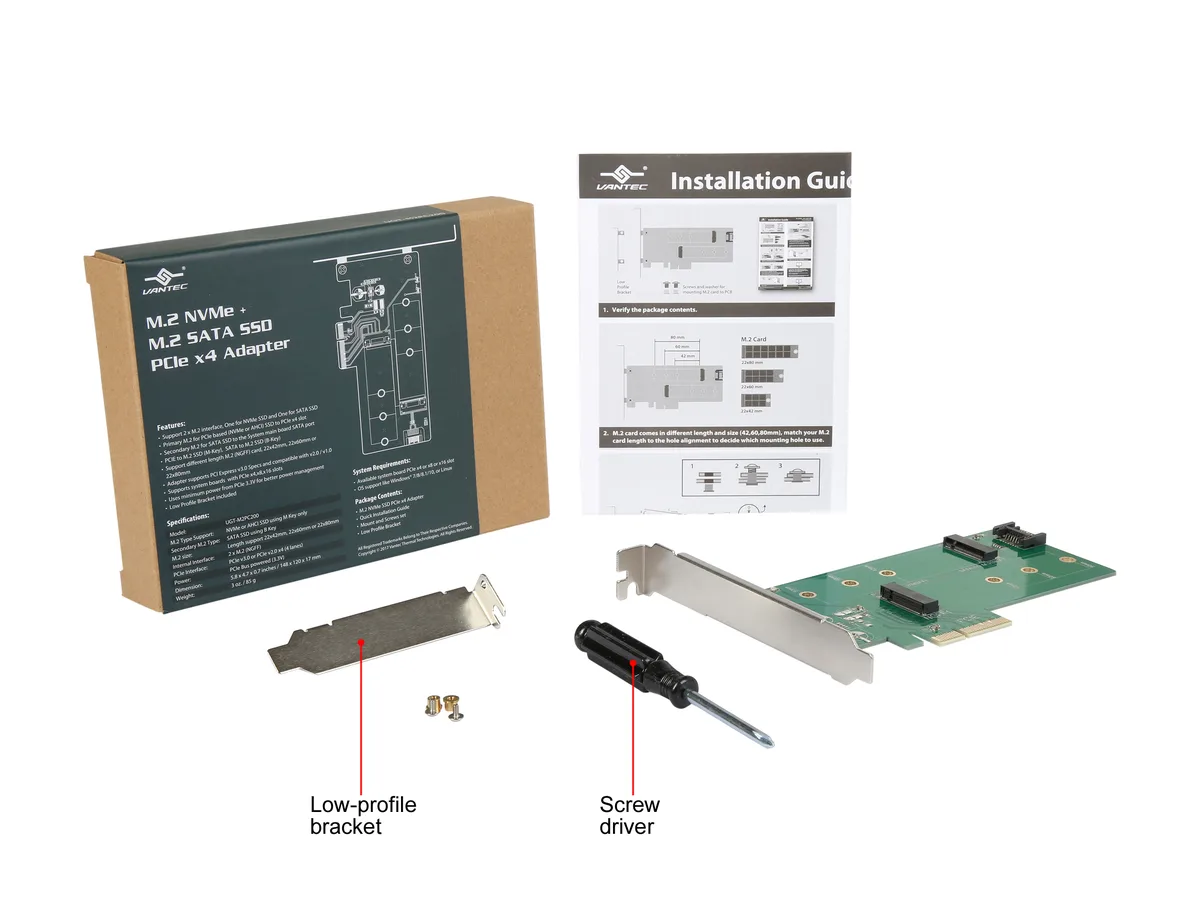

| Package Contents | M.2 NVMe + M.2 SATA SSD PCIe x4 Adapter Mount and Screws set Low Profile Bracket Quick Installation Guide |
| Berat penghantaran | 0.13 kg |
| Dimensi bungkusan | 163 × 124 × 28 mm |
Soalan tentang produk ini
Will the NVMe slot on this card run at PCIe 3.0 x4 speeds inside my PC?
The primary M-key slot connects through the PCIe 3.0 x4 interface, so an NVMe or AHCI drive there can use up to four lanes at PCIe 3.0 or 2.0 speeds depending on your motherboard slot.
Does the SATA M.2 slot share bandwidth with the NVMe slot or use a separate path?
The secondary B-key slot routes its SATA signal to a motherboard SATA port via an internal cable, so it does not share the PCIe x4 bandwidth used by the primary NVMe slot.
What screw spacing do I need on my M.2 drives to mount them on this adapter?
The card accepts 2242, 2260 and 2280 lengths, so drives with the standard 22 mm width and 42 mm, 60 mm or 80 mm screw positions will fit the provided standoffs.
