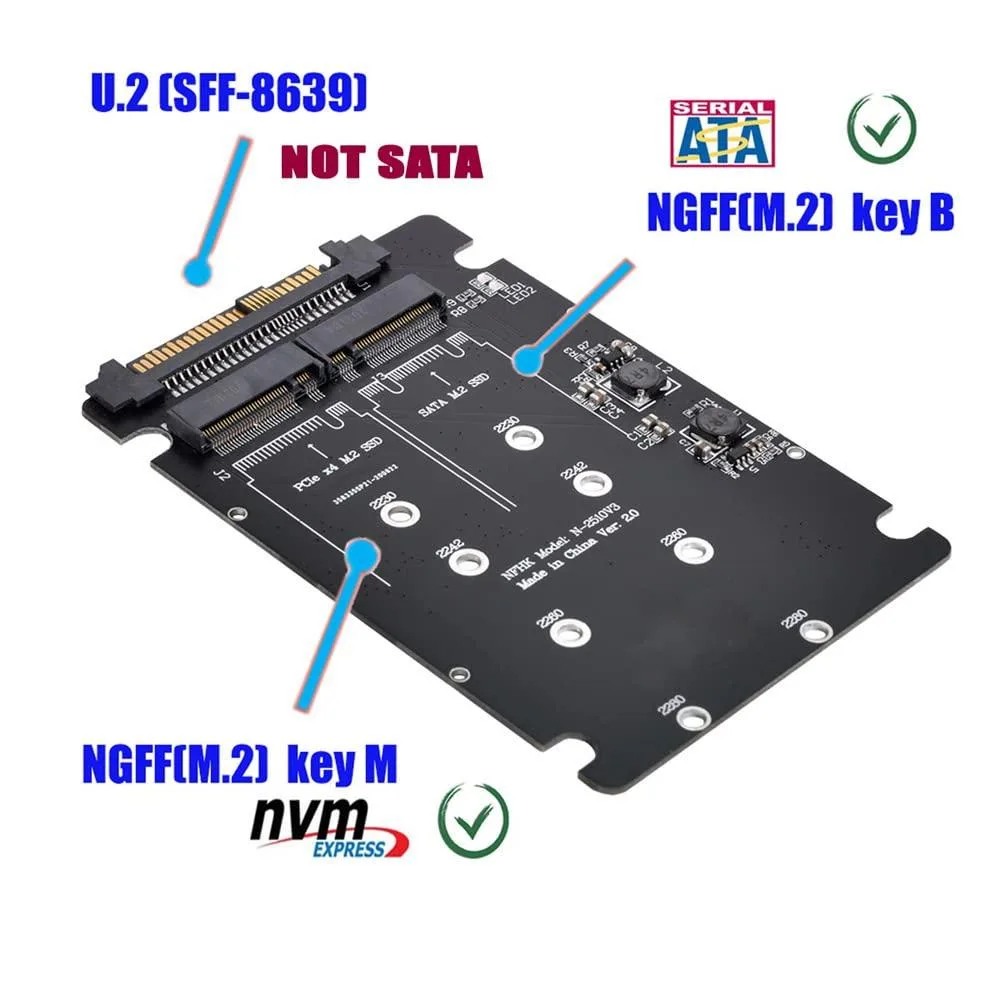

Black U.2 SFF-8639 male to dual M.2 NGFF slot adapter board

Vszerda

Vszerda SFF-8639 U.2 to M.2 NVME SATA SSD Adapter

SKU CH-1T9X-PQ8J1

Connects M.2 PCIe or SATA SSDs in 2230, 2242, 2260 or 2280 sizes to a U.2 SFF-8639 slot for 2.5-inch drive replacement

  • ColorBlack U.2 SFF-8639 to NVME+SATA
  • Dimensions10.0 in x 10.0 in x 1.0 in
  • Weight0.018 kilograms
  • Connect M.2 PCIe drives via U.2 68-pin interface
  • Connect M.2 SATA drives via SATA Express interface
  • Supports 2230, 2242, 2260, 2280 M.2 form factors
  • Accepts double-sided M.2 modules for flexible installation
  • Works with Windows 10 and Linux Kernel 3.16

U.2 to M.2 NVME SATA Adapter

This Vszerda adapter connects an M.2 SSD to a U.2 SFF-8639 port so the drive can replace a 2.5 inch HDD. It accepts M.2 modules in 2280, 2260, 2242 and 2230 lengths with key B or B+M. The board fits internally through the 68 pin U.2 interface and works with Windows 10 or Linux Kernel 3.16.

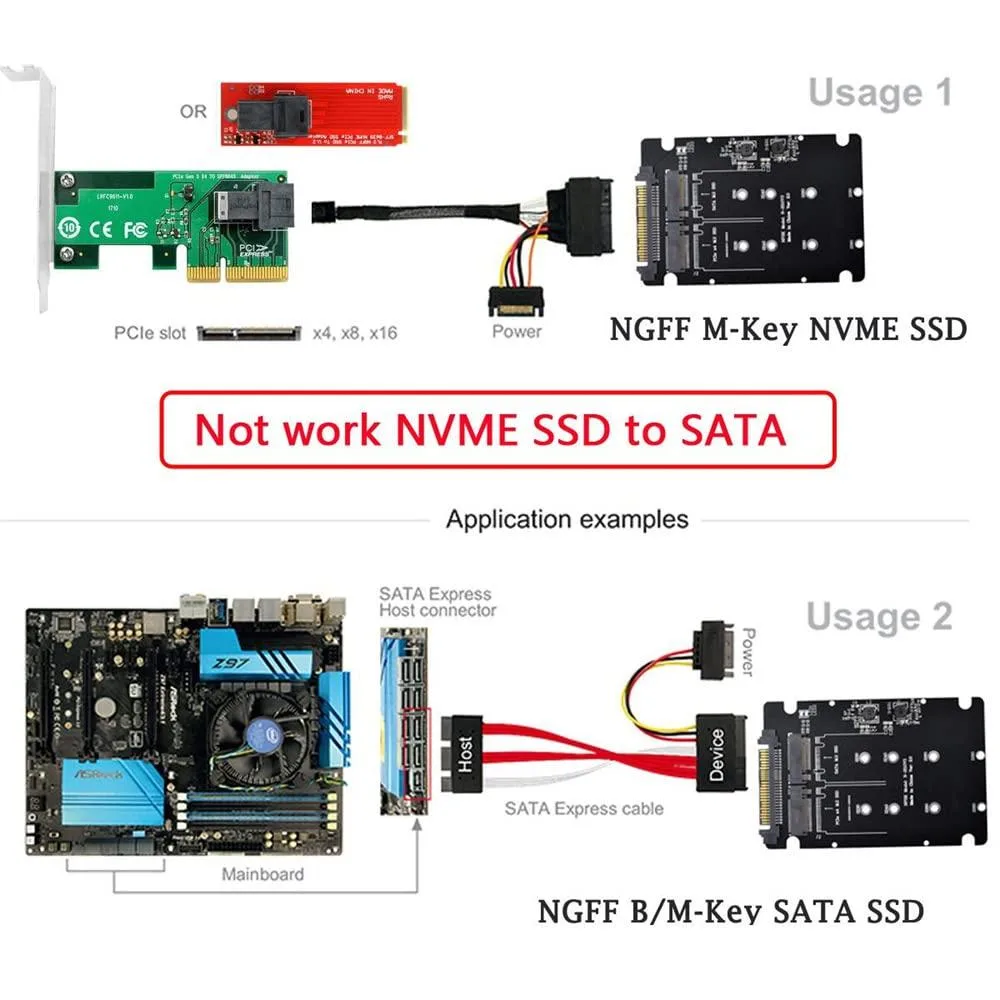

Build Integration

The converter plugs into a free U.2 SFF-8639 male connector on the motherboard or backplane and provides dual 67 pin M.2 NGFF slots. It supports double-sided assembled modules and requires no extra power cables beyond the U.2 connection. This lets you reuse an existing U.2 bay for a compact M.2 drive.

Capacity and Headroom

One M.2 PCIe SSD or one M.2 SATA SSD can be installed at a time, covering the listed form factors up to 2280. The adapter does not support simultaneous dual-drive operation or drives longer than 2280. Systems without a U.2 SFF-8639 interface cannot use this converter.

Ciri-ciri utama

  • Connect M.2 PCIe drives via U.2 68-pin interface
  • Connect M.2 SATA drives via SATA Express interface
  • Supports 2230, 2242, 2260, 2280 M.2 form factors
  • Accepts double-sided M.2 modules for flexible installation
  • Works with Windows 10 and Linux Kernel 3.16

Spesifikasi

BrandVszerda
ColorBlack U.2 SFF-8639 to NVME+SATA
Dimensions10.0 in x 10.0 in x 1.0 in
Weight0.018 kilograms

Soalan tentang produk ini

What length M.2 drive does the dual 67 pin slot accept without overhang?

The slot fits 2230, 2242, 2260 and 2280 modules so a 2280 drive sits flush.

Does the adapter need extra cooling when an NVME drive runs continuously?

The board has no fan or heatsink; it relies on case airflow to keep the drive within its own thermal limits.

Which host interface must the motherboard provide for the adapter to function?

A free U.2 SFF-8639 68 pin port is required; the adapter draws power and data through that connector.
