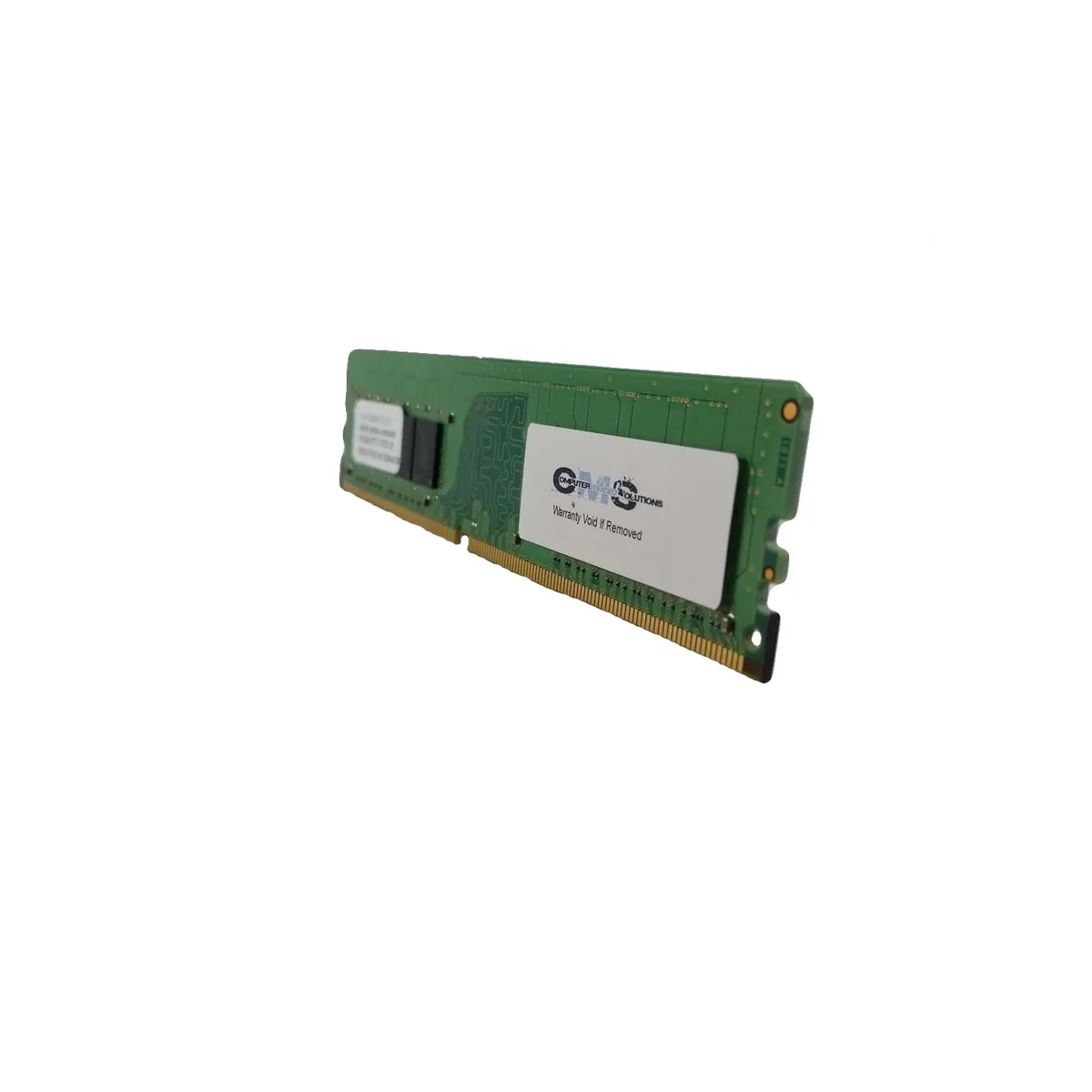

Green circuit board DDR4 memory module with black chips no heat spreader 288-pin DIMM form factor

Computer Memory Solutions

Computer Memory Solutions CM1024642133DIMM 8GB DDR4 2133MHz memory upgrade

SKU CH-FCA7-RVYHV

8GB DDR4 2133MHz CL15 unbuffered DIMM validated for Lenovo ThinkServer TS150 systems

  • Capacity8GB
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 2133 (PC4 17000)
  • CAS LatencyCL15
  • Timing15-15-15
  • Voltage1.2V
  • 8GB DDR4 capacity expands ThinkServer TS150 memory
  • 2133MHz PC4-17000 speed delivers responsive performance
  • CL15 15-15-15 timing ensures stable operation
  • 2V unbuffered DIMM reduces power consumption
  • 288-pin non-ECC design fits TS150 70LVxxx 70LXxxx

Lenovo ThinkServer TS150 memory upgrade

This 8 GB DDR4 module is built for the Lenovo ThinkServer TS150 and uses a 288-pin DIMM form factor. It runs at 2133 MHz with CL15 timings and operates at 1.2 V. The kit contains a single unbuffered, non-ECC stick.

DDR4 2133 speed and non-ECC constraint

The TS150 platform accepts both ECC and non-ECC memory but mixing the two types is not recommended. Only Xeon E3 series processors enable ECC unbuffered operation, so this non-ECC module suits systems without that processor. Maximum supported capacity is 64 GB across four sockets.

Simple DIMM installation with one caution

Insert the stick into an empty 288-pin slot until the retention clips click. The main issue arises if an existing ECC module remains installed, because mixing ECC and non-ECC can prevent boot or cause instability. Remove any ECC sticks before adding this one.

Høydepunkter

  • 8GB DDR4 capacity expands ThinkServer TS150 memory
  • 2133MHz PC4-17000 speed delivers responsive performance
  • CL15 15-15-15 timing ensures stable operation
  • 2V unbuffered DIMM reduces power consumption
  • 288-pin non-ECC design fits TS150 70LVxxx 70LXxxx

Spesifikasjoner

BrandComputer Memory Solutions
ModelCM1024642133DIMM
Capacity8GB
Type288-Pin DDR4 SDRAM
SpeedDDR4 2133 (PC4 17000)
CAS LatencyCL15
Timing15-15-15
Voltage1.2V
ECCNo
Buffered/RegisteredUnbuffered
Rank2Rx8
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemLenovo ThinkServer TS150
Package Content1 Memory RAM Stick

Spørsmål om denne varen

Is the 8GB single stick the right choice or should I look for a kit?

The module ships as one 8GB stick. Your ThinkServer TS150 has four slots and supports up to 64GB total, so you can add more identical sticks later if you need extra capacity.

What does the 2133MHz rating actually deliver in the TS150?

The memory runs at DDR4 2133 with CL15 timing at 1.2V. In the TS150 it will operate at that rated speed, giving you the standard bandwidth for this platform.

Will the 288-pin DDR4 DIMM fit the TS150 memory slots?

Yes. The TS150 uses standard 288-pin DDR4 DIMM slots and this module is an unbuffered non-ECC DIMM, which the system supports alongside ECC modules.
