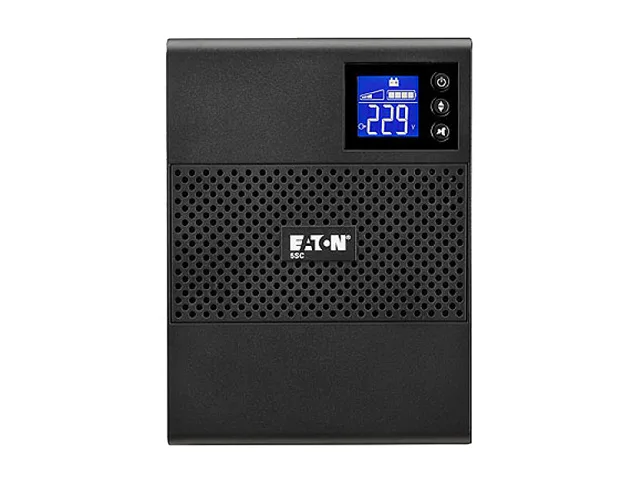

Tower UPS unit in black finish with front display panel

Eaton

Eaton 5SC1000 1000 VA 700 W UPS

SKU CH-2TDJ-3Y9KA MPN 5SC1000

Line-interactive battery backup delivers 1000 VA and 700 watts through eight NEMA 5-15R outlets with RS-232 and USB management ports

  • Input Voltage Range96 - 144 Vac
  • Input Frequency50/60 Hz
  • Input ConnectionNEMA 5-15P
  • VA Rating1000 VA
  • Watts700 watts
  • Output Voltage120V

VA 1000 VA

  • 1000 VA capacity supports critical loads during outages
  • 700 watt output handles multiple devices simultaneously
  • Eight NEMA 5-15R outlets provide flexible equipment connections
  • RS-232 and USB interfaces enable remote monitoring
  • CE, cULus and NOM approvals confirm safety compliance

Tower UPS for desktop and networking gear

The Eaton 5SC1000 is a line-interactive tower UPS rated at 1000 VA and 700 watts with a 120 V output. It accepts an input range of 96 to 144 Vac at 50 or 60 Hz through a NEMA 5-15P plug. Eight NEMA 5-15R outlets provide battery-backed and surge-only connections for a workstation, monitor, router and modem.

Step up from basic surge strips when outages last

A simple power strip cannot keep a PC running during a blackout; this unit supplies battery runtime so you can save work and shut down cleanly. The jump is worth it when a brief utility interruption would otherwise lose unsaved data or corrupt a local database. RS-232 and USB ports with included cables enable automated shutdown via Eaton Intelligent Power Manager software.

700 watts handles a typical desktop plus peripherals

At full 700 W load the battery provides only a few minutes of runtime, enough for an orderly shutdown but not extended operation. Light loads such as a router and NAS will run considerably longer. The unit weighs 25.60 lbs and measures 8.20 by 5.90 by 13.40 inches, so confirm shelf or floor space before purchase.

Høydepunkter

  • 1000 VA capacity supports critical loads during outages
  • 700 watt output handles multiple devices simultaneously
  • Eight NEMA 5-15R outlets provide flexible equipment connections
  • RS-232 and USB interfaces enable remote monitoring
  • CE, cULus and NOM approvals confirm safety compliance

Spesifikasjoner

BrandEATON
Model5SC1000
Input Voltage Range96 - 144 Vac
Input Frequency50/60 Hz
Input ConnectionNEMA 5-15P
VA Rating1000 VA
Watts700 watts
Output Voltage120V
Outlets8
Outlet TypeNEMA 5-15R
Interface PortRS-232, USB
Management SoftwareYES
ApprovalsCE / cULus / NOM
Dimensions8.20" x 5.90" x 13.40" (H x W x D)
Weight25.60 lbs.

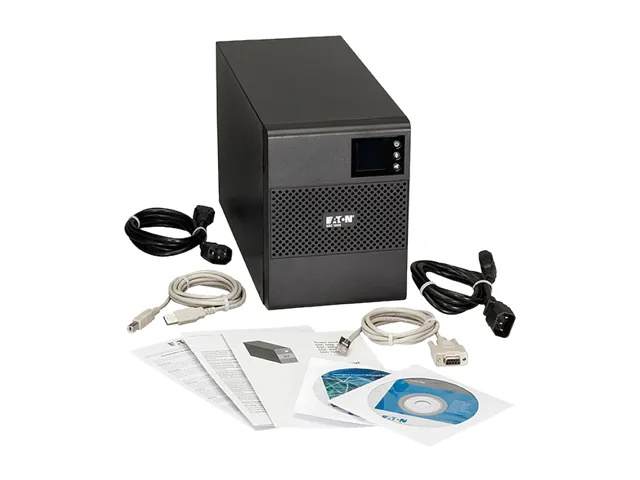

Package Contents5SC UPS
User manual CD
Eaton Intelligent Power Manager Software CD
USB cable
Serial Cable (RJ45 to DB9)
Important Safety Instructions
Limited Warranty Details
Fraktvekt12.30 kg
Pakkestørrelse480 × 308 × 240 mm

Andre versjoner av denne modellen

3 flere i samme serie

Samme familie, annet minne, annen kjøler eller klokkefrekvens — sammenlign før du bestemmer deg.

Spørsmål om denne varen

How much clearance does the 8.20" tall tower need on a shelf or rack?

The unit measures 8.20" high, 5.90" wide and 13.40" deep, so allow at least those dimensions plus a few inches of airflow space around the vents.

Which cable do I plug in first — the USB cable or the serial cable — when setting up the management software?

Connect the USB cable to the PC, install the Intelligent Power Manager software from the CD, then attach the serial cable only if your environment requires RS-232 monitoring.

How often should the internal battery be replaced under normal office use?

Expect a three-to-five-year service life; the UPS will sound an alarm and flash the battery indicator when a replacement is due.
