Green circuit board with four red SATA ports and silver heatsink

ESTONE

ESTONE PCIE24SATA 4-Port SATA III Expansion Card with Low-Profile Bracket

SKU CH-YV0N-1E6WD

Adds four SATA III 6 Gbps ports via PCIe 2.0 x1 with Marvell 88SE9215 chipset, low-profile bracket and four 40 cm cables included

  • TypePCI to SATA Card
  • External USB Ports4x SATA III
  • StandardUSB 3.2
  • Data Transfer RateUp to 6 Gbps
  • Operating Systems SupportedWindows XP /2003 / 7 / 8 / 10 / 11 / MAC / NAS / Linux OS.
  • CompatibilityConnect 4 large capacity storage devices at the same time. C
  • Add four SATA 3.0 6 Gbps drives with one PCIe card
  • Marvell 88SE9215 chipset delivers stable multi-drive performance
  • Boots Windows 10/11 from SATA without RAID
  • Low-profile bracket and 40 cm cables fit 99 % of cases
  • Works in PCIe 1.0, 2.0 and 3.0 slots on Windows, Mac, Linux, NAS

ESTONE PCIE24SATA SATA expansion card

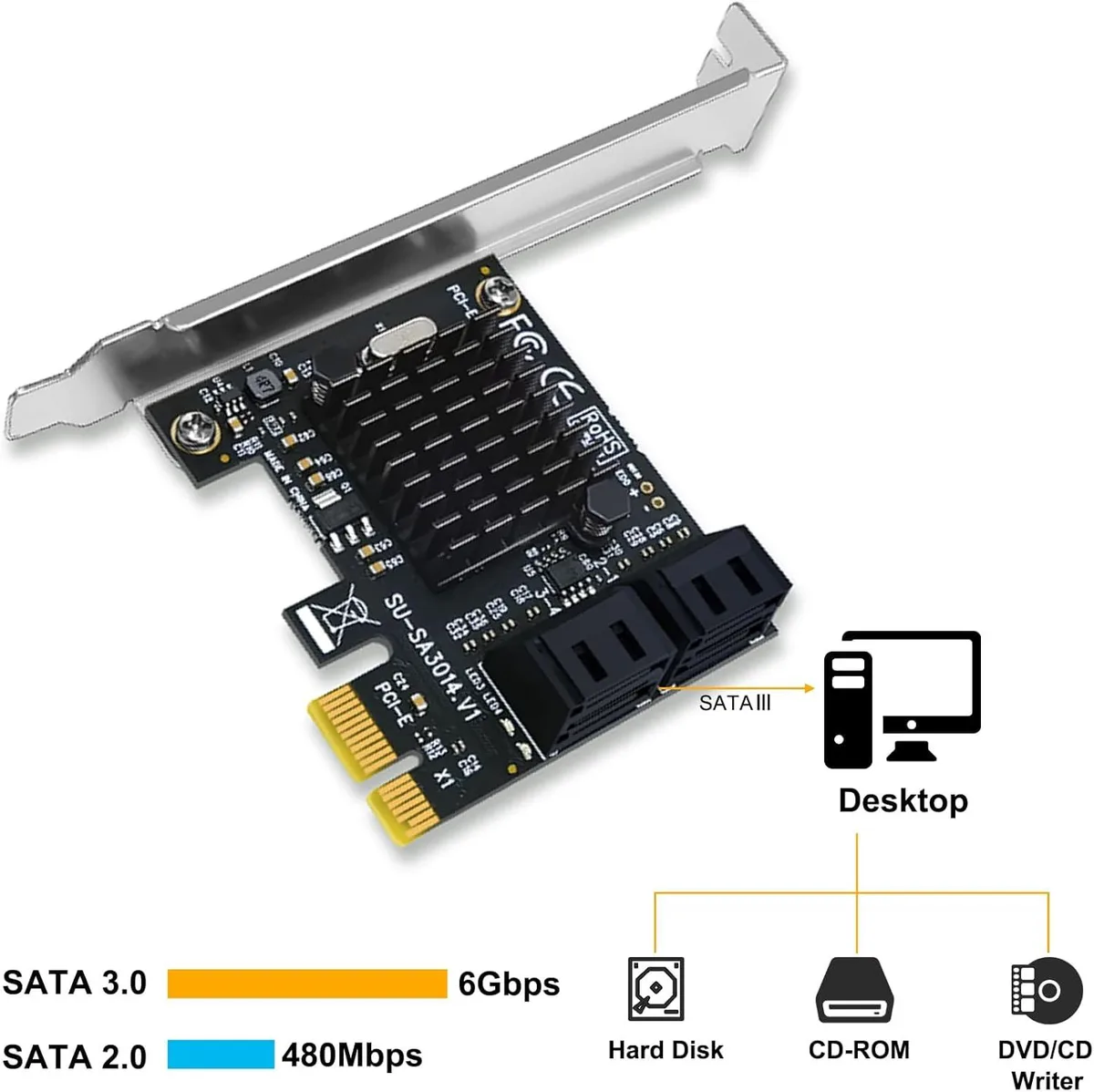

The ESTONE PCIE24SATA adds four SATA III ports through a single PCIe x1 slot. It uses the Marvell 88SE9215 controller and includes a low-profile bracket for small-form-factor cases. Four SATA cables and mounting hardware are supplied. The card works without extra drivers on Windows XP through 11, macOS, Linux and NAS platforms.

Four SATA III ports at 6 Gbps each

Each port delivers up to 6 Gbps and is backward compatible with 1.5 Gbps and 3 Gbps drives. Four large-capacity drives can be connected simultaneously. The controller supports Port Multiplier FIS-based and Command-based switching. RAID is not supported on the card itself, though a motherboard with RAID capability can build arrays across the ports.

PCIe 2.0 x1 link caps total bandwidth

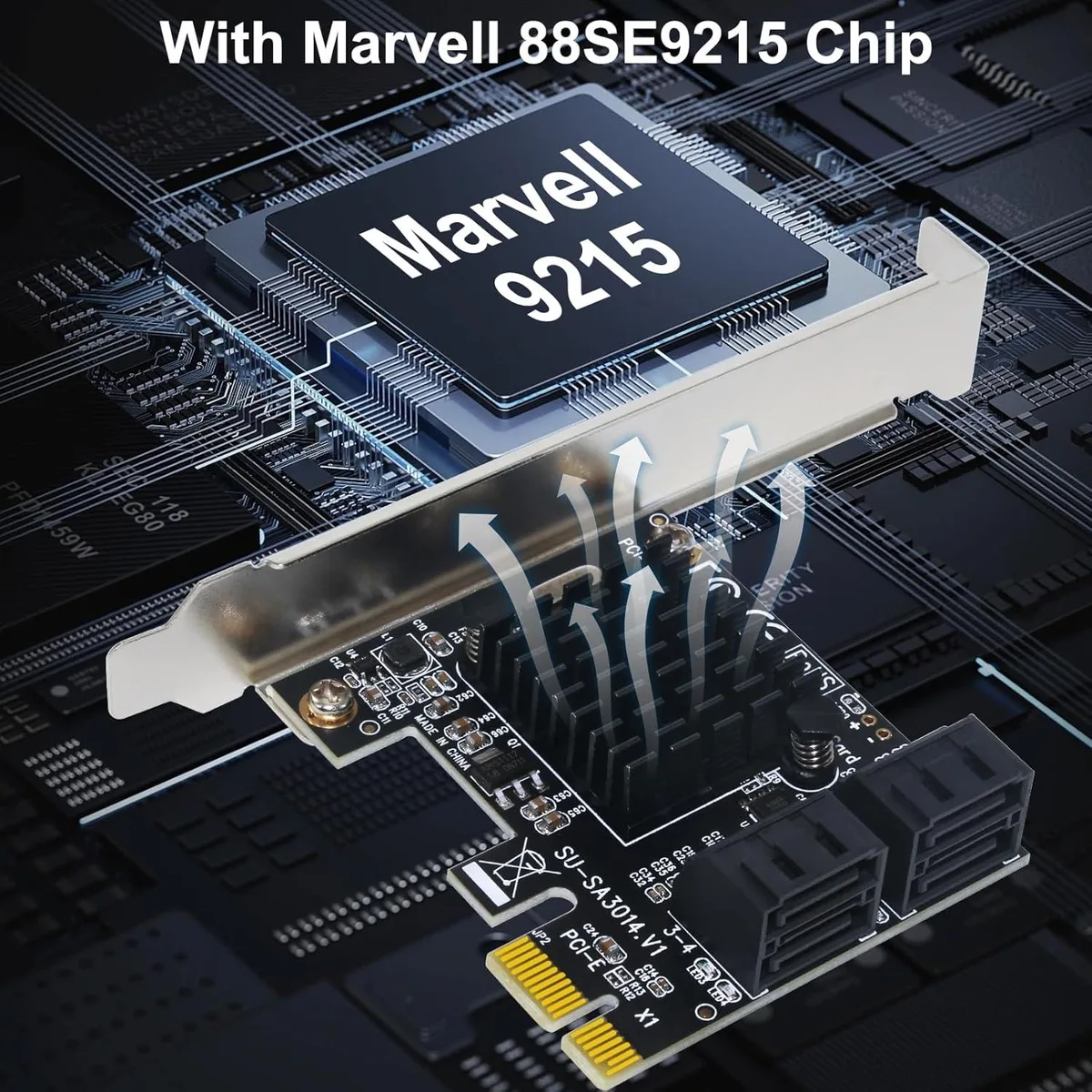

The card complies with PCI Express 2.0 and 3.0 and fits x1, x4, x8 or x16 slots. Because the link is a single PCIe 2.0 lane, aggregate throughput cannot exceed that lane's ceiling. A passive heatsink is fitted to the Marvell 88SE9215 for sustained operation. Boot-from-drive is supported in non-RAID mode.

Høydepunkter

  • Add four SATA 3.0 6 Gbps drives with one PCIe card
  • Marvell 88SE9215 chipset delivers stable multi-drive performance
  • Boots Windows 10/11 from SATA without RAID
  • Low-profile bracket and 40 cm cables fit 99 % of cases
  • Works in PCIe 1.0, 2.0 and 3.0 slots on Windows, Mac, Linux, NAS

Spesifikasjoner

BrandESTONE
SeriesPCIE24SATA
ModelPCIE24SATA
TypePCI to SATA Card
External USB Ports4x SATA III
StandardUSB 3.2
Data Transfer RateUp to 6 Gbps
Operating Systems SupportedWindows XP /2003 / 7 / 8 / 10 / 11 / MAC / NAS / Linux OS.
CompatibilityConnect 4 large capacity storage devices at the same time. Compatible with Windows XP /2003 / 7 / 8 / 10 / 11 / MAC / NAS / Linux OS. SATA controller PCI-E X1 interface compatible with 1X/4X/8X/16 slots
SpecificationsChipset: Marvell 88SE9215
Support 4 SATA 3.0 6Gbps devices
Compliant with PCI-Express Specification v2.0 ,v3.0, backwards compatible with PCIe1.0
Compliant with Serial ATA Specification 3.0, backwards compliant with Serial ATA2.0,Serial ATA1.0
Supports Communication Speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
Supports Port Multiplier FIS-based and Command-based switching
Plug and play, supports Hot Plug and Hot Swa
Features4 PORTS SATA CARD - This PCIE SATA card allows you to add 4 SATA 3.0 6Gbps devices to your computer. You could make the system to boot from this SATA controller but non RAID. If your motherboard has RAID function, you could make a RAID with this SATA card.
POWERFUL CHIPSET - SATA controller with using Marvell 88SE9215 chip,more stable and compatible.Port Multiplier FIS-based and Command-based switching supported. enhances heat dissipation, long-lasting high temperature resistance and more stable operation.
WORKS WITH ALL COMPUTERS - 4 Ports SATA Card with a low profile Bracket and 4
Weight3.2 ounces
Package ContentsKit includes: 1 X 4-port SATA expansion card, 4 X SATA cable(40cm/15.8in), 1 X low-profile bracket, 1 X screwdriver, 2 X screw kit, 1 X anti-static bag.

Spørsmål om denne varen

Will the Marvell 88SE9215 chipset on this card run alongside an older SATA 1.5 Gbps hard drive I keep for backups?

Yes, the controller is backward compatible with SATA 1.5 Gbps and 3 Gbps devices, so your legacy drive will work at its native speed while the other ports run at 6 Gbps.

How can I confirm the card is operating at the full 6 Gbps link speed after installation?

Check the negotiated link rate in your OS disk utility or BIOS; each of the four ports should report a 6 Gbps connection when a SATA III drive is attached.

Does the box include the four 40 cm SATA data cables and the low-profile bracket shown in the photos?

The kit contains the expansion card, four 40 cm SATA cables, a low-profile bracket, a screwdriver, two screw kits and an anti-static bag — no extra parts are needed.
