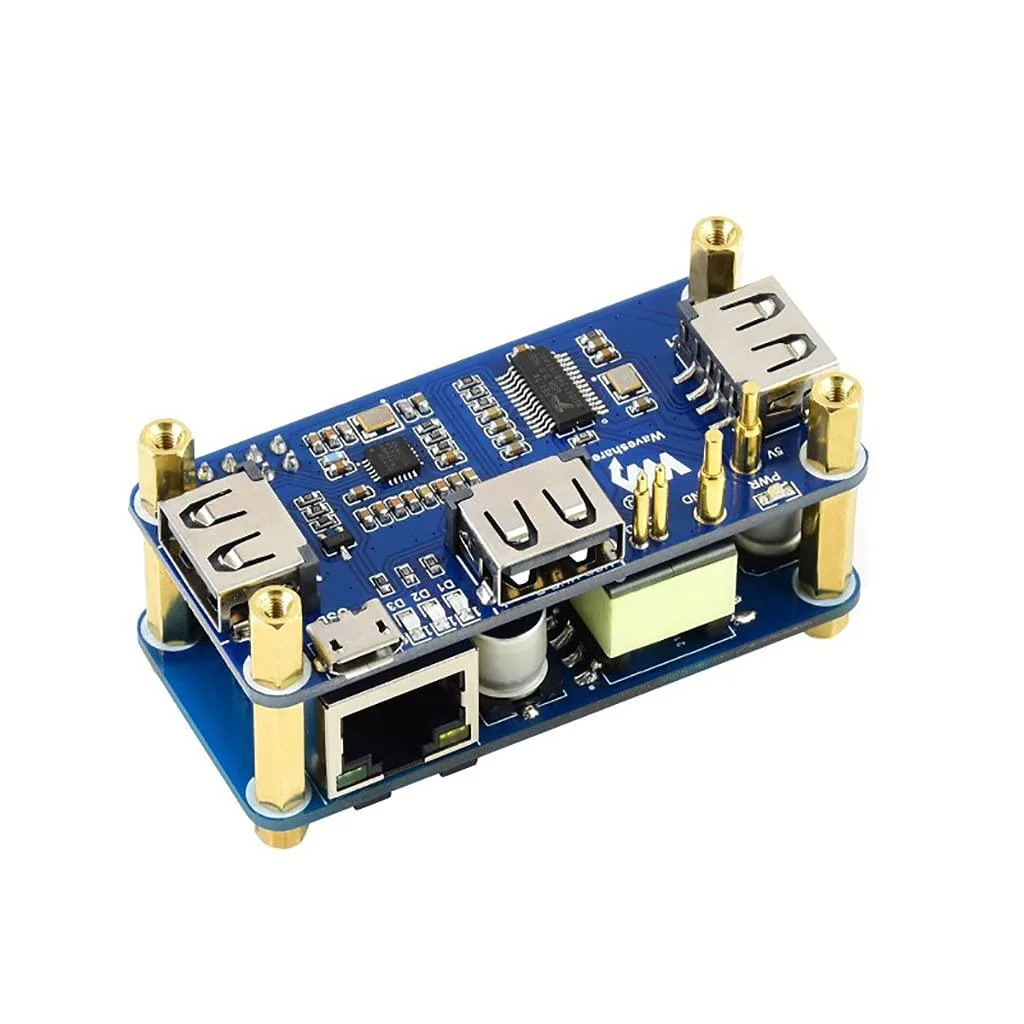

Green rectangular circuit board with RJ45 jack and three USB ports

LORDWORLD

LORDWORLD PoE Ethernet USB Hub HAT for Raspberry Pi Zero RJ45 3 USB 2.0 Ports

SKU CH-BVYR-RS6DB

Adds wired 10/100 Ethernet, 802.3af PoE power and three USB 2.0 ports to Raspberry Pi Zero boards in one compact HAT

  • Adds wired 10/100 Ethernet via RTL8152B chip
  • Powers Pi Zero through single 802.3af PoE cable
  • Expands connectivity with three USB 2.0 ports
  • Supports USB 1.1 and 2.0 peripherals directly
  • Fits Zero, Zero W, Zero WH, Zero 2W

Raspberry Pi Zero PoE HAT

The LORDWORLD PoE Ethernet USB Hub HAT adds wired networking, Power over Ethernet input and three USB 2.0 ports to any Raspberry Pi Zero, Zero W, Zero WH or Zero 2W board. It suits makers building compact IoT gateways, embedded Linux nodes or headless network terminals that need a single-cable power and data link.

10/100M RJ45 with RTL8152B chip

The on-board RTL8152B Ethernet controller provides a 10M/100M auto-negotiation RJ45 jack, delivering a stable wired connection for embedded deployments where wireless is unreliable or unavailable. Buyers who need gigabit throughput or fibre uplinks cannot use this HAT.

802.3af PoE and three USB 2.0 ports

Compliant 802.3af PoE input lets the Pi draw both power and network traffic from one Ethernet cable when paired with suitable PoE sourcing equipment, removing the need for a separate USB power supply. The integrated hub expands the single USB OTG port into three USB 2.0 sockets that accept keyboards, mice, storage drives, camera modules and other USB 1.1 or 2.0 peripherals. Projects requiring USB 3.0 speeds or additional high-current ports will need a different solution.

Høydepunkter

  • Adds wired 10/100 Ethernet via RTL8152B chip
  • Powers Pi Zero through single 802.3af PoE cable
  • Expands connectivity with three USB 2.0 ports
  • Supports USB 1.1 and 2.0 peripherals directly
  • Fits Zero, Zero W, Zero WH, Zero 2W

Spesifikasjoner

BrandLORDWORLD

Spørsmål om denne varen

What does the 10/100M Ethernet port deliver on a Raspberry Pi Zero?

The RTL8152B chip provides a 10M/100M auto-negotiation RJ45 link, giving the Zero a stable wired network connection for embedded deployments.

What does 802.3af PoE input cap in practice?

It allows power and network over one Ethernet cable when paired with compliant PoE sourcing equipment, limited to the 802.3af power budget.

What clearance does the HAT need to mount on a Zero board?

It fits the standard 40-pin header on Zero, Zero W, Zero WH and Zero 2W, adding a compact RJ45 jack and three USB 2.0 ports on top.
