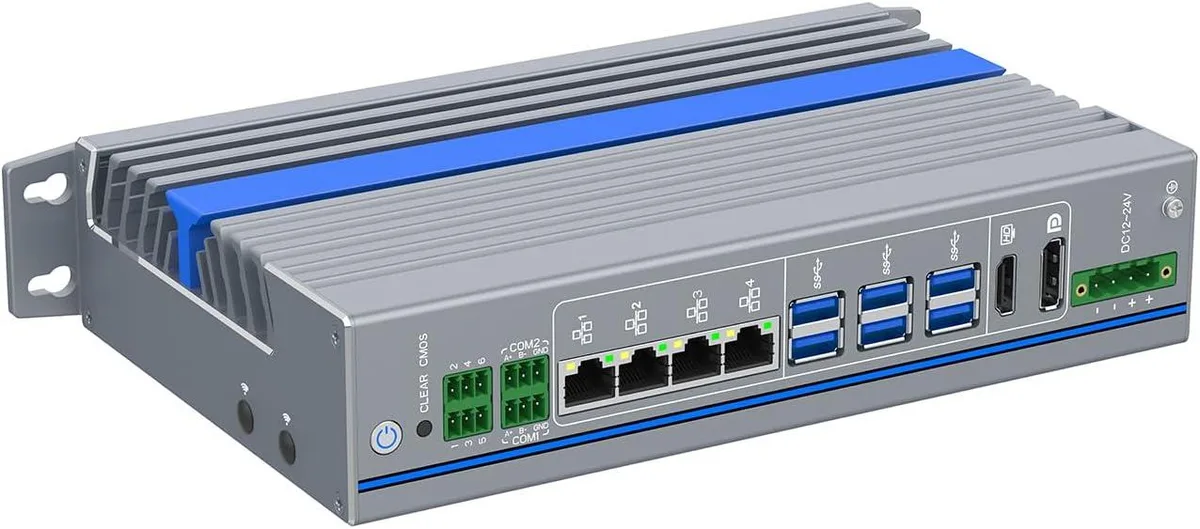

Grey rectangular fanless aluminium mini PC with book-style mount

partaker

partaker I24 barebone mini PC i3-12300T 16GB 512GB

SKU CH-EVS3-XF0CN

Fanless aluminium mini PC with a 4.2 GHz Core i3, 16 GB DDR5, 512 GB SATA SSD, four Gigabit LAN ports and dual 4K video outputs for industrial 24/7 use

  • ColorGray
  • CPU TypeIntel Core i3 12th Gen

I24 CPU I3 12300T 16GB RAM / 512GB SSD

  • Fanless aluminium chassis runs silently from -20 °C to 50 °C
  • Intel Core i3-12300T with 4 cores and 8 threads reaches 4.2 GHz
  • Dual DDR5 4800 SODIMM slots support up to 64 GB memory

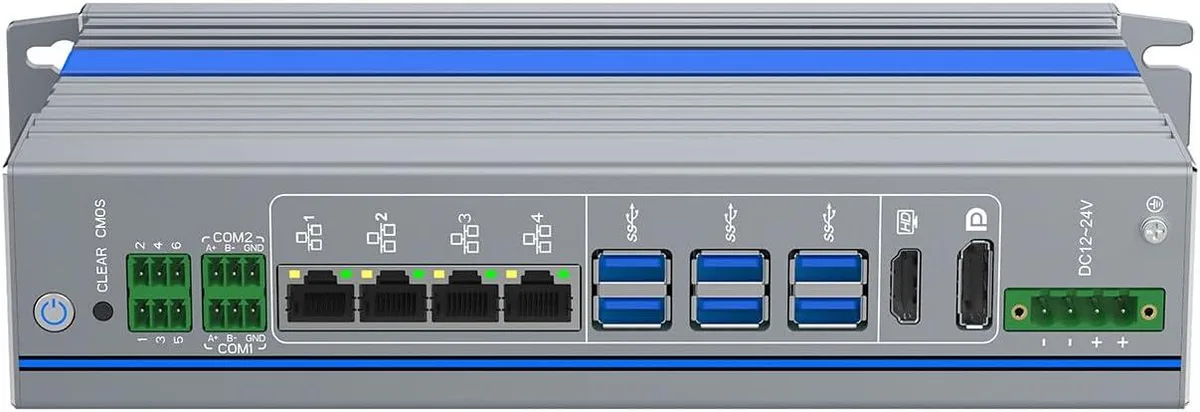

  • Quad Gigabit LAN plus 6 USB ports connect cameras, sensors and peripherals
  • Dual 4K 60 Hz outputs via HDMI and DP drive surveillance or HMI displays

Industrial fanless mini PC

The Partaker I24 is a book-style barebone built around an Intel Core i3-12300T processor with four cores and eight threads reaching 4.2 GHz. It ships with 16 GB of DDR5 4800 memory and a 512 GB M.2 2280 SATA SSD. The all-aluminium chassis provides passive cooling for continuous 24/7 operation in temperatures from -20 °C to 50 °C.

Suits edge and automation deployments

This unit targets integrators who need silent, dust-proof hardware with quad Gigabit Ethernet, dual 4K display outputs at 60 Hz, and two optically isolated RS-485 ports for industrial buses. Builders requiring active cooling, discrete graphics, or more than two internal SATA drive bays should consider alternative platforms.

DC 12 V to 24 V Phoenix power input

The four-pin terminal accepts a wide 12 V to 24 V range, enabling direct connection to industrial power supplies without an external adapter brick. This single electrical interface determines whether the I24 can be installed in a given cabinet or vehicle power system.

Høydepunkter

  • Fanless aluminium chassis runs silently from -20 °C to 50 °C
  • Intel Core i3-12300T with 4 cores and 8 threads reaches 4.2 GHz
  • Dual DDR5 4800 SODIMM slots support up to 64 GB memory
  • Quad Gigabit LAN plus 6 USB ports connect cameras, sensors and peripherals
  • Dual 4K 60 Hz outputs via HDMI and DP drive surveillance or HMI displays

Spesifikasjoner

ColorGray
CPU TypeIntel Core i3 12th Gen

Andre versjoner av denne modellen

5 flere i samme serie

Samme familie, annet minne, annen kjøler eller klokkefrekvens — sammenlign før du bestemmer deg.

Spørsmål om denne varen

How quiet and cool does the fanless aluminum chassis stay when the Core i3-12300T runs at its 35-69W TDP around the clock?

The passively cooled all-aluminum body has no moving parts, so it produces zero fan noise. It is rated for continuous 24/7 operation in ambient temperatures from -20°C to 50°C.

Which display cables and mounts do I need to have on hand before the I24 arrives?

You will need an HDMI cable and a DisplayPort cable for the dual 4K 60Hz outputs, plus a 12-24V DC source wired to the 4-pin Phoenix terminal. The box includes a desktop mount, a power supply and a power cord.

Can I keep using my RS-485 sensors and mSATA drive with this unit?

Yes. The I24 provides two optically isolated RS-485 ports on the rear I/O and an internal mSATA slot alongside the M.2 2280 SATA slot, so existing industrial sensors and legacy SATA storage fit directly.
