STARTECH
STARTECH BNDTB4M2E1 Thunderbolt 3 PCIe M.2 drive enclosure
An external Thunderbolt 3 enclosure adds a PCIe M.2 SSD slot and DisplayPort output to a desktop or laptop, powered by an included 65 W AC adapter
- ColorBlack
- TypeEnclosure
- AC AdapterYes
- MaterialAluminum / Steel
- Thunderbolt 3Yes
- Internal Interface1 x PCI Express x4 Male 1 x PCI Express x16 Female
- Add PCIe M.2 SSD storage via Thunderbolt 3 at 40 Gbps
- Swappable PCIe x16 card slot for flexible upgrades
- 92 mm sleeve-bearing fan keeps drives cool
- 65 W AC adapter powers enclosure and drive
- Aluminium and steel chassis measures 11.00 x 5.60 x 3.20 inches
Thunderbolt 3 PCIe M.2 enclosure

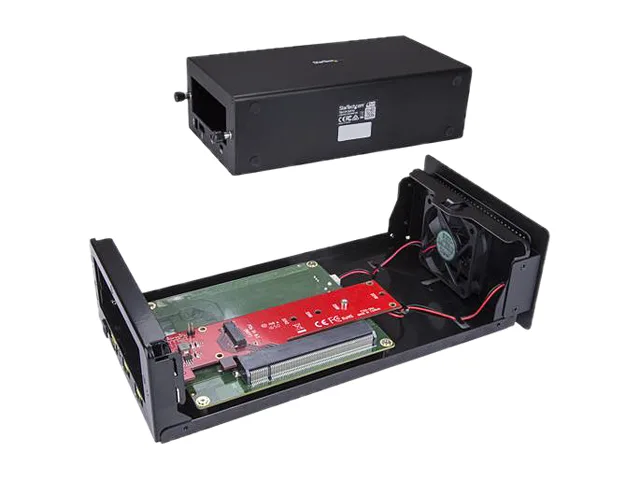

This aluminium and steel chassis adds a full-size PCIe x16 slot and an M.2 PCIe x4 adapter to any computer with a Thunderbolt 3 port. An included 65 W power adapter and a 92 mm sleeve-bearing fan keep the installed card cool during sustained workloads. The unit measures 11.00 x 5.60 x 3.20 inches and weighs 3.60 lbs.
Who this suits and who should look elsewhere
Creative professionals and developers who need to run PCIe add-in cards or high-speed M.2 SSDs on a laptop or compact desktop will benefit from the 40 Gbps Thunderbolt 3 link. Builders who require multiple drive bays, internal mounting inside a case, or a host connection faster than 40 Gbps should consider other solutions.
Deciding specification: 40 Gbps Thunderbolt 3
The single figure that determines compatibility is the 40 Gbps Thunderbolt 3 interface, which sets the maximum data rate for any installed PCIe x4 M.2 SSD or expansion card. If the host port delivers less bandwidth, performance will be limited accordingly.
Høydepunkter
- Add PCIe M.2 SSD storage via Thunderbolt 3 at 40 Gbps
- Swappable PCIe x16 card slot for flexible upgrades
- 92 mm sleeve-bearing fan keeps drives cool
- 65 W AC adapter powers enclosure and drive
- Aluminium and steel chassis measures 11.00 x 5.60 x 3.20 inches
Spesifikasjoner
| Brand | StarTech.com |
|---|---|
| Model | BNDTB4M2E1 |
| Color | Black |
| Type | Enclosure |
| AC Adapter | Yes |
| Material | Aluminum / Steel |
| Thunderbolt 3 | Yes |
| Internal Interface | 1 x PCI Express x4 Male 1 x PCI Express x16 Female |

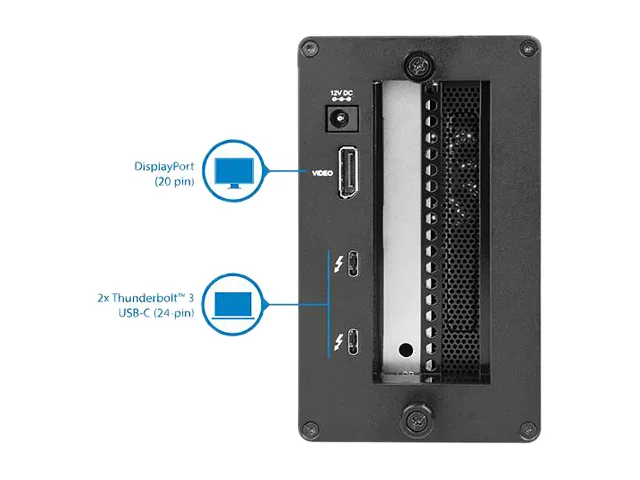

| External Interface | 1 x M.2 (NGFF, M-Key, PCIe x4) 2 x Thunderbolt 3 USB-C Female 1 x DisplayPort Female |
| Fan | 1 x 92mm Sleeve Bearing Fan |
| Power | Center Tip Polarity: Positive Input Current : 2A Input Voltage : 100 ~ 240 AC Output Current: 5.417A Output Voltage: 12 DC Plug Type: N Power Consumption (In Watts): 65W Power Source: AC Adapter Included |
| Specifications | Maximum Data Transfer Rate : 40 Gbps (Thunderbolt 3) Type and Rate: Thunderbolt 3 - 40 Gbit/s This Thunderbolt 3 to PCIe M.2 adapter lets you take advantage of the speed of PCIe solid-state drives, connected externally to your Thunderbolt 3 desktop or laptop computer. The adapter combines the StarTech.com Thunderbolt 3 PCIe Expansion Chassis (TB31PCIEX16) and the M.2 PCIe SSD adapter card ( PEX4M2E1), giving you a DisplayPort output and an additional Thunderbolt 3 port. Boost your system speed and performance Get ultra-fast data access by adding this PCIe M.2 SSD adapter externally t |
| Operating Systems Supported | Thunderbolt 3 equipped computer with a Thunderbolt 3 port. |
| Features | The Thunderbolt 3 m.2 enclosure lets you take advantage of the speed and size of PCIe M.2 internal solid-state drives, connected externally to your Thunderbolt 3 desktop or laptop computer Boost performance and productivity by externally adding a PCIe M.2 SSD to your Thunderbolt 3 computer via the Thunderbolt 3 chassis Create an efficient work station with the chassis’ extra display options, using the DisplayPort output and additional Thunderbolt 3 port Upgrade your peripherals without having to upgrade your chassis, by just switching out your PCIe card Assemble and install easily wi |
| Dimensions | 11.00" x 5.60" x 3.20" |
| Weight | 3.60 lbs. |
| Package Contents | 1 x Thunderbolt 3 PCIe expansion box 1 x Thunderbolt 3 cable 4 x rubber feet 1 x universal power adapter (NA/JP, UK, EU, ANZ) 1 x PCI Express x4 to M.2 PCIe SSD Adapter 1 x low-profile bracket 1 x full-profile bracket (pre-installed) 2 x quick-start guides 1 x SSD standoff and installation screw |
| Fraktvekt | 4.08 kg |
| Pakkestørrelse | 360 × 290 × 145 mm |
Spørsmål om denne varen
How loud is the 92 mm fan when the enclosure runs continuously?
The 92 mm sleeve-bearing fan spins inside an aluminium and steel chassis; fan speed is not adjustable, so audible airflow will be present during sustained loads.
Which host connection does the unit require to operate?
A Thunderbolt 3 port on the host computer is mandatory; the included Thunderbolt 3 cable links the enclosure to that port.
Can the PCIe x16 slot accept a legacy PCIe x1 or x4 card?
The chassis provides a PCIe x16 female slot that is electrically wired for x4; cards that fit mechanically will be limited to x4 bandwidth.
