Seven inch IPS touchscreen monitor with toughened glass cover in protective case

WaveShare

WaveShare 7" 1024x600 IPS Capacitive Touch Portable Monitor

SKU CH-F6DY-TYD7T

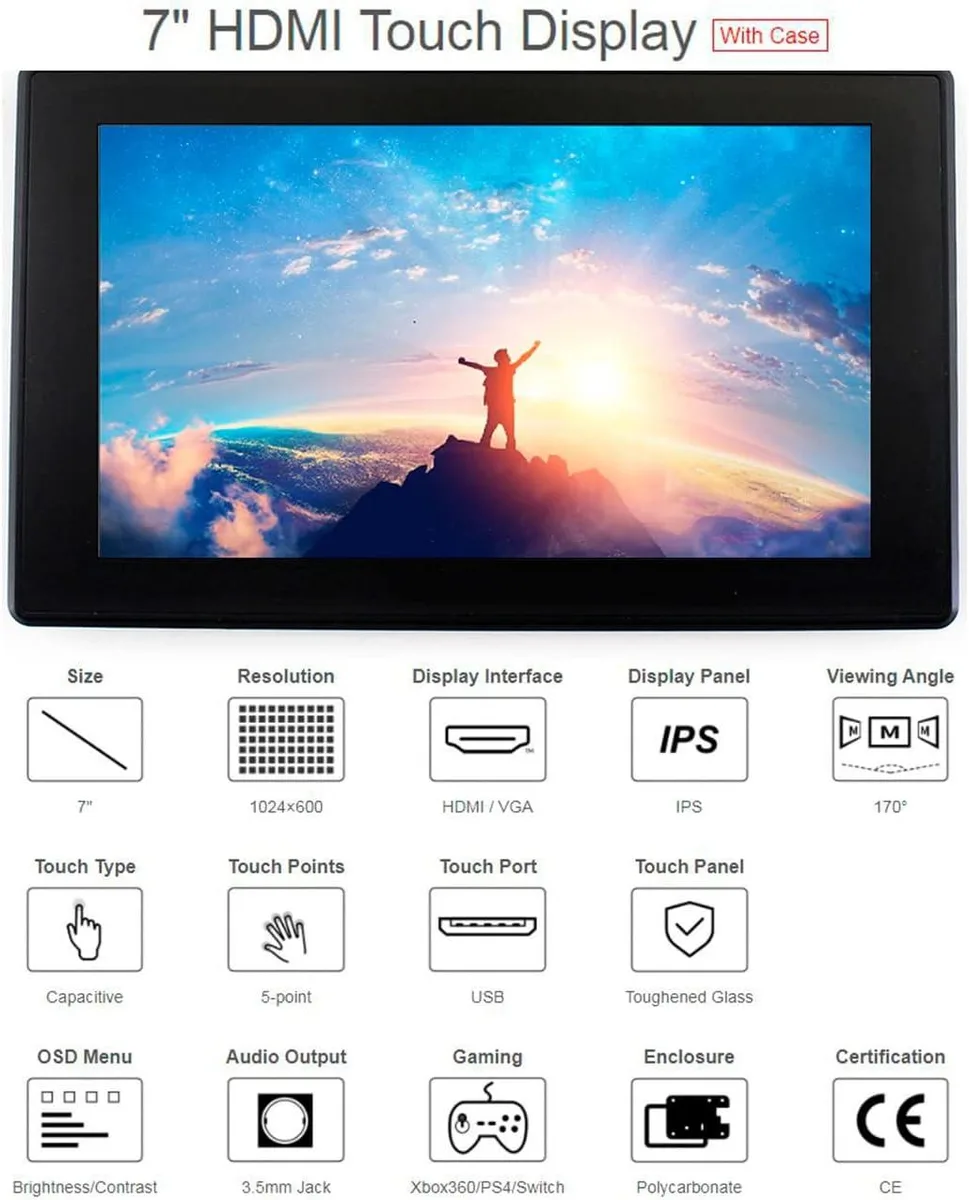

A 7-inch IPS portable monitor with 1024x600 hardware resolution, capacitive touch, toughened glass, and HDMI or VGA input for Raspberry Pi, Jetson Nano, and Windows PCs

  • CPU TypeOther
  • 7" IPS panel delivers wide viewing angles for clear visuals

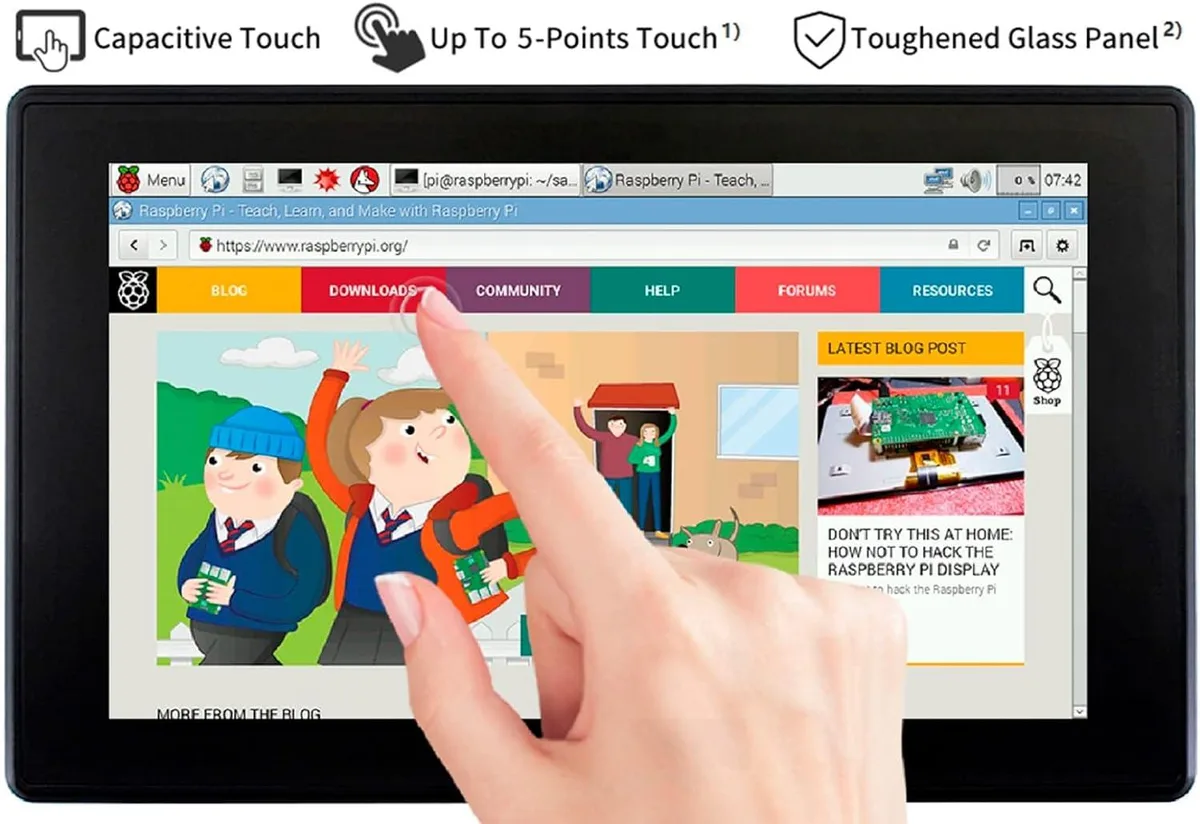

  • Capacitive touch with 6H toughened glass resists daily scratches
  • 1024x600 hardware resolution scales via software up to 1920x1080
  • Driver-free five-point touch on Windows 10/8.1/8/7 and Raspberry Pi OS
  • 5 mm audio jack plus optional VGA input expands connectivity

7-inch IPS portable monitor with capacitive touch

The WaveShare 7-inch IPS panel delivers a 1024x600 hardware resolution and a 6H-hardness toughened glass cover. It connects via HDMI and draws power from the same cable, making it a compact display for single-board computers or desktop systems. Five-point capacitive touch works without extra drivers on supported platforms.

Makers using Raspberry Pi, Jetson Nano or Banana Pi

The monitor includes driver-free support for Raspbian, Ubuntu, Kali, Retropie and Windows 10 IoT on Raspberry Pi boards, plus Windows 10/8.1/8/7 on standard PCs. Builders who need a larger workspace, higher native resolution or built-in battery should look at other models.

Extended desktop sessions on a small IPS panel

The IPS panel maintains consistent colour and viewing angles during long coding or monitoring sessions. An on-screen menu handles brightness, contrast and power management, while a 3.5 mm jack passes HDMI audio to external speakers. VGA input is available with a separate cable for legacy sources.

Høydepunkter

  • 7" IPS panel delivers wide viewing angles for clear visuals
  • Capacitive touch with 6H toughened glass resists daily scratches
  • 1024x600 hardware resolution scales via software up to 1920x1080
  • Driver-free five-point touch on Windows 10/8.1/8/7 and Raspberry Pi OS
  • 5 mm audio jack plus optional VGA input expands connectivity

Spesifikasjoner

CPU TypeOther

Spørsmål om denne varen

Which video sources can I connect to the HDMI input of this 7-inch 1024x600 IPS monitor?

The HDMI input accepts signals from Raspberry Pi 4B, 3B+, 3B, 2B, Zero, Jetson Nano, Banana Pi and standard desktop computers running Windows 10, 8.1, 8 or 7.

Will the five-point capacitive touch work on my older Windows 7 PC without extra drivers?

Yes, the touch panel is driver-free on Windows 7, 8, 8.1 and 10, providing five-point touch as soon as the HDMI and USB cables are connected.

How can I confirm the panel is running at its native 1024x600 resolution after setup?

Open the on-screen display menu via the OSD buttons and check the reported resolution, or verify in Windows display settings that 1024x600 is selected.
