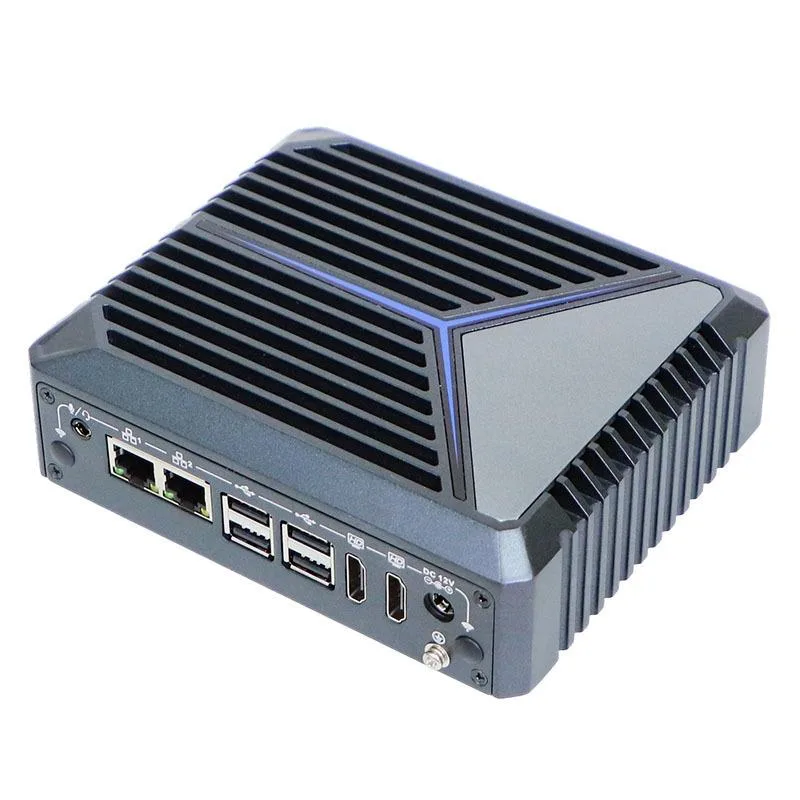

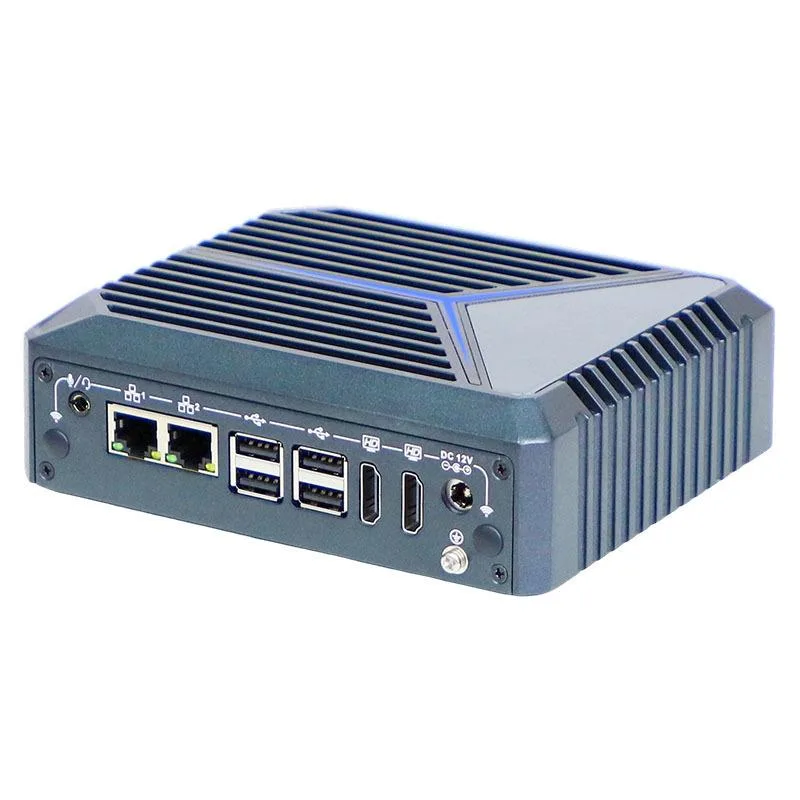

Compact gray aluminum fanless mini PC, 150x126.5x45mm, front ports visible

partaker

partaker C13 N150 8GB 256GB barebone mini PC

SKU CH-W3TJ-E9QBG

Fanless mini PC with an Intel N150 processor, 8 GB DDR5, 256 GB storage, dual HDMI, dual LAN, two COM ports and eight USB ports

  • ColorGray
  • CPU TypeIntel Processor

C13 N150 8GB RAM / 256GB SSD

  • Quad-core N150 reaches 3.6 GHz for responsive industrial workloads
  • Fanless aluminium chassis runs silent from 0 to 50 °C
  • DDR5 4800 MHz SODIMM supports up to 16 GB for smooth multitasking
  • Dual HDMI drives two 4K displays at 60 Hz
  • Two Gigabit LAN plus eight USB ports connect cameras, sensors and peripherals

Industrial barebone with N150 processor

The Partaker C13 is a fanless mini PC built around an Intel N150 processor with four cores reaching 3.6 GHz. It ships with 8 GB of DDR5 memory and a 256 GB drive, leaving one SODIMM slot open for up to 16 GB total. The aluminium chassis measures 150 x 126.5 x 45 mm and weighs 0.84 kg, designed for DIN-rail or wall mounting in control cabinets.

Passive cooling holds steady at 50 °C

Without any moving parts the system dissipates heat through the anodised alloy case, rated for continuous operation at ambient temperatures up to 50 °C when an industrial SSD is fitted. Dual RTL8111H Gigabit LAN ports and eight USB ports maintain data throughput during long shifts, while the AMI UEFI BIOS supports timed startup and watchdog functions for unattended recovery.

Three M.2 slots decide the storage ceiling

Two M.2 2280 M-key slots accept PCIe 3.0 x1 or SATA drives, and one M.2 2230 E-key slot adds CNVio2 wireless. A full-size Mini PCIe slot with a SIM carrier provides cellular or extra I/O options, plus a 2.5 inch bay for bulk capacity. Buyers who need more than three simultaneous M.2 devices must look elsewhere.

Акценти

  • Quad-core N150 reaches 3.6 GHz for responsive industrial workloads
  • Fanless aluminium chassis runs silent from 0 to 50 °C
  • DDR5 4800 MHz SODIMM supports up to 16 GB for smooth multitasking
  • Dual HDMI drives two 4K displays at 60 Hz
  • Two Gigabit LAN plus eight USB ports connect cameras, sensors and peripherals

Спецификации

ColorGray
CPU TypeIntel Processor

Други версии на този модел

5 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

How much heat and noise does the fanless aluminium chassis produce when the N150 runs at 3.6 GHz all day?

The fanless design has no moving parts, so it generates zero audible noise. The all-aluminium chassis acts as a passive heatsink and is rated for continuous operation up to 50 °C surface temperature with industrial SSD installed.

Which memory module and storage drives must I supply to complete this barebone?

You need one DDR5 4800 MHz SODIMM up to 16 GB, plus either a 2280 M-key drive for the two M.2 slots or a 2.5-inch SATA drive for the internal bay.

Will my existing 2.5-inch SATA drive and 1000 Mbps Ethernet cables work with the dual RTL8111H ports and SATA bay?

Yes. The 2.5-inch bay accepts standard SATA drives, and both RJ45 ports are 10/100/1000 Mbps Gigabit Ethernet, so your current cables and drive connect directly.
