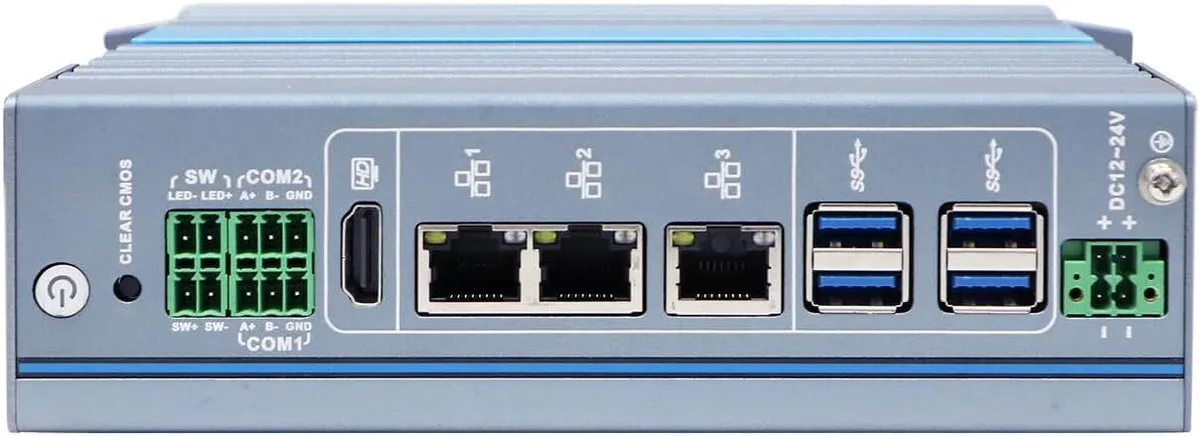

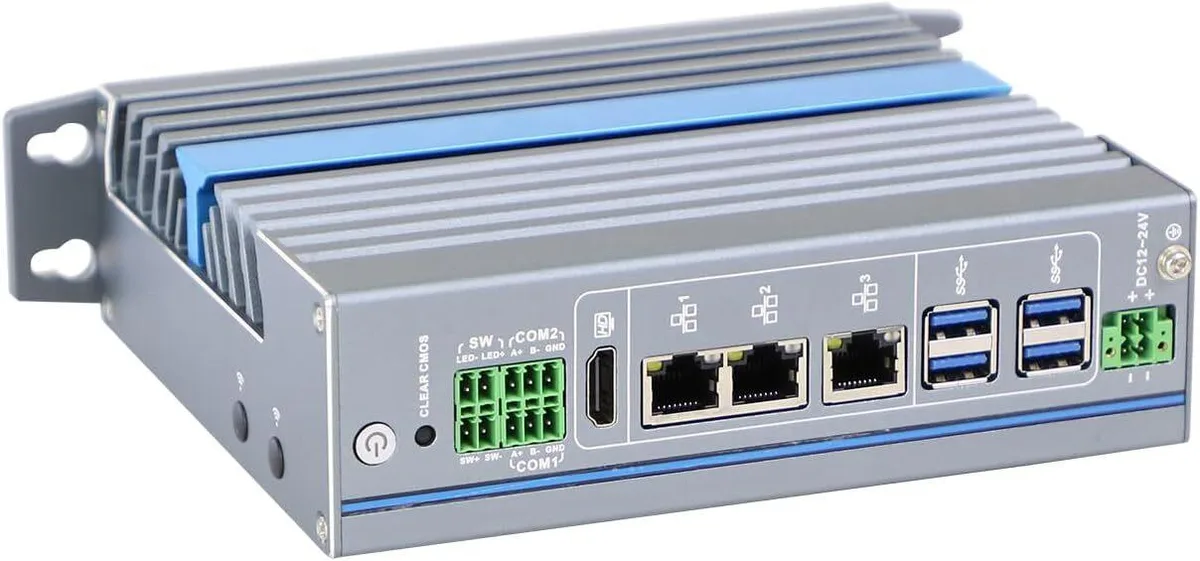

Gray book-style aluminium mini PC with Phoenix power terminal and three LAN ports

partaker

partaker I30 barebone mini PC N97 8GB 256GB 3 LAN RS485 CAN Phoenix

SKU CH-5HA0-2WJCZ

Fanless industrial mini PC with an Intel N97 processor, 8 GB DDR4, 256 GB SATA SSD, three Gigabit LAN ports, two RS485 ports and 12–24 V Phoenix power input

  • ColorGray
  • CPU TypeIntel Processor N97

I30 CPU N97 8GB RAM / 256GB SSD

  • Fanless aluminium chassis runs silently from -20 to +50 °C
  • Intel N97 quad-core up to 3.6 GHz drives 4K at 60 Hz
  • Triple I210-AT Gigabit LAN plus four USB 3.0 ports
  • Two isolated RS485 COM ports with optional CAN expansion
  • Wide 12-24 V DC input via 14-pin Phoenix terminal with watchdog and TPM 2.0

Industrial mini PC with triple LAN

The Partaker I30 is a fanless barebone system built around an Intel N97 quad-core processor running up to 3.6 GHz. It ships with 8 GB of DDR4 3200 memory and a 256 GB SATA SSD installed in the M.2 2280 slot. An aluminium chassis passively dissipates the 12 W TDP across an operating range of -20 to +50 °C.

Suited for edge gateways and automation

This unit targets installers who need three Gigabit Ethernet ports, two isolated RS485 interfaces and a 12-24 V DC input through a Phoenix terminal. The single SODIMM slot caps memory at 16 GB, so workloads requiring more RAM should look elsewhere. Builders needing additional COM ports or a second display output will also need a different platform.

M.2 2280 SATA storage constraint

The M.2 2280 socket accepts only SATA protocol SSDs, limiting drive selection to that interface. An mSATA slot and a full-size Mini PCIe slot with Nano SIM holder provide room for a second SATA SSD or a 4G radio. Expansion beyond these two internal bays is not possible.

Акценти

  • Fanless aluminium chassis runs silently from -20 to +50 °C
  • Intel N97 quad-core up to 3.6 GHz drives 4K at 60 Hz
  • Triple I210-AT Gigabit LAN plus four USB 3.0 ports
  • Two isolated RS485 COM ports with optional CAN expansion
  • Wide 12-24 V DC input via 14-pin Phoenix terminal with watchdog and TPM 2.0

Спецификации

ColorGray
CPU TypeIntel Processor N97

Други версии на този модел

5 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

What display resolution and refresh rate does the HDMI port on this I30 support?

The HDMI output drives up to 3840 x 2160 at 60 Hz from the integrated UHD graphics.

What are the physical dimensions and weight of the I30, and what mounting options are included?

The unit measures 205 x 146 x 50 mm, weighs 1.53 kg, and ships with a book-style wall-mount bracket; DIN-rail mounting is optional.

How is the I30 powered and which Phoenix terminal pin count is used for the DC input?

It accepts 12–24 V DC through a 4-pin Phoenix terminal; the included external supply converts 100–240 V AC to 12 V 5 A.
