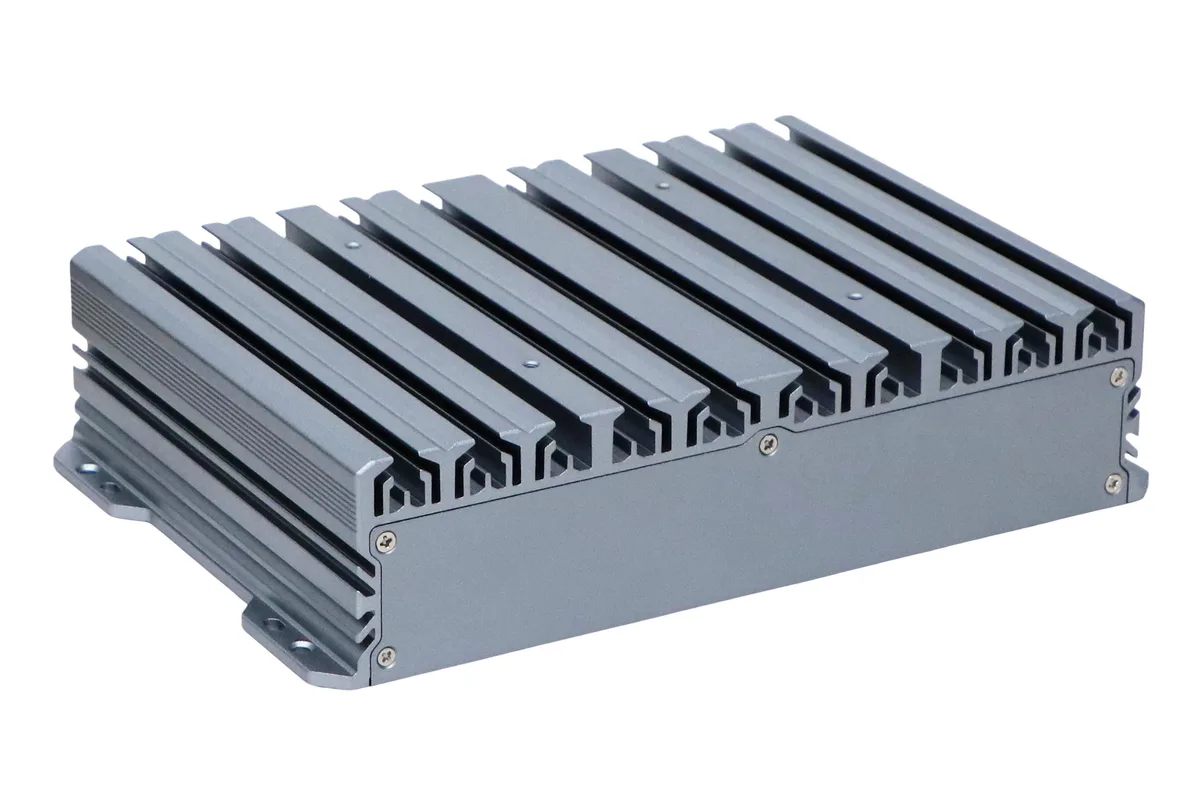

Gray fanless aluminum mini PC with HDMI and multiple ports

partaker

partaker I34 i5-7200U 8G 256G barebone mini PC

SKU CH-77VP-C1BRK

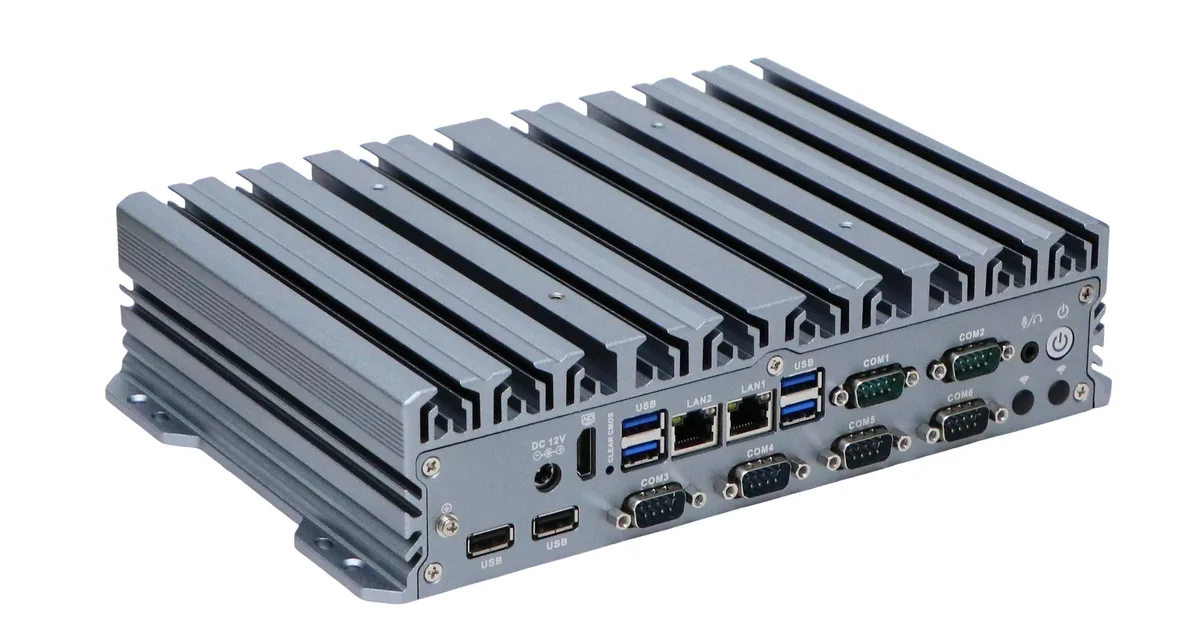

Fanless industrial mini-PC with an Intel Core i5-7200U, 8 GB DDR4, 256 GB SATA SSD, six COM ports, dual Gigabit LAN and HDMI output

  • ColorGray
  • CPU TypeIntel Core i5 7th Gen

I34 I5 7200U 8GB RAM / 256GB SSD

  • 7th Gen Core i5-7200U with dual DDR4 slots up to 32 GB for strong multitasking
  • Fanless aluminium chassis runs silently from -20 °C to 60 °C in harsh settings
  • Six COM ports (RS232/485) plus four USB 3.0 and two USB 2.0 for legacy gear
  • Dual Gigabit LAN with Wake-on-LAN and PXE for reliable remote management
  • mSATA and 2.5″ SATA bays plus two mini-PCIe slots for flexible storage and wireless add-ons

Industrial Fanless Barebone

The Partaker I34 is a fanless mini PC barebone built around an Intel Core i5-7200U processor with 8 GB of DDR4 memory and a 256 GB SSD. Its aluminium chassis operates silently across a wide temperature range, making it suitable for industrial automation, embedded control and medical deployments where reliability matters more than raw speed.

Upgrade From Legacy Embedded Boxes

It replaces older fan-cooled embedded computers that struggle with dust, vibration or noise restrictions. The jump is worth it when you need dual Gigabit Ethernet with Wake-on-LAN and PXE, six configurable COM ports for legacy serial gear, and dual storage bays supporting both mSATA and 2.5-inch SATA drives without adding moving parts.

Straightforward Rack Or Wall Mount

Installation uses the supplied 12 V DC adapter and standard mounting points; the fanless design removes any airflow clearance concerns. Common issues are forgetting to enable the required COM port mode in BIOS for RS-485 devices and neglecting to order the optional 9–36 V wide-voltage input if the site power is not a clean 12 V source.

Акценти

  • 7th Gen Core i5-7200U with dual DDR4 slots up to 32 GB for strong multitasking
  • Fanless aluminium chassis runs silently from -20 °C to 60 °C in harsh settings
  • Six COM ports (RS232/485) plus four USB 3.0 and two USB 2.0 for legacy gear
  • Dual Gigabit LAN with Wake-on-LAN and PXE for reliable remote management
  • mSATA and 2.5″ SATA bays plus two mini-PCIe slots for flexible storage and wireless add-ons

Спецификации

ColorGray
CPU TypeIntel Core i5 7th Gen

Други версии на този модел

5 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

What size mounting area does the 260 mm × 173 mm × 61 mm chassis require?

The aluminum case measures 260 mm wide, 173 mm deep and 61 mm tall, so allow at least that footprint plus cable clearance for the two LAN, six COM and six USB ports.

Which BIOS setting enables the Wake-on-LAN and PXE boot features listed for the dual RTL8111H ports?

Enter the AMI EFI BIOS, enable WOL and PXE under the network configuration menu, then save and exit so the two Gigabit ports can wake or boot the system remotely.

How do I expand storage beyond the installed 256 GB mSATA SSD?

Fit a 2.5″ SATA drive into the internal bay and connect it to the onboard SATA interface; the board also accepts a second mSATA module in the mini-PCIe slot for additional capacity.
