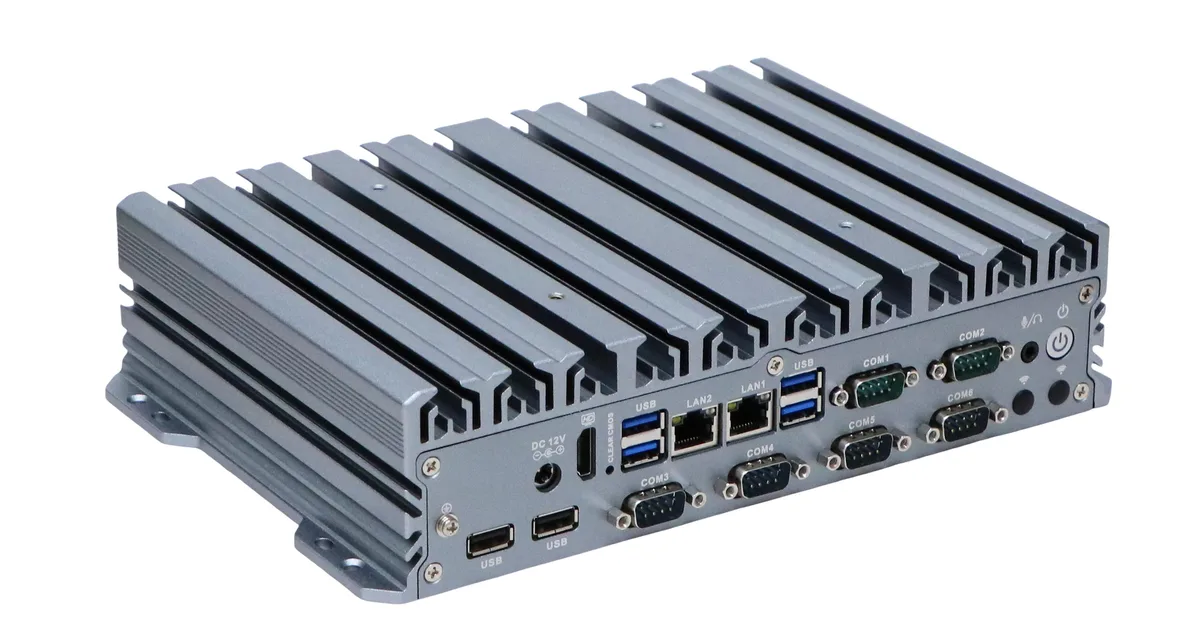

Gray fanless aluminum mini PC, compact rectangular shape with front ports visible

partaker

Partaker I34 i5-7200U 8GB 128GB barebone mini PC

SKU CH-4HR7-JGHRH

Fanless industrial mini PC with Core i5-7200U, 8 GB DDR4, 128 GB SSD, dual Gigabit LAN, six COM ports and wide-temperature aluminium chassis

  • ColorGray
  • CPU TypeIntel Core i5 7th Gen

I34 I5 7200U 8GB RAM / 128GB SSD

  • Fanless aluminium alloy runs silently from -20 to 60 °C
  • Intel Core i5-7200U with dual DDR4 slots up to 32 GB
  • Six COM ports RS232/485 plus four USB 3.0 and two USB 2.0
  • Dual Gigabit LAN with Wake-on-LAN and PXE boot
  • mSATA and 2.5" SATA bays for flexible storage expansion

Industrial fanless mini PC

The Partaker I34 is a fanless industrial mini PC built around an Intel Core i5-7200U processor with 8 GB of DDR4 memory and a 128 GB mSATA SSD. Its aluminium chassis dissipates heat silently across a -20 to 60 °C range, making it suitable for automation cabinets, medical carts or digital-signage players that must run continuously without moving parts. The barebone ships with Windows 11 or Ubuntu Linux pre-installed and includes a 12 V DC power supply.

Suited for multi-port industrial I/O

Engineers who need six configurable COM ports, dual Gigabit Ethernet with Wake-on-LAN and PXE, plus four USB 3.0 and two USB 2.0 ports will find the I/O density a direct match for legacy PLCs, barcode scanners and sensor networks. Buyers who require active cooling for sustained high-frequency workloads or who need a discrete GPU slot for machine-vision acceleration should look at larger industrial chassis instead.

Dual storage interfaces decide expansion

The board provides one mSATA slot and one 2.5-inch SATA bay, so the installed 128 GB drive can be supplemented with a second SATA SSD or HDD without adapters. Memory scales to 32 GB across two DDR4 slots, and two mini-PCIe sockets accept Wi-Fi, 3G or 4G modules with a SIM holder for remote deployments.

Акценти

  • Fanless aluminium alloy runs silently from -20 to 60 °C
  • Intel Core i5-7200U with dual DDR4 slots up to 32 GB
  • Six COM ports RS232/485 plus four USB 3.0 and two USB 2.0
  • Dual Gigabit LAN with Wake-on-LAN and PXE boot
  • mSATA and 2.5" SATA bays for flexible storage expansion

Спецификации

ColorGray
CPU TypeIntel Core i5 7th Gen

Други версии на този модел

5 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

What power supply voltage does the Partaker I34 require to operate?

The unit runs on a DC 12 V input; a matching power supply and cord are included in the packing list.

Can the two RTL8111H Gigabit Ethernet ports work with older 10/100 Mb switches?

Yes, each port auto-negotiates down to 10 M or 100 M speeds for full backward compatibility.

How do I confirm the system is running silently after installation?

The fanless aluminium chassis produces no mechanical noise; if you hear nothing while the power LED is lit, the cooling is working as designed.
