Gray fanless mini PC with mounting ears and four LAN ports

partaker

Partaker PA-3046 i3-10110U 8GB 512GB barebone mini PC

SKU CH-6M3T-HREHM

Fanless industrial mini PC with Intel Core i3-10110U, 8 GB DDR4, 512 GB SATA SSD, four LAN and four COM ports, 9-36 V DC input and TPM 2.0 security

  • ColorGray
  • CPU TypeIntel Core i3 10th Gen

CPU Type Intel Core i3-10110U

Group 8GB / 512GB SSD

  • Fanless cooling enables silent 0 dB operation in noise-sensitive sites
  • Intel Core i3-10110U reaches 4.10 GHz for responsive industrial workloads
  • Four Intel I211/I210 LAN ports provide redundant gigabit network links
  • DC 9-36 V input with polarity protection suits unstable power environments
  • TPM 2.0 and watchdog timer (0-255) deliver hardware security and auto-recovery

Industrial barebone with i3-10110U

The Partaker PA-3046 is a fanless mini PC built around an Intel Core i3-10110U processor that reaches 4.10 GHz. It ships with 8GB of DDR4-2666 memory and a 512GB M.2 2280 SATA SSD. The aluminium chassis supports desktop, wall, embedded and VESA mounting for industrial and embedded deployments.

Expansion and I/O for integration

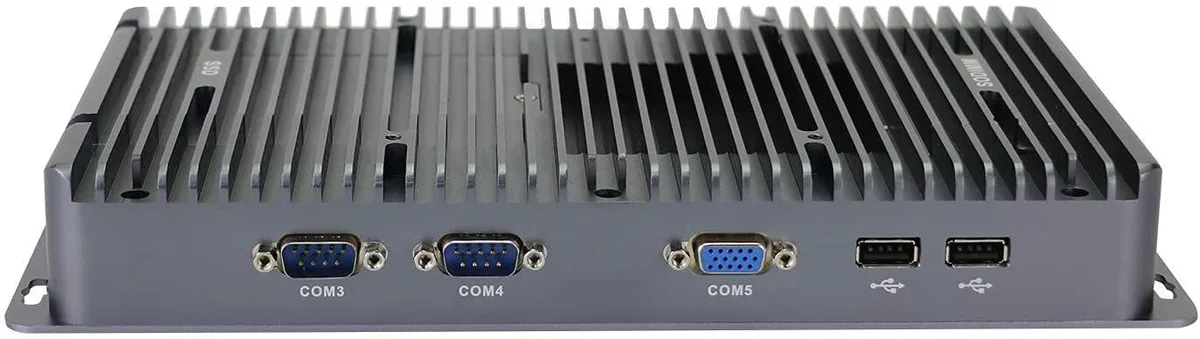

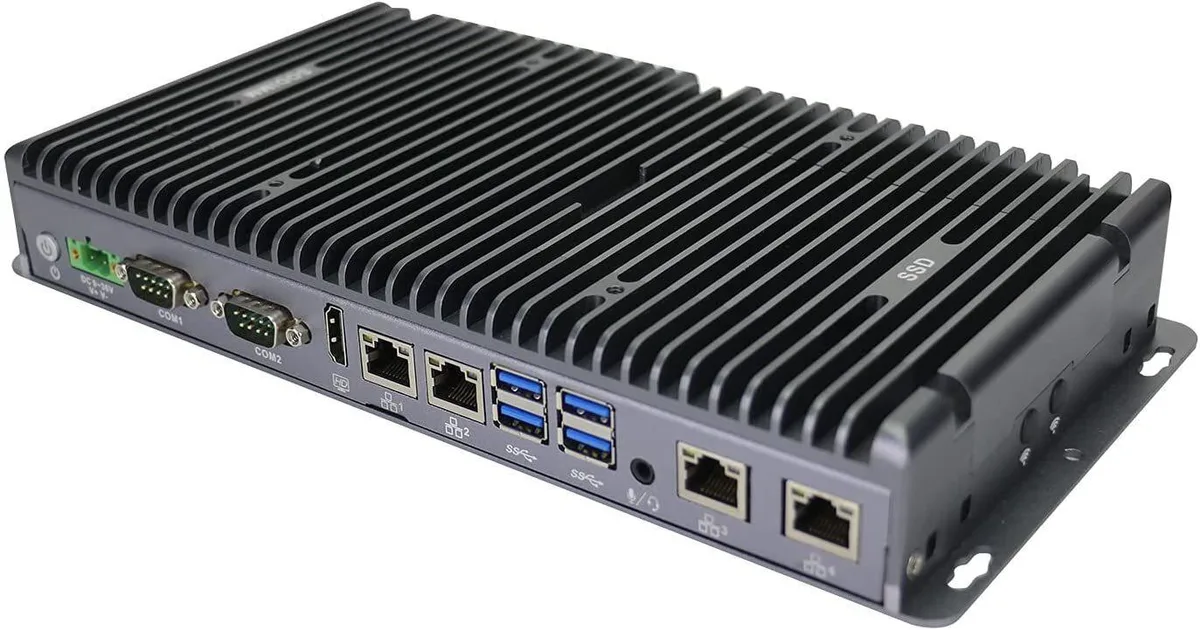

Four Intel I211/I210 Gigabit LAN ports and four COM ports with RS232/RS422/485 options handle multi-network and serial workloads. HDMI and VGA drive dual displays while four USB 3.0 and two USB 2.0 ports connect peripherals. A Mini PCIe slot with a SIM socket accepts 4G modules, and a 2.5-inch SATA bay adds RAID 0/1 storage capacity.

Fanless cooling and wide-range power

Passive cooling eliminates moving parts and keeps the 15W TDP system silent from 0°C to 50°C with commercial drives or -20°C to 60°C with industrial SSDs. The DC 9-36V input includes polarity protection and pairs with the included 12V5A adapter. TPM 2.0, watchdog timer, WOL, PXE and scheduled boot provide remote management and unattended operation.

Акценти

  • Fanless cooling enables silent 0 dB operation in noise-sensitive sites
  • Intel Core i3-10110U reaches 4.10 GHz for responsive industrial workloads
  • Four Intel I211/I210 LAN ports provide redundant gigabit network links
  • DC 9-36 V input with polarity protection suits unstable power environments
  • TPM 2.0 and watchdog timer (0-255) deliver hardware security and auto-recovery

Спецификации

ColorGray
CPU TypeIntel Core i3 10th Gen

Други версии на този модел

5 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

How hot does the case get when the i3-10110U runs at 4.10 GHz all day?

The fanless aluminum chassis is rated for 0°C to 50°C with a commercial drive or -20°C to 60°C with an industrial SSD, provided there is surface air flow around the unit.

What is the power draw at the 12 V 5 A adapter when all four LAN ports and COM ports are active?

The processor TDP is 15 W and the supplied adapter delivers 12 V at 5 A, giving ample headroom for the four Intel I211/I210 controllers and serial interfaces.

Which storage drives do I need to add to use the RAID 0/1 feature?

You must install one M.2 2280 SATA SSD and one 2.5-inch SATA SSD or HDD; the board supports RAID 0/1 across those two SATA devices.
