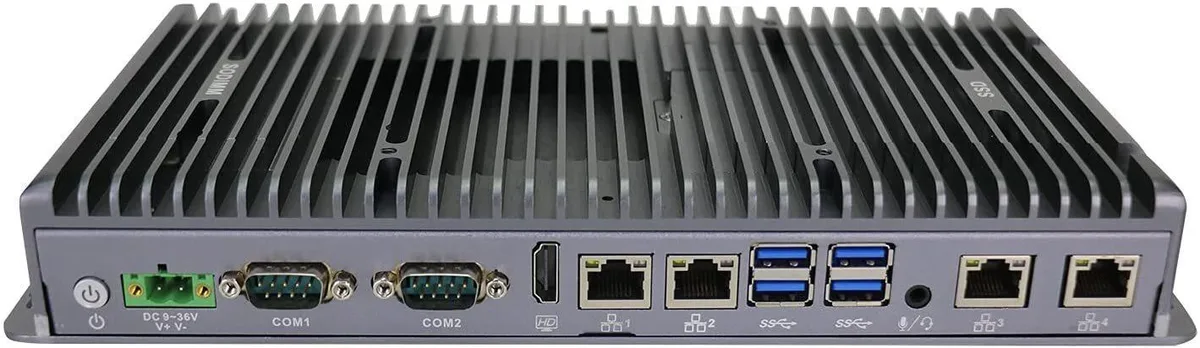

Gray fanless mini PC with mounting ears, compact aluminum chassis

partaker

Partaker PA-3046 i3-10110U 32GB DDR4 512GB SATA barebone mini PC

SKU CH-DB2J-15V1F

Fanless industrial mini PC with an Intel Core i3-10110U up to 4.10 GHz, 32 GB DDR4, 512 GB SATA SSD, four LAN and four COM ports, plus 9-36 V DC input with polarity protection

  • ColorGray
  • CPU TypeIntel Core i3 10th Gen

CPU Type Intel Core i3-10110U

Group 32GB RAM+512GB SSD

  • Fanless design runs silently in noise-sensitive spaces
  • i3-10110U up to 4.10 GHz handles industrial workloads
  • 32GB DDR4 and 512GB SATA storage support multitasking

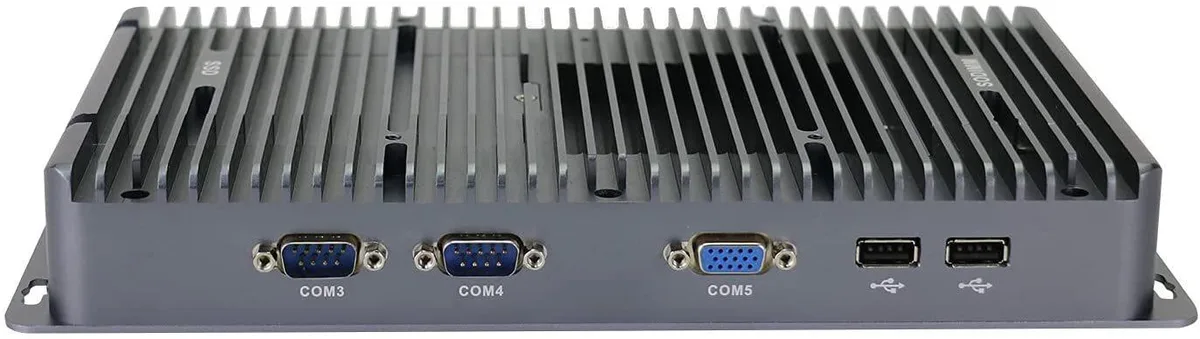

  • 4x LAN and 4x COM ports connect diverse equipment
  • DC 9-36V input with polarity protection suits unstable power

Industrial barebone with i3-10110U

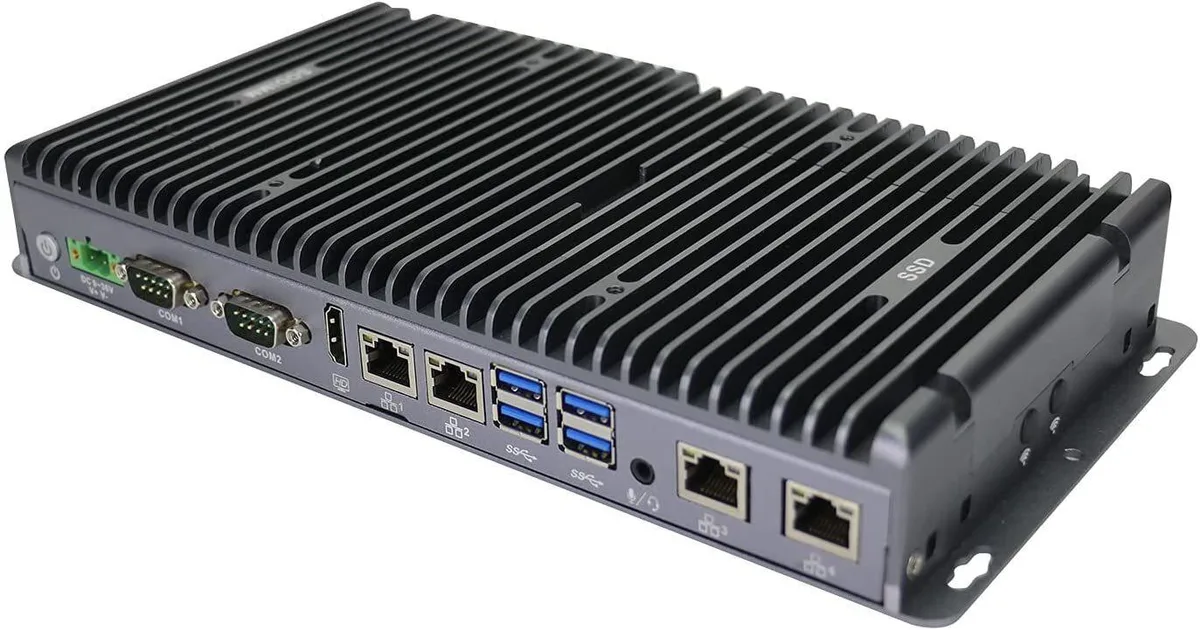

The Partaker PA-3046 is a fanless mini PC built for industrial and embedded deployments. Its aluminium chassis includes mounting ears for desktop, wall, VESA or DIN-rail installation. The system ships with 32 GB of DDR4-2666 memory and a 512 GB SATA SSD, running Windows 11 or Linux Ubuntu out of the box.

Four Intel I211/I210 gigabit LAN ports

Connectivity is the deciding spec: four native 10/100/1000 Mbit Ethernet controllers give deterministic throughput for gateways, firewalls or multi-WAN routers. Expansion includes a mini-PCIe slot with SIM holder for 4G modules, plus dual M.2 2280 and 2.5-inch SATA bays that support RAID 0 or 1 for storage redundancy.

Fanless 15 W TDP across 0 °C to 50 °C

Passive cooling eliminates moving parts and acoustic noise while the CPU maintains up to 4.10 GHz within a 15 W envelope. The wide 9 V to 36 V DC input with polarity protection suits vehicle or factory power rails, and the unit is rated for continuous operation up to 50 °C ambient with commercial drives or 60 °C with industrial SSDs.

Акценти

  • Fanless design runs silently in noise-sensitive spaces
  • i3-10110U up to 4.10 GHz handles industrial workloads
  • 32GB DDR4 and 512GB SATA storage support multitasking
  • 4x LAN and 4x COM ports connect diverse equipment
  • DC 9-36V input with polarity protection suits unstable power

Спецификации

ColorGray
CPU TypeIntel Core i3 10th Gen

Други версии на този модел

5 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

What does the 4.10 GHz turbo speed actually deliver in a fanless chassis?

The i3-10110U can reach 4.10 GHz on short bursts, but sustained loads run at lower clocks because the aluminium case dissipates 15 W passively.

How fast are the four LAN ports in real throughput?

Each port uses an Intel I210 or I211 controller rated at 10/100/1000 Mbit/s, so practical throughput tops out at 1 Gbit/s per port.

What mounting hardware is needed for the 280 x 143 x 40 mm case?

The unit ships with integrated mounting ears for desktop, wall or VESA installation; no extra brackets are required.
