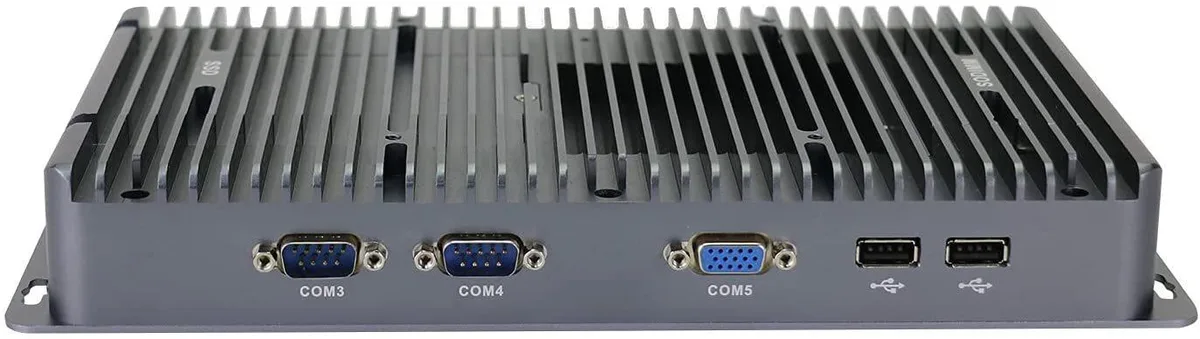

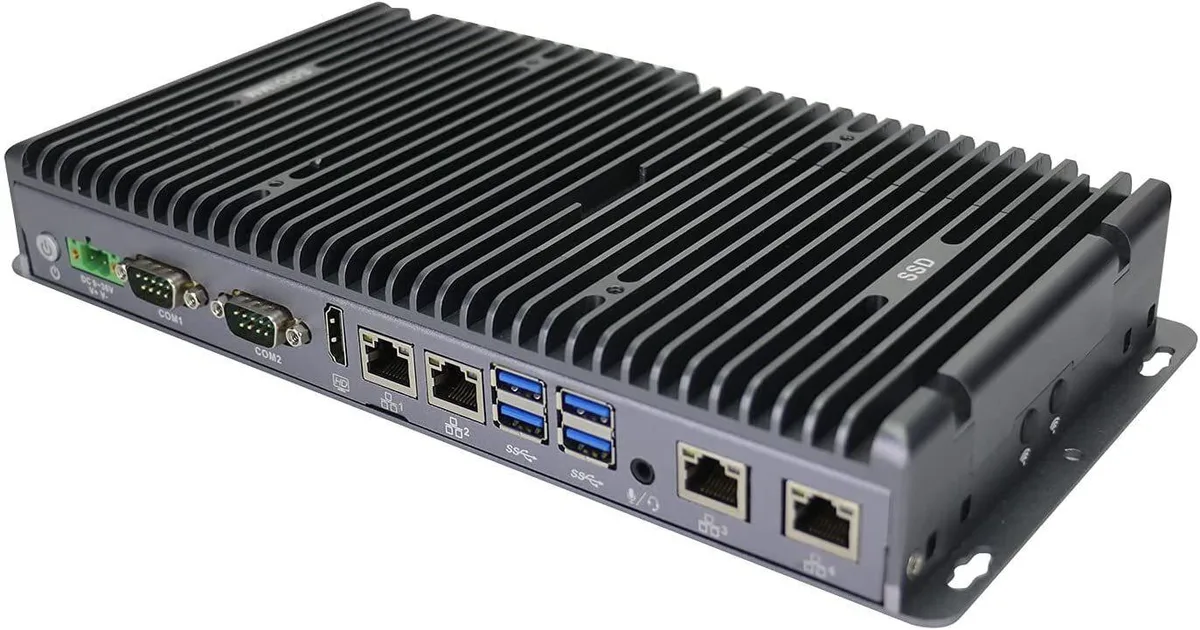

Grey aluminium fanless mini PC with mounting ears, 280 x 143 x 40 mm

partaker

Partaker PA-3046 i7-10810U 16GB DDR4 512GB SATA barebone mini PC

SKU CH-5E8W-BR4BB

Fanless industrial mini PC with a six-core i7-10810U, 16 GB DDR4, 512 GB SATA SSD, four LAN and four COM ports, 9–36 V input and TPM 2.0

  • ColorGray
  • CPU TypeIntel Core i7 10th Gen

CPU Type Intel Core i7-10710U

Group 16gb ram / 512g ssd

  • Fanless cooling enables silent operation in noise-sensitive environments
  • Intel Core i7-10810U processor reaches 4.9 GHz for demanding workloads
  • Four Intel I211-AT LAN ports provide robust network connectivity
  • Wide 9-36V DC input with polarity protection suits unstable power sources
  • TPM 2.0 hardware encryption secures sensitive industrial data

Industrial Fanless Mini PC

The Partaker PA-3046 is a compact industrial computer built around an Intel Core i7-10810U processor with six cores and a maximum turbo frequency of 4.90 GHz. It ships with 16GB of DDR4-2666 memory and a 512GB SATA M.2 2280 SSD, ready for immediate deployment. The fanless aluminum chassis operates silently across a wide 9-36V DC input range and includes TPM 2.0 hardware encryption for security-sensitive environments.

Suited for Embedded Multi-Port Workloads

This unit targets integrators who need four Intel I211-AT Gigabit LAN ports and four COM ports with RS232/RS422/485 options in a fanless design. The dual display outputs via HDMI and VGA plus six USB ports support diverse peripheral connections. Builders requiring active cooling, a 2.5-inch drive bay populated out of the box, or a different CPU architecture should look elsewhere.

9-36V Wide Voltage Input Decides Fit

The defining specification is the DC 9-36V wide voltage input with polarity protection, which allows direct connection to unstable or mobile power sources common in industrial and vehicle installations. Combined with the fanless 15W TDP cooling and operating temperature range down to -20°C with an industrial SSD, this voltage flexibility determines whether the PA-3046 matches the deployment scenario.

Акценти

  • Fanless cooling enables silent operation in noise-sensitive environments
  • Intel Core i7-10810U processor reaches 4.9 GHz for demanding workloads
  • Four Intel I211-AT LAN ports provide robust network connectivity
  • Wide 9-36V DC input with polarity protection suits unstable power sources
  • TPM 2.0 hardware encryption secures sensitive industrial data

Спецификации

ColorGray
CPU TypeIntel Core i7 10th Gen

Други версии на този модел

5 още от същата серия

Същото семейство, различна памет, охладител или честота — сравнете, преди да решите.

Въпроси за този артикул

How do I verify the Partaker PA-3046 is running correctly after first boot?

Check that the system posts to BIOS, the installed 16GB DDR4-2666 is detected, the 512GB SATA drive appears, and Windows 11 or Linux Ubuntu loads without errors.

What ships with the PA-3046 and what must I source separately?

The box includes the barebone unit, 12V7A power supply, power cord, WiFi antennas and warranty card; you must add a Mini PCIe 4G module and SIM card if mobile data is required.

Which memory and storage configuration suits the PA-3046 best?

The board has one SO-DIMM slot supporting up to 32GB DDR4-2666 and offers an M.2 2280 SATA slot plus a 2.5-inch SATA bay with RAID 0/1 support.
