Green rectangular circuit board with USB-A plug, SIM slot, and small antenna wire

TeKit

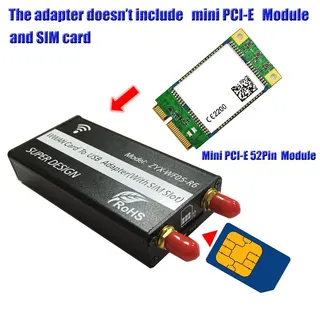

TeKit Mini PCIe to USB Adapter with SIM Slot & Antenna for WWAN/LTE

SKU CH-TB3J-1J2W1

Converts 3G/4G wireless Mini-Card to USB port with SIM slot and antenna for desktop or embedded systems

  • External USB Ports1x USB Port
  • SpecificationsThe adapter is designed for desktop/Embedded system that con
  • FeaturesThe adapter is designed for desktop/Embedded system that con
  • Weight100g
  • Converts Mini PCIe WWAN cards to USB for desktop use
  • Includes SIM card slot and antenna for cellular connectivity
  • Supports USB-bus Mini Cards including LTE, HSPA and GPS modules
  • Driver-free installation with plug-and-play and hot-swap capability
  • Compact 9.0 × 4.50 × 1.90 cm board weighing 100g

Purpose and compatibility

This adapter lets a desktop or embedded system use a USB-bus Mini PCIe WWAN or LTE module through a standard USB port. It accepts 2G, 3G, HSPA, GPS, WiMAX and LTE Mini Cards but does not support PCIe-bus cards such as Wi-Fi modules. A SIM card slot and external antenna are included for carrier connectivity.

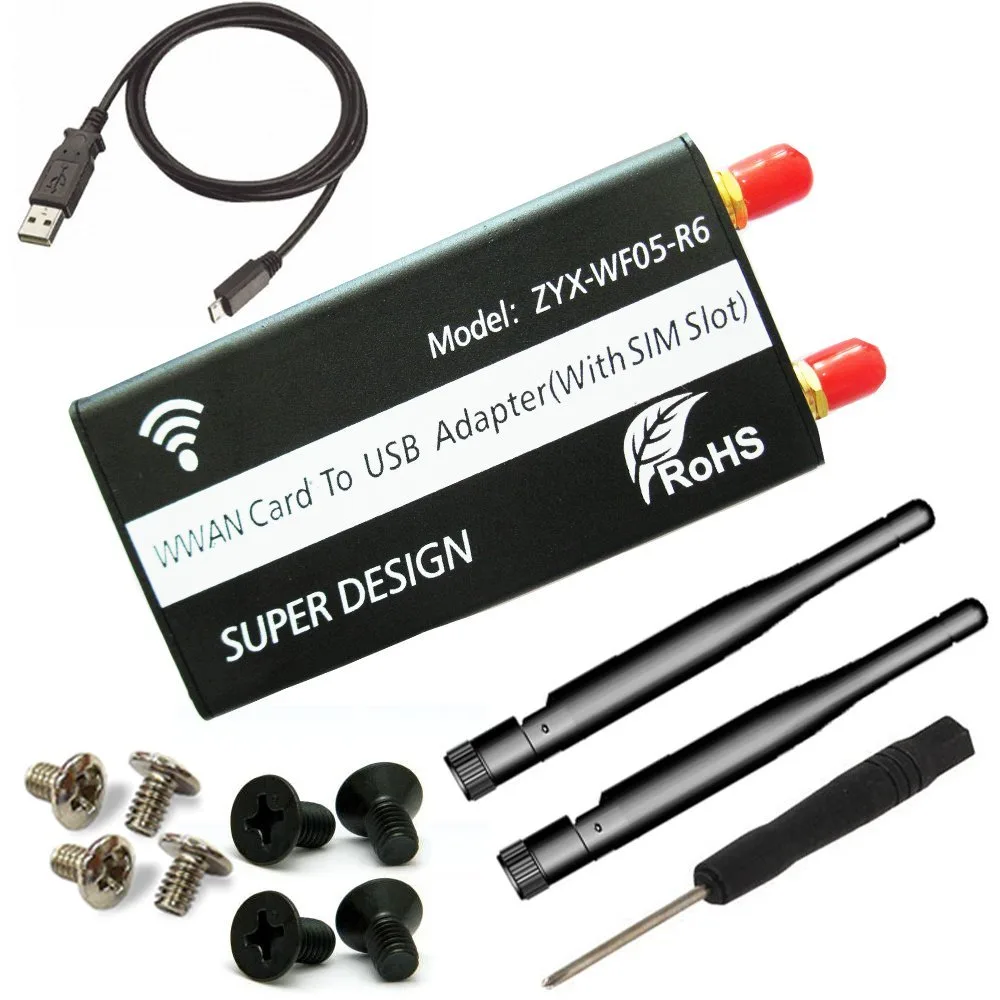

What the bundle adds

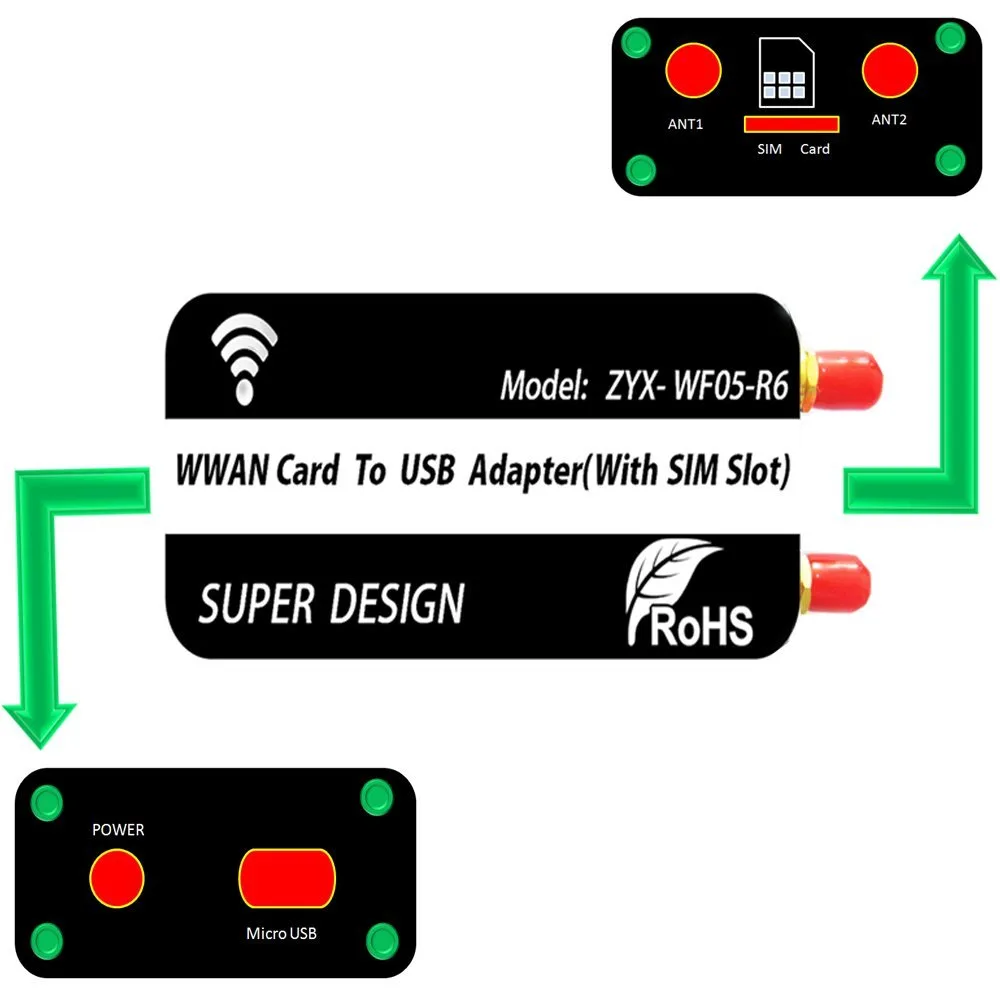

The board provides a 6-pin or 8-pin SIM connector and an antenna lead so the installed modem can reach the mobile network. No Mini PCIe module or SIM card is supplied, so the buyer must source those separately. The adapter draws power from the USB port and requires no extra power connection.

Interface limits

Only Mini Cards with a USB interface work; PCIe-interface cards will not function in this adapter. The host operating system must already have the correct drivers for the specific WWAN module, as the adapter itself needs no driver. The board measures 9.0 by 4.50 by 1.90 centimetres and weighs 100 grams.

Акценти

  • Converts Mini PCIe WWAN cards to USB for desktop use
  • Includes SIM card slot and antenna for cellular connectivity
  • Supports USB-bus Mini Cards including LTE, HSPA and GPS modules
  • Driver-free installation with plug-and-play and hot-swap capability
  • Compact 9.0 × 4.50 × 1.90 cm board weighing 100g

Спецификации

BrandTekit
External USB Ports1x USB Port
SpecificationsThe adapter is designed for desktop/Embedded system that converts 3G/4G wireless Mini-Card to USB port.
FeaturesThe adapter is designed for desktop/Embedded system that converts 3G/4G wireless Mini-Card to USB port.
Weight100g

Въпроси за този артикул

Will the external USB port need replacement after heavy use?

The single USB port is a standard connector rated for typical insertion cycles; no special maintenance is required beyond keeping it clean and free of debris.

What limits sustained throughput when a WWAN card runs continuously?

The adapter only passes USB-bus Mini-Card signals, so the card's own USB 2.0 interface and the host USB port set the practical ceiling.

Does the board generate noticeable heat or draw extra power during all-day operation?

No additional power is needed beyond the USB bus, and the small 100 g PCB stays at ambient temperature under normal load.
