Compact white plastic box with Ethernet ports and power cable

VisionTek

VisionTek 600009 48V 15W Gigabit PoE Injector

SKU CH-V33W-XXTZQ MPN 600009

Delivers 48 V passive PoE power over a single Gigabit Ethernet port for 802.3af devices such as IP cameras, VoIP phones or Wi-Fi access points

  • Delivers 48 V passive power to 802.3af devices
  • 15 W output runs IP cameras, VoIP phones or Wi‑Fi APs
  • Single-port Gigabit injector fits one outlet space
  • Mode A wiring places power on pins 1,2 and 3,6
  • UL, CE, DoE and FCC listed for safety compliance

Single-Port 48 V PoE Injector

The VisionTek 600009 injects 48 volt DC power onto a single Gigabit Ethernet cable for 802.3af devices. It suits installers adding an IP camera, VoIP phone or Wi-Fi access point where no local mains socket exists. The passive design delivers constant voltage without negotiation. It fits the footprint of one electrical outlet.

15 W Capacity and Headroom

The bundled supply provides 48 volts at 0.3 amp for a 15 watt ceiling. That headroom covers standard 802.3af endpoints such as basic cameras or access points. Devices needing more than 15 watts or 802.3at negotiation will not operate. The injector has no auto-negotiation so it cannot step down for lower-class gear.

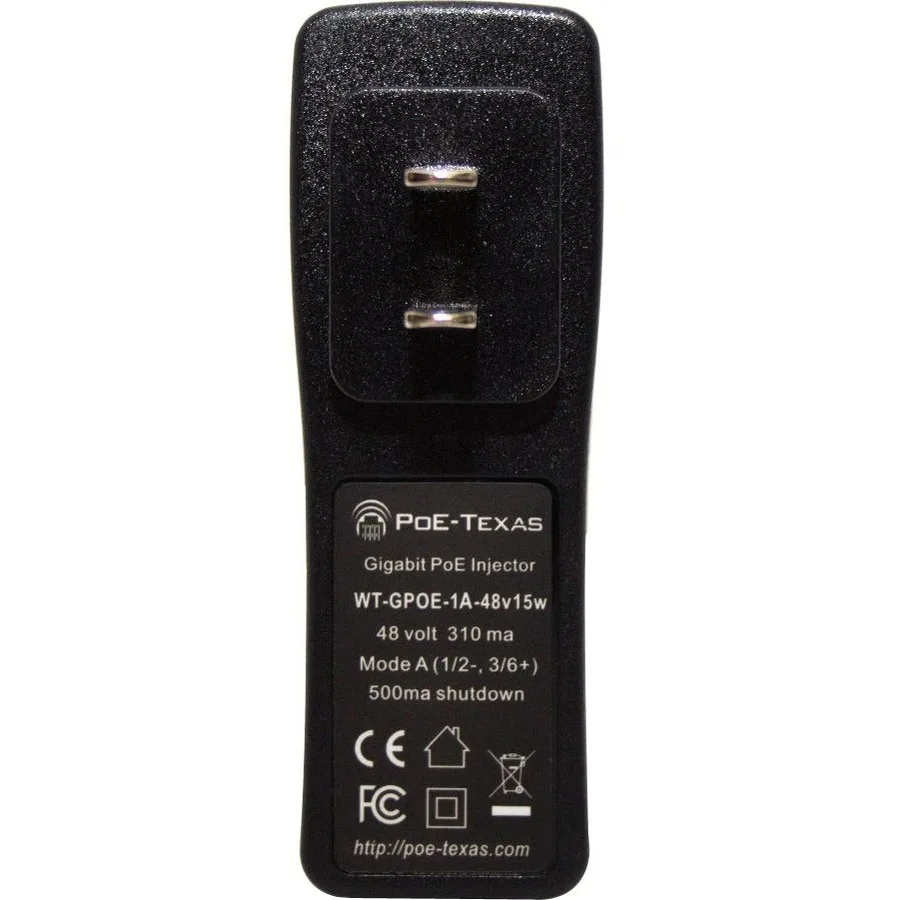

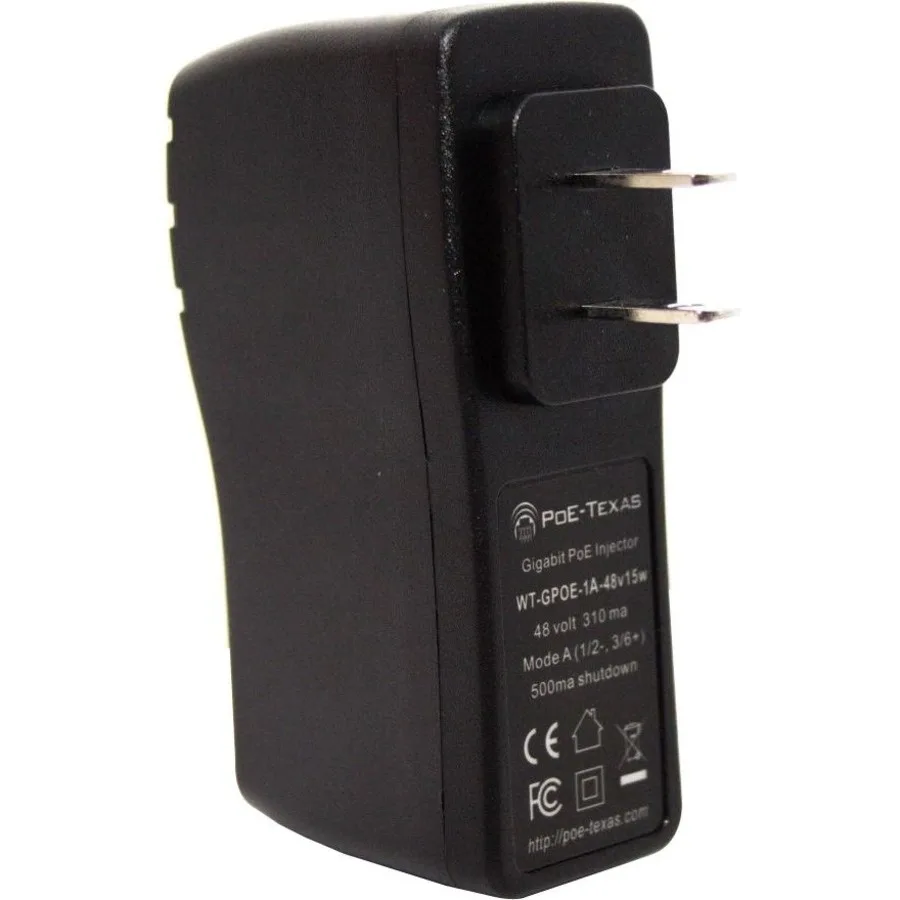

Included 48 V Power Supply

A 48 V DC 0.3 A brick is packaged with the injector so the link is live immediately. The unit carries UL, CE, DoE and FCC listings for regulatory compliance. No management software or configuration utility is supplied. The Mode A pinout places power on pairs 1,2 and 3,6 alongside data.

Акценти

  • Delivers 48 V passive power to 802.3af devices
  • 15 W output runs IP cameras, VoIP phones or Wi‑Fi APs
  • Single-port Gigabit injector fits one outlet space
  • Mode A wiring places power on pins 1,2 and 3,6
  • UL, CE, DoE and FCC listed for safety compliance

Спецификации

Все още няма публикувани спецификации за този артикул.

Въпроси за този артикул

Will this injector power an older 802.3af access point that only accepts Mode A wiring?

Yes, it supplies passive 48 V on pins 1,2 and 3,6 so any 802.3af device using Mode A receives continuous power without negotiation.

How can I verify the injector is delivering 48 V to my VoIP phone after installation?

The phone should power up and register on the network immediately; a multimeter on the Ethernet cable pairs 1,2 and 3,6 will read 48 V DC if the injector is working.

Does the 600009 package include the 48 V DC power supply and do I need any extra cables?

The box contains the injector and a 48 V DC 0.3 A 15 W power supply; you only need to provide two standard Ethernet cables for the data and PoE links.
