APC

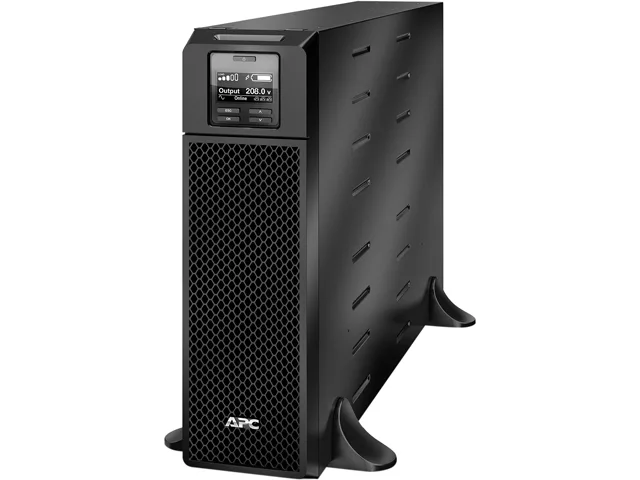

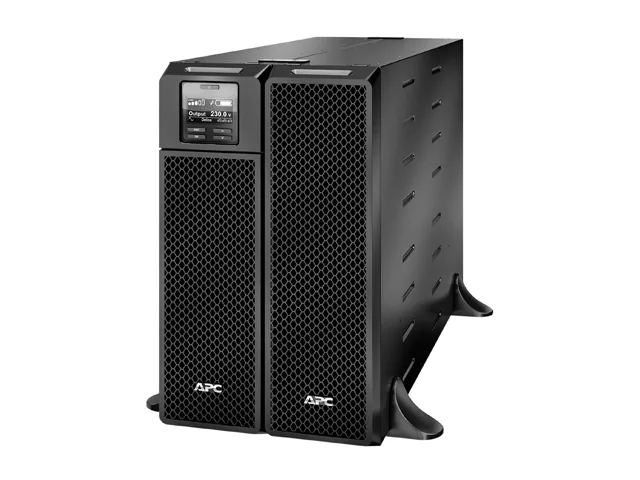

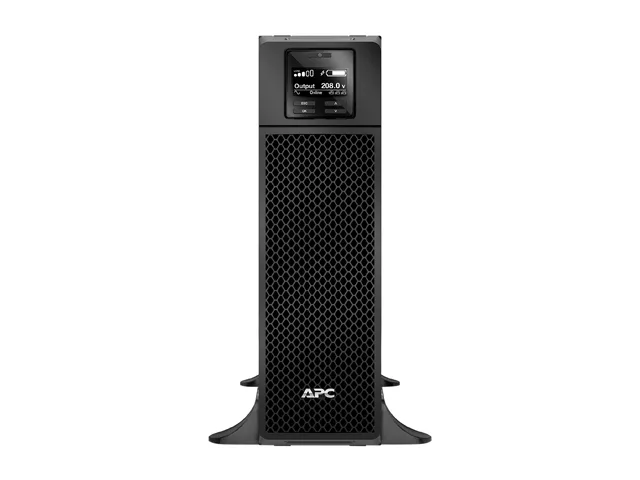

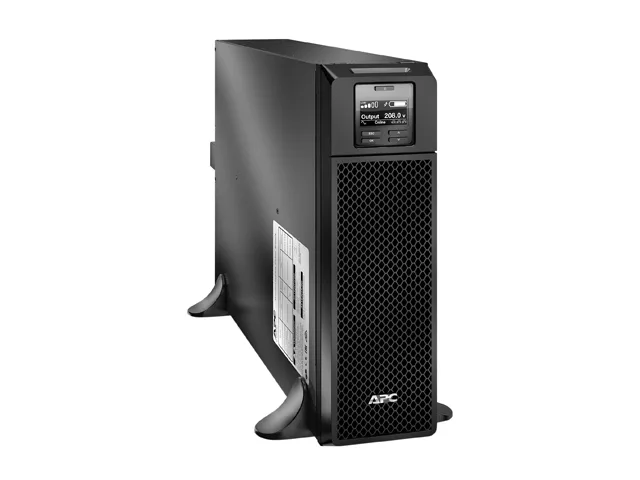

APC SRT5KXLT Smart-UPS On-Line 5.4kVA 208V Tower UPS
Double-conversion online UPS delivering 5.4 kVA at 208 V with four locking NEMA outlets, network management card and 1.5-hour recharge
- Input Voltage Range208 V
- Input Frequency40 - 70 Hz (auto sensing)
- Input ConnectionNEMA L6-30P
- VA Rating5000 VA
- Watts4250 Watts
- Output Voltage208V
Options SRT5KXLT
- SRT3000XLW-IEC
- SRT3000RMXLW-IEC
- SRT5KRMXLT-IEC
- SRT3000XLT
- SRT3000RMXLT
- SRT5KRMXLT
- SRT5KXLT
- SRT3000RMXLT-5KTF
- SRT3000XLT-5KTF
- SRT5KRMXLT-5KTF
De overstregede versioner findes, men er ikke på lager her.
- Double-conversion online topology delivers clean sine-wave power
- 4 kVA capacity supports critical 208 V loads
- Four locking outlets: two L6-20R plus two L6-30R
- Network management card included for remote monitoring
- Hot-swappable battery cartridge recharges in 1.5 hours
5.4kVA 208V Tower UPS
The APC Smart-UPS SRT5KXLT is a double-conversion on-line UPS rated at 5.4kVA and 4250 watts. It accepts a 208 V input through a NEMA L6-30P plug and delivers pure sine-wave output at 208 V. Four NEMA outlets (two L6-20R and two L6-30R) supply connected equipment. A sealed lead-acid battery module recharges in 1.5 hours and is user-replaceable.
Network-managed, extended-runtime applications
This unit suits server rooms and network closets that need continuous on-line protection, remote monitoring via the included SNMP card, and the ability to add external battery packs for longer runtime. It is not for sites without 208 V service, for racks that require a factory rail kit, or for loads that exceed the 4250 watt rating.
5.4kVA / 4250 W load capacity
The single specification that decides fit is the 5.4kVA (4250 watt) output rating. If the total connected load stays at or below this figure, the UPS will support it; if the load is higher, a larger unit is required.
Fordele
- Double-conversion online topology delivers clean sine-wave power
- 4 kVA capacity supports critical 208 V loads
- Four locking outlets: two L6-20R plus two L6-30R
- Network management card included for remote monitoring
- Hot-swappable battery cartridge recharges in 1.5 hours
Specifikationer
| Brand | APC |
|---|---|
| Series | Smart-UPS On-Line |
| Model | SRT5KXLT |
| Input Voltage Range | 208 V |
| Input Frequency | 40 - 70 Hz (auto sensing) |
| Input Connection | NEMA L6-30P |
| VA Rating | 5000 VA |
| Watts | 4250 Watts |
| Output Voltage | 208V |
| Output Frequency | 50/60 Hz +/- 3 Hz |
| Outlets | 4 |
| Outlet Type | 2 x NEMA L6-20R 2 x NEMA L6-30R |
| Battery Type | Sealed Lead Acid |
| Battery Recharge Time | 1.50 hour(s) |
| Battery Replaceable | APCRBC140 |
| Alarms | Audible and visible alarms prioritized by severity |
| Interface Port | Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB |
| Management Software | YES |
| Approvals | CSA C22.2 No.107.3-05, ENERGY STAR (USA), FCC Part 15 Class A, UL 1778 |
| Surge Energy Rating | 480 Joules |
| Dimensions | 17.00" x 5.10" x 28.32" |
| Weight | 95.00 lbs. |
| Package Contents | APC Smart-UPS SRT5KXLT, CD with software, Documentation CD, Installation guide, Removable support feet, Temperature Probe, USB cable, Warranty card, Web / SNMP Management Card |
| Forsendelsesvægt | 64.86 kg |
| Pakkestørrelse | 960 × 610 × 330 mm |
Andre versioner af denne model
1 flere i samme serie
Samme familie, men med anden hukommelse, køler eller clockfrekvens — sammenlign, før du bestemmer dig.
Spørgsmål om denne vare
What input plug must the building supply to connect this UPS?
The UPS requires a NEMA L6-30P receptacle on a 208 V circuit; without that plug it cannot be powered.
Will my existing NEMA L6-20P equipment plug directly into the output outlets?
Two outlets are NEMA L6-20R and two are NEMA L6-30R, so L6-20P loads fit the L6-20R ports while L6-30P loads need the L6-30R ports.
How do I verify the UPS is delivering clean sine-wave power after installation?
Check the front-panel display for a 208 V output reading and 50/60 Hz frequency within ±3 Hz, and confirm the green on-line LED is lit with no audible alarm.
