ASRock Rack
ASRock Rack 2U24E-GENOA2 barebone server dual SP5 24 NVMe bays
2U barebones server with dual SP5 sockets, 24 DDR5 slots up to 6 TB, 24 hot-swap plus two fixed 2.5" NVMe bays, and 2600 W 80-PLUS Titanium redundant power
- Form Factor2U Rackmount
- WorkloadGeneral Purpose Server
- CPU TypeAMD EPYC 9005 & 9004 Series
- CPU SocketSocket SP5
- Installed CPUNo CPU Installed
- Max Processors2
- Dual SP5 sockets scale to two EPYC 9005 or 9004 CPUs
- Twenty-four hot-swap NVMe bays plus two fixed bays deliver massive flash density
- 2600 W 80-PLUS Titanium redundant power keeps the rack running
- Twenty-four DDR5 4800 slots support up to 6 TB memory
- PCIe 5.0 x16 and x8 slots plus OCP NIC 3.0 expand I/O fast

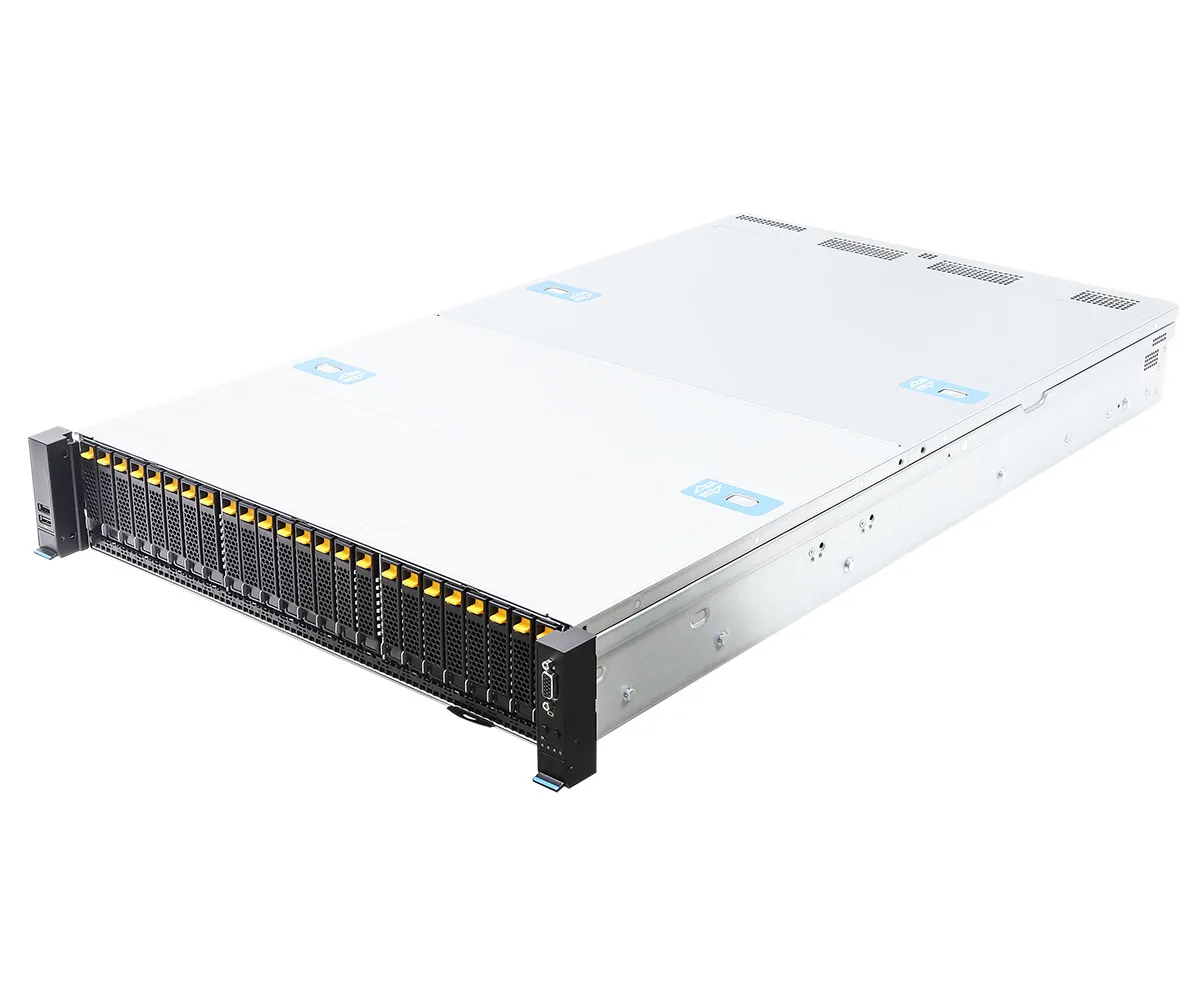

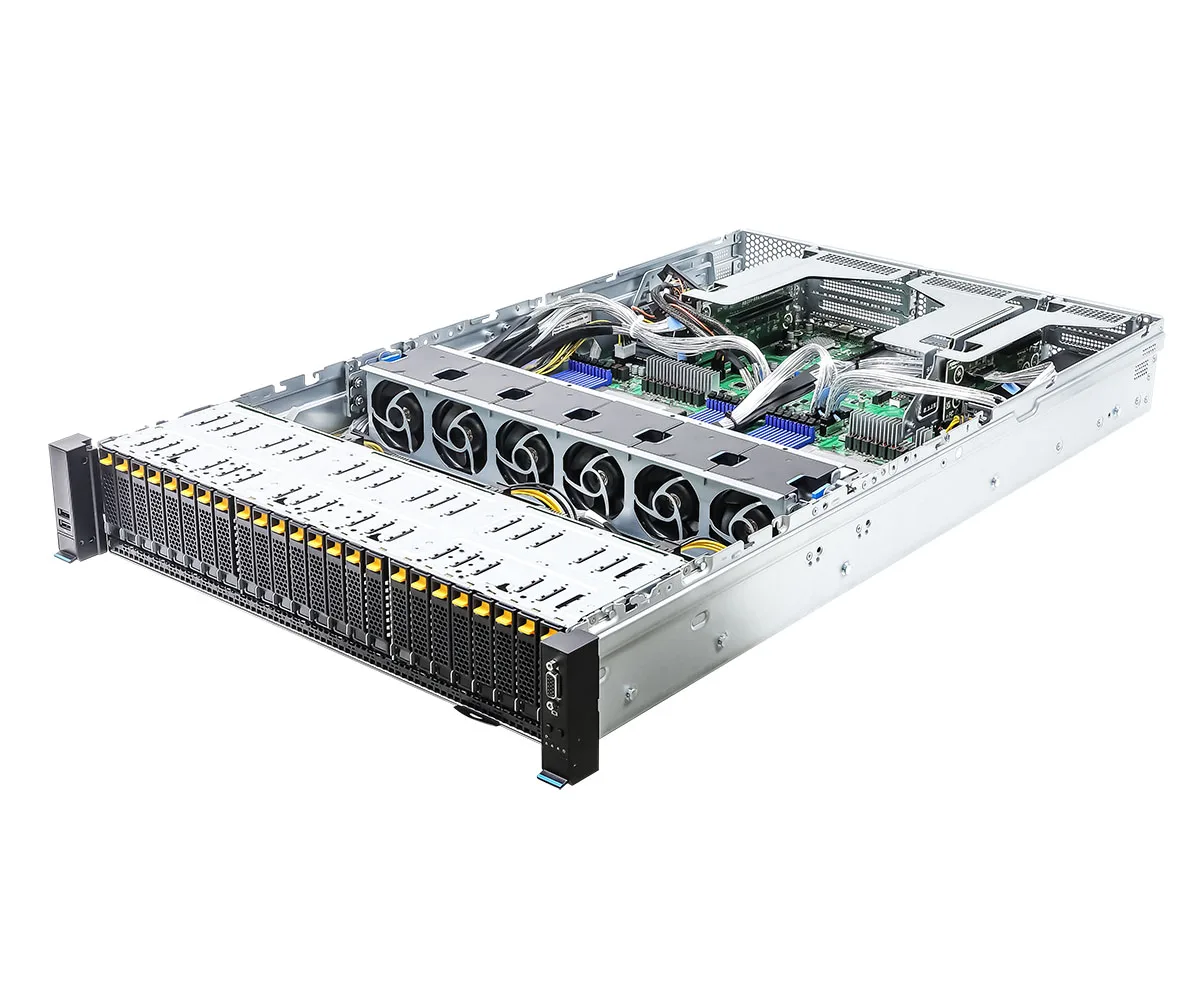

2U barebone with 24 NVMe bays
This 2U rackmount barebone server supports dual AMD EPYC 9005 and 9004 series processors in Socket SP5. It provides 24 DDR5 4800 memory slots with a maximum capacity of 6 TB. The chassis includes 24 hot-swap 2.5-inch NVMe bays and two fixed NVMe bays, all running at PCIe 5.0 x4. Redundant 2600 W CRPS power supplies with 80-PLUS Titanium efficiency are integrated.
Suits dense storage compute.
The system targets general-purpose deployments that need high local NVMe density and dual-socket CPU performance. Expansion is limited to three rear PCIe 5.0 slots and one OCP NIC 3.0 slot, all full-height or half-height. There are no additional full-length double-width GPU slots, so buyers needing multiple accelerator cards should look at a different platform.
24 hot-swap NVMe bays define the storage ceiling
The single specification that decides fit is the 24 front-accessible hot-swap 2.5-inch NVMe bays operating at PCIe 5.0 x4. This count sets the maximum number of removable drives without adding external enclosures. If the workload requires more than 24 hot-swap NVMe devices, this barebone cannot meet that requirement.
Fordele
- Dual SP5 sockets scale to two EPYC 9005 or 9004 CPUs
- Twenty-four hot-swap NVMe bays plus two fixed bays deliver massive flash density
- 2600 W 80-PLUS Titanium redundant power keeps the rack running
- Twenty-four DDR5 4800 slots support up to 6 TB memory
- PCIe 5.0 x16 and x8 slots plus OCP NIC 3.0 expand I/O fast
Specifikationer
| Brand | ASRock Rack |
|---|---|
| Model | 2U24E-GENOA2 |
| Form Factor | 2U Rackmount |
| Workload | General Purpose Server |
| CPU Type | AMD EPYC 9005 & 9004 Series |
| CPU Socket | Socket SP5 |
| Installed CPU | No CPU Installed |
| Max Processors | 2 |
| Memory Slots | 24 x 288Pin |
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | 6TB |
| Memory Type Supported | DDR5 4800 |
| Installed HDD | No Storage Installed |
| M.2 | 1 M-key (PCIe3.0 x4), supports 2280/2260/2242/2230 form factor [CPU0] 1 M-key (PCIe3.0 x4), supports 2280/2242 form factor [CPU1] |
| GPU/VPU | Aspeed AST2600 |
| Video Memory | DDR4 512MB |
| PCI Express | Rear: 1 FHHL PCIe5.0 x16 or 2 FHHL PCIe5.0 x8 1 FHHL PCIe5.0 x16 or 2 FHHL PCIe5.0 x8 1 HHHL PCIe5.0 x8 1 OCP NIC 3.0 (PCIe5.0 x16) [CPU1] |
| First LAN | Intel I350 |
| Max. LAN Speed | 1 Gigabit |
| Hot-Swap Bays | 24 x Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays 2 x Fixed 2.5'' NVMe (PCIe5.0 x4) drive bays |
| Buttons | Power, Reset, UID |
| LEDs | Power, LAN 1/2, HDD Activity, System status |
| COM | 1 |
| VGA | 1 |
| Rear USB | 2 x USB 3.2 Gen 1 |
| RJ45 | 2 |
| Max. Power | 1+1 CRPS, 1000W @ 100-127Vac input / 2600W @ 220-240Vac input |
| BIOS Features | AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM ASRock Rack Instant Flash, ACPI 6.4 and abouve compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) |
| Hardware Monitor | Temperature: CPU, MB, Card side Temperature Sensing - Fan: Fan Tachometer - CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - Fan Multi-Speed Control Voltage: P0_VDDCR_CPU0, P0_VDDCR_CPU1, P0_VDDCR_SOC, P0_VDD_18_DUAL, P0_VDD_11_S3, P0_VDDIO, P1_VDDCR_CPU0, P1_VDDCR_CPU1, P1_VDDCR_SOC, P1_VDD_18_DUAL, P1_VDD_11_S3, P1_VDDIO, +BAT, +12V, +3VSB, +5VSB |
| Temperature | Operation temperature: 10°C ~ 35°C Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
| Dimensions | 3.4" x 30.3" x 17.2" |
| Forsendelsesvægt | 23.13 kg |
| Pakkestørrelse | 1118 × 610 × 330 mm |
Spørgsmål om denne vare
Does the barebone include CPUs, memory or drives, or must they be purchased separately?
No CPU, memory or storage is installed; you must supply two SP5 processors, DDR5 4800 RDIMMs up to 6 TB and NVMe drives for the 24 hot-swap plus 2 fixed 2.5" bays.
Which AMD EPYC series does the SP5 socket support?
The dual SP5 sockets support EPYC 9004 and 9005 series processors, including 97x4 models and parts with 3D V-Cache technology.
What bandwidth does each of the 24 hot-swap NVMe bays deliver to the CPU?
Every hot-swap bay is wired for PCIe 5.0 x4, giving each drive a full Gen 5 four-lane link to the processor.
