CyberPower PR1500RTXL2UC UPS 1500VA/1500W 120V 2U Rack/Tower 8 Outlets
Line-interactive UPS delivers 1500 VA sine-wave power with 8 battery-backed outlets and 6.5-minute full-load runtime
- International Version120V
- Input Voltage Range70 - 155 VAC
- Input Frequency47 - 63 Hz
- Input ConnectionNEMA 5-15P
- VA Rating1500 VA
- Watts1500 W
- Pure sine wave output protects sensitive electronics
- Line-interactive topology with AVR corrects voltage without battery drain
- 1500 VA / 1500 W capacity supports critical loads
- 8 NEMA 5-15R outlets provide surge and battery backup
- User-replaceable battery with 3-hour recharge to 90%
Safeguard for Sensitive Electronics
The PR1500RTXL2UC is a 1500 VA / 1500 W line-interactive UPS that delivers pure sine-wave output to protect servers, networking gear and workstations from outages and voltage fluctuations. It suits IT managers and small-business owners who need rack or tower deployment without additional hardware.
Rack-Tower Flexibility and Simple Maintenance

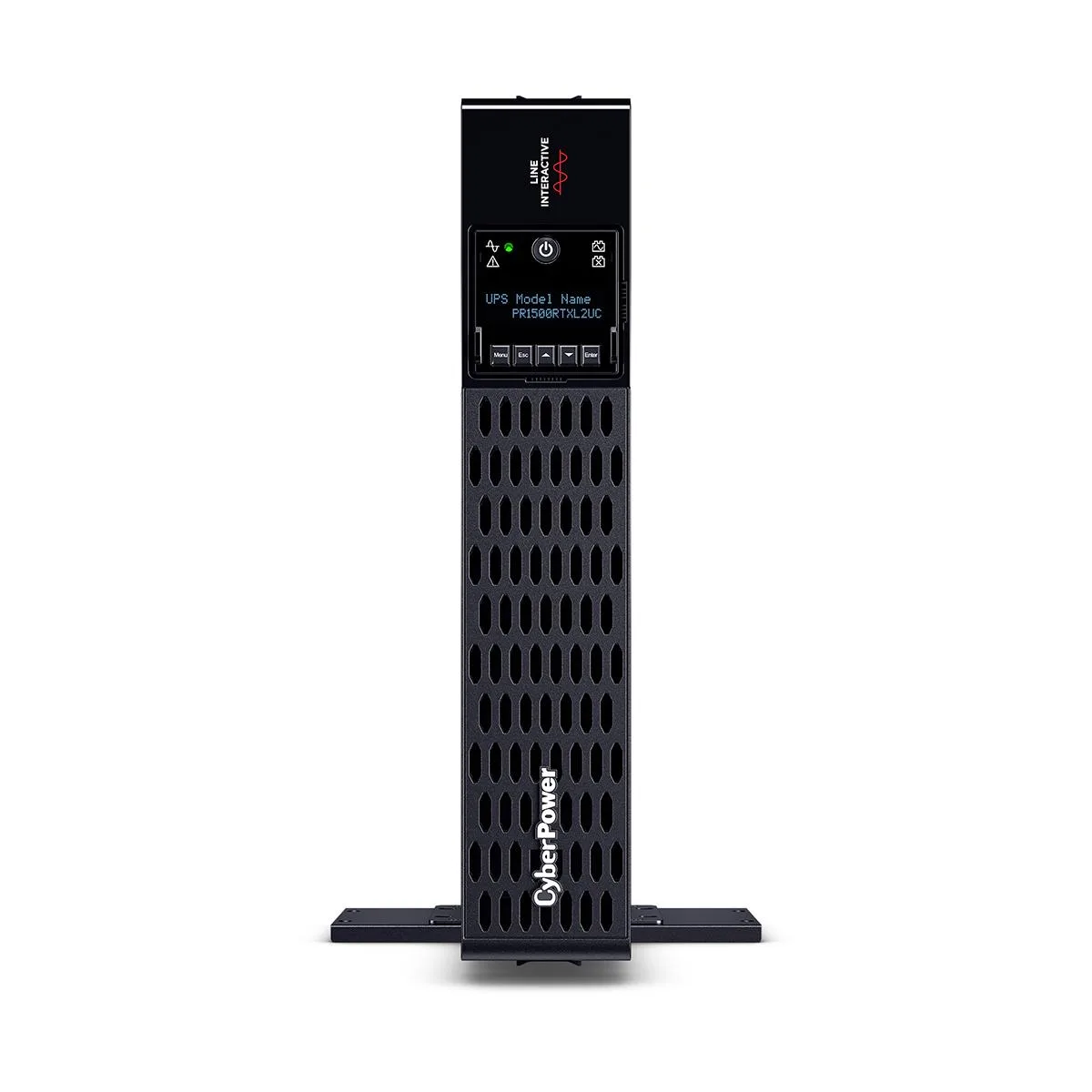

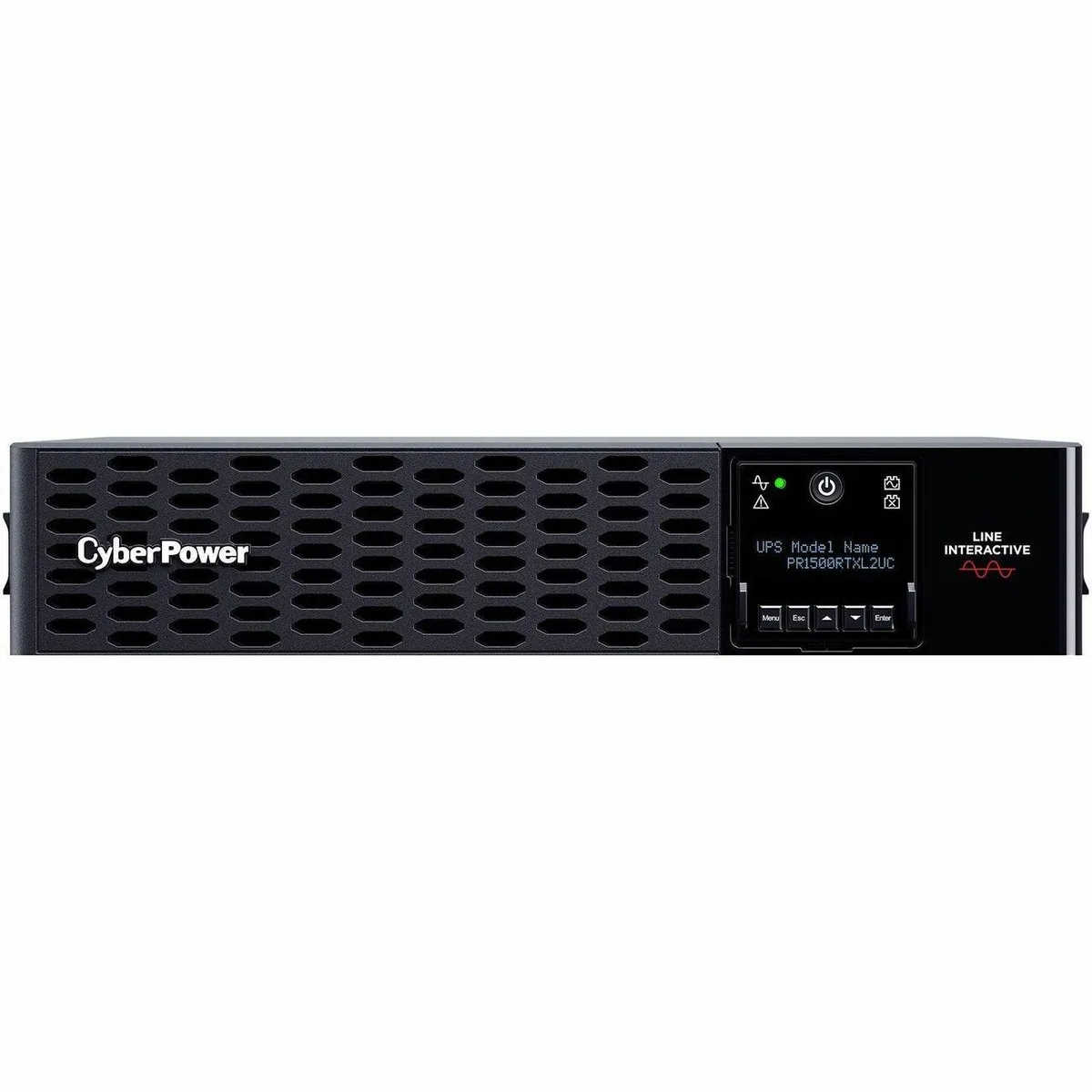

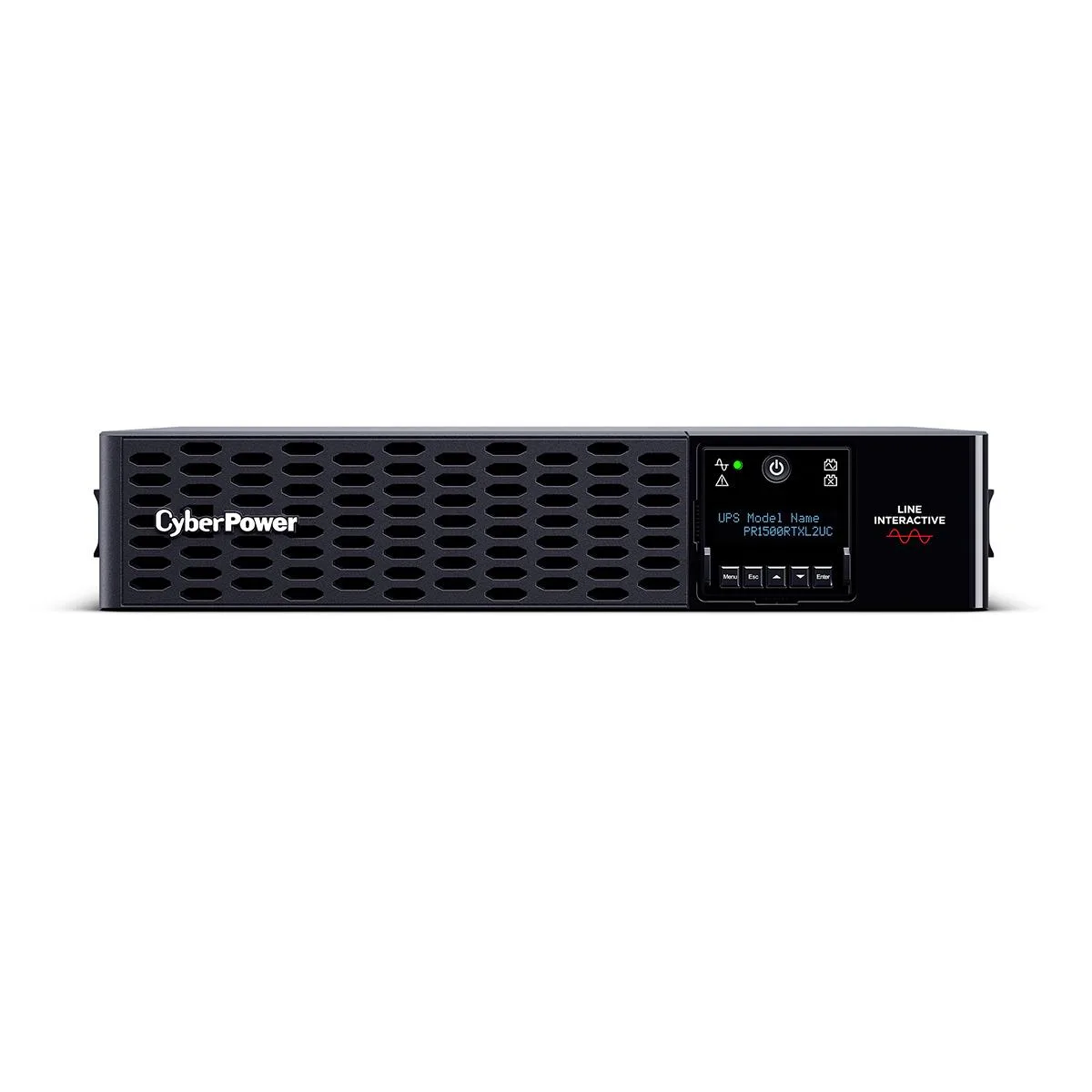

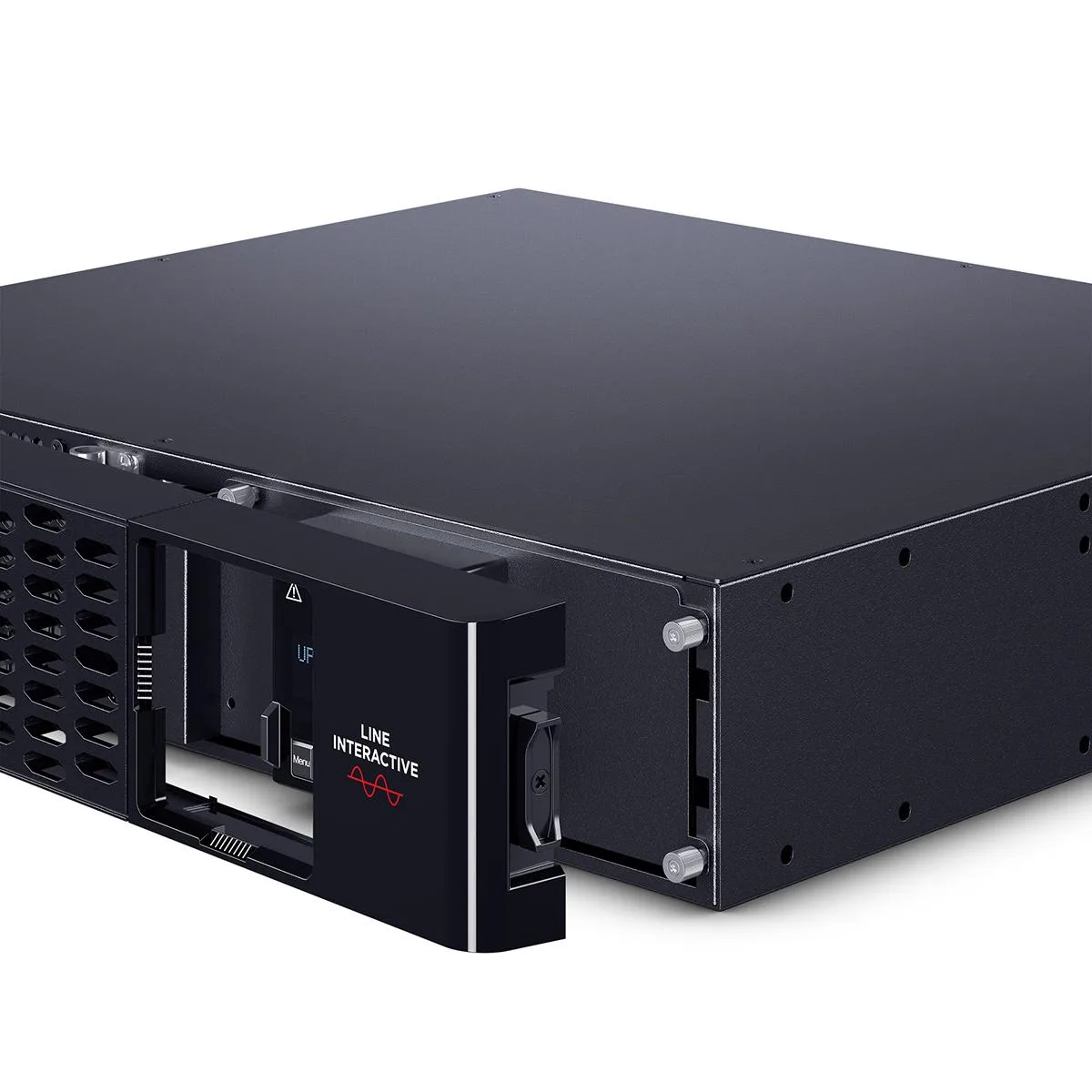

A 2U chassis fits standard racks or stands upright as a tower, while a toolless front panel and captive screws give quick access to the user-replaceable sealed lead-acid battery. Eight NEMA 5-15R outlets provide surge and battery backup, fed by a 10 ft NEMA 5-15P input cord.
Efficient Operation With Low Heat and Noise
Automatic Voltage Regulation corrects input between 70 and 155 VAC without using battery power, reducing heat and extending runtime. At full load the unit runs 6.5 minutes; at half load it reaches 17.9 minutes, and the battery recharges to 90 % in three hours.
Fordele
- Pure sine wave output protects sensitive electronics
- Line-interactive topology with AVR corrects voltage without battery drain
- 1500 VA / 1500 W capacity supports critical loads
- 8 NEMA 5-15R outlets provide surge and battery backup
- User-replaceable battery with 3-hour recharge to 90%
Specifikationer
| Brand | CyberPower |
|---|---|
| Series | Smart App Sinewave UPS Series |
| Model | PR1500RTXL2UC |
| International Version | 120V |
| Input Voltage Range | 70 - 155 VAC |
| Input Frequency | 47 - 63 Hz |
| Input Connection | NEMA 5-15P |
| VA Rating | 1500 VA |
| Watts | 1500 W |
| Output Voltage | 100/110/120/125 VAC +/- 5% |
| Output Frequency | 50/60 Hz +/- 1% |
| Outlets | 8 |
| Outlet Type | 8 x NEMA 5-15R |
| Battery Type | Sealed Lead Acid |
| Battery Run Time | Full Load 6.5 min Half Load 17.9 min |
| Battery Recharge Time | 3 Hours (0% to 90% charged) |
| Battery Replaceable | Yes |
| Alarms | Battery Mode Low Battery Overload Overcharge Fault |
| Interface Port | 1 Serial, 1 Dry Contact |
| Management Software | PowerPanel Business |
| Surge Energy Rating | 2430 Joules |
| Protection | On Battery: Internal Circuitry Limiting On Utility: Circuit Breaker Protected |
| Dimensions | 17.1" x 3.4" x 19.7" |
| Weight | 67.7 lbs. |
| Forsendelsesvægt | 37.20 kg |
| Pakkestørrelse | 635 × 559 × 279 mm |
Spørgsmål om denne vare
What input plug standard does the PR1500RTXL2UC use, and what voltage range does it accept?
It uses a NEMA 5-15P input plug and accepts an input voltage range of 70 to 155 VAC.
What physical space and mounting options does this 2U rack/tower unit require?
The unit is a 2U rack/tower design with a 10 ft input cord, toolless front panel, and captive screws on the battery panel for tool-free access.
How do you connect the PR1500RTXL2UC for management, and what is a common setup mistake?
Connect the serial or dry-contact interface port to your system, then install PowerPanel Business software; a common mistake is skipping the software configuration so the UPS cannot trigger graceful shutdowns.
