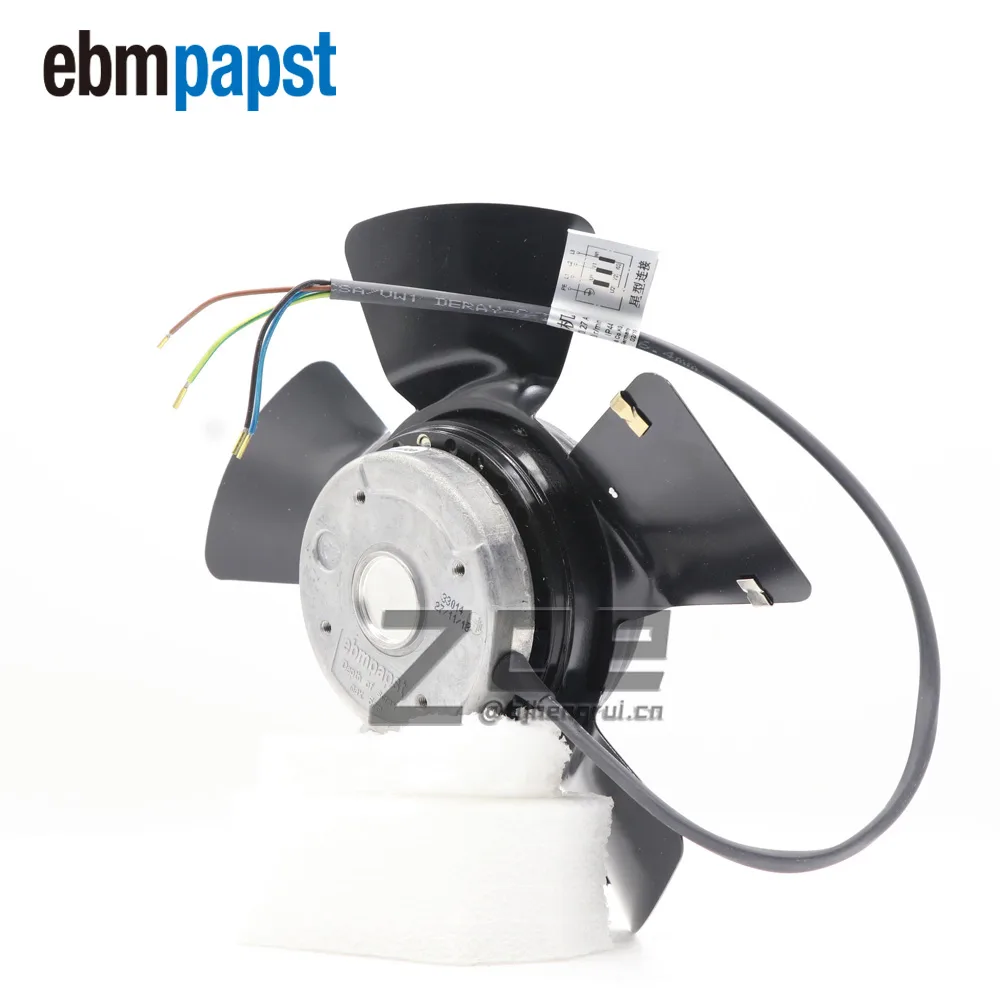

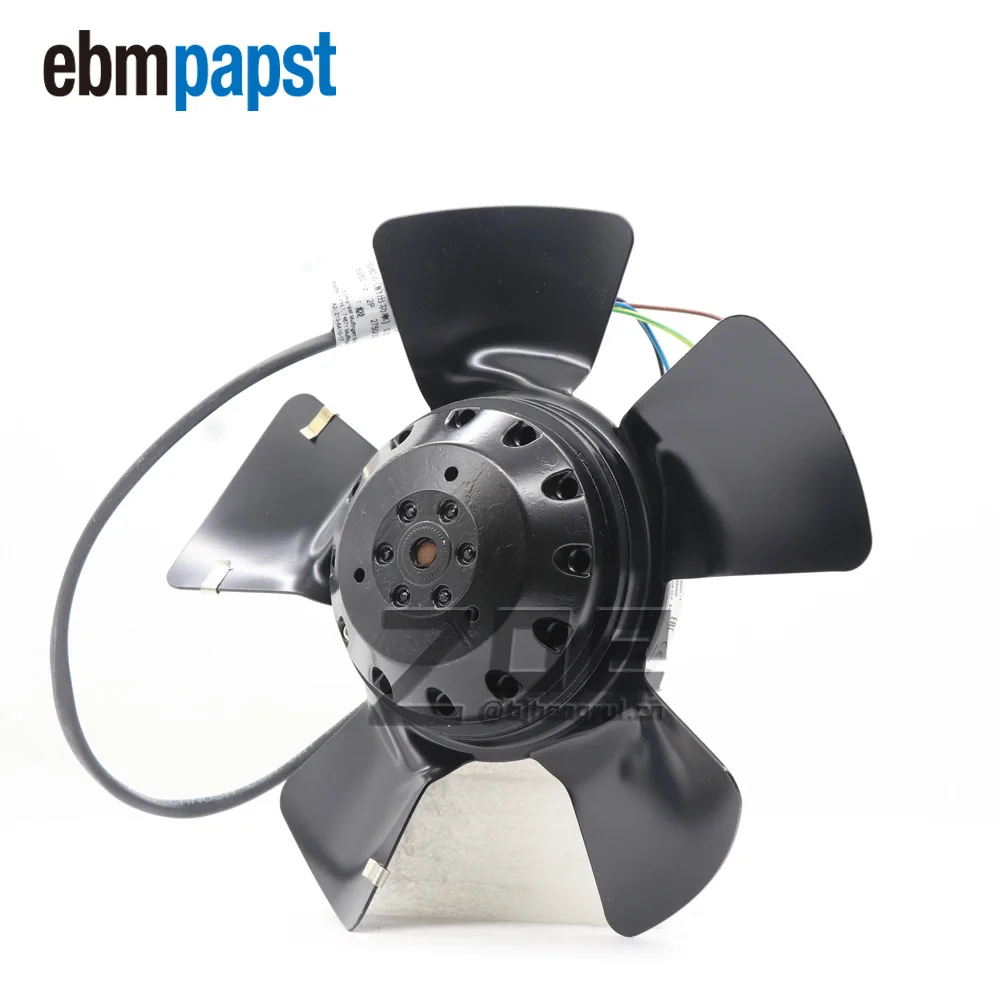

Silver metal axial fan with five black blades and a central motor housing, 210mm diameter

Ebm-Papst

Ebm-Papst A2D210-AA10-17 400VAC 50/60Hz 87/105/130W industrial cooling fan

SKU CH-P084-A10H9 MPN A2D210-AA10-17

Three-phase AC axial fan runs at 400 or 480 VAC, delivering 2750, 3150 or 3250 rpm with 87, 105 or 130 W power draw and IP44 protection

  • TypeAC axial fan
  • Motor TypeM2D068-CF
  • Voltage400VAC/480VAC
  • Hz50Hz/60Hz
  • Phase3~
  • Amps0.25A/0.2A/0.27A
  • Three-phase 400/480 VAC operation suits industrial power
  • Variable 2750/3150/3250 RPM adapts to 50/60 Hz supply
  • Ball-bearing motor reduces friction for continuous duty
  • IP44 protection resists dust and water splashes
  • 87/105/130 W draw keeps energy cost low

Industrial AC axial fan for 400 V three-phase

The Ebm-Papst A2D210-AA10-17 is a 210 mm metal axial fan driven by a three-phase AC motor rated for 400 VAC or 480 VAC at 50 Hz or 60 Hz. It delivers speeds of 2750, 3150 or 3250 rpm with corresponding power draws of 87 W, 105 W or 130 W. The unit carries CE approval and an IP44 protection rating.

Supplied as a single fan unit without extras

The package contains one fan only; no mounting hardware, wiring harnesses, speed controllers or filters are included. The motor uses ball bearings and insulation class F, while the five blades are made from painted black sheet steel. Airflow direction is marked as direction A on the housing.

Verify voltage, phase and clearance before ordering

Your supply must provide three-phase 400 VAC or 480 VAC at 50 Hz or 60 Hz with current capacity for up to 0.27 A. The fan weighs 1.7 kg and measures 210 mm in diameter with a 68 mm motor body, so confirm that the intended enclosure can accommodate those dimensions and the IP44 ingress rating. Buyers who need integrated mounting brackets, a different voltage rating or a higher protection class should look elsewhere.

Fordele

  • Three-phase 400/480 VAC operation suits industrial power
  • Variable 2750/3150/3250 RPM adapts to 50/60 Hz supply
  • Ball-bearing motor reduces friction for continuous duty
  • IP44 protection resists dust and water splashes
  • 87/105/130 W draw keeps energy cost low

Specifikationer

TypeAC axial fan
Brandebmpapst
ModelA2D210-AA10-17
Motor TypeM2D068-CF
Voltage400VAC/480VAC
Hz50Hz/60Hz
Phase3~
Amps0.25A/0.2A/0.27A
MaterialMetal

Spørgsmål om denne vare

When will the ball bearing need replacement on this 210 mm axial fan?

The motor uses a ball bearing rated for continuous industrial duty; typical service intervals depend on ambient temperature and load, but the bearing is not user-serviceable and the fan is designed for long-life operation without scheduled replacement.

Which limit appears first during sustained operation — the 130 W power ceiling or the IP44 protection rating?

The 130 W power draw at 3250 rpm is the electrical limit; IP44 defines ingress protection against splashing water and solid objects over 1 mm and does not constrain thermal or electrical performance.

How much noise and heat does the fan produce when running all day at 400 VAC?

At 400 VAC the fan draws up to 0.27 A and 130 W, reaching 3250 rpm; the motor is insulation class F and the metal housing with sheet-steel blades dissipates heat directly into the airflow, keeping surface temperatures within the class F limit.
