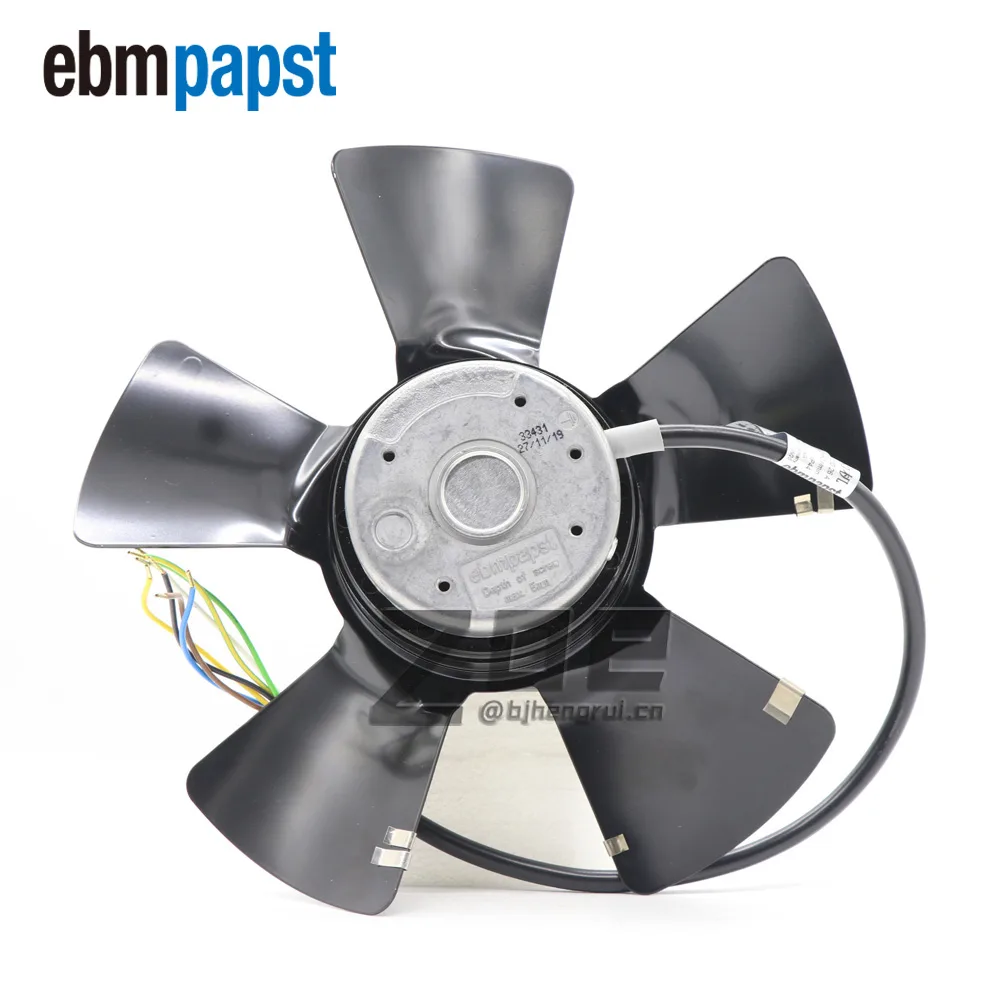

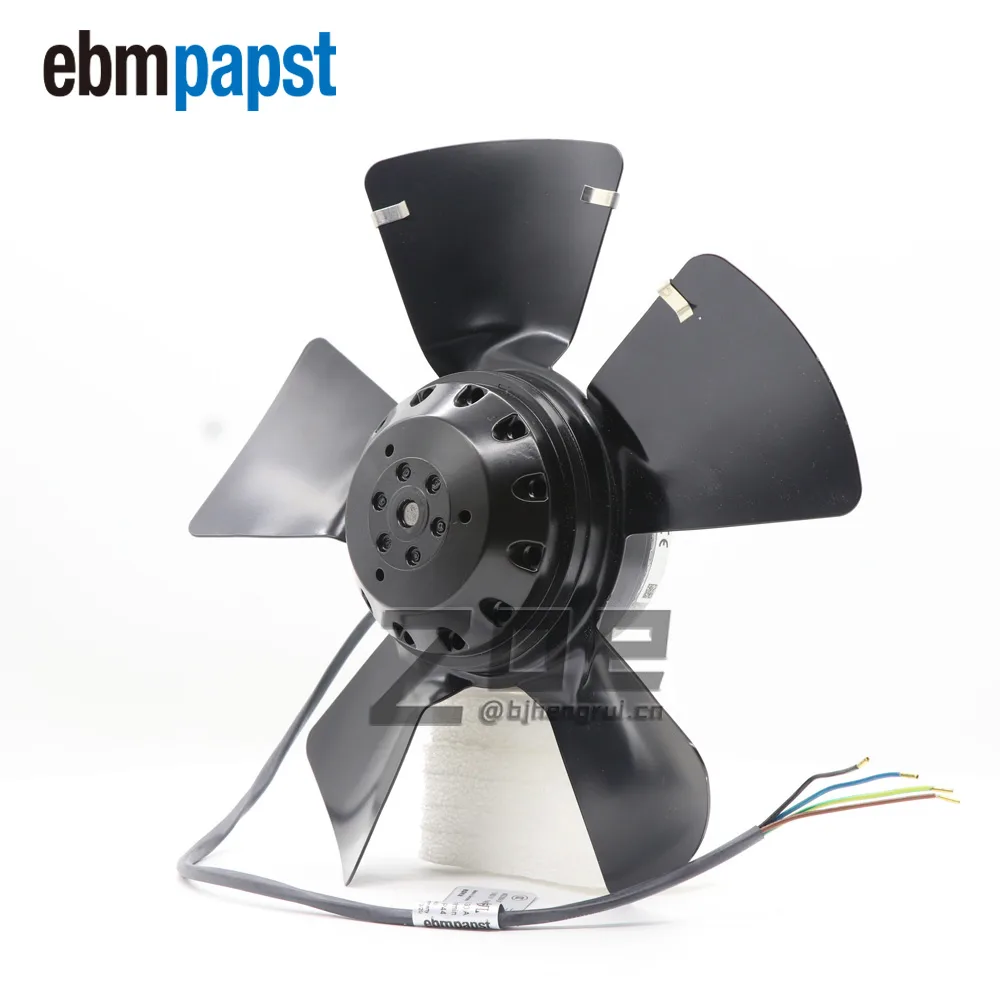

Ebm-Papst 250mm AC axial fan metal housing five black blades IP44

Ebm-Papst

Ebm-Papst A2D250-AA26-80 400/480VAC 250mm industrial cooling fan

SKU CH-8PS5-RDNK9 MPN A2D250-AA26-80

Three-phase AC axial fan, 250 mm diameter, IP44 rated, 2520/2920 RPM at 400/480 VAC, ball-bearing motor

  • TypeAC axial fan
  • Motor TypeM2D068-DF
  • Voltage400VAC/480VAC
  • Hz50Hz/60Hz
  • Phase3~
  • Amps0.25A/0.3A
  • Three-phase AC power suits industrial supply networks
  • Ball-bearing motor reduces friction for longer service life
  • IP44 rating protects against splashing water and solid particles
  • 2520/2920 RPM delivers strong airflow at 50/60 Hz
  • 140/220 W power draw balances cooling performance with energy use

Industrial axial fan for 400/480 VAC systems

This Ebm-Papst A2D250-AA26-80 is a three-phase AC axial fan built for 400 VAC or 480 VAC supply at 50 Hz or 60 Hz. It suits industrial HVAC enclosures, cabinet cooling and machinery ventilation where a 250 mm metal frame and IP44 protection are required.

Replaces worn or failed three-phase axial units

The jump is worth it when an existing 250 mm fan shows bearing noise, reduced airflow or insulation degradation. Ball-bearing construction and class F insulation restore rated airflow at 2520 rpm on 50 Hz or 2920 rpm on 60 Hz with 140 W or 220 W draw respectively.

Verify voltage, phase and mounting before ordering

Confirm the supply is three-phase 400 VAC or 480 VAC and that the 250 mm cut-out, bolt pattern and airflow direction A match the enclosure. The unit weighs 2.2 kg and needs an IP44-rated environment; no capacitor or speed controller is included.

Fordele

  • Three-phase AC power suits industrial supply networks
  • Ball-bearing motor reduces friction for longer service life
  • IP44 rating protects against splashing water and solid particles
  • 2520/2920 RPM delivers strong airflow at 50/60 Hz
  • 140/220 W power draw balances cooling performance with energy use

Specifikationer

TypeAC axial fan
Brandebmpapst
ModelA2D250-AA26-80
Motor TypeM2D068-DF
Voltage400VAC/480VAC
Hz50Hz/60Hz
Phase3~
Amps0.25A/0.3A
Materialmetal

Spørgsmål om denne vare

What mounting dimensions does the 250 mm metal frame require?

The fan has a 250 mm diameter metal housing with five sheet-steel blades; allow clearance for the full 250 mm sweep and the 2.2 kg weight when planning the cut-out or bracket.

How do I wire the three-phase 400/480 VAC motor correctly?

Connect the three-phase supply to the motor terminals matching 400 VAC at 50 Hz or 480 VAC at 60 Hz; the nameplate shows 0.25 A / 0.30 A and 140 W / 220 W — verify rotation direction after power-up.

When should the ball bearings be inspected or replaced?

The motor uses sealed ball bearings rated for continuous IP44 duty; schedule inspection after extended high-temperature operation or if vibration and noise increase beyond normal 2520/2920 RPM levels.
