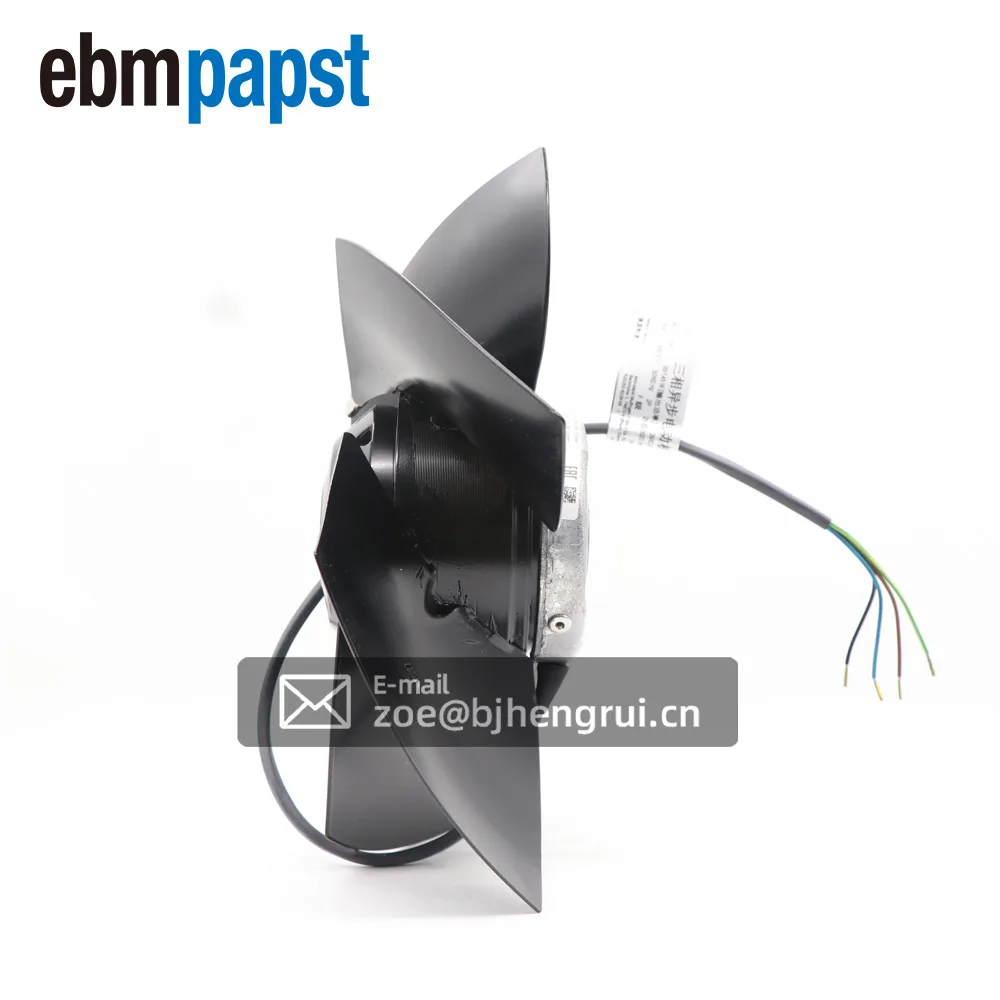

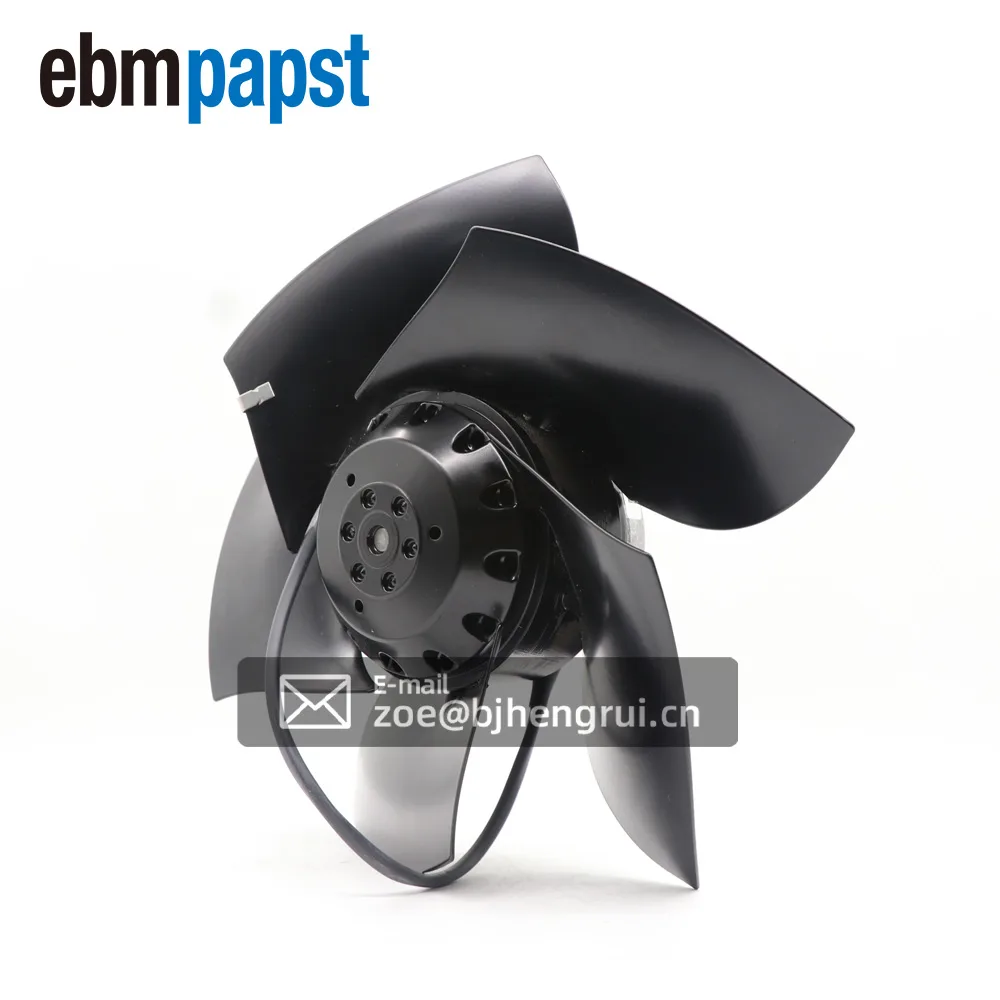

Metal axial fan with five black painted blades, flange mount, ball bearing, IP44 rating

Ebm-Papst

Ebm-Papst A2D250-AD26-05 400/480VAC 3-phase AC axial fan 250mm 2520/2920RPM 150/230W IP44 ball bearing

SKU CH-MCWT-SSKNV MPN A2D250-AD26-05

250 mm three-phase AC axial fan runs at 2520/2920 RPM with 150/230 W power draw, IP44 protection and ball-bearing motor

  • TypeAC axial fan
  • Motor TypeM2D068-DC
  • Voltage400VAC/480VAC
  • Hz50Hz/60Hz
  • Phase3~
  • Amps0.26A/0.32A
  • Three-phase 400/480 VAC supply fits industrial mains
  • Ball bearing motor extends service intervals
  • IP44 enclosure resists splashing water and dust
  • Sickle blades deliver 2520/2920 RPM airflow at 150/230 W
  • 250 mm diameter suits standard flange cut-outs

Industrial 3-phase axial fan

The Ebm-Papst A2D250-AD26-05 is a 250 mm metal axial fan built for 400/480 VAC three-phase supply at 50/60 Hz. It delivers 2520/2920 RPM with 150/230 W power draw and 0.26/0.32 A current. The IP44-rated housing and Class F insulation suit industrial cooling tasks such as servo spindle motor enclosures.

Flange mounting with sickle blades

The fan arrives as a single unit weighing 2.14 kg with a 68 mm motor frame and five painted sheet-steel sickle blades. Ball bearings support the rotor for continuous operation. Installers must provide a compatible flange pattern and three-phase wiring; incorrect phase sequence reverses airflow direction V, and undersized cable cross-section risks overheating at the 0.32 A peak draw.

Verify supply voltage and clearance

Confirm the site provides 400 VAC or 480 VAC three-phase power at the rated frequency before ordering. The 250 mm overall diameter and 210 mm motor size determine the cut-out dimensions; ensure the mounting surface accommodates the flange and that ducting does not restrict the 70 dBA airflow path. Buyers needing single-phase operation or a smaller frame size should consider alternative models.

Fordele

  • Three-phase 400/480 VAC supply fits industrial mains
  • Ball bearing motor extends service intervals
  • IP44 enclosure resists splashing water and dust
  • Sickle blades deliver 2520/2920 RPM airflow at 150/230 W
  • 250 mm diameter suits standard flange cut-outs

Specifikationer

TypeAC axial fan
Brandebmpapst
ModelA2D250-AD26-05
Motor TypeM2D068-DC
Voltage400VAC/480VAC
Hz50Hz/60Hz
Phase3~
Amps0.26A/0.32A
Materialmetal

Spørgsmål om denne vare

How can I confirm the fan is running correctly once installed?

At 50 Hz the motor should spin at 2520 RPM and draw 0.26 A while consuming 150 W; at 60 Hz expect 2920 RPM, 0.32 A and 230 W.

What comes in the package and what must I source separately?

The box contains one axial fan with 250 mm diameter, 5 sheet-steel blades, ball bearing motor and IP44-rated housing; mounting hardware, wiring and any required guards are not included.

Which voltage and frequency variant matches my supply?

The single model operates on both 400 VAC 50 Hz and 480 VAC 60 Hz three-phase supplies, delivering the corresponding speed, power and current figures listed above.
