Green PCB card with gold edge connector, M.2 slot and full-height bracket

EN-Labs

EN-Labs PCIE4X2NVMEBR M.2 NVME to PCIe 3.0 x4 Adapter with Bracket

SKU CH-AHB3-68T7D

Adapts M-key M.2 NVMe or AHCI SSDs in 2230, 2242, 2260 and 2280 sizes to a PCIe 3.0 x4 slot with included bracket

  • FeaturesThe adapter connects directly to your computer mother board
  • Package ContentsNVME to PCIe Card,PCI slot cover,screws & screw driver
  • Adds ultra-fast NVME storage via PCIe 3.0 x4
  • Fits M-key M.2 drives in 2230 2242 2260 2280 sizes

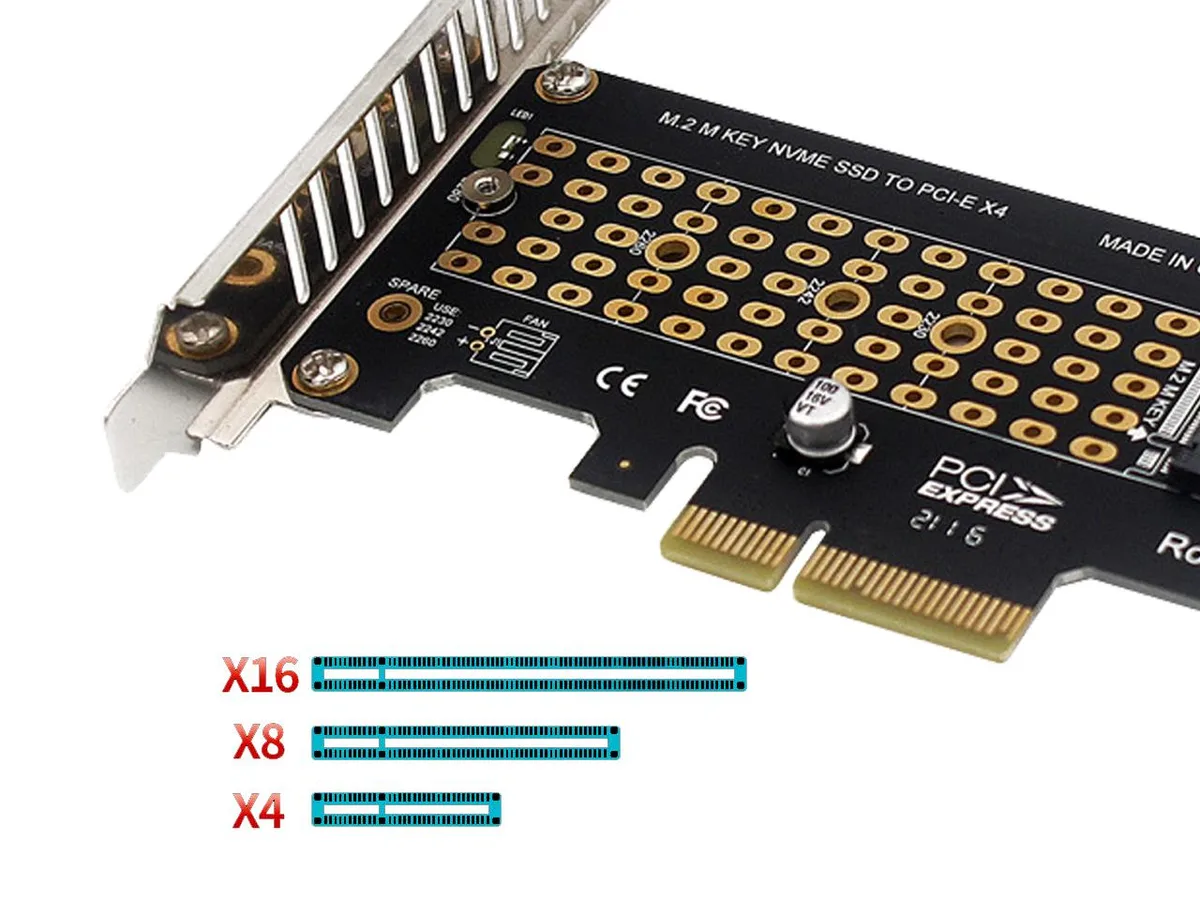

  • Works with NVME or AHCI SSDs on PCIe x4 x8 x16 slots
  • Backwards compatible with PCIe 2.0 and 1.0 motherboards
  • Includes full-profile bracket screws and screwdriver for easy install

M.2 NVMe adapter for PCIe 3.0 x4 slots

This EN-Labs adapter lets you install an M-key M.2 NVMe or AHCI SSD into a standard PCIe 3.0 x4, x8, or x16 slot. It accepts drive lengths of 30, 42, 60, and 80 mm, covering 2230, 2242, 2260, and 2280 form factors. The card is backwards compatible with PCIe 2.0 and 1.0 motherboards and works with Windows and Linux without extra drivers. Builders who need to add a B-key SATA or PCIe x2 M.2 drive cannot use this adapter.

Passive operation with no added power

The adapter draws power solely from the PCIe slot and has no active cooling, so it adds no fan noise and negligible thermal load to the system. Power consumption is limited to the SSD itself and the passive PCB traces. No external power connectors are required, and the card does not increase case airflow demands. Users who want active cooling or a heatsink for sustained heavy write workloads must provide their own solution.

Bracket and hardware for full-profile cases

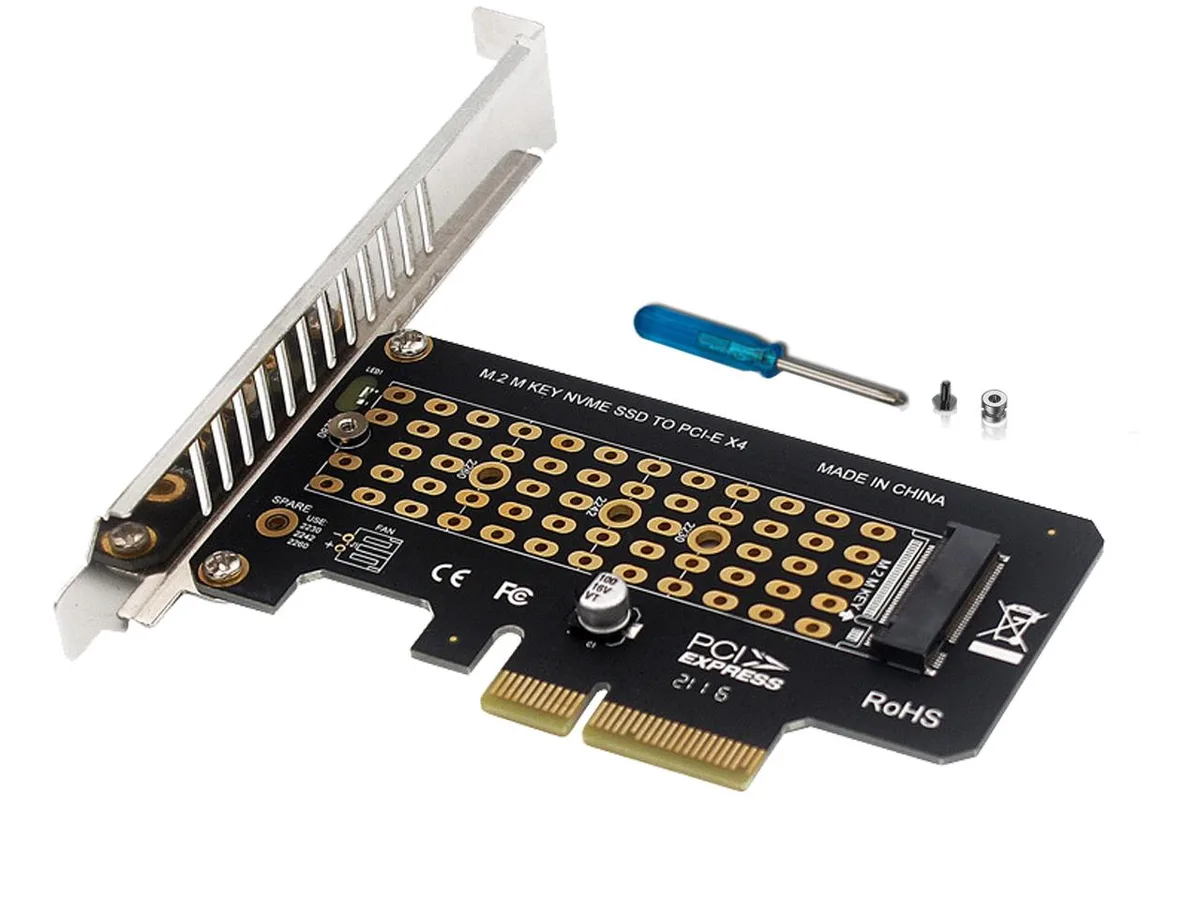

Included in the package are the adapter card, a full-profile PCI slot cover, mounting screws, and a small screwdriver. The bracket secures the card to a standard chassis cut-out, and the screws fasten the M.2 drive at the appropriate standoff for each supported length. No software, cables, or drive-cloning utilities are bundled. Buyers who need a low-profile bracket for slim cases or additional mounting hardware for multiple drives must source those separately.

Fordele

  • Adds ultra-fast NVME storage via PCIe 3.0 x4
  • Fits M-key M.2 drives in 2230 2242 2260 2280 sizes
  • Works with NVME or AHCI SSDs on PCIe x4 x8 x16 slots
  • Backwards compatible with PCIe 2.0 and 1.0 motherboards
  • Includes full-profile bracket screws and screwdriver for easy install

Specifikationer

BrandEn-Labs
SeriesNVME to PCIe
ModelPCIE4X2NVMEBR
FeaturesThe adapter connects directly to your computer mother board to support an M.2 PCIe-based SSD (NVMe or AHCI) through ultra-fast x4 PCIe. PCIe 3.0 x4 to NVMe adapter supports all NVM express (M Key) and PCIe-AHCI M.2 SSDs including 2230, 2242, 2260, and 2280 drives. Backwards compatible with PCIe 2.0 and 1.0 motherboards Fit drive sizes of 80, 60, 42 and 30 mm. Required an empty PCIe 3.0 or PCIe 2.0 x4, x8, or x16 slot inside your PC Supports OS including Windows and Linux. No driver installation required ( If there is an exclamation mark after installing the adapter, please ask the SS
Package ContentsNVME to PCIe Card,PCI slot cover,screws & screw driver

Spørgsmål om denne vare

How do I install the M.2 NVMe SSD onto the PCIe 3.0 x4 adapter and which step is often missed?

Insert the M-key M.2 NVMe or AHCI SSD (2230, 2242, 2260, or 2280) into the adapter's slot at an angle, then secure it with the supplied screw. The step often missed is fastening the adapter's full-profile bracket to the chassis with a case screw so the card stays firmly seated in the PCIe x4, x8, or x16 slot.

What maintenance or replacement will this adapter need later?

The adapter is a passive PCIe 3.0 x4 to M.2 carrier with no active components, so it requires no scheduled maintenance. Replacement is only necessary if the gold edge contacts are damaged or the mounting bracket is bent, preventing secure installation in the motherboard slot.

What limit appears first when the adapter runs under sustained heavy I/O?

The bottleneck is the PCIe 3.0 x4 host interface, which caps sequential throughput at the bus maximum. The adapter itself adds no active cooling, so the attached M.2 SSD (2230, 2242, 2260, or 2280) may hit its own thermal throttle point before the link saturates.
