Intel SSDSC2BB016T701 DC S3520 1.6TB 2.5" SATA enterprise SSD
A 2.5-inch SATA enterprise SSD with 1.6TB capacity, up to 450 MBps read and 380 MBps write speeds, plus 1.0 DWPD endurance
- Form Factor2.5"
- Capacity1.6TB
- Memory ComponentsMLC
- InterfaceSATA III
- Max Sequential ReadUp to 450 MBps
- Max Sequential WriteUp to 380 MBps
- 6 TB capacity for large enterprise datasets
- Up to 450 MB/s sequential read speeds data access
- Up to 380 MB/s sequential write speeds throughput
- 67 500 IOPS random read handles heavy workloads
- 2 million hours MTBF ensures long-term reliability
Capacity and form factor

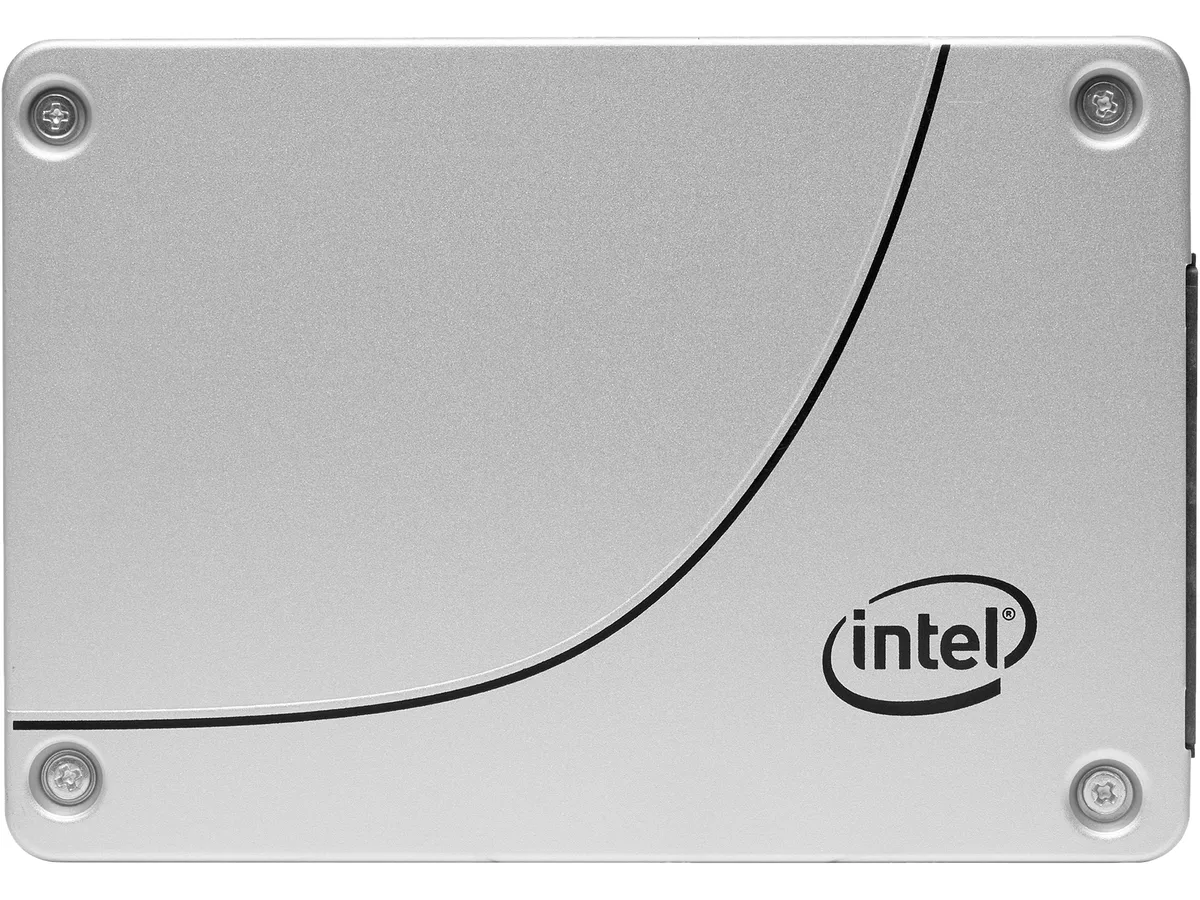

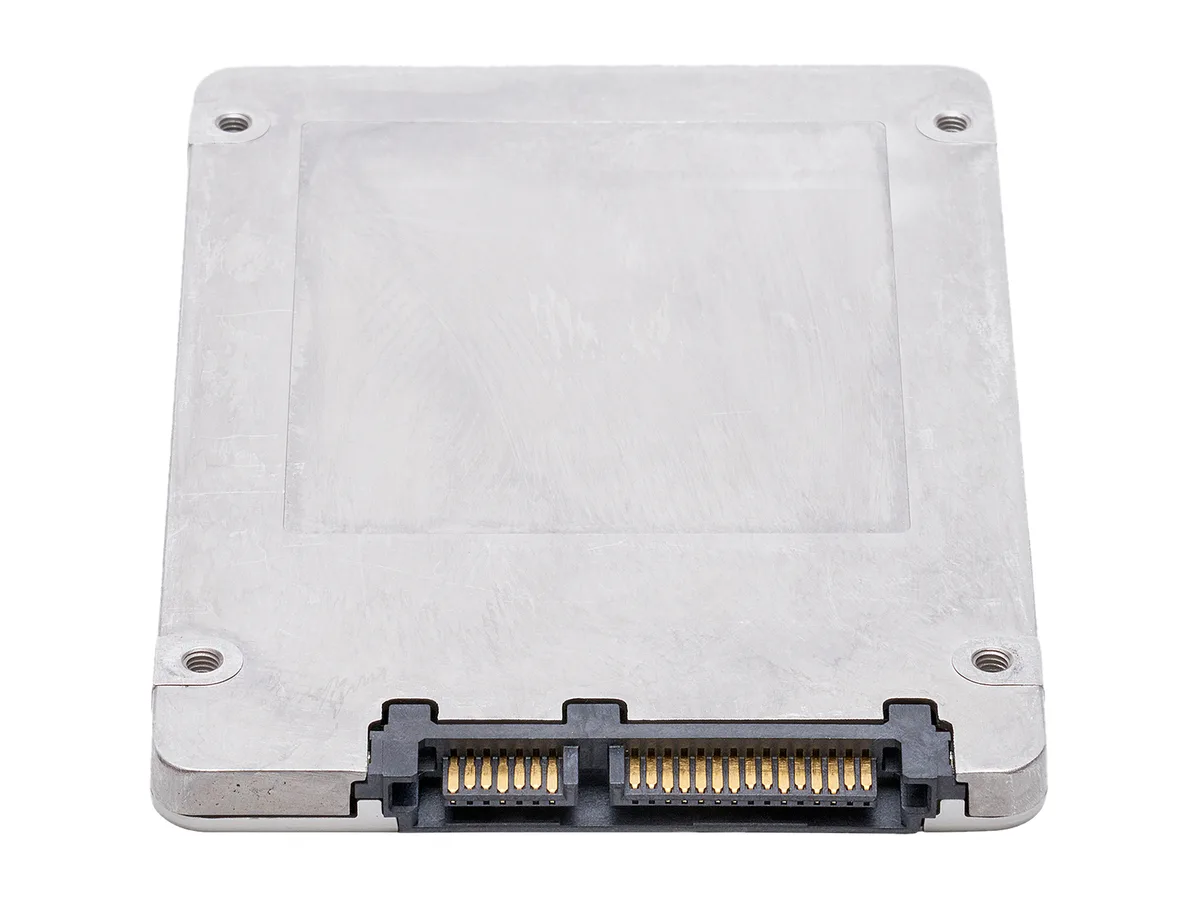

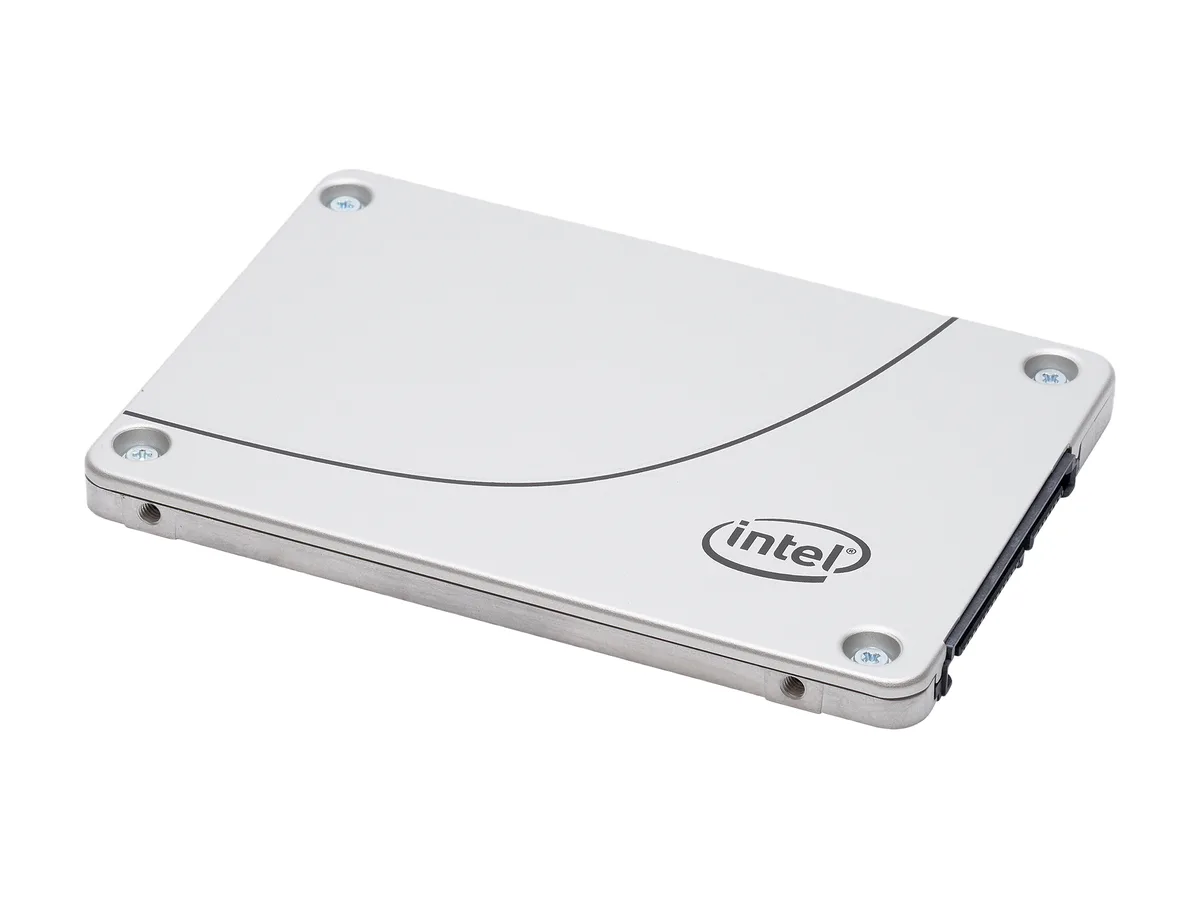

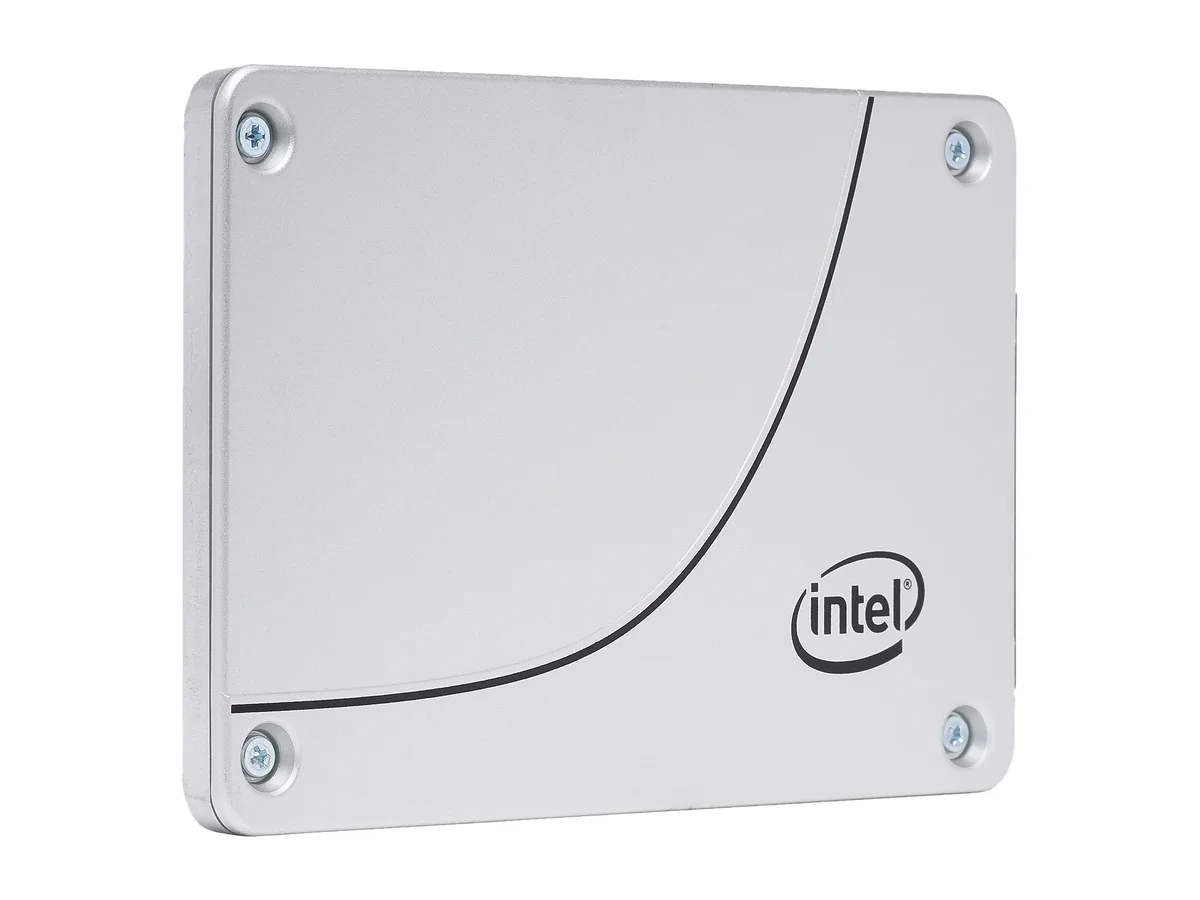

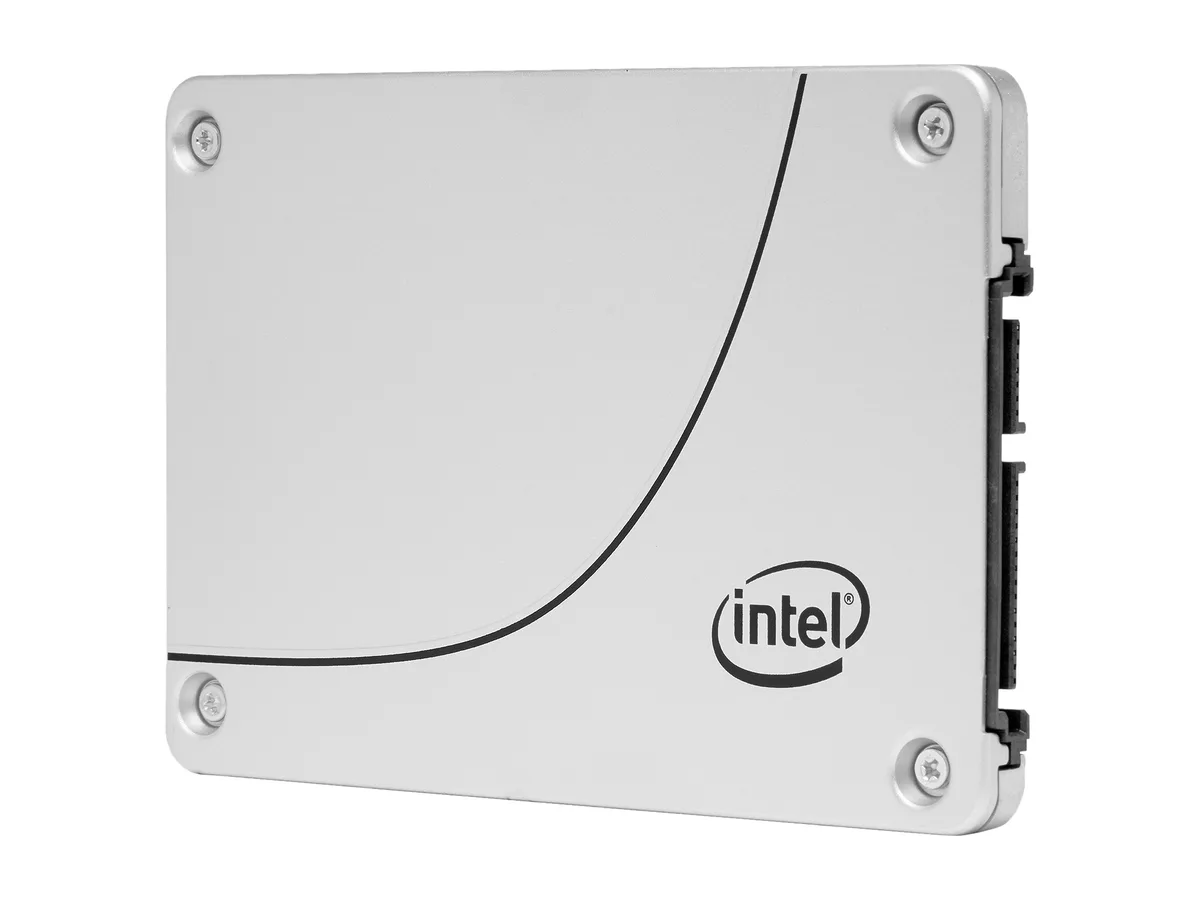

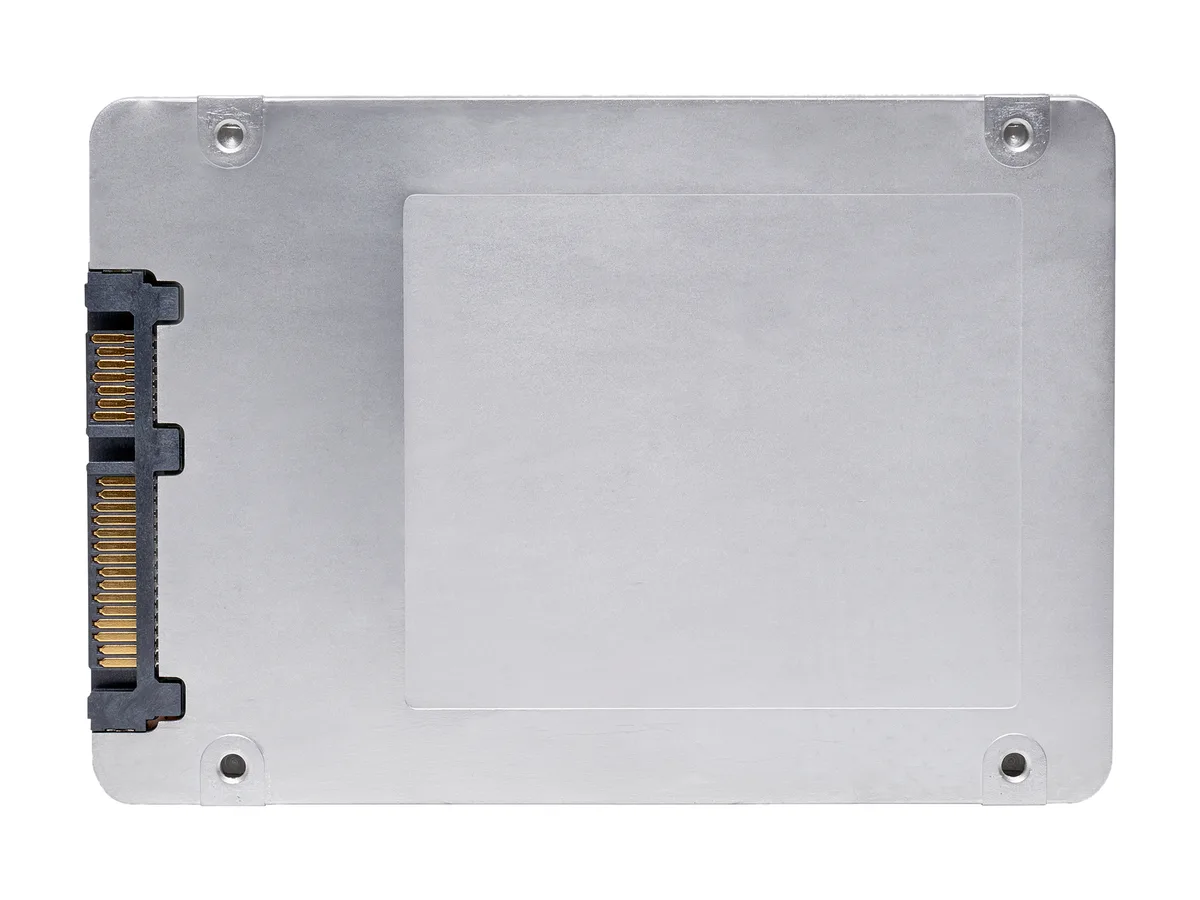

The Intel DC S3520 is a 1.6TB 2.5-inch enterprise SSD built with MLC memory and a SATA III interface. It targets servers and storage arrays that need consistent read performance and power-efficient operation.
Upgrade from DC S3510
Compared with the DC S3510 series, this drive delivers 15% lower idle power, 30% lower active write power and 35% better performance per watt. The jump is worth it when density and efficiency matter more than peak throughput.
SATA interface limits
The SATA III link caps sequential reads at 450 MBps and writes at 380 MBps, while random performance reaches 67,500 read IOPS and 17,000 write IOPS. Latency sits at 40 µs read and 42 µs write, so workloads needing higher bandwidth or lower latency will require a different interface.
Fordele
- 6 TB capacity for large enterprise datasets
- Up to 450 MB/s sequential read speeds data access
- Up to 380 MB/s sequential write speeds throughput
- 67 500 IOPS random read handles heavy workloads
- 2 million hours MTBF ensures long-term reliability
Specifikationer
| Brand | Intel |
|---|---|
| Series | DC S3520 |
| Model | SSDSC2BB016T701 |
| Form Factor | 2.5" |
| Capacity | 1.6TB |
| Memory Components | MLC |
| Interface | SATA III |
| Max Sequential Read | Up to 450 MBps |
| Max Sequential Write | Up to 380 MBps |
| 4KB Random Read | Up to 67,500 IOPS |
| 4KB Random Write | Up to 17,000 IOPS |
| Read Latency | 40µs |
| Write Latency | 42µs |
| MTBF | 2,000,000 hours |
| Features | Excellent efficiency across power states (compared to DC S3510 Series) - 15% lower idle power - 30% lower active write power - +35% performance/watt (compared to DC S3510 Series) Increased endurance at 1.0 DWPD, suitable for a broad range of applications Low latency Form factors - 2.5" and M.2 (80mm) with increased capacities |
| Power Consumption (Idle) | 0.6W |
| Power Consumption (Active) | 3.5W |
| Operating Temperature | 0°C ~ +70°C |
| Max Shock Resistance | 1000G/0.5ms |
| Max Vibration Resistance | Operating: 2.17 GRMS (5-700 Hz) Non-Operating: 3.13 GRMS (5-800 Hz) |
| Height | 7.00mm |
| Weight | 2.33 oz. |
| Forsendelsesvægt | 0.10 kg |
| Pakkestørrelse | 147 × 107 × 23 mm |
Andre versioner af denne model
2 flere i samme serie
Samme familie, men med anden hukommelse, køler eller clockfrekvens — sammenlign, før du bestemmer dig.
Intel
Intel SSDSC2BB240G701 DC S3520 240GB 2.5" SATA enterprise SSD
- 2.5"
- 240GB
111,99 US$
0.00139919BTC
På lagerSpørgsmål om denne vare
Does the 2.5 inch 7 mm SSDSC2BB016T701 fit in a standard 2.5 inch drive bay?
The SSDSC2BB016T701 is a 2.5 inch form factor drive with a 7 mm height, so it fits standard 2.5 inch bays that accept 7 mm drives.
What is the correct way to install the Intel DC S3520 SATA III SSD and what step is often missed?
Connect the SATA data cable and the SATA power cable securely; the step often missed is ensuring the SATA data connector clicks fully into the port on both the drive and the motherboard or controller.
When will the 1.6TB MLC drive with 1.0 DWPD rating need replacement under typical write workloads?
At 1.0 DWPD the 1.6TB drive is warrantied for 1.6TB of writes per day; with a 2,000,000 hour MTBF, replacement timing depends on your actual daily write volume.
