Black tower server chassis with five front 3.5-inch hot-swap bays and red drive handles

iStarUSA Inc.

iStarUSA Inc. S-35-DE5RD server chassis 5×3.5" hot-swap mini-ITX

SKU CH-XJ88-K2H32 MPN S-35-DE5RD

Compact tower holds five hot-swap 3.5″ drives plus one 2.5″ bay for mini-ITX builds

  • Chassis TypeTower
  • ColorBlack
  • Case MaterialAluminum / Steel
  • Motherboard CompatibilityMini ITX
  • Hot-Swap Drive Bays5 x 3.5"
  • Internal 2.5" Drive Bays1

Model S-35-DE5RD

De overstregede versioner findes, men er ikke på lager her.

  • Five hot-swap 3.5" bays fit five drives in a compact tower
  • Trayless design lets you swap drives without tools or trays
  • Single 120 mm fan provides direct airflow across all installed drives
  • Mini-ITX support enables a full server build in a small footprint
  • Two front USB 2.0 ports give quick access for peripherals or recovery media

Compact five-bay tower for mini-ITX storage

The iStarUSA S-35-DE5RD is a black aluminium-and-steel tower that accepts a mini-ITX motherboard and provides five hot-swap 3.5-inch drive bays plus one internal 2.5-inch bay. It targets home-lab builders and small-office NAS projects that need dense, tray-free storage in a compact footprint.

Tool-free drive trays and single-slot layout

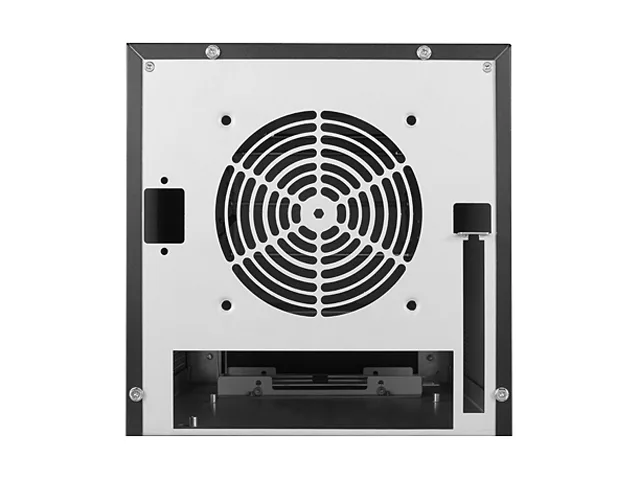

Drives slide into the front 3.5-inch bays without screws or carriers, and the red handles give a clear visual latch. Only one expansion slot is available, so a dedicated HBA or RAID card is possible but a second add-in card cannot be fitted. The front panel carries two USB 2.0 ports and a power button; a single 120-millimetre fan handles airflow.

Five 3.5-inch drives with 6.0 Gb/s SATA/SAS support

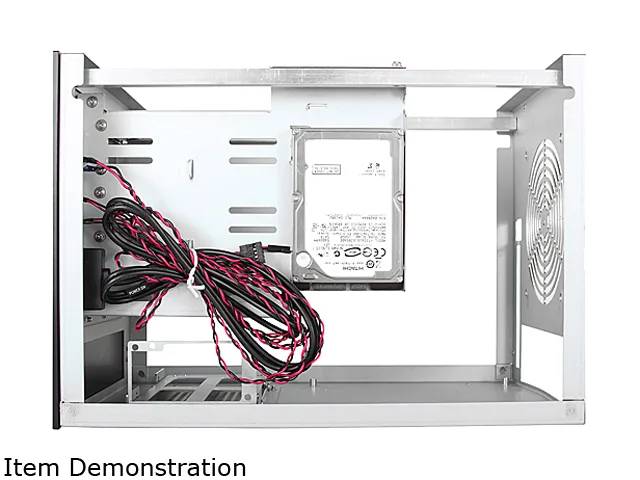

The chassis comfortably accommodates five 3.5-inch hard drives running at 6.0 Gb/s SATA or SAS speeds, with room for one 2.5-inch SSD behind the motherboard tray. Capacity ends at five large drives; there is no provision for additional 3.5-inch bays, 2.5-inch bays beyond the single internal slot, or a second expansion card.

Fordele

  • Five hot-swap 3.5" bays fit five drives in a compact tower
  • Trayless design lets you swap drives without tools or trays
  • Single 120 mm fan provides direct airflow across all installed drives
  • Mini-ITX support enables a full server build in a small footprint
  • Two front USB 2.0 ports give quick access for peripherals or recovery media

Specifikationer

BrandiStarUSA
ModelS-35-DE5RD
Chassis TypeTower
ColorBlack
Case MaterialAluminum / Steel
Motherboard CompatibilityMini ITX
Hot-Swap Drive Bays5 x 3.5"
Internal 2.5" Drive Bays1
Expansion Slots1
Front Ports2 x USB 2.0
120mm Fans1
FeaturesRed HDD Handle
Sleek Front Panel with Power On Button
5 x 3.5" Trayless Hotswap Bays
4mm Aluminum Front Panel
Support 6.0Gb/s SATA/SAS HDDs
First PVC Laminate Technical in NAS Chassis
Compatible with Flex Power Supply
Heavy Duty SECC Construction
Support Standard I/O Slot
Support mini-ITX Motherboard
Dimensions8.90" x 8.68" x 12.76"
Forsendelsesvægt6.80 kg
Pakkestørrelse325 × 226 × 221 mm

Andre versioner af denne model

5 flere i samme serie

Samme familie, men med anden hukommelse, køler eller clockfrekvens — sammenlign, før du bestemmer dig.

Spørgsmål om denne vare

How do I confirm the 120 mm fan is spinning and the five 3.5" hot-swap bays detect drives after I power on the chassis?

Press the front power button; the 120 mm fan should start immediately. Insert each drive into a trayless bay — the red handle locks it in place and the SATA/SAS backplane will present the drive to the mini-ITX motherboard for detection in BIOS or the operating system.

What comes in the box with the S-35-DE5RD and what must I supply myself?

The chassis includes the 4 mm aluminium front panel, five trayless hot-swap bays with red handles, one internal 2.5" bay, one expansion slot, two front USB 2.0 ports and a single 120 mm fan. You must provide a mini-ITX motherboard, a Flex form-factor power supply, drives and any required SATA or SAS cables.

Which drive-bay configuration should I choose if I need maximum 3.5" hot-swap capacity in this tower?

This model is offered with exactly five 3.5" hot-swap bays plus one internal 2.5" bay; there are no alternative bay counts for the S-35-DE5RD, so this is the only configuration to select.
