OCP 3.0 network card with dual QSFP28 ports

LR-LINK

LR-LINK LRES3026PF-OCP 100Gbps 2*QSFP28 OCP 3.0 network card

SKU CH-24MQ-NBM1F

Dual QSFP28 OCP 3.0 NIC delivers 100Gbps connectivity via Intel E810-CAM2 for Windows Server, Linux and VMware environments

  • StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
  • Speed100Gbps
  • Connectors2*QSFP28
  • InterfaceOpen Computer Project (OCP) 3.0
  • Temperature0°C ~ 55°C
  • Humidity0 % ~ 90 % (Non-condensing)

Class 100G

De overstregede versioner findes, men er ikke på lager her.

Ports 2 x SFP

De overstregede versioner findes, men er ikke på lager her.

Option Intel E810-CAM2(2*QSFP28))

De overstregede versioner findes, men er ikke på lager her.

  • 100 Gbps throughput via dual QSFP28 ports
  • Intel E810-CAM2 controller prevents packet loss
  • OCP 3.0 form factor fits compatible servers
  • Broad OS support from Windows Server 2003 to VMware ESXi
  • Operates reliably from 0 °C to 55 °C

100 Gbps dual-port OCP 3.0 NIC

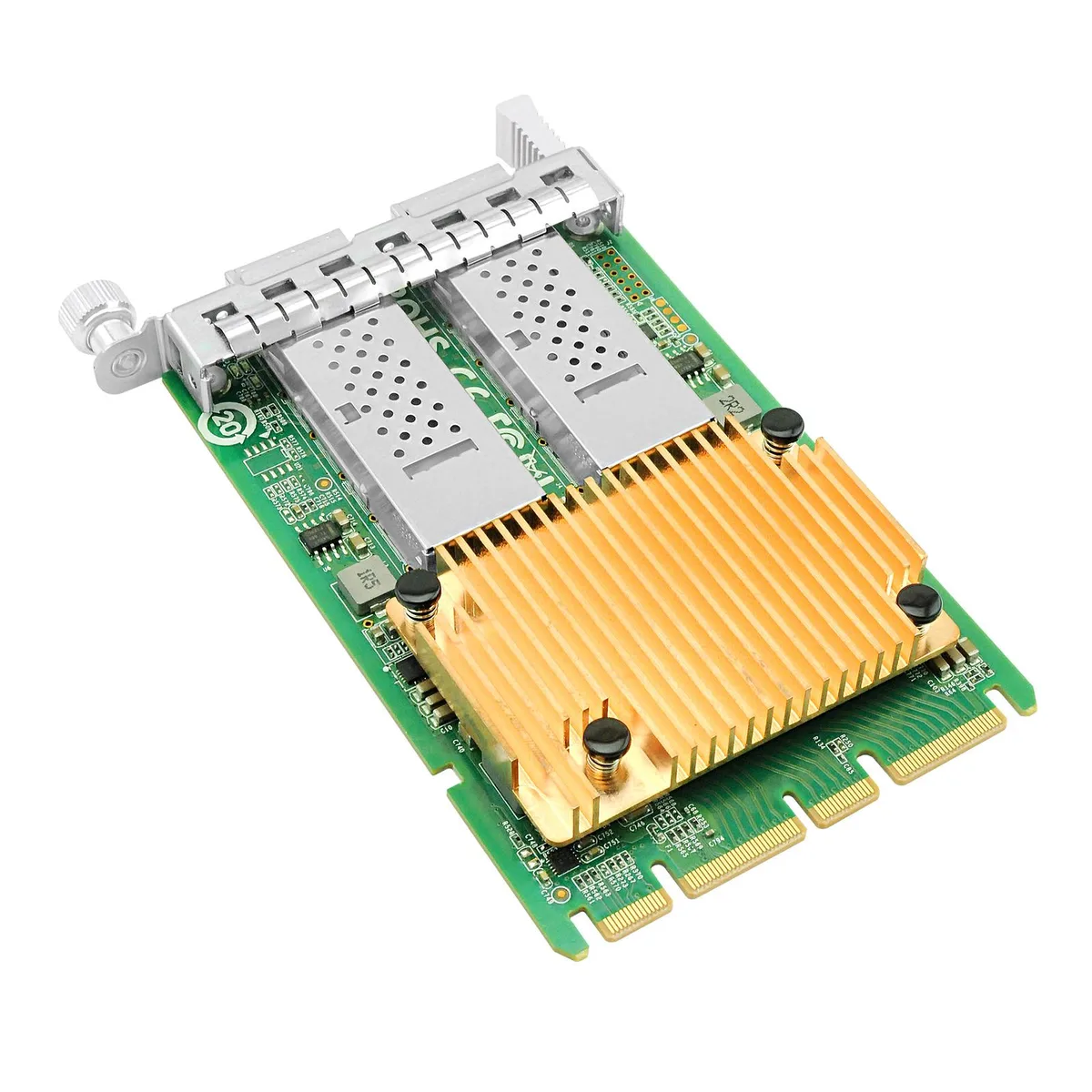

The LR-LINK LRES3026PF-OCP is a 100 Gbps network interface card built for OCP 3.0 slots. It uses an Intel E810-CAM2 controller and provides two QSFP28 connectors for high-speed Ethernet links in servers and workstations.

Suited for virtualised server workloads

This card targets administrators who need dual 100 Gbps ports for virtualization, cloud computing or big-data traffic. It is not for systems that lack an OCP 3.0 slot, for builds requiring RJ45 copper ports, or for deployments that only need 10 Gbps or 25 Gbps connectivity.

Dual 100 Gbps headroom

Each QSFP28 port delivers up to 100 Gbps, giving ample bandwidth for heavy east-west traffic and storage replication. The board operates from 0 °C to 55 °C with humidity up to 90 % non-condensing, so sustained line-rate loads stay within thermal limits.

Fordele

  • 100 Gbps throughput via dual QSFP28 ports
  • Intel E810-CAM2 controller prevents packet loss
  • OCP 3.0 form factor fits compatible servers
  • Broad OS support from Windows Server 2003 to VMware ESXi
  • Operates reliably from 0 °C to 55 °C

Specifikationer

BrandLr-link
ModelLRES3026PF-OCP
StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Speed100Gbps
Connectors2*QSFP28
InterfaceOpen Computer Project (OCP) 3.0
Temperature0°C ~ 55°C
Humidity0 % ~ 90 % (Non-condensing)
Class100G

Andre versioner af denne model

3 flere i samme serie

Samme familie, men med anden hukommelse, køler eller clockfrekvens — sammenlign, før du bestemmer dig.

Spørgsmål om denne vare

What slot does the LRES3026PF-OCP need on my motherboard?

It requires an Open Computer Project 3.0 slot to install and operate.

Can I plug my existing 25G SFP28 cables into the dual QSFP28 ports?

The ports accept 100G QSFP28 transceivers, DAC or AOC; 25G SFP28 modules are not compatible.

How do I confirm the Intel E810-CAM2 controller is running at 100Gbps after installation?

Check the link speed in your OS network settings or run ethtool to verify a 100Gbps negotiated rate.
