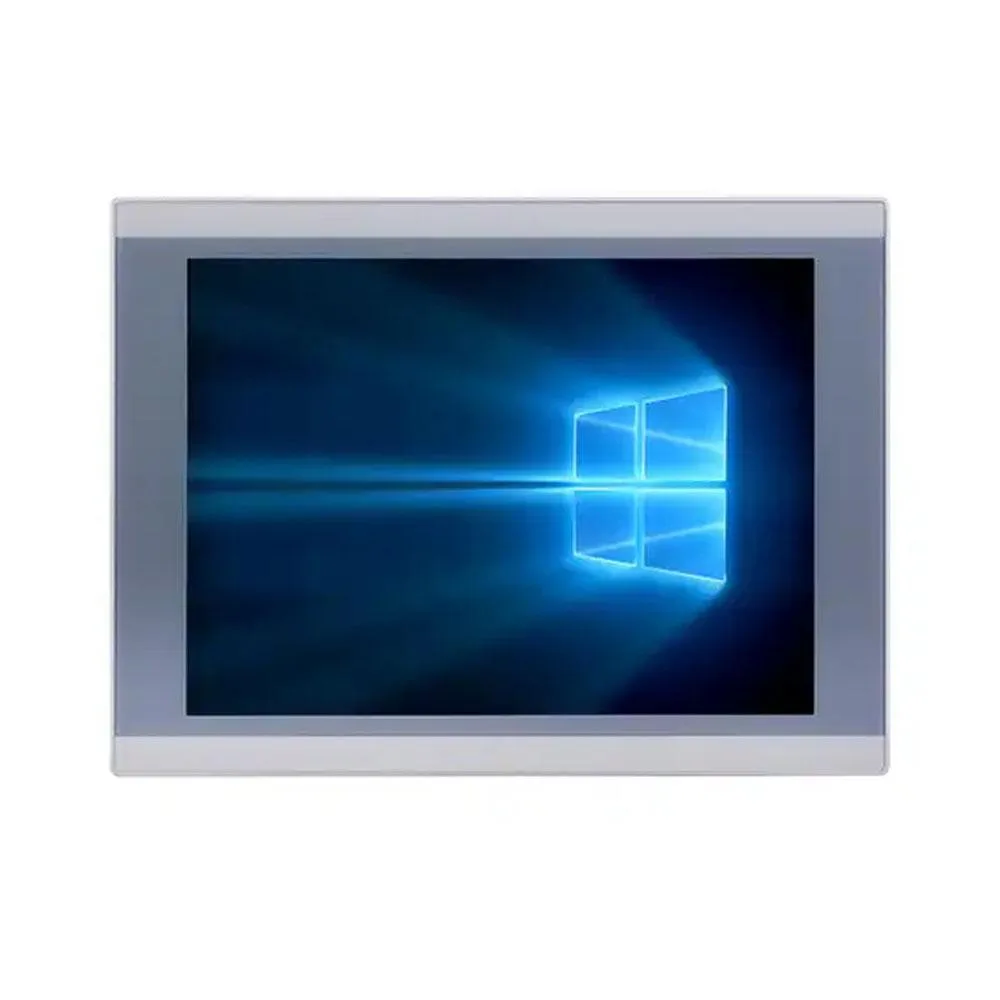

Silver 12.1 inch industrial all-in-one panel PC with IP65 front and projected capacitive touch screen

partaker

partaker A1 all-in-one PC 12.1" i7-8565U 16GB 256GB+1TB

SKU CH-XMY3-0J7QC

12.1-inch IP65-rated industrial all-in-one with 10-point capacitive touchscreen, Intel Core i7-8565U, 16GB DDR4, 256GB SSD and 1TB HDD

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 8th Gen
  • CPU NameIntel Core i7-8565U
  • GPU/VGA TypeIntel UHD Graphics

CPU Type Intel Core i7 8th Gen

CPU Name Intel Core i7-8565U

GPU Intel UHD Graphics

Memory 16GB DDR4

SSD 256GB

HDD 1TB

De overstregede versioner findes, men er ikke på lager her.

  • IP65 front panel resists dust and water ingress
  • 10-point capacitive touchscreen enables precise multi-touch control
  • Fanless aluminium alloy chassis runs silently 24/7
  • Intel Core i7-8565U with 16 GB DDR4 handles demanding industrial workloads
  • 256 GB SSD plus 1 TB HDD combines fast boot with high-capacity storage

Industrial 12.1" Touch Panel PC

The Partaker A1 is a fanless all-in-one panel computer built around an Intel Core i7-8565U processor with 16GB of DDR4 memory. It ships with Windows 11 Pro and combines a 256GB SSD with a 1TB hard drive for mixed workloads. The IP65-rated front panel and 10-point projected capacitive touchscreen suit factory floors, kiosks and embedded control cabinets.

Build Integration and Mounting

The unit runs on 12V DC power and measures 306.8 x 235.12 x 54.5mm with a 301 x 229mm cut-out for embedded installation. Two SODIMM slots support up to 64GB of DDR4-2400, while storage expansion uses one mSATA, one M.2 2280 NVME or SATA, and one 2.5" SATA bay. I/O includes HDMI, VGA, two USB 3.0, two USB 2.0, dual LAN, audio, two COM ports and a Mini PCIe slot with SIM holder for wireless modules.

Upgrade Path and Fit

This system replaces older fan-cooled industrial PCs where silence, dust resistance and 7×24 operation are required. The jump is worth it when an application needs a compact 12.1" display with 1024 x 768 resolution, 350 cd/m² brightness and wide 80° viewing angles in a sealed aluminium chassis. It is not for buyers who need a larger screen diagonal, higher native resolution, discrete graphics or PCIe x16 expansion slots.

Fordele

  • IP65 front panel resists dust and water ingress
  • 10-point capacitive touchscreen enables precise multi-touch control
  • Fanless aluminium alloy chassis runs silently 24/7
  • Intel Core i7-8565U with 16 GB DDR4 handles demanding industrial workloads
  • 256 GB SSD plus 1 TB HDD combines fast boot with high-capacity storage

Specifikationer

ModelA1-PA-121TPC-CE6B(I78)-16G256G1TB
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 8th Gen
CPU NameIntel Core i7-8565U
GPU/VGA TypeIntel UHD Graphics
Memory Capacity16GB DDR4
Memory Slots (Available/Total)2 total
Maximum Memory Supported64 GB
SSD256GB
HDD1TB
Screen Size12.1"
TouchscreenYes

Andre versioner af denne model

5 flere i samme serie

Samme familie, men med anden hukommelse, køler eller clockfrekvens — sammenlign, før du bestemmer dig.

Spørgsmål om denne vare

How long will the 350 cd/m² backlight last in a 24/7 industrial shift?

The backlight is rated for a minimum of 30,000 hours, which covers roughly three and a half years of continuous operation at the specified brightness.

Does the fanless aluminium chassis stay within the 0–50 °C operating window during non-stop workloads?

Yes, the passive aluminium-alloy cooling is designed for stable 7×24-hour operation within the stated 0–50 °C range when an SSD is installed.

Which mounting hardware is included so the panel can be embedded in a 301 × 229 mm cut-out?

The package supplies embedded buckle kits that secure the unit into the 301 × 229 mm opening without extra brackets.
