Silver 21.5 inch all-in-one panel PC with flat IP65 touchscreen and fanless aluminium chassis

partaker

Partaker A16-PA-215TPC-CE6A(I56) all-in-one PC 21.5" IP65 4GB 128GB

SKU CH-C0A6-W82YX

A 21.5 inch IP65-rated industrial panel PC with 10-point capacitive touch, Intel Core i5 6th Gen, 4 GB DDR3L and 128 GB SSD, fanless aluminium cooling and wide-temp 0 – 50 °C operation

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 6th Gen
  • CPU Name2.00GHz
  • GPU/VGA TypeIntel Iris Graphics 540

GPU Intel Iris Graphics 540

Memory 4GB DDR3

SSD

HDD None

  • None
  • 1TB

De overstregede versioner findes, men er ikke på lager her.

  • IP65 front-panel protection resists dust and water jets
  • 10-point projected capacitive touchscreen handles multi-touch input
  • Intel Core i5 6th Gen 2.00GHz CPU drives industrial workloads
  • Fanless aluminium alloy cooling runs silently 24/7
  • 4GB DDR3L RAM and 128GB mSATA SSD support embedded deployment

Industrial panel PC for harsh environments

The Partaker A16-PA-215TPC-CE6A(I56) is a 21.5 inch all-in-one computer with an IP65-rated front panel. It runs on an Intel Core i5 6th Gen processor at 2.00GHz with 4GB DDR3L memory and a 128GB mSATA SSD. The 10-point projected capacitive touchscreen supports 1920 x 1080 resolution and 250cd/m2 brightness. It is built for 7 x 24 hour operation in industrial settings.

Fanless design simplifies mounting and maintenance

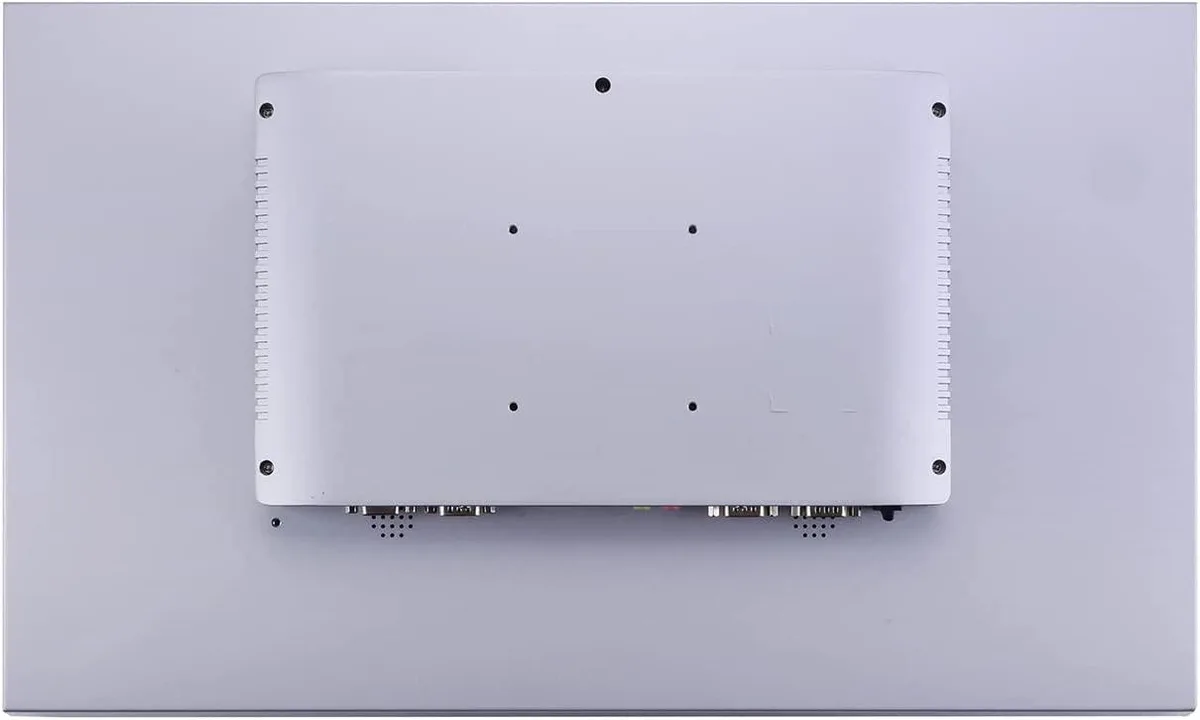

The aluminium alloy chassis uses passive cooling, so there are no fans to fail or filters to clean. Installation uses the included embedded buckle kits for panel-mount cut-outs of 522 x 315mm, or VESA mounts for wall, desktop or cantilever setups. A single 12V DC input accepts 100-240V AC via the supplied adapter. The watchdog timer (255 levels) and auto power-on after failure aid remote reliability.

128GB mSATA SSD is the primary storage constraint

Only one mSATA slot and one 2.5 inch SATA bay are available for drives. The installed 128GB mSATA SSD holds the Windows 10 Pro OS and application data. Buyers needing larger local databases or media libraries must add a 2.5 inch SATA SSD or HDD. The single SODIMM slot supports up to 8GB DDR3L 1333/1600 total, so memory upgrades are limited to one 4GB or 8GB module.

Fordele

  • IP65 front-panel protection resists dust and water jets
  • 10-point projected capacitive touchscreen handles multi-touch input
  • Intel Core i5 6th Gen 2.00GHz CPU drives industrial workloads
  • Fanless aluminium alloy cooling runs silently 24/7
  • 4GB DDR3L RAM and 128GB mSATA SSD support embedded deployment

Specifikationer

ModelA16-PA-215TPC-CE6A(I56)-4G128G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 6th Gen
CPU Name2.00GHz
GPU/VGA TypeIntel Iris Graphics 540
Memory Capacity4GB DDR3
HDDNo
Screen Size21.5"
TouchscreenYes

Andre versioner af denne model

5 flere i samme serie

Samme familie, men med anden hukommelse, køler eller clockfrekvens — sammenlign, før du bestemmer dig.

Spørgsmål om denne vare

How do I verify the 10-point projected capacitive touch screen is responding correctly after setup?

Open the Windows 10 Pro calibration tool and test all ten simultaneous touch points; the IP65 front panel should register each contact across the 1920 x 1080 resolution without dead zones.

Which items from the packing list come in the box and what must be sourced separately for a typical embedded installation?

The box includes the Panel PC, 12 V power supply, power cord, embedded buckle kits and warranty card; any Mini PCIe WiFi or 4G module with SIM, additional DDR3L SODIMM up to 8 GB, or a 2.5" SATA drive must be purchased separately.

Should I choose the 4 GB DDR3L / 128 GB mSATA SSD configuration or plan to expand memory and storage later?

The unit ships with 4 GB DDR3L and a 128 GB mSATA SSD; one SODIMM slot supports up to 8 GB total and a 2.5" SATA bay is available for a second drive, so select the base model if current specs suffice or add modules if higher capacity is needed.
