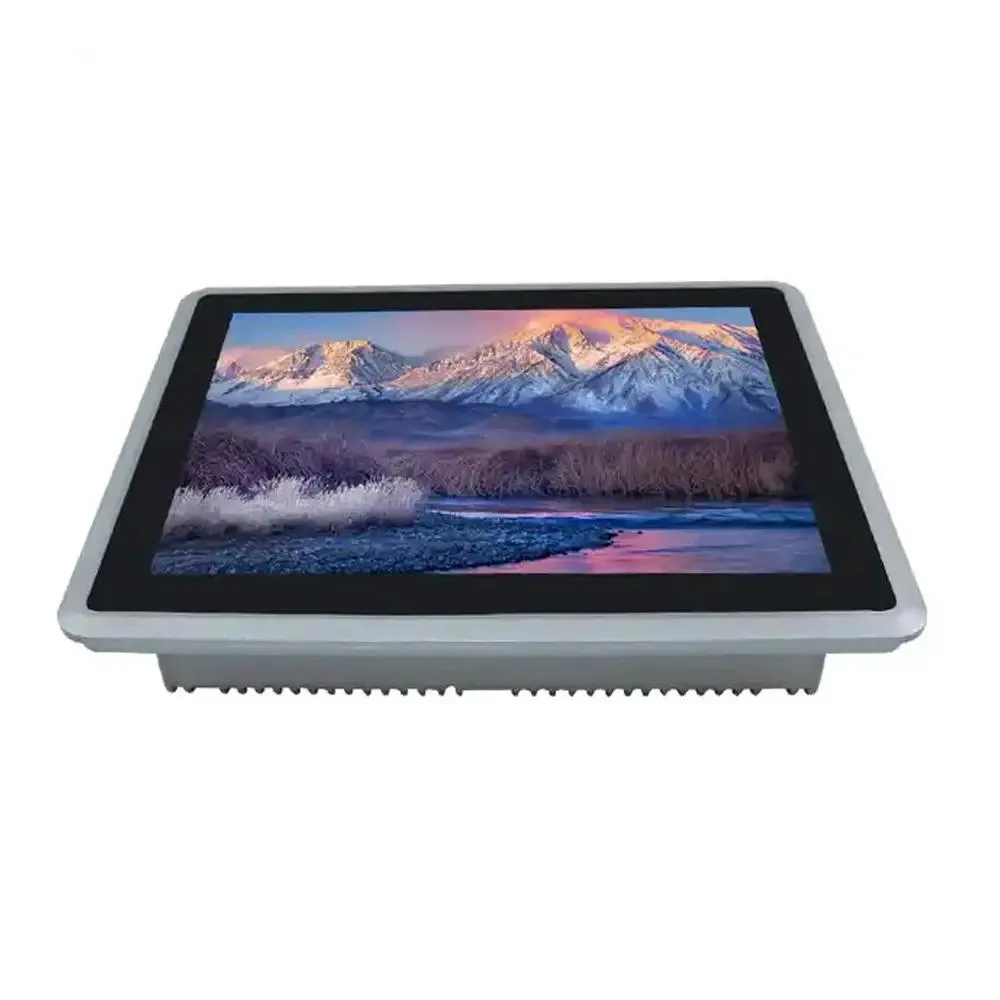

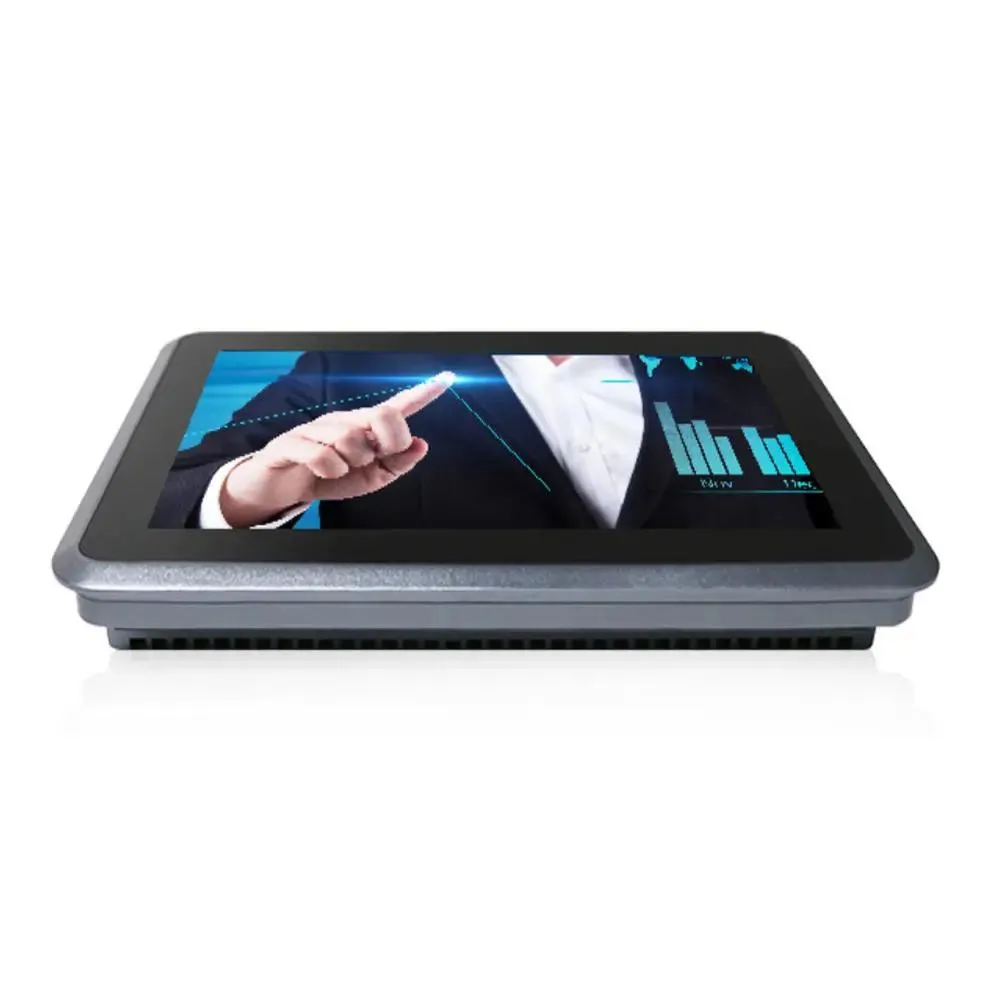

Compact 12.1 inch industrial all-in-one panel PC with flat IP65 front touchscreen aluminium fanless chassis

partaker

partaker A19 12.1" all-in-one PC i5-10310U 16GB DDR4 256GB SSD

SKU CH-VV9W-NEC61

A 12.1" IP65-rated industrial all-in-one with a 10th-generation Core i5, 16GB DDR4, 256GB SATA SSD and Windows 11 Pro for embedded or wall-mounted deployment

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 10th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity16GB DDR4
  • Maximum Memory Supported32 GB

CPU Type Intel Core i5 10th Gen

Memory Capacity 16GB DDR4

SSD 256GB

  • IP65 front panel resists dust and water jets
  • Fanless aluminium chassis runs silently in noise-sensitive areas
  • 1" multi-touch resistive screen works with gloves or stylus
  • Wide 9–36 V DC input suits industrial power systems
  • Dual Intel Gigabit LAN ports provide redundant network links

Industrial all-in-one with IP65 front panel

The Partaker A19 is a 12.1 inch fanless panel PC built around an Intel Core i5-10310U processor with 16GB DDR4 memory and a 256GB SATA SSD. It ships with Windows 11 Pro and features a 1024x768 resistive multi-touch screen rated IP65 on the front. The aluminium chassis supports continuous operation in temperatures from 0 to 50°C.

Connectivity limited to SATA storage and legacy I/O

Storage expansion uses M.2 2280 SATA and 2.5 inch SATA bays only, with RAID 0/1 support. Networking provides two Intel 1000M LAN ports. Video output is a single HDMI port. Serial connectivity offers two COM ports configurable for RS232, RS422 or RS485. A Mini PCIe slot with a SIM socket allows adding Wi-Fi or 4G modules.

Verify mounting cut-out

Embedded installation requires a 298.5x237mm panel cut-out. The unit accepts 9-36V DC via a 2-pin Phoenix connector and also includes a 12V5A AC adapter for 100-240V mains. Ensure your enclosure provides adequate airflow for the fanless design and that the 4:3 aspect ratio suits your application.

Fordele

  • IP65 front panel resists dust and water jets
  • Fanless aluminium chassis runs silently in noise-sensitive areas
  • 1" multi-touch resistive screen works with gloves or stylus
  • Wide 9–36 V DC input suits industrial power systems
  • Dual Intel Gigabit LAN ports provide redundant network links

Specifikationer

ModelA19-New-I5-10310U-16G256G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 10th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity16GB DDR4
Maximum Memory Supported32 GB
SSD256GB
HDDNo
Screen Size12.1"
TouchscreenYes

Andre versioner af denne model

5 flere i samme serie

Samme familie, men med anden hukommelse, køler eller clockfrekvens — sammenlign, før du bestemmer dig.

Spørgsmål om denne vare

Should I pick the 16GB DDR4 256GB SATA SSD version or add more memory and storage later?

The unit ships with 16GB DDR4-2666 in one SODIMM slot and a 256GB M.2 2280 SATA SSD; the board supports up to 32GB RAM and has a second 2.5" SATA bay plus RAID 0/1 support for expansion.

What does the Core i5-10310U 4.40 GHz boost clock deliver inside this fanless chassis?

The quad-core 10th Gen i5-10310U reaches 4.40 GHz boost while passively cooled by the aluminium alloy chassis, sustaining industrial workloads within the 0–50 °C commercial or -20–60 °C industrial temperature ranges.

Which interfaces are on the I/O panel and what speeds do they cap at?

The panel provides 2× Intel 1000M LAN, HDMI, 4× USB 3.0, 2× COM configurable for RS232/RS422/RS485, audio jacks, a 9–36 V Phoenix power input and a Mini PCIe slot with SIM for wireless add-ons.
