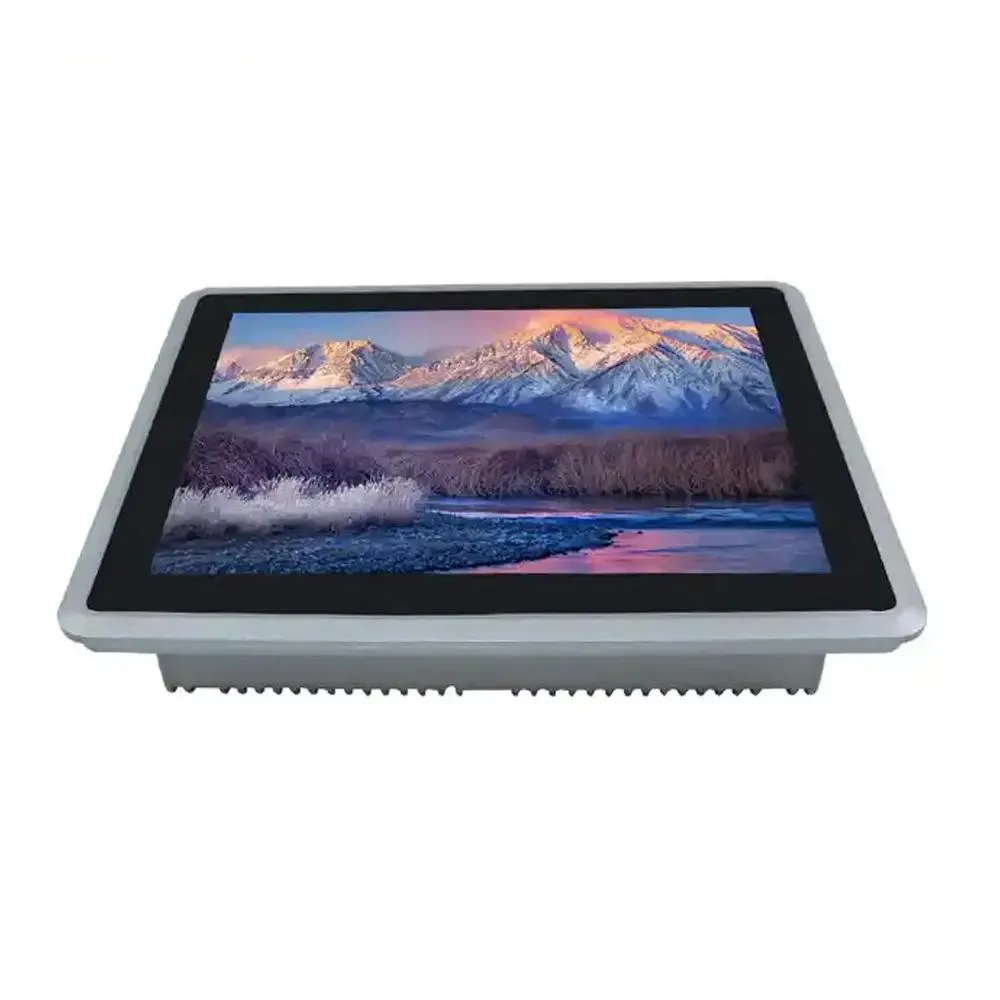

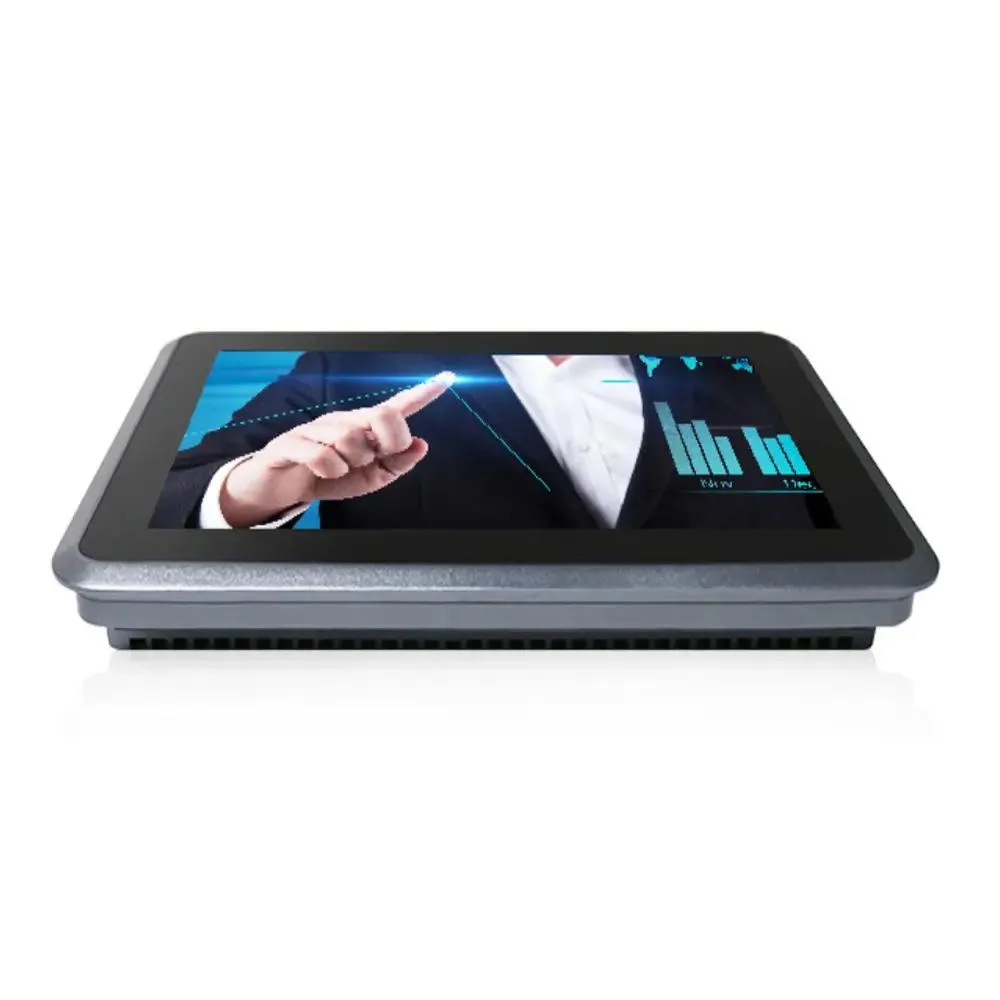

12.1 inch fanless industrial all-in-one PC with flat IP65 touchscreen, aluminium alloy body

partaker

partaker A19 12.1" industrial all-in-one PC J6413 8GB DDR4 256GB

SKU CH-569P-AHWEY

A 12.1″ IP65-rated all-in-one panel PC with a fanless aluminium chassis, multi-touch resistive screen, Windows 11 Pro, Celeron J6413, 8 GB DDR4 and 256 GB SATA SSD

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeCeleron
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity8GB DDR4
  • Maximum Memory Supported32 GB

CPU Type Celeron

Memory Capacity 8GB DDR4

SSD 256GB

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium chassis runs silently 24/7
  • 9–36 V wide-range input suits industrial power
  • Three Intel Gigabit LAN ports for redundant networking
  • Windows 11 Pro pre-installed for immediate deployment

12.1" Industrial All-in-One Panel PC

The Partaker A19 is a 12.1-inch all-in-one computer built for industrial environments. It integrates an Intel Celeron J6413 processor with 8GB DDR4 memory and a 256GB SSD. The IP65-rated front panel and resistive multi-touch screen suit factory automation, kiosk and machine-interface deployments that demand dust and water resistance.

Fanless Aluminium Cooling and Wide Voltage Input

A fanless aluminium chassis provides silent, maintenance-free operation with no moving parts to fail. The unit accepts 9-36V DC through a 2-pin Phoenix connector and includes a 12V5A AC adapter, simplifying power integration in cabinets or mobile equipment. Low power draw and passive thermal design support continuous 24/7 duty cycles.

Direct Replacement for Legacy Panel Mount Units

This panel PC replaces older 4:3 aspect-ratio industrial displays that lack modern I/O or Windows 11 Pro support. The upgrade is justified when applications require triple Intel LAN ports, dual COM ports with RS232/422/485 options, HDMI output and TPM 2.0 security in a compact 309.5x248x60mm footprint. It is not suited for workloads needing discrete graphics or high-core-count processing.

Fordele

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium chassis runs silently 24/7
  • 9–36 V wide-range input suits industrial power
  • Three Intel Gigabit LAN ports for redundant networking
  • Windows 11 Pro pre-installed for immediate deployment

Specifikationer

ModelA19-New-J6412-8G256G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeCeleron
GPU/VGA TypeIntel UHD Graphics
Memory Capacity8GB DDR4
Maximum Memory Supported32 GB
SSD256GB
HDDNo
Screen Size12.1"
TouchscreenYes

Andre versioner af denne model

5 flere i samme serie

Samme familie, men med anden hukommelse, køler eller clockfrekvens — sammenlign, før du bestemmer dig.

Spørgsmål om denne vare

How is the A19 mounted in an embedded cut-out and which step is often missed?

Cut a 298.5 x 237 mm opening, slide the unit in from the front, and secure the included mounting brackets; the step often missed is tightening all brackets evenly so the IP65 front seal sits flush.

Which components can be replaced later and what are the limits?

The single SODIMM DDR4 slot supports up to 32 GB; storage uses one M.2 2280 SATA SSD and one 2.5" SATA drive bay, both user-accessible after removing the rear cover.

What thermal limit appears first during continuous 7×24 operation?

The fanless aluminium chassis is rated for 0–50 °C commercial or –20–60 °C with an industrial SSD; sustained loads that push the internal temperature above the applicable limit will throttle the J6413 first.
