Silver 12.1 inch industrial all-in-one panel PC with resistive touchscreen

partaker

partaker A2-PA-121TPC-CE5B(I34) 12.1" all-in-one PC i3-4th 1.90GHz 8GB DDR3 512GB SSD

SKU CH-2RRX-MDE1F

A 12.1-inch industrial panel PC with IP65 front protection, Intel Core i3 4th Gen processor, 8GB DDR3 RAM and 512GB SSD

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i3 4th Gen
  • CPU Name1.90GHz
  • GPU/VGA TypeIntel HD Graphics 4400

GPU Intel HD Graphics 4400

Memory 8GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 512GB

HDD None

  • None
  • 1TB

De overstregede versioner findes, men er ikke på lager her.

  • IP65 front-panel protection for harsh environments
  • Fanless aluminium chassis runs silently from 0 to 50 °C
  • 5-wire resistive touch rated to 200 million touches
  • Intel Core i3 4th Gen with 8 GB DDR3L and 512 GB SSD

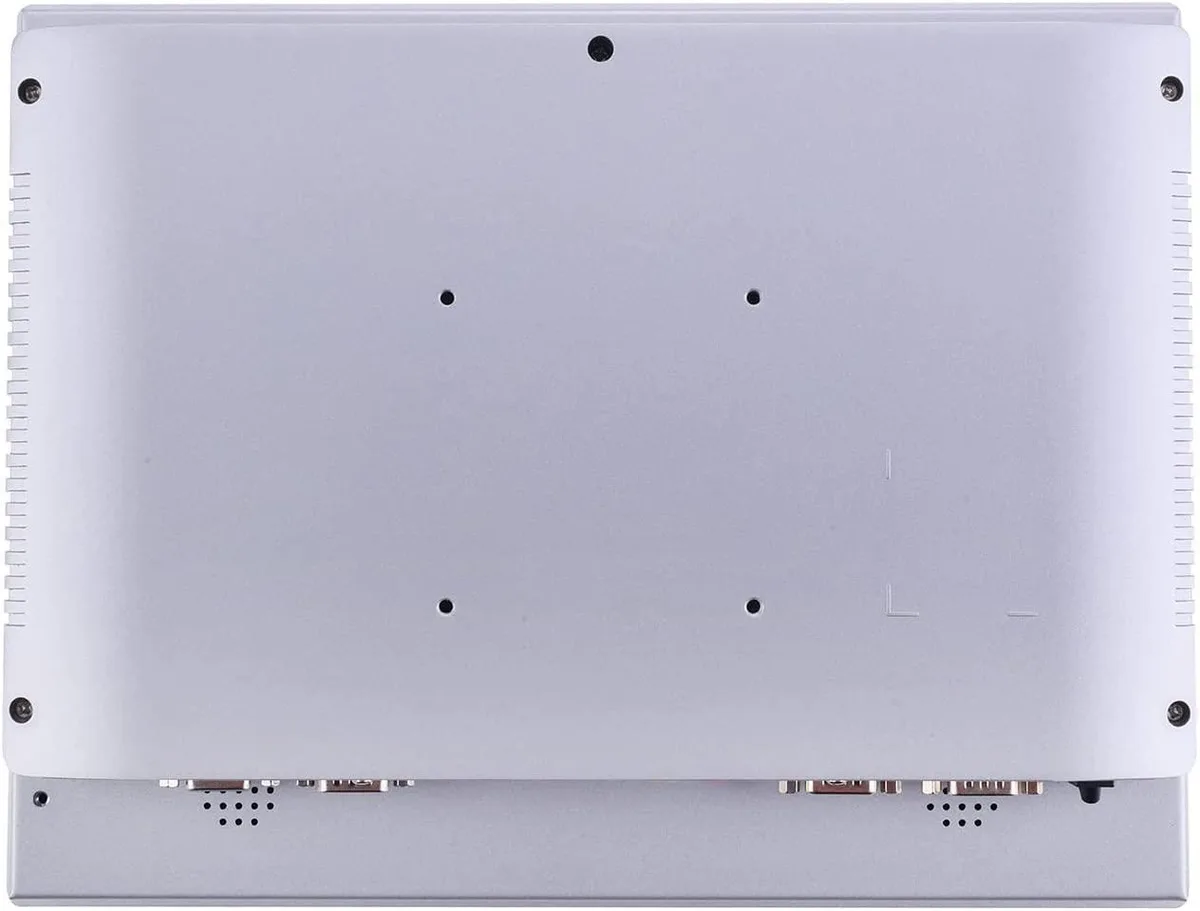

  • VESA 75 mount plus HDMI, VGA, dual LAN and four USB ports

Industrial 12.1-inch panel PC

The Partaker A2-PA-121TPC-CE5B(I34) is a compact all-in-one computer built for industrial environments. It integrates a 12.1-inch TFT LED display with a high-temperature five-wire resistive touchscreen protected to IP65 at the front. An Intel Core i3 4th Gen processor running at 1.90GHz with Intel HD Graphics 4400 drives the system. It ships with 8GB DDR3L memory and a 512GB SSD, running Windows 10 Pro 64-bit out of the box.

Replaces older embedded PCs

This unit upgrades legacy panel PCs that lack modern I/O or ruggedised front protection. The fanless aluminium chassis and IP65-rated front panel suit harsh factory floors where dust and moisture would damage conventional systems. The jump is worth it when an application needs VGA, HDMI, dual COM ports, dual USB 3.0 and dual USB 2.0 in a single sealed enclosure. It is not for buyers who require a larger display diagonal or a higher native resolution than 1024 x 768.

Sustained load behaviour

Passive cooling across the aluminium alloy housing keeps the CPU at operating temperatures from 0 to 50°C with the installed SSD. The five-wire resistive touchscreen is rated for 200 million touches and maintains 86±5% transmittance at 550 nm. A hardware watchdog timer with 255 levels provides automatic recovery if software hangs during long shifts. The DC 12V input accepts 100-240V AC via the supplied adapter and supports automatic power-on after a power failure.

Fordele

  • IP65 front-panel protection for harsh environments
  • Fanless aluminium chassis runs silently from 0 to 50 °C
  • 5-wire resistive touch rated to 200 million touches
  • Intel Core i3 4th Gen with 8 GB DDR3L and 512 GB SSD
  • VESA 75 mount plus HDMI, VGA, dual LAN and four USB ports

Specifikationer

ModelA2-PA-121TPC-CE5B(I34)-8G512G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeIntel Core i3 4th Gen
CPU Name1.90GHz
GPU/VGA TypeIntel HD Graphics 4400
Memory Capacity8GB DDR3
SSD512GB
HDDNo
Screen Size12.1"
TouchscreenYes

Andre versioner af denne model

5 flere i samme serie

Samme familie, men med anden hukommelse, køler eller clockfrekvens — sammenlign, før du bestemmer dig.

Spørgsmål om denne vare

What is the 301 mm by 229 mm opening hole size for?

The 301 mm by 229 mm opening hole is the cut-out required to embed the 12.1 inch panel PC into a cabinet or machine enclosure for a flush front fit.

How is the panel PC mounted using the embedded buckle kits, and what step is often missed?

The embedded buckle kits slide into the side grooves and clamp the unit against the panel; the step often missed is tightening all buckles evenly so the IP65 front seal compresses uniformly.

When will the resistive touch screen need replacement based on its rated durability?

The five-wire resistive touch screen is rated for 200 million touches, so replacement timing depends on actual usage intensity rather than a fixed interval.
