Gray 17 inch industrial all-in-one PC with flat capacitive touchscreen and fanless aluminum chassis

partaker

Partaker A29 17" Industrial IP65 All-in-One PC i5-5200U 8GB 256GB

SKU CH-V33V-JQ6PA

A 17-inch IP65-rated industrial all-in-one with a capacitive touchscreen rated for over 50 million touches, passively cooled for silent 24/7 operation from -20°C to 60°C

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 5th Gen
  • CPU NameIntel Core i5-5200U

A29 17" Capacitive I5 5200U 8GB RAM / 256GB SSD

  • IP65 front panel resists dust and water jets in harsh environments
  • Fanless aluminum cooling runs silent from -20°C to 60°C
  • Capacitive touch rated for 50 million touches ensures long HMI life
  • Dual Gigabit LAN plus four USB 3.0 ports connect industrial gear
  • Dual storage slots mSATA and 2.5 SATA allow flexible capacity

Industrial HMI Platform

The Partaker A29 is a 17 inch fanless all-in-one panel PC built for factory automation and process control. Its IP65-rated flat front panel and capacitive multi-touch screen withstand dust, water jets and wide temperature swings from minus 20 to plus 60 degrees Celsius. An Intel Core i5-5200U with 8 GB DDR3L and a 256 GB mSATA SSD runs Windows 11 Pro for reliable human-machine interface duties.

Connectivity and Expansion Impact

Dual Gigabit LAN ports, two COM ports supporting RS232 or RS485, four USB 3.0 ports and an HDMI output let the unit talk to PLCs, SCADA networks and local displays simultaneously. Two Mini PCIe slots with a SIM holder accept Wi-Fi, Bluetooth or cellular modules for remote sites. A second 2.5 inch SATA bay provides room for additional storage without opening the sealed chassis.

Installation and Common Issues

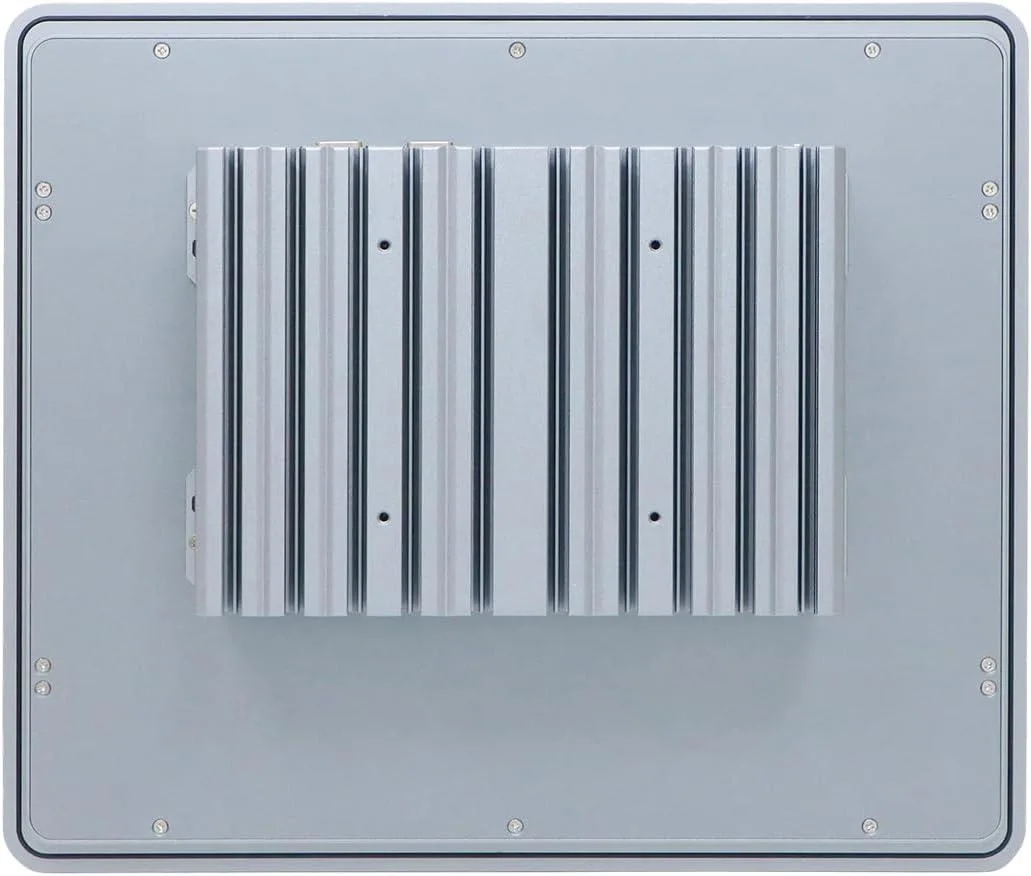

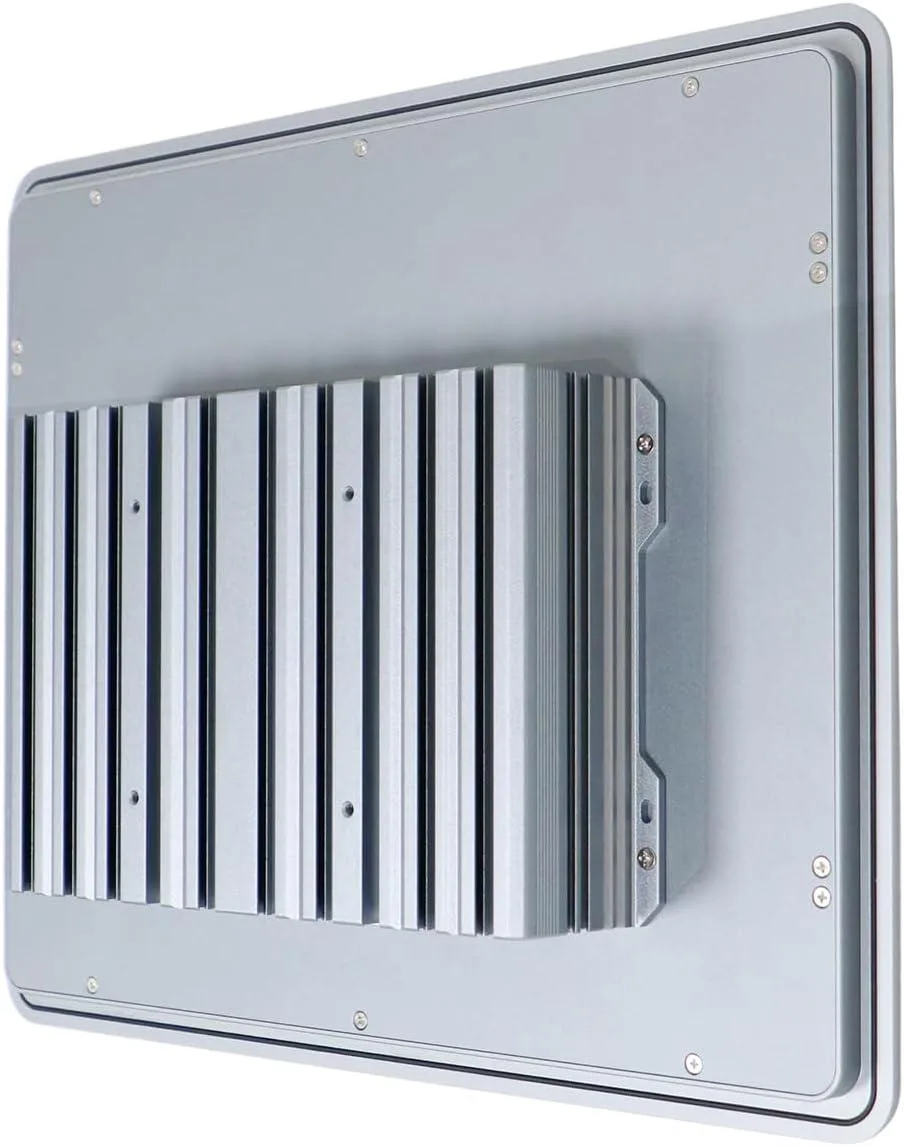

The 5.5 kg unit mounts via embedded clips, wall brackets, desktop stands or cantilever arms using the 389 by 321 mm cut-out template. Passive aluminum cooling eliminates fan failure but demands adequate airflow across the fins; restricted cabinets can push the CPU past its thermal limit. The 12 V DC input accepts 100 to 240 V AC via the supplied adapter, while a 9 to 36 V wide-range option requires a separate order.

Fordele

  • IP65 front panel resists dust and water jets in harsh environments
  • Fanless aluminum cooling runs silent from -20°C to 60°C
  • Capacitive touch rated for 50 million touches ensures long HMI life
  • Dual Gigabit LAN plus four USB 3.0 ports connect industrial gear
  • Dual storage slots mSATA and 2.5 SATA allow flexible capacity

Specifikationer

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 5th Gen
CPU NameIntel Core i5-5200U
Screen Size17"
Screen TypeMulti-Touch Screen

Andre versioner af denne model

5 flere i samme serie

Samme familie, men med anden hukommelse, køler eller clockfrekvens — sammenlign, før du bestemmer dig.

Spørgsmål om denne vare

How long will the capacitive touch screen last before it needs replacement?

The industrial capacitive touch screen is rated for over 50 million touches, which provides a very long service life in typical HMI applications.

What limits continuous operation when the system runs at full load?

The fanless aluminium cooling relies on passive heat dissipation; sustained heavy workloads in high ambient temperatures may trigger thermal throttling to protect the CPU.

Does the unit produce any fan noise or significant heat during 24/7 operation?

The passive aluminium chassis runs silently with no moving parts; surface temperatures stay within the rated -20 °C to 60 °C range when adequate airflow is present.
