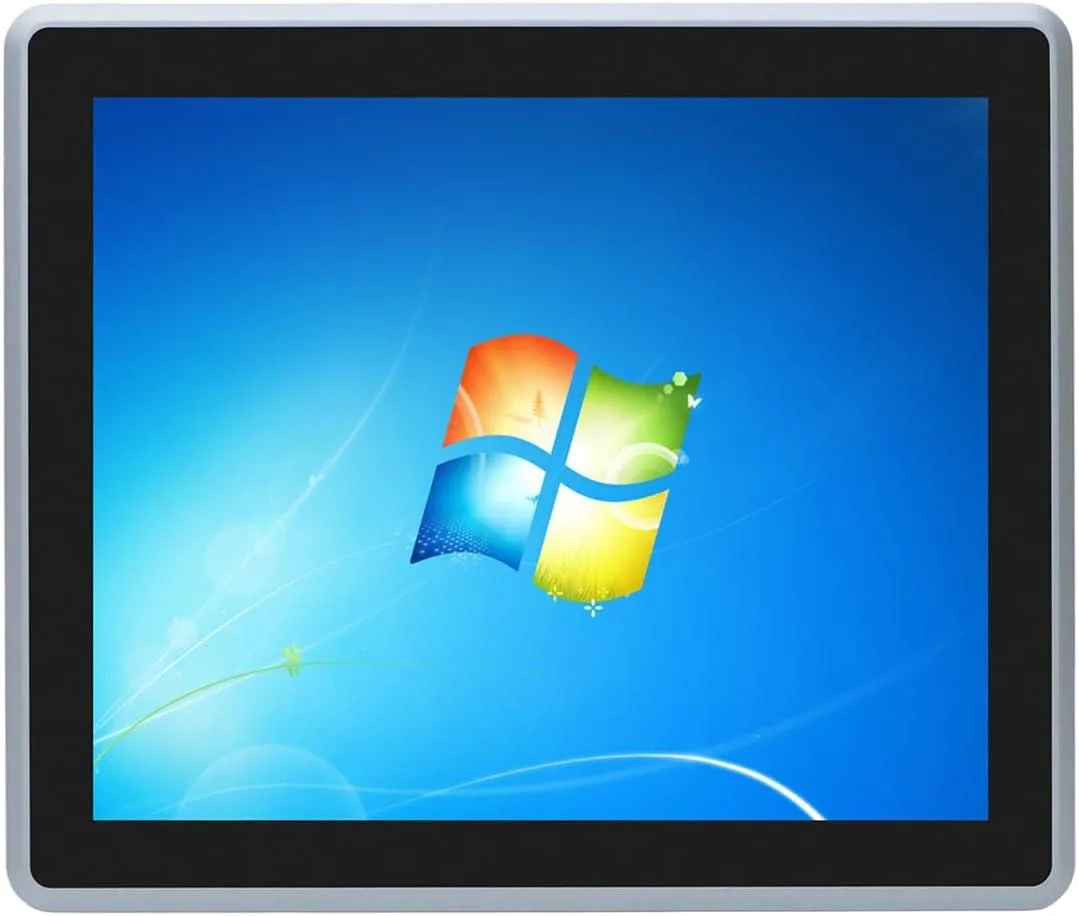

Gray 17-inch industrial all-in-one with flat resistive touch front panel

partaker

Partaker A29 17" IP65 Resistive Touch All-in-One PC i5-6200U 16GB 512GB

SKU CH-P0QB-3RDY2

A 17-inch IP65 resistive-touch all-in-one PC with a Core i5-6200U, 16 GB DDR4 and 512 GB SATA storage for industrial HMI use

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 6th Gen
  • CPU NameIntel Core i5-6200U

A29 17" Resistive I5 6200U 16GB RAM / 512GB SSD

  • IP65 front panel resists dust and water jets in harsh environments

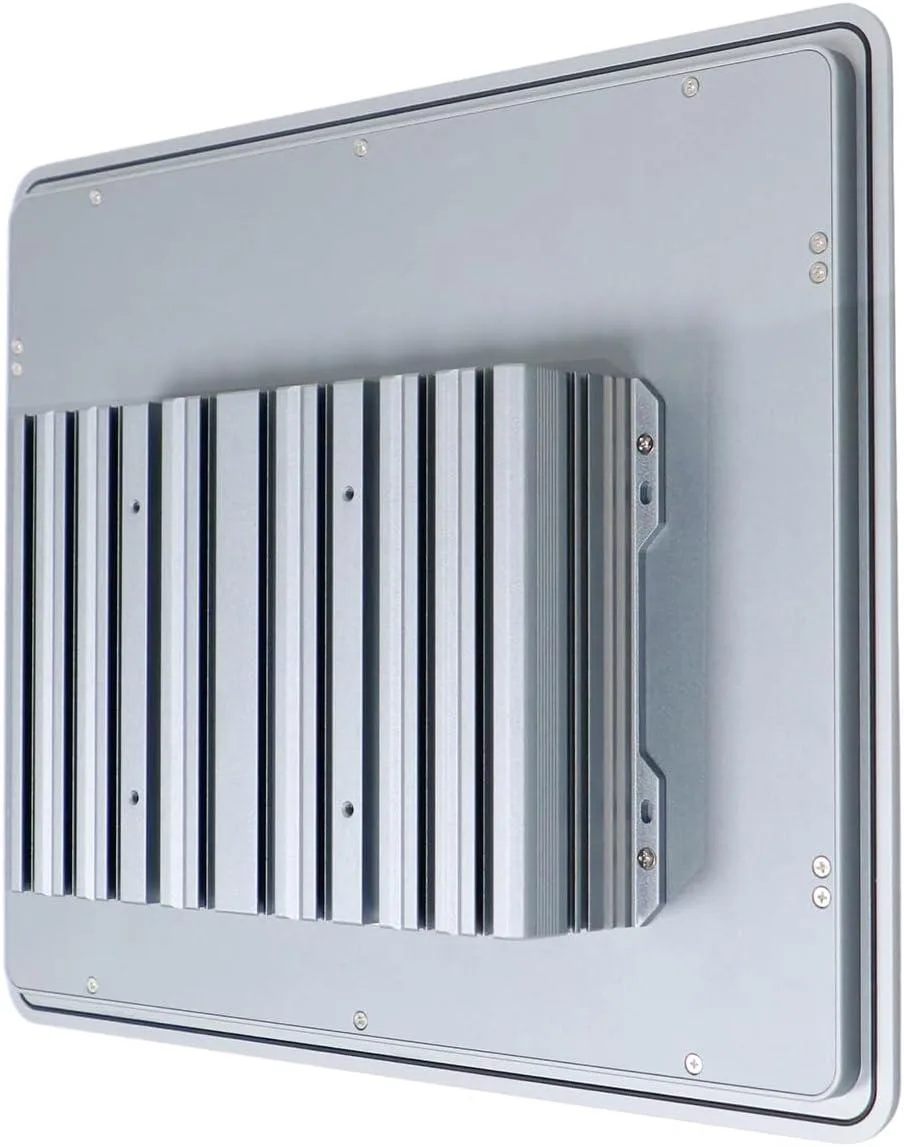

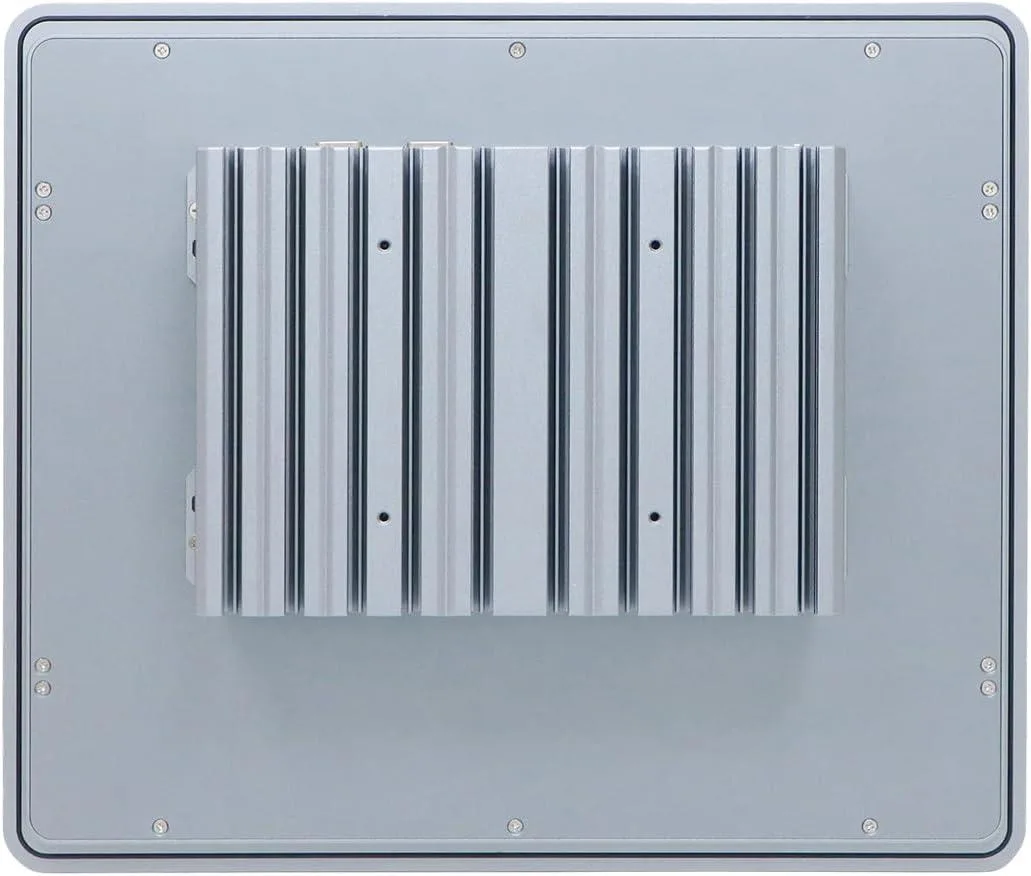

  • Fanless aluminium cooling runs silently from -20 °C to +60 °C
  • Resistive touch rated for over 50 million touches ensures long HMI life
  • Dual Gigabit LAN plus four USB 3.0 ports connect industrial peripherals
  • Dual storage bays with mSATA and 2.5" SATA allow flexible capacity

Industrial All-in-One with IP65 Front

The Partaker A29 is a 17-inch fanless panel PC built around an Intel Core i5-6200U processor with 16GB of DDR4 memory and a 512GB SATA SSD. Its flat front panel carries an IP65 rating, resisting water jets and dust ingress while the resistive touchscreen is rated for more than 50 million touches. Passive aluminum cooling allows silent operation across a -20°C to +60°C range, making it suitable for continuous automation deployments.

Automation Engineers and HMI Integrators

This unit suits engineers who need a compact, sealed HMI with dual COM ports for RS232 or RS485 fieldbus wiring, dual Gigabit LAN for network redundancy, and flexible mounting options including embedded, wall or desktop installation. It is not for buyers who require a projected-capacitive multi-touch surface, a higher native resolution than 1280×1024, or an internal expansion slot larger than Mini PCIe.

Resistive Touchscreen Rated Beyond 50 Million

The single specification that decides fit is the resistive touch technology rated for over 50 million actuations, which determines whether the panel survives the intended operator interaction frequency and environmental contaminants. If the application demands projected-capacitive gestures or glove-independent optical clarity, a different touch technology is required.

Fordele

  • IP65 front panel resists dust and water jets in harsh environments
  • Fanless aluminium cooling runs silently from -20 °C to +60 °C
  • Resistive touch rated for over 50 million touches ensures long HMI life
  • Dual Gigabit LAN plus four USB 3.0 ports connect industrial peripherals
  • Dual storage bays with mSATA and 2.5" SATA allow flexible capacity

Specifikationer

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 6th Gen
CPU NameIntel Core i5-6200U
Screen Size17"
Screen TypeMulti-Touch Screen

Andre versioner af denne model

5 flere i samme serie

Samme familie, men med anden hukommelse, køler eller clockfrekvens — sammenlign, før du bestemmer dig.

Spørgsmål om denne vare

What power source does the Partaker A29 require to operate?

The unit runs on a standard 12 V DC input supplied by the included 100-240 V AC adapter; an optional 9-36 V wide-voltage input can be specified for vehicle or industrial supplies.

Can I keep using my existing RS-232 or RS-485 devices with the two COM ports?

Yes, both COM ports support RS232 and RS485 signalling, so legacy serial equipment connects directly without extra converters.

How can I verify the resistive touchscreen is functioning correctly after installation?

The touch controller is rated for over 50 million touches; consistent single-point response across the 1280×1024 panel confirms normal operation.
