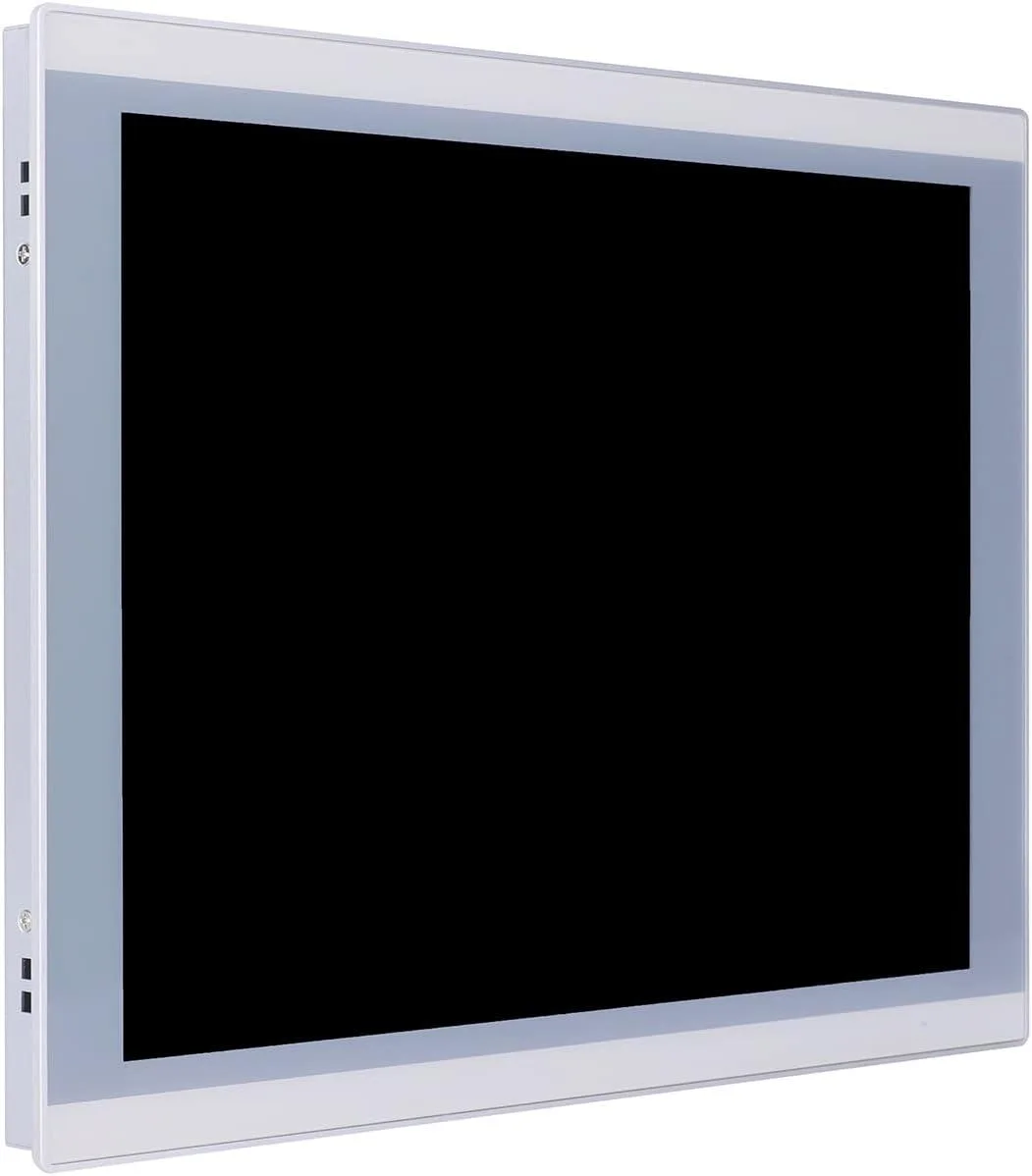

15 inch industrial panel PC with IP65 front, aluminium fanless chassis, resistive touchscreen

partaker

Partaker A5 15" IP65 i7-1165G7 16GB DDR4 256GB SSD 1TB HDD

SKU CH-WYDJ-2CRKR

15-inch IP65 industrial all-in-one with i7-1165G7, 16GB DDR4, 256GB SSD plus 1TB HDD and high-temperature resistive touchscreen

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 11th Gen
  • GPU/VGA TypeIntel Iris Xe Graphics
  • Memory Capacity16GB DDR4
  • SSD256GB

Memory Capacity 16GB DDR4

SSD 256GB

HDD 1TB

De overstregede versioner findes, men er ikke på lager her.

  • IP65 front panel withstands dust and water jets in harsh environments
  • Intel Core i7-1165G7 delivers up to 4.70 GHz for demanding industrial workloads
  • 16 GB DDR4-3200 memory expandable to 64 GB handles multitasking smoothly
  • Dual storage with 256 GB M.2 SSD and 1 TB HDD provides speed and capacity
  • Fanless aluminium alloy cooling runs silently with zero moving parts to fail

Industrial 15-inch Panel PC

The Partaker A5 is a 15-inch all-in-one panel PC with an IP65-rated front panel and a high-temperature 5-wire resistive touchscreen. It runs on an Intel Core i7-1165G7 processor with Intel Iris Xe graphics, 16GB of DDR4 memory, a 256GB SSD and a 1TB HDD. Windows 11 Pro comes pre-installed for immediate deployment in industrial environments.

Verify Power and Mounting Requirements

Confirm your installation can supply 12V DC power via the included 100-240V AC adapter. The unit requires a panel cut-out of 348 by 272mm for embedded mounting, with overall dimensions of 354.3 by 278.3 by 54mm and a weight of 3.6kg. Check that your peripheral devices match the available I/O: HDMI, VGA, two USB 3.0, two USB 2.0, dual LAN, audio in/out and two COM ports.

Fanless Cooling and Operating Limits

An aluminium alloy fanless design provides completely silent operation with no moving parts to fail. The system is rated for continuous operation from 0 to 50°C when using the SSD, or 0 to 40°C when the HDD is active. Humidity tolerance spans 10 to 95 percent at 40°C non-condensing, and the backlight is rated for a minimum of 30,000 hours.

Fordele

  • IP65 front panel withstands dust and water jets in harsh environments
  • Intel Core i7-1165G7 delivers up to 4.70 GHz for demanding industrial workloads
  • 16 GB DDR4-3200 memory expandable to 64 GB handles multitasking smoothly
  • Dual storage with 256 GB M.2 SSD and 1 TB HDD provides speed and capacity
  • Fanless aluminium alloy cooling runs silently with zero moving parts to fail

Specifikationer

ModelA5-PA-150TPC-CE5A(I7B)-16G256G1TB
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 11th Gen
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity16GB DDR4
SSD256GB
HDD1TB
Screen Size15"
TouchscreenYes

Andre versioner af denne model

5 flere i samme serie

Samme familie, men med anden hukommelse, køler eller clockfrekvens — sammenlign, før du bestemmer dig.

Spørgsmål om denne vare

Does the box include a power supply or do I need to buy one separately?

The packing list shows the Partaker A5 panel PC and a power supply, so no separate purchase is required.

Should I choose the 256 GB SSD plus 1 TB HDD version or upgrade the RAM instead?

The unit already ships with 16 GB DDR4 and both drives installed; RAM can be expanded to 64 GB via the two SODIMM slots if needed.

What does the IP65 rating mean for daily use on a factory floor?

The front panel is rated IP65, giving full dust protection and resistance to low-pressure water jets from any direction.
