Black aluminium fanless mini PC with mounting ears, compact rectangular shape

partaker

partaker Fanless Industrial Mini PC i7 8th Gen 16G 240G Windows 11

SKU CH-J8Z3-5QTW1

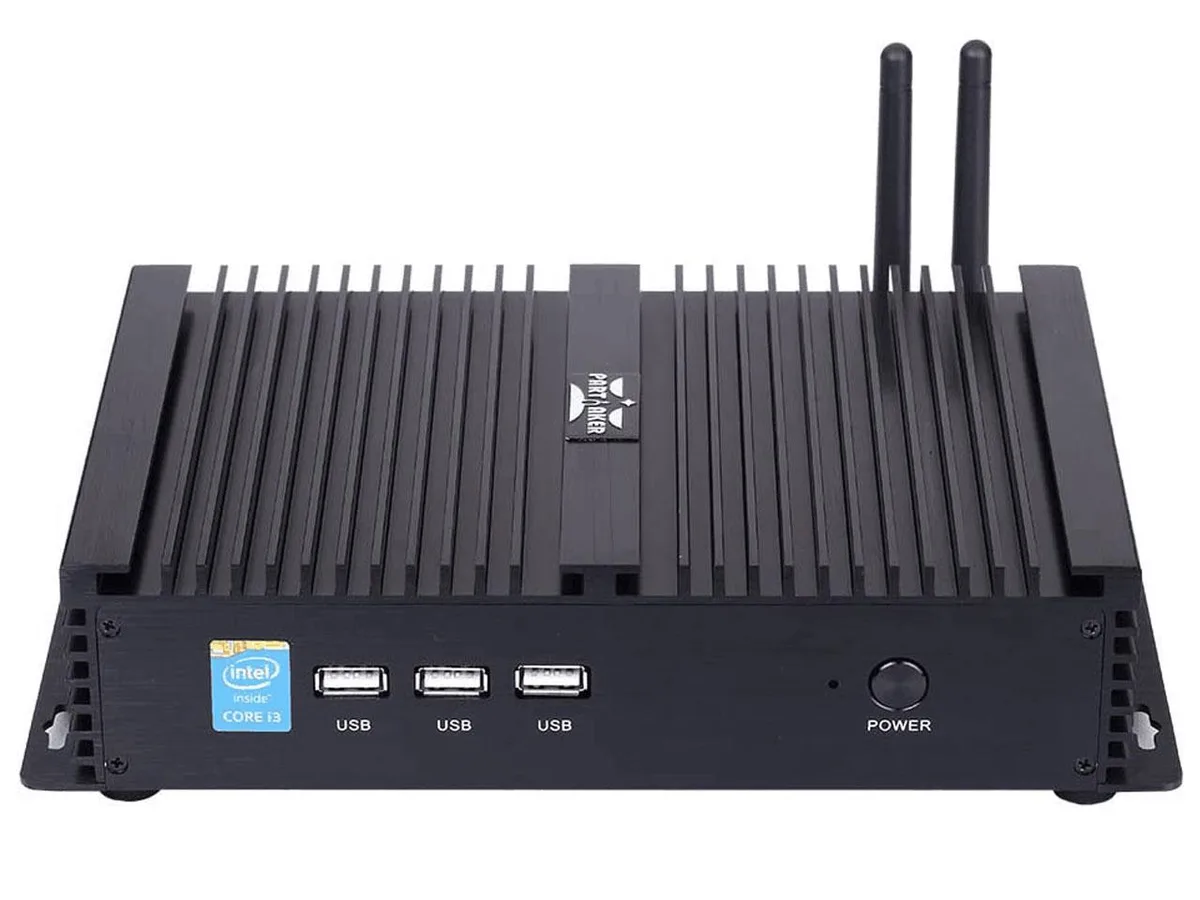

Fanless industrial mini PC with Intel Core i7 8th Gen, 16G RAM, 240G SSD, dual display, COM ports, and Windows 11 Pro

  • ColorBlack
  • CPU TypeIntel Core i7 8th Gen

CPU Type Intel Core i7-8565U

Group 16GB RAM / 256GB SSD

  • Fanless design runs silently for noise-sensitive sites
  • Intel Core i7 8th Gen quad-core handles industrial workloads
  • Windows 11 Pro 64-bit installed and ready to use
  • 16G DDR4 RAM and 240G SSD fitted out of the box
  • Dual-screen support via HDMI and VGA for flexible displays

Industrial Mini PC with 8th Gen i7

This fanless industrial mini PC ships with a quad-core Intel Core i7 8th generation processor, 16 GB of DDR4 memory and a 240 GB SATA SSD. It arrives with Windows 11 Pro 64-bit pre-installed for immediate deployment in automation, kiosk or edge-computing roles. The aluminium chassis measures 234 x 150 x 43 mm and weighs 2.5 kg.

Fanless installation with mounting ears

The unit includes mounting ears for DIN-rail or wall fixing and a 12 V 5 A external power supply that accepts 100–240 V AC input. Passive cooling eliminates moving parts, but airflow around the case must remain unobstructed to keep the CPU within its 0–70 °C operating range. Installers should verify that the DC jack polarity matches the supplied adapter before first power-on.

Legacy and modern I/O on one platform

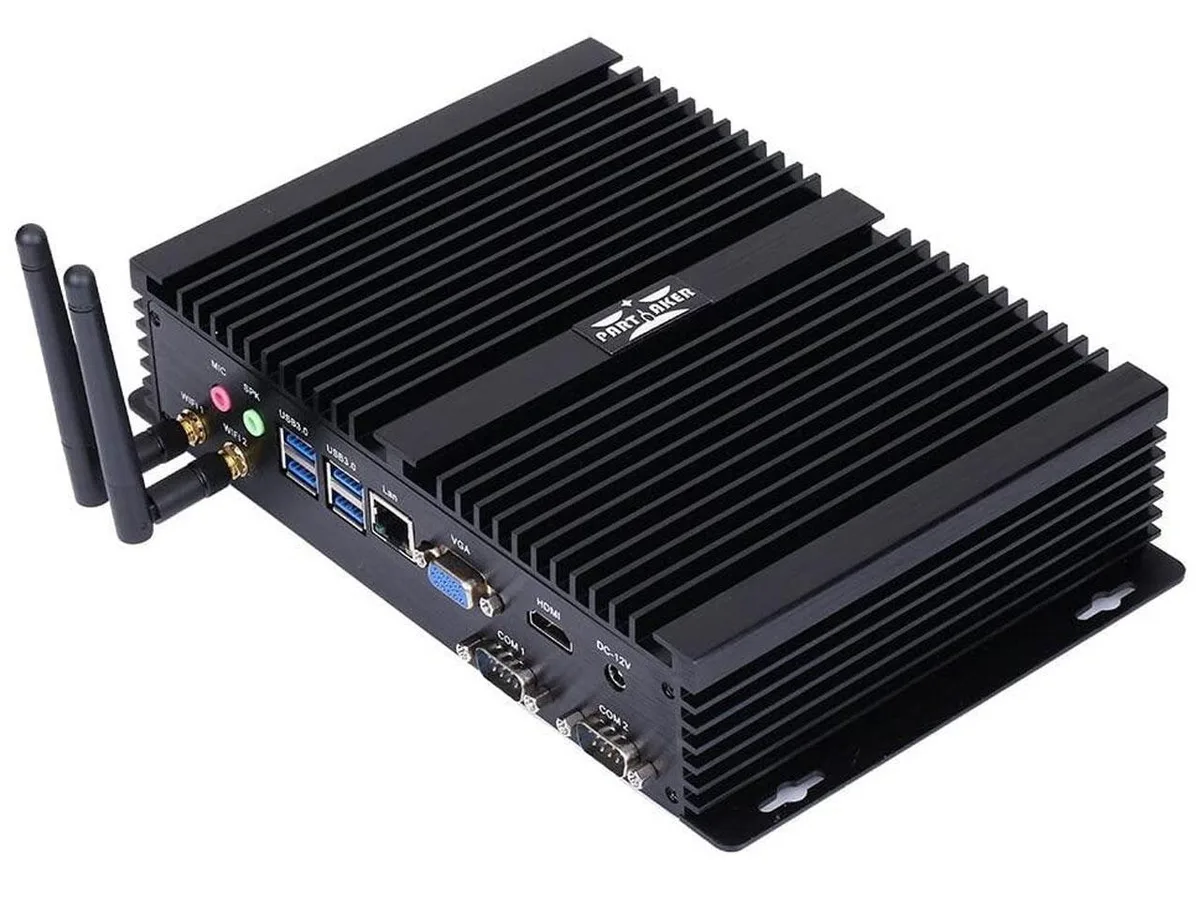

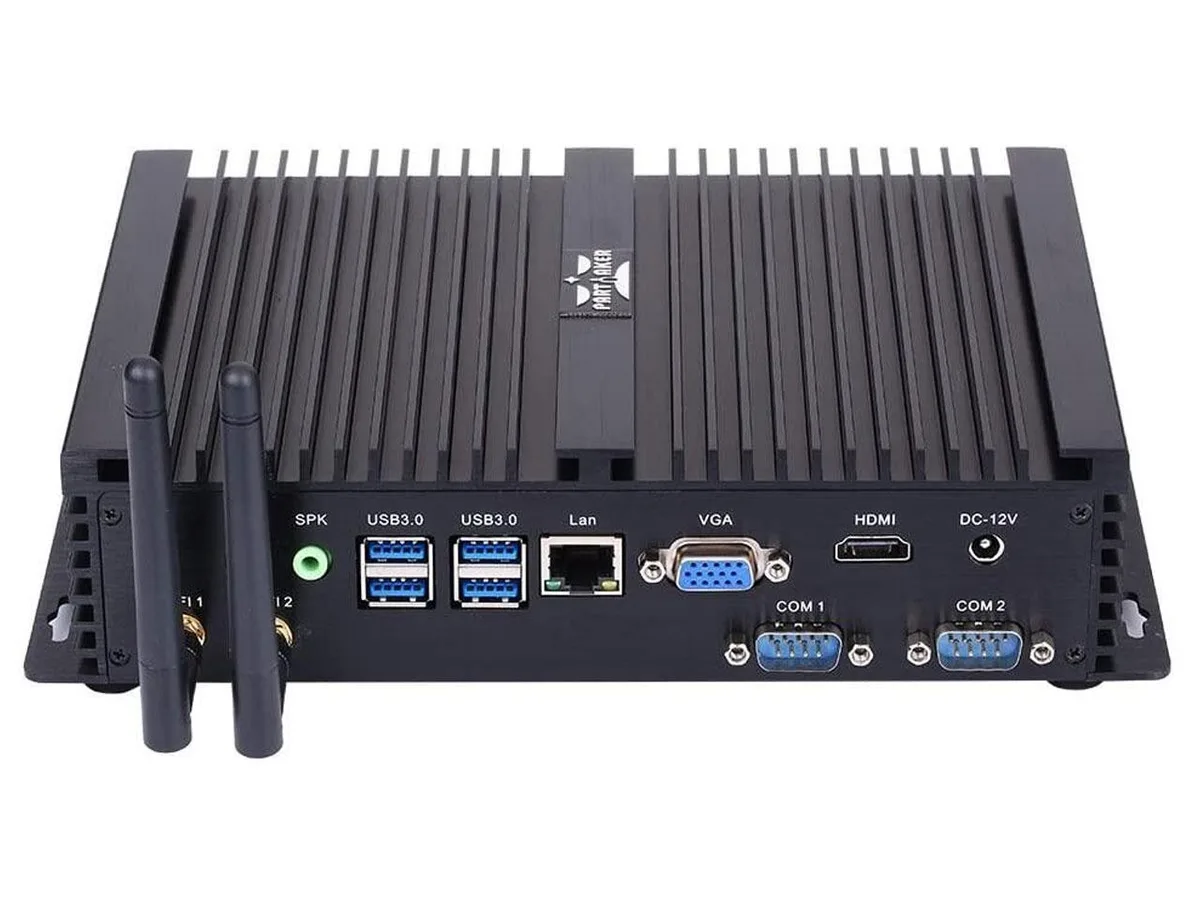

Dual video outputs via HDMI and VGA drive two independent displays at up to 4K resolution. Four USB 3.0 ports and three USB 2.0 ports handle peripherals, while two RS-232 COM ports support legacy industrial equipment. The single 1000 Mbit LAN port and 802.11 ac Wi-Fi provide network connectivity, but the system lacks a 2.5 Gbit or 10 Gbit Ethernet option for high-throughput data logging.

Fordele

  • Fanless design runs silently for noise-sensitive sites
  • Intel Core i7 8th Gen quad-core handles industrial workloads
  • Windows 11 Pro 64-bit installed and ready to use
  • 16G DDR4 RAM and 240G SSD fitted out of the box
  • Dual-screen support via HDMI and VGA for flexible displays

Specifikationer

ColorBlack
CPU TypeIntel Core i7 8th Gen

Andre versioner af denne model

5 flere i samme serie

Samme familie, men med anden hukommelse, køler eller clockfrekvens — sammenlign, før du bestemmer dig.

Spørgsmål om denne vare

How can I confirm the fanless Intel Core i7-8550U/8565U/8665U system is running correctly after installation?

Power on the unit, verify the Windows 11 Pro desktop appears via the HDMI or VGA output, check Device Manager shows the quad-core processor, 16G DDR4-2400 memory and 240G mSATA SSD, then run a sustained workload to confirm the passive aluminium chassis maintains temperature within the 0°C–70°C operating range without any fan noise.

What accessories are included with the Partaker I3 and what must I source separately?

The box contains the industrial PC, 12V5A power supply, AC power cord, WiFi antennas and warranty card; no display cables, COM-port devices, additional storage drives or mounting hardware are supplied, so obtain HDMI or VGA cables, serial peripherals and any extra 2.5-inch SATA or mSATA media you require.

Which CPU variant — 8550U, 8565U or 8665U — should I select for my application?

The supplier ships one of the three eighth-generation quad-core i7 processors at random; all share the same 15W TDP, DDR4-2400 support and 1000M LAN capability, so no selection is possible and performance differences between the variants are negligible for typical industrial workloads.
