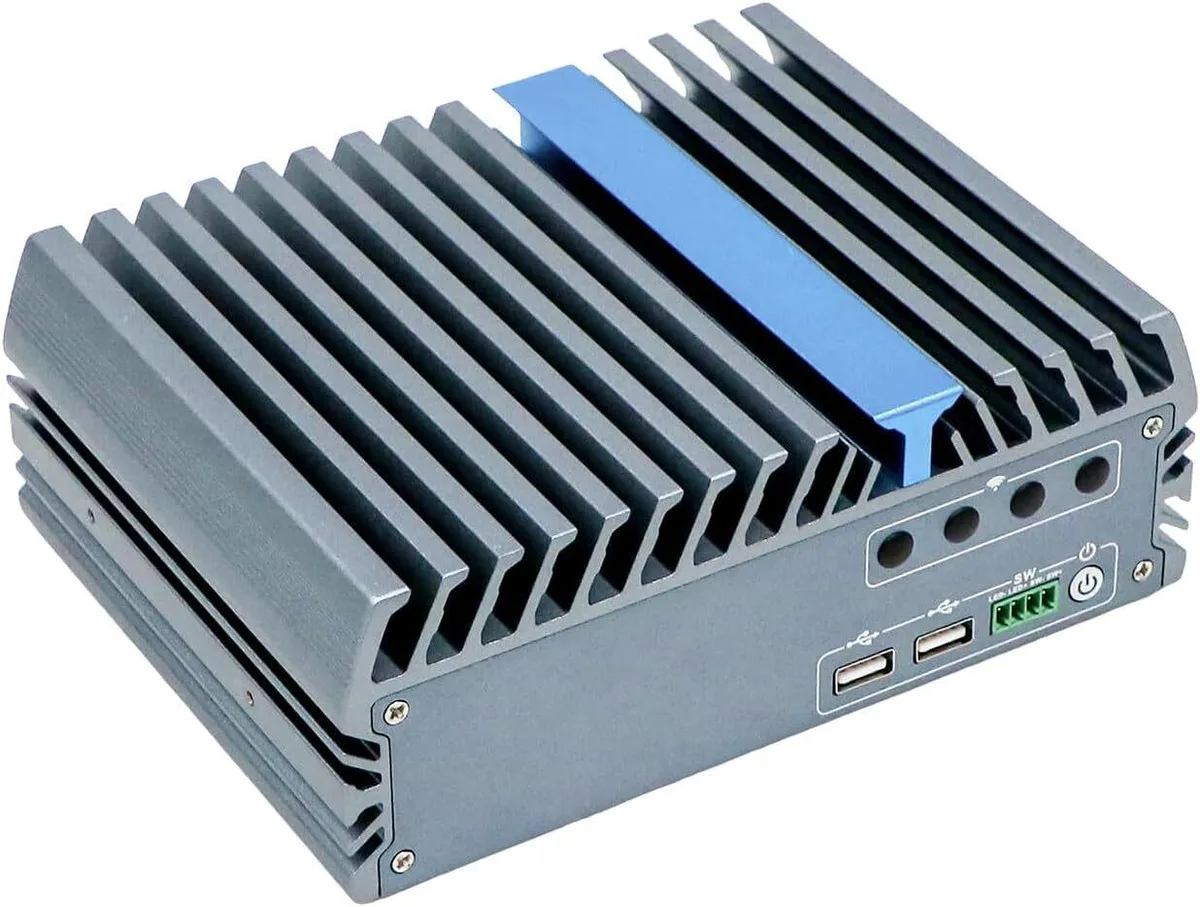

Gray fanless aluminium mini PC, compact rectangular block, front ports and rear terminal visible

partaker

partaker I18 N100 16GB 256GB barebone mini PC

SKU CH-N452-A20N0

Fanless industrial mini PC with Intel N100, 16 GB DDR5, 256 GB SSD, dual 2.5G LAN, six COM ports, isolated GPIO and 12 V Phoenix power for -20 to +50 °C operation

  • ColorGray
  • CPU TypeIntel Processor

I18 CPU N100 16GB RAM / 256GB SSD

  • Silent fanless aluminium chassis runs from -20 °C to +50 °C
  • Quad-core N100 up to 3.4 GHz drives triple 4K displays
  • Dual 2.5G Intel I226-V LAN plus six COM and eight GPIO
  • Two M.2 slots and a 2.5-inch bay for SSD and 4G expansion
  • 12 V Phoenix terminal input with wake-on-LAN, PXE and TPM 2.0

Industrial Fanless Barebone

The Partaker I18 is a new fanless mini-PC barebone built around an Intel N100 quad-core processor that reaches 3.4 GHz. It ships with 16 GB of DDR5 4800 MHz memory and a 256 GB M.2 2280 SSD installed. The sealed aluminium chassis operates silently from -20 °C to 50 °C, making it suited for industrial automation, digital signage and medical equipment where dust or vibration would damage moving parts.

Build Integration

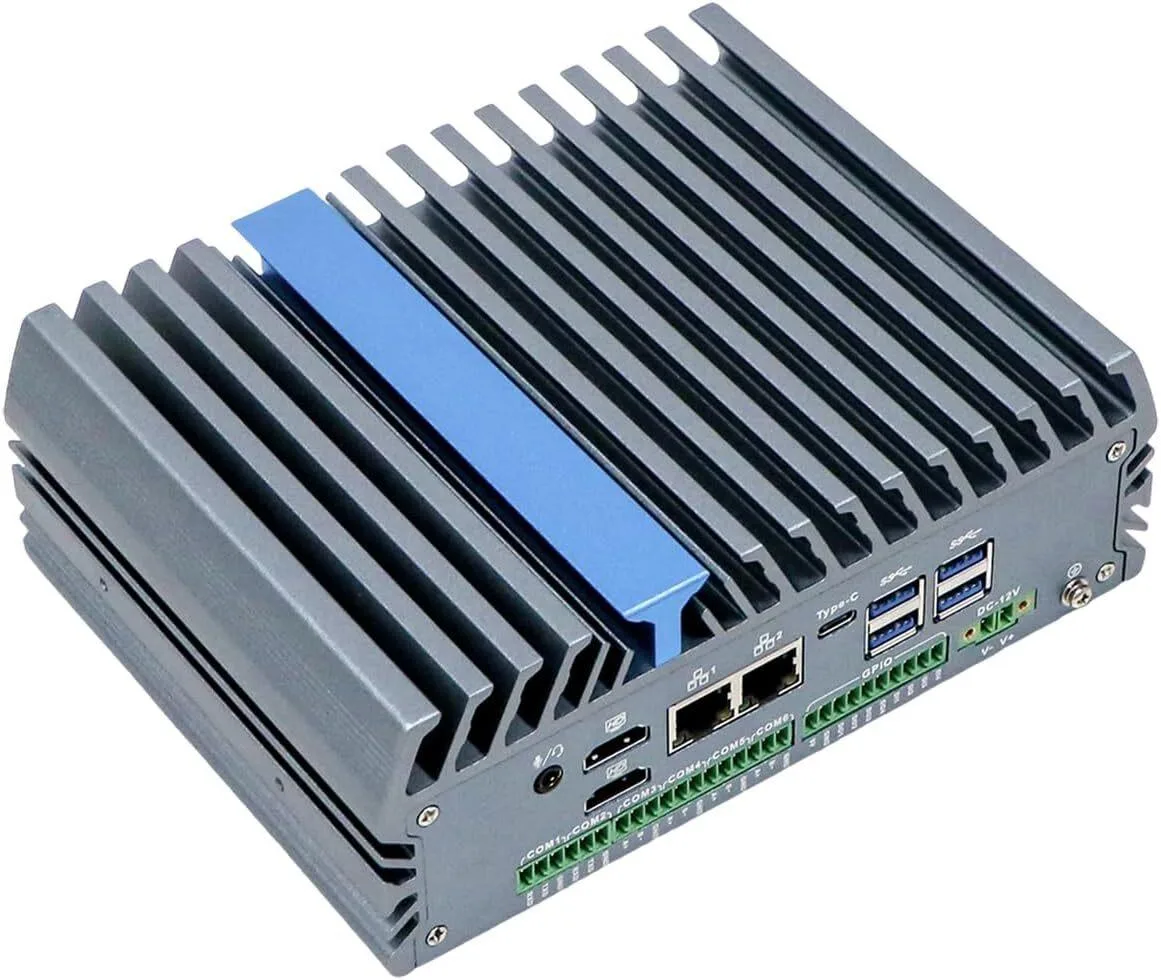

The unit accepts a 12 V DC supply through a 2-pin Phoenix terminal and includes wall-mount brackets as standard with optional DIN-rail clips. Two 2.5 Gb Ethernet ports, four USB 3.2, two USB 2.0, six COM ports and eight opto-isolated GPIO lines connect directly to sensors, PLCs and legacy serial gear without extra adapters. Triple independent 4K 60 Hz outputs via two HDMI and one Type-C simplify multi-display signage rigs.

Capacity and Headroom

The single DDR5 SODIMM slot is already populated at the 16 GB maximum, so memory cannot be expanded further. Storage headroom remains via a second M.2 2280 slot that accepts PCIe or SATA SSDs and a 2.5-inch SATA bay for larger hard drives. An M.2 2230 E-key slot and a full-size Mini PCIe socket with a Nano-SIM tray allow simultaneous Wi-Fi, Bluetooth or 4G modules for wireless redundancy.

Fordele

  • Silent fanless aluminium chassis runs from -20 °C to +50 °C
  • Quad-core N100 up to 3.4 GHz drives triple 4K displays
  • Dual 2.5G Intel I226-V LAN plus six COM and eight GPIO
  • Two M.2 slots and a 2.5-inch bay for SSD and 4G expansion
  • 12 V Phoenix terminal input with wake-on-LAN, PXE and TPM 2.0

Specifikationer

ColorGray
CPU TypeIntel Processor

Andre versioner af denne model

5 flere i samme serie

Samme familie, men med anden hukommelse, køler eller clockfrekvens — sammenlign, før du bestemmer dig.

Spørgsmål om denne vare

What happens when the Intel N100 hits its maximum turbo of 3.4 GHz for long periods?

The fanless aluminium chassis dissipates heat passively, so sustained loads run silently within the rated -20 °C to 50 °C surface-airflow envelope.

How much power does the system draw when it runs 24/7 under load?

Wide-range 12 V DC input through the Phoenix terminal feeds the N100 and all onboard I/O without a fan, keeping consumption low for continuous industrial duty.

Which display cables and storage drives must I supply to start using the unit?

Bring your own HDMI or USB-C cables for up to three 4K 60 Hz screens, plus a 2280 M-key SSD or 2.5-inch SATA drive for the OS and data.
