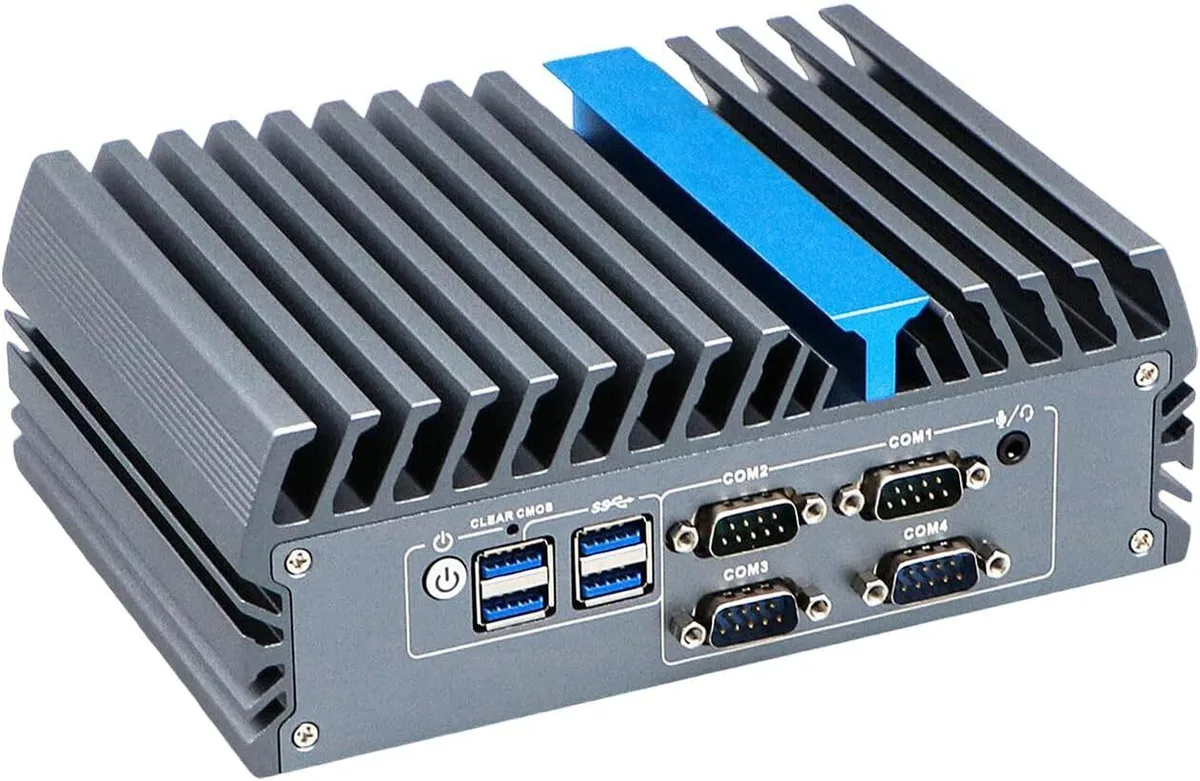

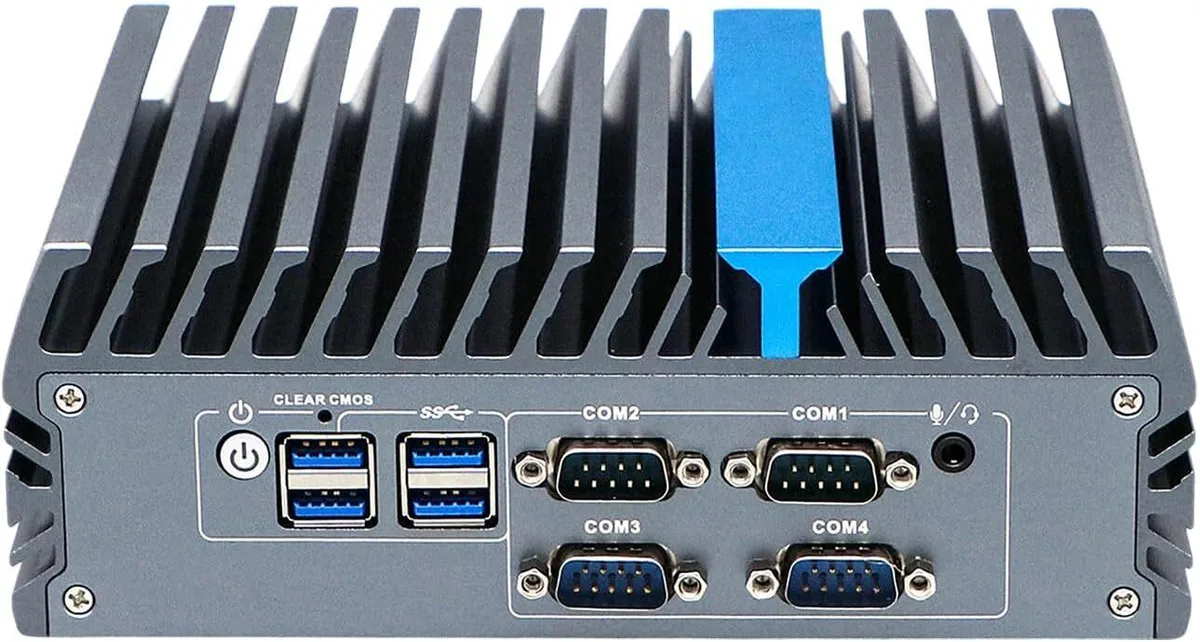

Compact grey aluminium mini PC with fanless cooling design

partaker

Partaker I22 N100 8GB 256GB barebone mini PC

SKU CH-HH25-Q7C8T

Fanless mini PC with Intel N100, 8 GB DDR4, 256 GB SSD, dual LAN, four COM ports and triple 4K display support

  • ColorGray
  • CPU TypeIntel Processor

I22 CPU N100 8GB RAM / 256GB SSD

  • Fanless aluminium chassis runs silently from -20 °C to +50 °C
  • Quad-core N100 processor reaches 3.4 GHz turbo for responsive multitasking
  • Triple 4K display support via dual HDMI and VGA outputs
  • Dual Gigabit LAN plus four COM ports for industrial connectivity
  • Expandable M.2 2280 slot and 2.5-inch bay for storage growth

Industrial barebone for automation

The Partaker I22 is a fanless mini PC built around an Intel N100 processor with four cores reaching 3.4 GHz. It arrives with 8 GB of DDR4 3200 MHz memory and a 256 GB M.2 2280 SSD already installed. The all-aluminium chassis operates silently from -20 °C to +50 °C and supports VESA, wall or DIN-rail mounting. Triple independent displays are driven through two HDMI ports at 3840 x 2160 @ 60 Hz and one VGA port at 1920 x 1080 @ 60 Hz.

Suits embedded and industrial deployments

This unit fits factory automation, medical equipment, logistics terminals and IoT gateways that need dual Gigabit LAN, four COM ports with RS232/485 options, six USB ports and a Mini PCIe slot with Nano SIM for 4G or Wi-Fi. A 2.5-inch SATA bay adds local storage capacity. Buyers who need active cooling, a higher core count or discrete graphics should look at something else.

12 V DC barrel input only

Power is supplied through a single 5.5 x 2.5 mm barrel jack accepting 12 V DC. The platform also provides wake-on-LAN, PXE boot, timing boot, a 0-255 level watchdog timer and TPM 2.0 encryption. Windows 11 and Linux Ubuntu are supported operating systems.

Fordele

  • Fanless aluminium chassis runs silently from -20 °C to +50 °C
  • Quad-core N100 processor reaches 3.4 GHz turbo for responsive multitasking
  • Triple 4K display support via dual HDMI and VGA outputs
  • Dual Gigabit LAN plus four COM ports for industrial connectivity
  • Expandable M.2 2280 slot and 2.5-inch bay for storage growth

Specifikationer

ColorGray
CPU TypeIntel Processor

Andre versioner af denne model

5 flere i samme serie

Samme familie, men med anden hukommelse, køler eller clockfrekvens — sammenlign, før du bestemmer dig.

Spørgsmål om denne vare

How much DDR4 memory can the N100 processor actually address before it becomes the bottleneck?

The installed SODIMM is 8 GB and the controller supports up to 16 GB of DDR4 3200 MHz.

What surface temperature does the all-aluminium chassis reach when the unit runs continuously at the top of its rated range?

The fanless design is rated for ambient temperatures up to 50 °C and relies on surface airflow to dissipate heat.

Which power adapter must I already have to operate the DC 12 V input?

A 12 V supply with a 5.5 mm × 2.5 mm barrel connector is required.
