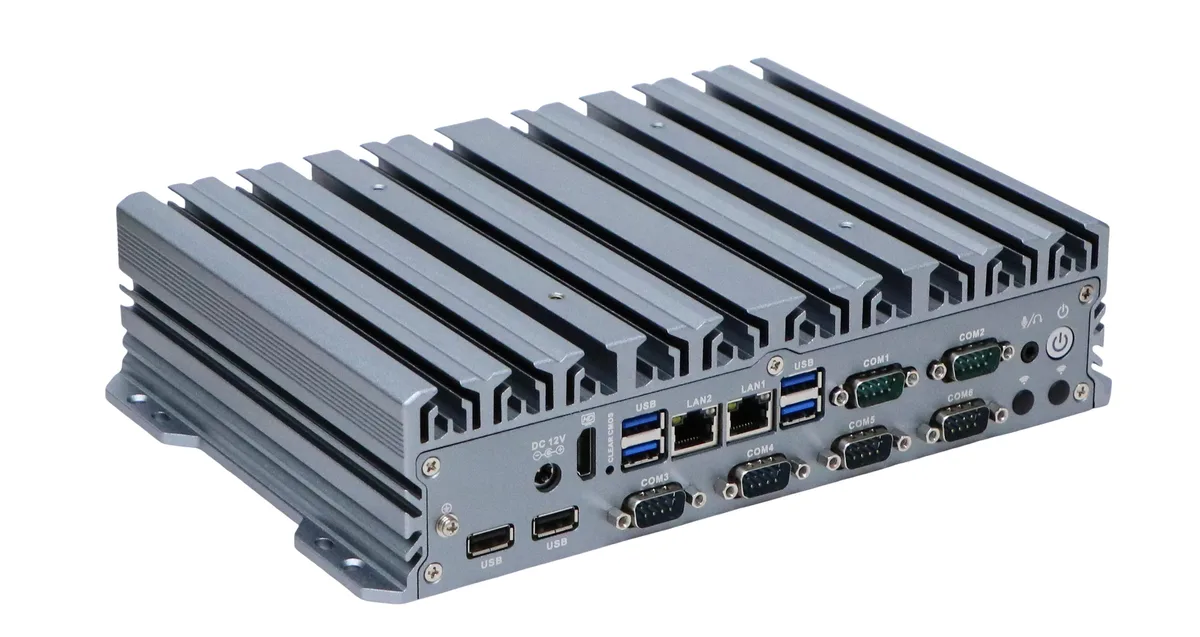

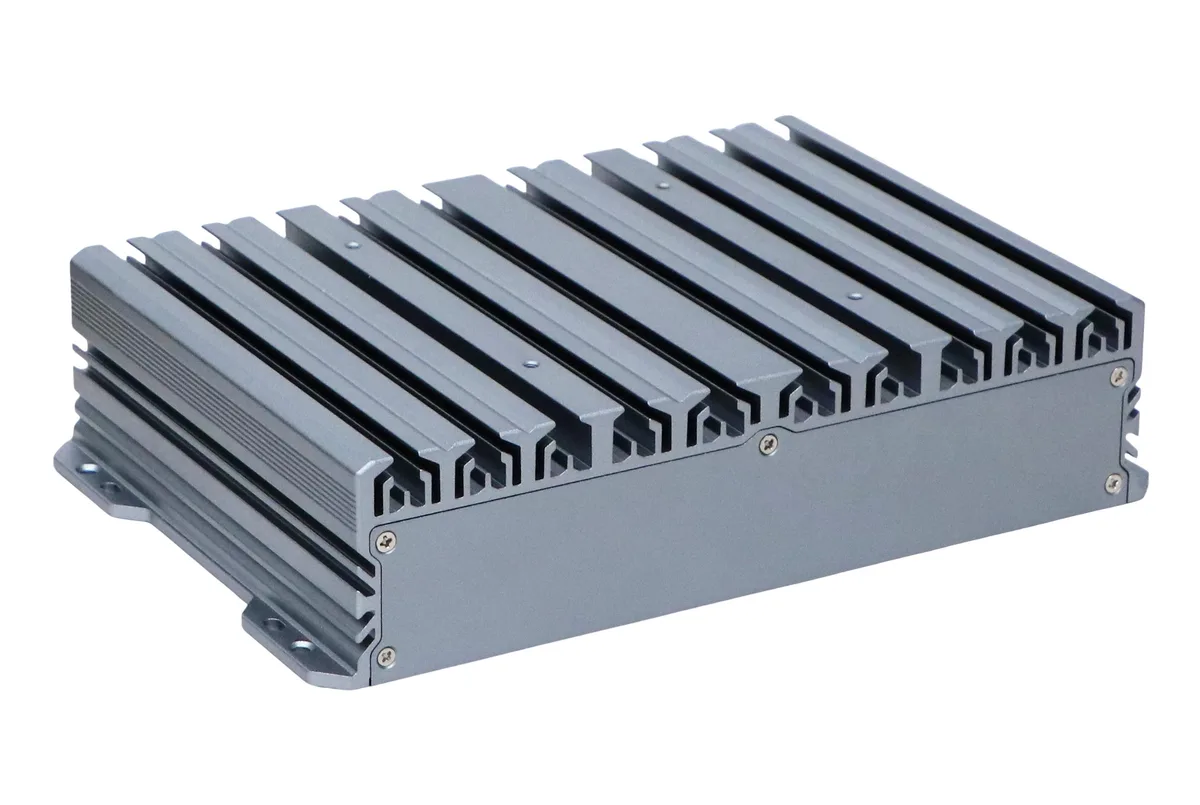

Compact grey aluminium mini PC with fanless finned chassis

partaker

partaker I34 i5-4300U 16G 256G barebone mini PC

SKU CH-C02D-MWH9V

Fanless industrial mini PC with Intel Core i5-4300U, 16GB DDR3, 256GB SSD, dual LAN, six COM ports and wide-temperature aluminium chassis

  • ColorGray
  • CPU TypeIntel Core i5 4th Gen

I34 I5 4300U 16G+256G

  • Fanless aluminium chassis runs silently from -20 to 60 °C
  • Intel Core i5-4300U up to 2.90 GHz handles industrial workloads
  • 16 GB DDR3 and 256 GB SSD provide responsive multitasking
  • Six COM ports plus four USB 3.0 and two USB 2.0 connect legacy and modern gear
  • Dual Gigabit LAN with Wake-on-LAN and PXE enables remote management

Industrial Barebone with i5-4300U

The Partaker I34 is a fanless mini PC built around an Intel Core i5-4300U processor with 16 GB of DDR3 memory and a 256 GB SSD. Its aluminum chassis operates silently from -20 to 60 °C, making it suitable for industrial automation, logistics or medical environments that need reliable edge computing.

Installation notes

Mounting uses the four screw holes on the base; the barebone arrives with RAM and SSD already fitted so only power and I/O cables are required. The DC jack accepts 12 V (9–36 V wide-range optional) and the CLEAR CMOS button helps recover from a bad BIOS setting without opening the case. Two mini-PCIe slots allow Wi-Fi, Bluetooth or 4G modules, but the SIM holder sits on only one slot.

Pre-order checklist

Verify that your sensors or legacy equipment use RS232 or RS485, because the six COM ports are the main serial interface. Confirm the display accepts HDMI, as no other video output is present. Ensure the 12 V supply can deliver enough current for the CPU plus any mini-PCIe radios you plan to add. The 2.5-inch bay takes a SATA drive only; mSATA is the second storage option.

Fordele

  • Fanless aluminium chassis runs silently from -20 to 60 °C
  • Intel Core i5-4300U up to 2.90 GHz handles industrial workloads
  • 16 GB DDR3 and 256 GB SSD provide responsive multitasking
  • Six COM ports plus four USB 3.0 and two USB 2.0 connect legacy and modern gear
  • Dual Gigabit LAN with Wake-on-LAN and PXE enables remote management

Specifikationer

ColorGray
CPU TypeIntel Core i5 4th Gen

Andre versioner af denne model

4 flere i samme serie

Samme familie, men med anden hukommelse, køler eller clockfrekvens — sammenlign, før du bestemmer dig.

Spørgsmål om denne vare

How can I confirm the Partaker I34 is running correctly after first boot?

The system should power on silently, show the BIOS splash screen, then load Windows 10, Windows 11 or Linux Ubuntu from the installed 256 GB SSD while the dual RTL8111H Gigabit ports display link lights and the six COM ports appear in Device Manager.

What ships with the unit and what must I source myself?

The packing list includes the Partaker I34 industrial PC, a 12 V power supply, a power cord and a warranty card; no additional RAM, storage, wireless modules or mounting hardware are included.

Which memory and storage configuration should I choose for this barebone?

This model arrives with 16 GB DDR3 and a 256 GB mSATA SSD already fitted; the second 2.5" SATA bay and the second mini-PCIe slot remain free for extra hard-drive capacity or a Wi-Fi/4G card.
