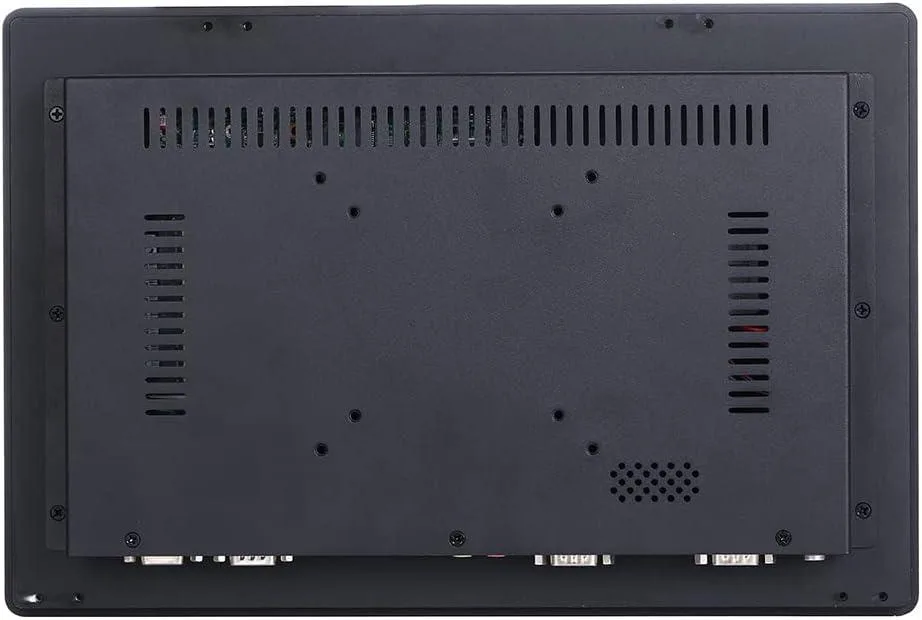

Gray 14-inch industrial all-in-one panel PC with IP65 front and capacitive touchscreen

partaker

Partaker Z10 all-in-one PC 14" IP65 i5-6200U 16GB 256GB

SKU CH-YAZW-KM0VM

14-inch IP65 rugged all-in-one with i5-6200U, 16GB DDR4, 256GB SSD, 10-point capacitive touch, fanless cooling, dual LAN, dual COM, HDMI, VGA, Windows 11 Pro

  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 6th Gen
  • CPU NameIntel Core i5-6200U
  • GPU/VGA TypeIntel HD Graphics 520

CPU Type Intel Core i5 6th Gen

CPU Name Intel Core i5-6200U

Memory Capacity 16GB DDR4

SSD 256GB

HDD None

De overstregede versioner findes, men er ikke på lager her.

  • IP65 front panel resists dust and water jets
  • 10-point capacitive touch handles 200 million touches
  • Fanless aluminium cooling runs silently from 0 to 50 °C
  • 16 GB DDR4 plus 256 GB SSD keep Windows 11 Pro responsive
  • Dual LAN, dual COM, HDMI and VGA connect industrial equipment

Industrial All-in-One Panel PC

The Partaker Z10 is a 14-inch fanless industrial panel PC with an IP65-rated front panel. It targets integrators and operators who need a sealed, touch-driven workstation for continuous duty in dusty or wet environments. The Intel Core i5-6200U and 16GB DDR4 handle HMI, SCADA or edge-gateway workloads without moving parts. Windows 11 Pro ships pre-installed for immediate deployment.

I/O and Expansion Limits

Video output is restricted to HDMI and VGA, so modern DisplayPort or USB-C monitors require adapters. Dual LAN ports provide network redundancy but operate at standard Gigabit speeds. Two USB 3.0 and two USB 2.0 ports limit high-speed peripheral counts. Dual COM ports serve legacy serial devices only. A single Mini PCIe slot with a SIM socket accepts one Wi-Fi or 4G module, preventing simultaneous wireless links.

Decisive Specification

The 1600 x 900 resolution and 200 cd/m² brightness define readability in bright or dim industrial settings. The 10-point projected capacitive touch supports gloved operation up to the rated 200 million touches. Operating temperature spans 0 to 50 °C with the fitted 256GB SSD, while the fanless aluminium chassis demands unobstructed airflow for passive cooling. Buyers needing higher brightness, wider temperature range or a larger display must select a different model.

Fordele

  • IP65 front panel resists dust and water jets
  • 10-point capacitive touch handles 200 million touches
  • Fanless aluminium cooling runs silently from 0 to 50 °C
  • 16 GB DDR4 plus 256 GB SSD keep Windows 11 Pro responsive
  • Dual LAN, dual COM, HDMI and VGA connect industrial equipment

Specifikationer

ModelZ10-I5 6200U-16G256G
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 6th Gen
CPU NameIntel Core i5-6200U
GPU/VGA TypeIntel HD Graphics 520
Memory Capacity16GB DDR4
SSD256GB
HDDNo
Screen Size14"
TouchscreenYes

Andre versioner af denne model

5 flere i samme serie

Samme familie, men med anden hukommelse, køler eller clockfrekvens — sammenlign, før du bestemmer dig.

Spørgsmål om denne vare

Should I choose the 16GB DDR4 and 256GB SSD configuration or look for a different capacity?

This model ships with 16GB DDR4 and a 256GB SSD. The board supports up to 16GB via two SODIMM slots and offers one mSATA plus one 2.5" SATA bay for storage expansion.

What does the i5-6200U with Intel HD Graphics 520 deliver in daily industrial use?

The dual-core 6th Gen i5-6200U and integrated HD Graphics 520 drive the 14" 1600x900 touchscreen and handle HMI, SCADA and light edge workloads without a fan.

Which I/O standards are on the Z10 and what do they limit in practice?

You get HDMI, VGA, two USB 3.0, two USB 2.0, dual LAN, two COM ports, audio in/out and a Mini PCIe slot with SIM for 4G or Wi-Fi; all run at their native USB 3.0, Gigabit and SATA speeds.
