Phanteks
Phanteks MG-F140P_BBK 140mm case fan 1500 RPM 85 CFM 29 dBA
A 140mm PWM case fan delivering 85 CFM airflow at a maximum 29 dBA noise level
- Fan Counts1 Fan
- Fan ControllerNo Controller
- TypeCase Fan
- CompatibilityCase
- Fan Size140mm
- Fan Thickness25mm
- High airflow reaches 85 CFM for effective cooling
- Low noise peaks at 29 dBA for quiet operation
- PWM 4-pin connector enables precise speed control
- Rifle bearing supports durable 1500 RPM performance
- Nine-blade design optimises static pressure and airflow balance
140 mm PWM case fan for quiet builds
The Phanteks MetallicGear Skiron MG-F140P_BBK is a single 140 mm case fan built for systems that need steady airflow without added noise. Its 4-pin PWM connector lets the motherboard adjust speed automatically based on temperature. The black frame and blades suit clean, dark-themed builds. It targets users who want a straightforward cooling upgrade with standard mounting.
Sustained airflow at 1500 RPM with low noise
At full speed the fan spins at 1500 RPM with a tolerance of ten percent and moves 85 CFM of air while producing a maximum of 29 dBA. The nine-blade design is shaped for static pressure so airflow remains consistent when pushing through radiators or restrictive filters. PWM control keeps the curve smooth during long sessions instead of ramping abruptly. The rifle bearing supports continuous operation without the wear seen in simpler sleeve designs.
Rifle bearing and rubber dampeners for stable

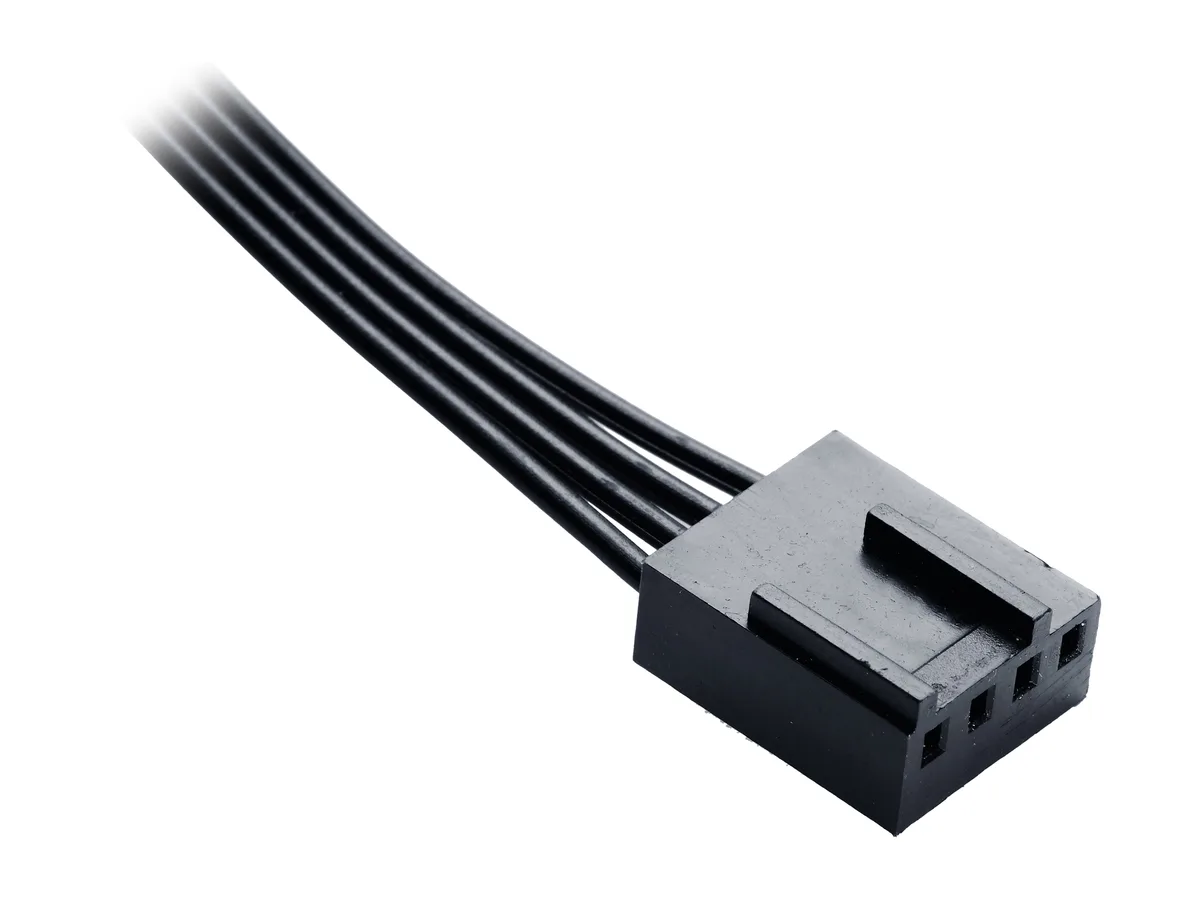

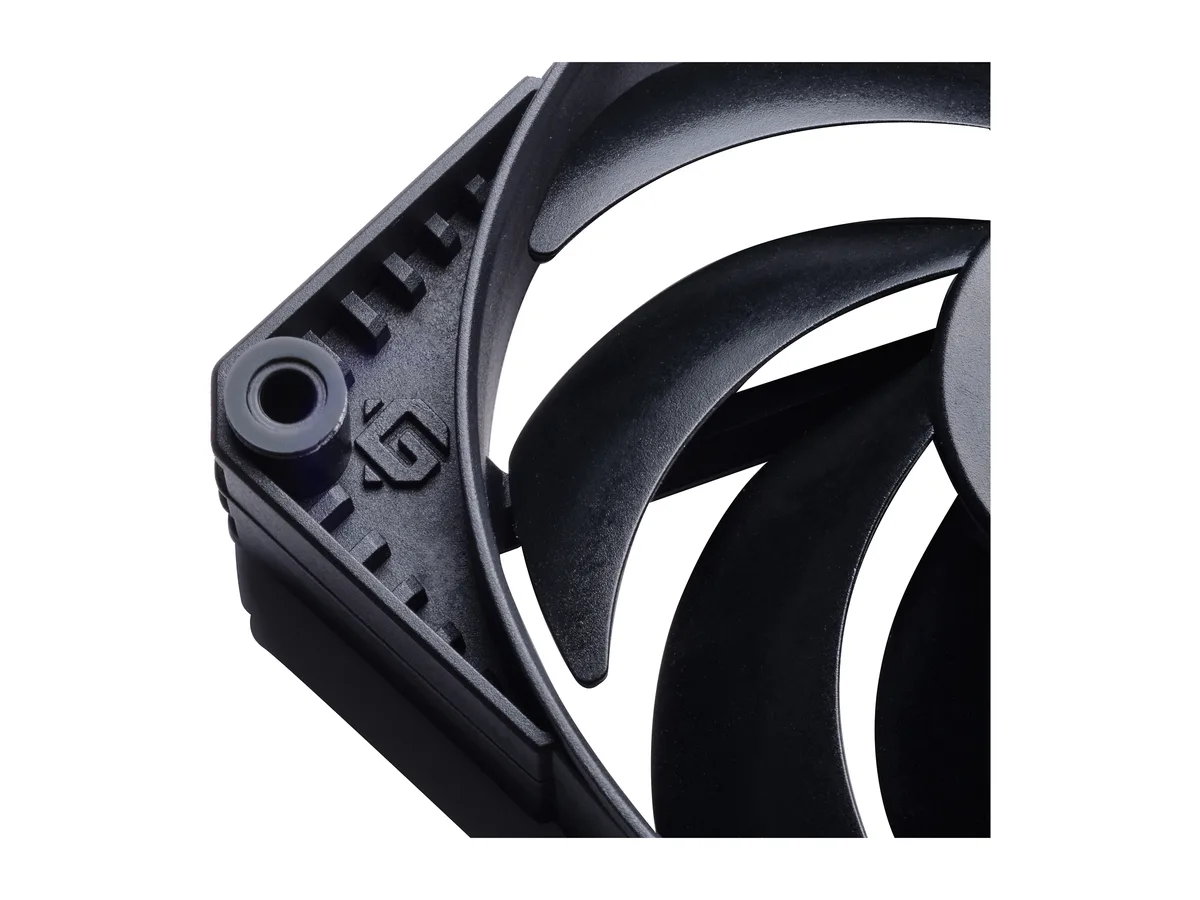

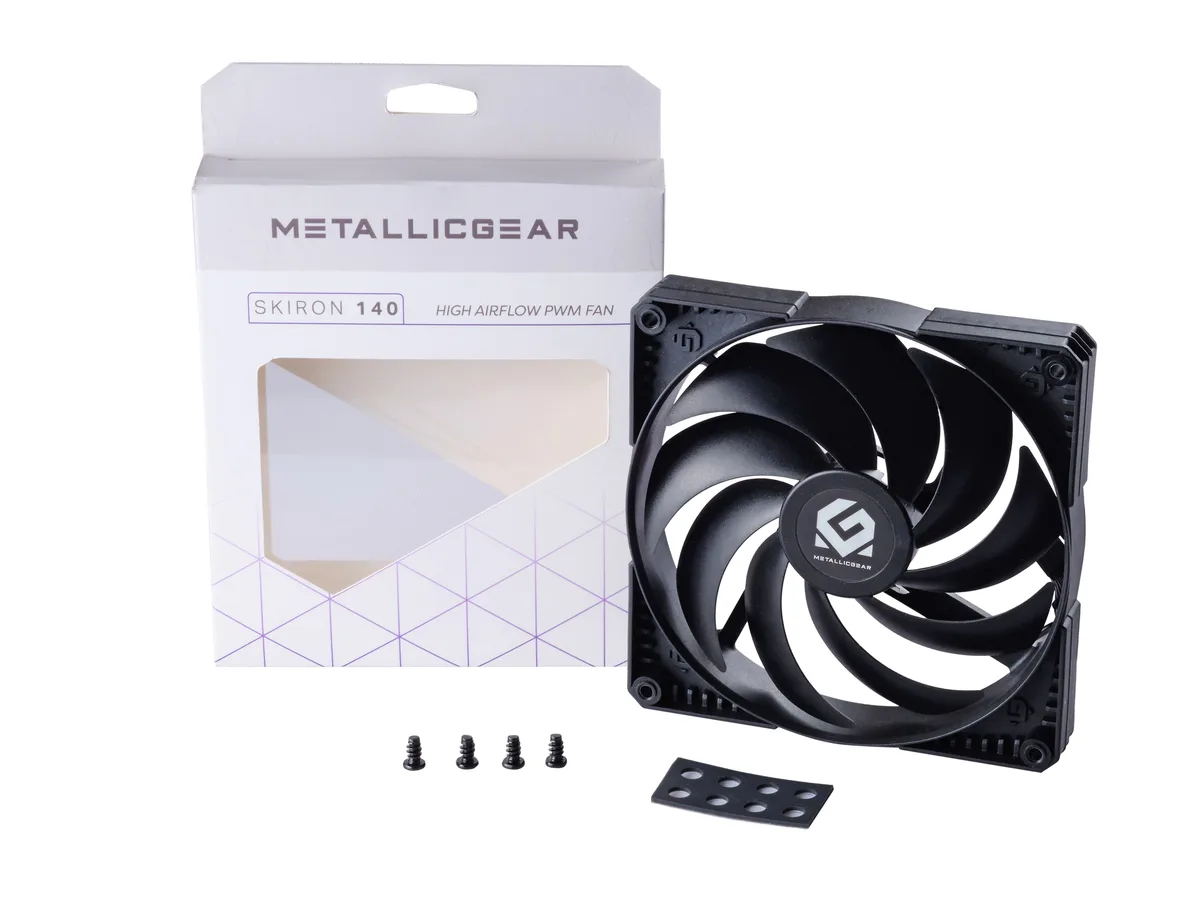

The 25 mm thick frame uses a rifle bearing that reduces friction over time and helps the fan run quietly at lower speeds. Four rubber dampeners are included to decouple the fan from the case and cut vibration transfer. Standard 140 mm screw holes align with common case and radiator mounts so installation is direct. The 4-pin power connector locks securely onto motherboard headers for reliable speed reporting.
Fordele
- High airflow reaches 85 CFM for effective cooling
- Low noise peaks at 29 dBA for quiet operation
- PWM 4-pin connector enables precise speed control
- Rifle bearing supports durable 1500 RPM performance
- Nine-blade design optimises static pressure and airflow balance
Specifikationer
| Brand | MetallicGear |
|---|---|
| Series | Skiron |
| Model | MG-F140P_BBK |
| Fan Counts | 1 Fan |
| Fan Controller | No Controller |
| Type | Case Fan |
| Compatibility | Case |
| Fan Size | 140mm |
| Fan Thickness | 25mm |
| Bearing Type | Rifle Bearing |
| RPM | 1500 RPM +/- 10% |
| Air Flow | 85 CFM |
| Noise Level | 29 dBA (Max) |
| Power Connector | 4 Pin |
| Color | Black |
| Features | The new Metallicgear Skiron Fan is designed to optimized and enhance static pressure for better cooling performance. The nine blades design is highly efficient in producing optimal air pressure and balanced airflow. The Skiron’s frame geometry helps improve the performance of the fan and the included dampening washers help reduces vibration. |
| Dimensions | 140.00 x 140.00 x 25.00 mm |
| Forsendelsesvægt | 0.19 kg |
| Pakkestørrelse | 165 × 142 × 25 mm |
Spørgsmål om denne vare
At 1500 RPM and 29 dBA maximum, how noticeable is the noise during continuous all-day operation?
The fan reaches a maximum of 29 dBA at full speed, and the included rubber dampeners plus rigid frame are designed to suppress vibration for quieter long-term running.
Does the 4-pin PWM connector require a motherboard header or a separate controller to function?
It uses a standard 4-pin PWM connector, so a motherboard fan header or compatible PWM hub is needed for automatic speed control; the fan itself has no built-in controller.
Can the 140 mm frame with 25 mm thickness be mounted in cases that only have 140 mm mounting points?
The fan measures 140 mm by 140 mm by 25 mm, matching the standard 140 mm mounting pattern used by many cases.
