Black 21.5 inch all-in-one PC with capacitive touchscreen

RAYPODO

RAYPODO 21.5" RK3568 Black 2GB+16GB Android 11 All-in-One PC

SKU CH-V63W-Q125N

21.5-inch Android 11 all-in-one with 10-point capacitive touch, RK3568 quad-core CPU, 2 GB LPDDR4X memory, 16 GB eMMC storage, PoE and Gigabit Ethernet

  • Screen Size21.5"
  • Screen Resolution1920*1080
  • TouchscreenYes
  • Screen Type10-Point capacitive touch, LCD IPS panel
  • Display Feature21.5" 1920*1080 IPS, 10-Point capacitive touch, Normally bla
  • CPU NameRK3568

model RK3568

memory 2GB+16GB

  • 5-inch 1920×1080 IPS display gives clear visuals at 250 cd/m²
  • 10-point capacitive touchscreen enables precise multi-user interaction
  • RK3568 quad-core Cortex-A55 up to 2.0 GHz runs Android 11 smoothly
  • POE and Gigabit Ethernet provide reliable power and network over one cable
  • 2 GB LPDDR4X plus 16 GB eMMC storage built for 24/7 commercial signage

Commercial All-in-One PC

The RAYPODO 21.5-inch all-in-one PC runs Android 11 on an RK3568 quad-core Cortex-A55 processor clocked up to 2.0 GHz. It is built for indoor digital signage, interactive kiosks and commercial displays where a wall-mounted, PoE-powered touchscreen is required. The unit has no battery and is not a consumer tablet.

Memory and Storage Headroom

2 GB of LPDDR4X or LPDDR4 memory and 16 GB of eMMC storage handle the operating system, signage apps and cached media for typical display loops. Heavy multitasking, large local video libraries or demanding 3D content will exceed the available RAM and flash capacity.

Thermals, Noise and Power

Passive cooling keeps the system silent during continuous 24/7 operation. Power is delivered through the 100/1000 M Ethernet port using PoE, removing the need for a separate mains adapter and reducing cable clutter in commercial installations.

Fordele

  • 5-inch 1920×1080 IPS display gives clear visuals at 250 cd/m²
  • 10-point capacitive touchscreen enables precise multi-user interaction
  • RK3568 quad-core Cortex-A55 up to 2.0 GHz runs Android 11 smoothly
  • POE and Gigabit Ethernet provide reliable power and network over one cable
  • 2 GB LPDDR4X plus 16 GB eMMC storage built for 24/7 commercial signage

Specifikationer

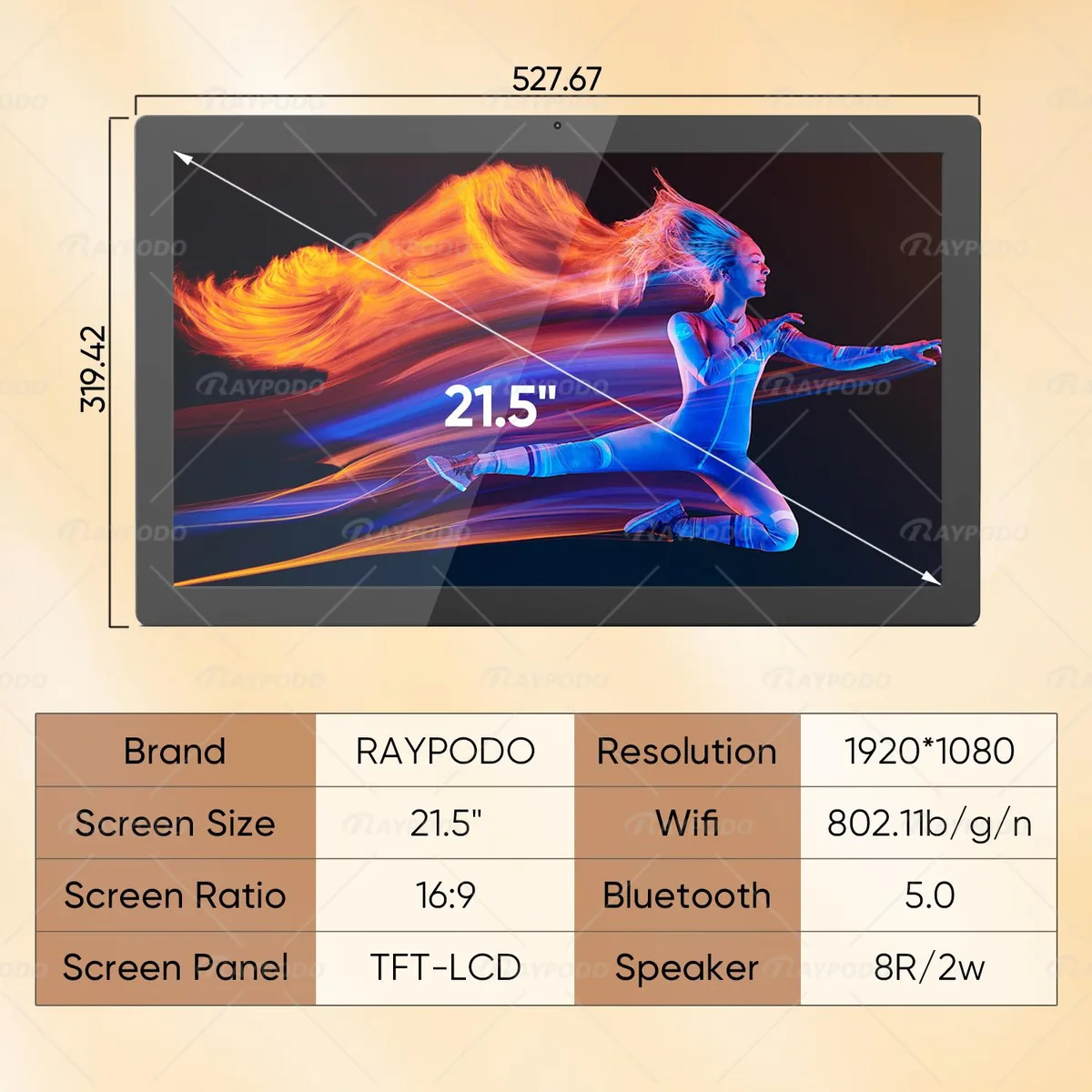

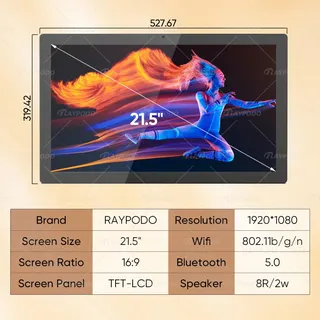

Screen Size21.5"
Screen Resolution1920*1080
TouchscreenYes
Screen Type10-Point capacitive touch, LCD IPS panel
Display Feature21.5" 1920*1080 IPS, 10-Point capacitive touch, Normally black, 250cd/m2, 16:9
CPU NameRK3568
CPU TypeQuad-core Cortex-A55 up to 2.0GHz
CPU Main FeaturesRK3568 Quad-core Cortex-A55 up to 2.0GHz
Memory Capacity2GB
Form FactorAll-in-One
Memory Spec2GB LPDDR4X/LPDDR4
SSD16GB EMMC
HDD16GB EMMC
Storage Spec2GB+16GB
GPU/VGA TypeMali-G52-2EE
Graphics CardMali-G52-2EE
Graphics InterfaceMali-G52-2EE
WLAN802.11b/g/n
ModemWiFi 802.11b/g/n, Bluetooth 5.0
LAN Speed100M/1000M
BluetoothBluetooth 5.0
BrandRaypodo

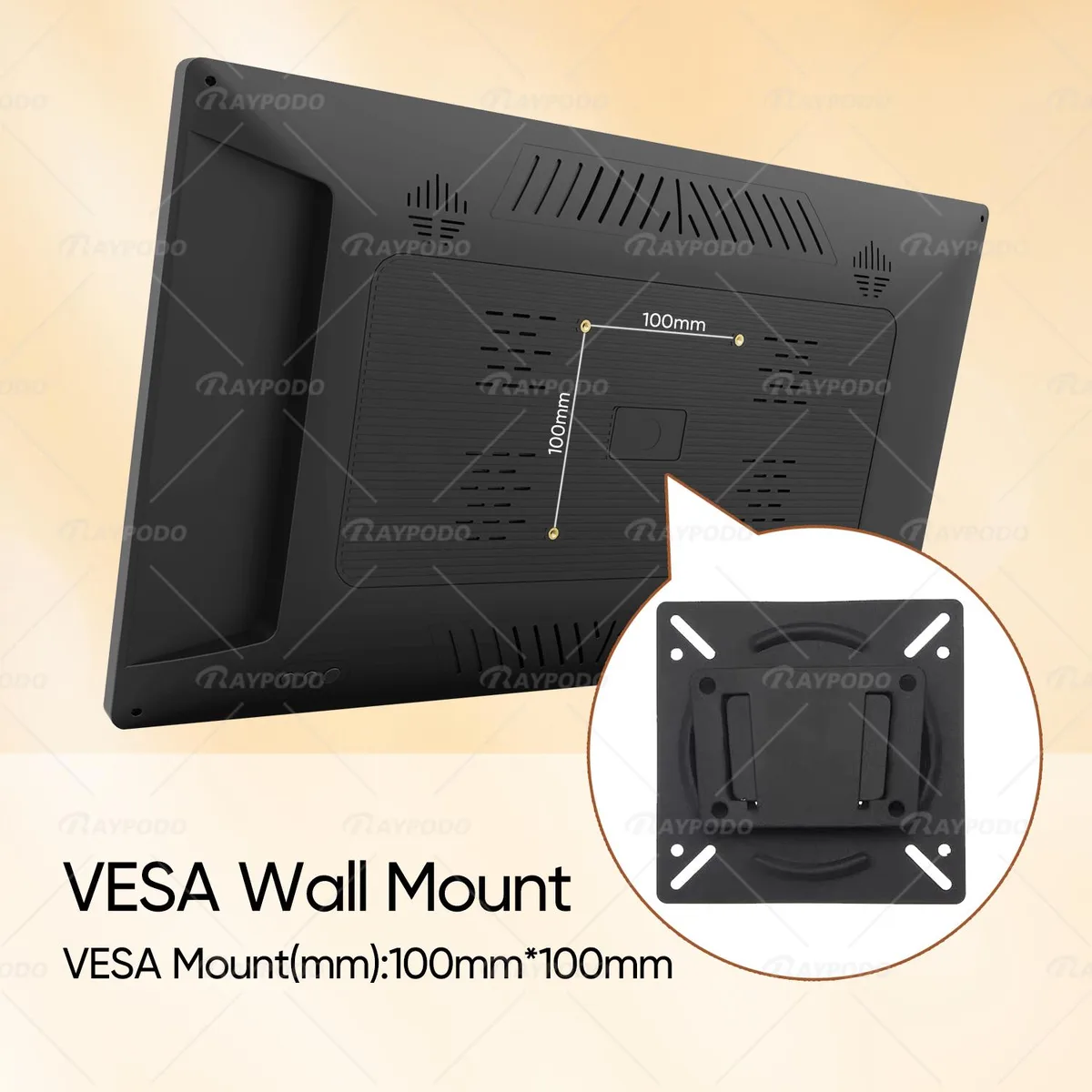

TypeWall-mounted All in one PC, POE Tablet
UsageDigital Signage, Indoor Displays, Wall-mounted
ColorBlack
ProcessorRK3568
Processor Main FeaturesQuad-core Cortex-A55 up to 2.0GHz, Support 1T NPU
Memory2GB LPDDR4X/LPDDR4
Storage16GB EMMC
GraphicsMali-G52-2EE
Ethernet100M/1000M Ethernet, RJ45 with POE
Wireless Card802.11b/g/n WiFi, Bluetooth 5.0
Monitor21.5" LCD IPS panel
Speaker2*8Ω 2W
Software IncludedAndroid 11
Special FeaturesPOE, Touchscreen, Android 11, All in one PC, Wall-mounted, Digital signage/Indoor displays
Cosmetic ConditionBlack
ChipsetRK3568
Audio Channels2 channels
Audio FeaturesSupports MP3/WMA/AAC etc. audio format
Front USB2
Card ReaderTF card (Max Support 128GB)
Video PortsHD-MI output
Rear USB2 x USB ports
RJ45RJ45 with POE
PC Card SlotTF card (Max Support 128GB)
WebcamFront Camera 2.0 M/P
Speaker Configuration2*8Ω 2W
Consumer AlertNot include a battery, Not Consumer Tablet

Andre versioner af denne model

5 flere i samme serie

Samme familie, men med anden hukommelse, køler eller clockfrekvens — sammenlign, før du bestemmer dig.

Spørgsmål om denne vare

Will the RK3568 quad-core Cortex-A55 processor run my existing Android 11 signage apps without changes?

The RK3568 quad-core Cortex-A55 up to 2.0GHz runs Android 11, so apps built for that OS version and ARM architecture should execute without modification.

How can I confirm the 10-point capacitive touchscreen and Mali-G52-2EE graphics are working after mounting?

Open a multi-touch test app to verify all 10 touch points register, then play a 1920*1080 video to confirm the Mali-G52-2EE GPU renders smoothly on the 21.5" IPS panel.

Does the box include a PoE injector for the RJ45 port, or must I buy one separately?

The unit is a PoE-powered all-in-one PC without a battery; a PoE injector or PoE switch is not included and must be purchased separately to deliver power over the Ethernet cable.
