SunnyStar Co., Ltd
SunnyStar Co., Ltd SHBC0412SH 40x10mm 12V 0.11A 2-pin case fan
A 40 mm sleeve-bearing case fan running at up to 1600 RPM with 15–20 dBA noise on a 12 V two-pin connector
- TypeCase Fan
- Bearing TypeSleeve bearing
- RPM<1600 RPM
- Noise Level15 - 20 dBA
- Power Connector2 Pin
- ColorBlack
- Compact 40 mm frame fits tight router and switch bays
- 12 V 0.11 A draw keeps power load low
- Sleeve bearing runs at 15 to 20 dBA for quiet operation
- 1600 RPM maximum speed delivers steady airflow
- Simple 2-pin connector enables quick installation
Compact 40 mm 12 V case fan

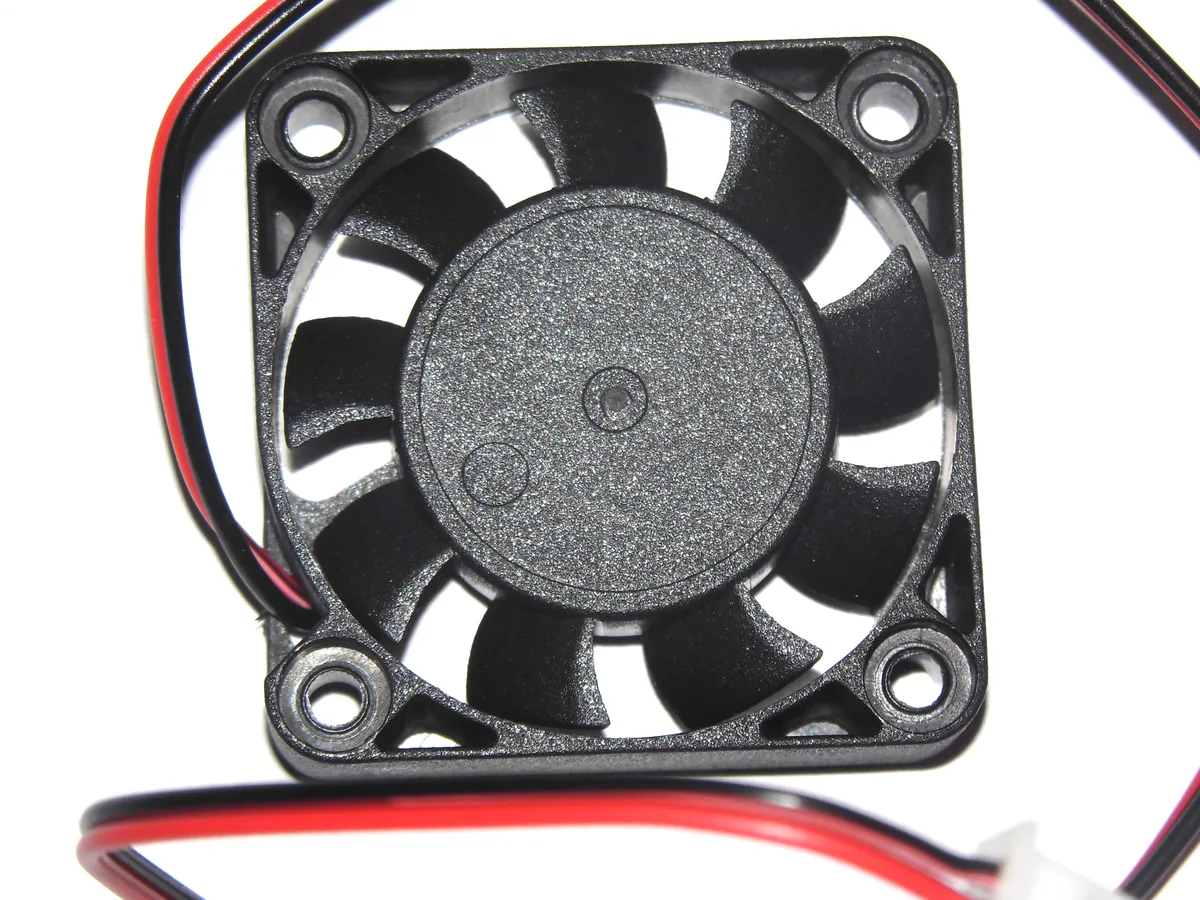

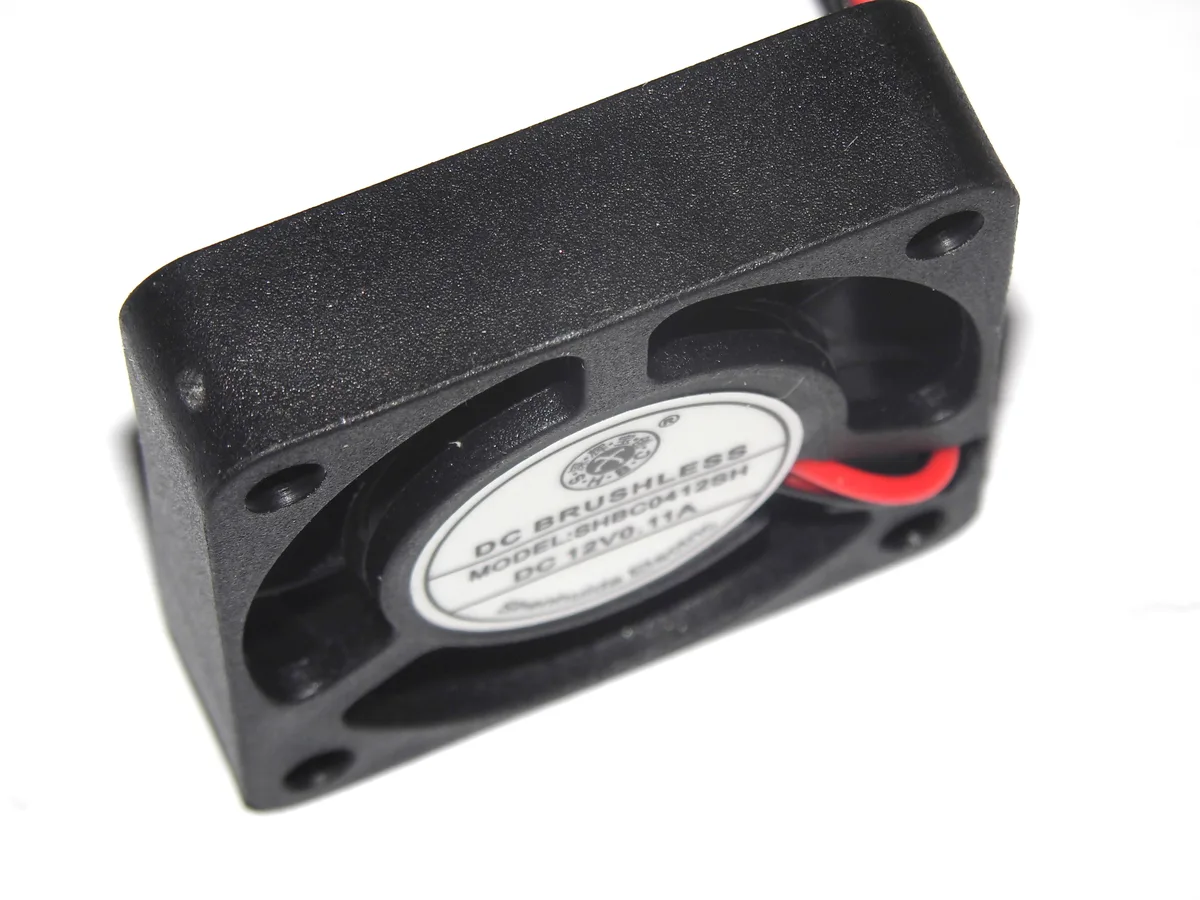

The SunnyStar SHBC0412SH is a 40 mm square case fan designed for tight spaces such as small-form-factor PCs, routers or network switches. It runs on a 12 V supply and draws 0.11 A through a two-pin power connector. The sleeve bearing keeps the acoustic profile low for noise-sensitive builds.
Sleeve bearing limits at low RPM
The sleeve bearing and sub-1600 RPM ceiling mean airflow is modest and suited to spot cooling rather than high-static-pressure radiators. Noise stays between 15 and 20 dBA, but the bearing type can develop wear faster than ball or fluid-dynamic alternatives if the fan is mounted horizontally or run continuously at elevated temperatures.
Verify voltage, connector and clearance
Confirm the target device supplies 12 V on a two-pin header; the fan has no PWM lead for speed control. Measure the mounting holes — 40 mm centre-to-centre — and ensure 10 mm depth fits inside the chassis or router enclosure. The black frame carries no LEDs, so it suits stealthy or industrial aesthetics.
Fordele
- Compact 40 mm frame fits tight router and switch bays
- 12 V 0.11 A draw keeps power load low
- Sleeve bearing runs at 15 to 20 dBA for quiet operation
- 1600 RPM maximum speed delivers steady airflow
- Simple 2-pin connector enables quick installation
Specifikationer
| Series | SHBC0412SH |
|---|---|
| Model | SHBC0412SH |
| Type | Case Fan |
| Bearing Type | Sleeve bearing |
| RPM | <1600 RPM |
| Noise Level | 15 - 20 dBA |
| Power Connector | 2 Pin |
| Color | Black |
| LED | Non-LED |
| Features | DC square Cooler |
| Dimensions | 40*40*10mm |
Spørgsmål om denne vare
Which bearing type suits a quiet 40 mm build?
The sleeve bearing keeps noise between 15 and 20 dBA at speeds below 1600 RPM.
What airflow can I expect from the 12 V 0.11 A motor?
At under 1600 RPM the fan moves enough air for tight router, switch or CPU cooler spots.
Will the 2-pin connector limit speed control on my board?
The 2-pin DC plug runs at fixed 12 V; PWM control is not supported.
